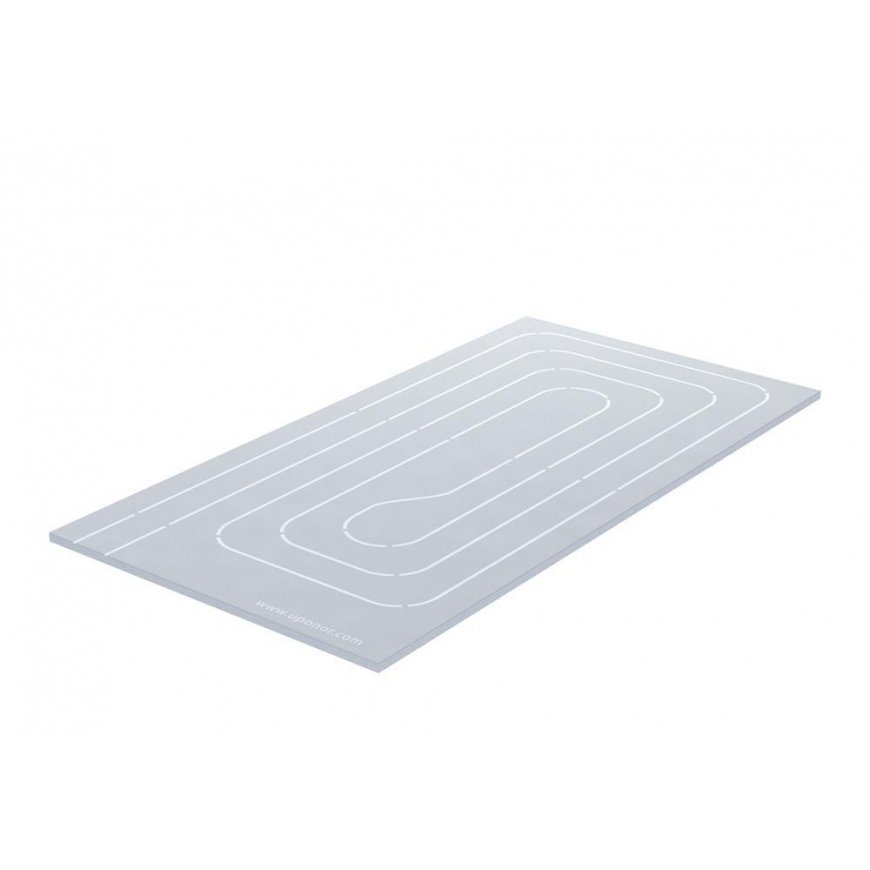

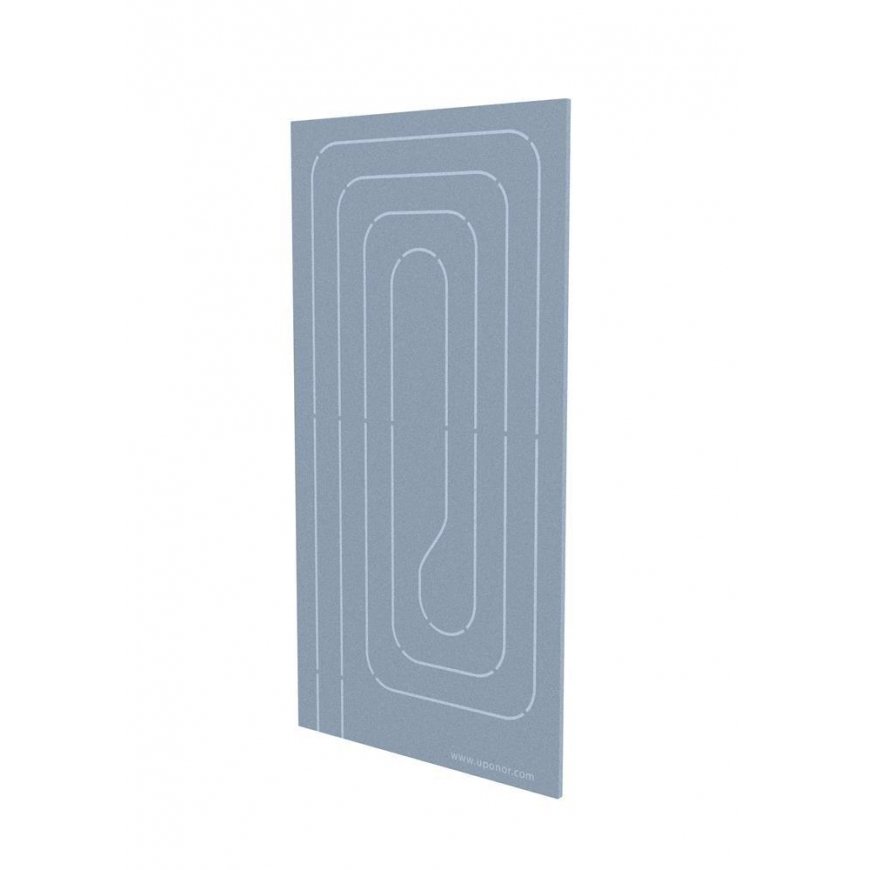

Active dry-type panel Uponor Renovis, 2000x625 mm (price for 1 piece)

A dry-fit wall system for renovation projects aiming to improve energy efficiency

Uponor Renovis for dry walls consists of 15 mm cardboard panels pre-installed with high-quality Uponor PE-Xa pipes. The elements can be installed as drywall cardboard panels on almost any type of wall using the substructure of commercial 27 / 60 CD profiles. This means that there will be no need for complex demolition work. In addition, existing features can be quickly updated without interrupting their use. Once the joints are filled and sanded, the Uponor Renovis elements can be easily installed straight away.

In addition, Uponor Renovis offers the option of heating individual rooms using a surface heating system integrated into an existing high-temperature system with radiators. There is no need to change the existing heating system - it can be adapted to the individual needs of the user. Therefore, when renovating individual rooms, costs are reduced and you can choose the desired interior. The system can be connected using a simple Tichelmann distribution device, making it easier for installers to position, adjust and install the heating circuits.

Uponor Renovis can also be installed as a ceiling cooling system.

Description:

• Renovis billet heating and cooling systems, with built-in pipes 9.9 mm
• It is laid with fiber-reinforced gypsum panel 15 mm
• EN 13501-1 flammability class E
• Intended for installation in established dry construction type underground structures

Application:

• Radiant heating and cooling of walls and ceilings
• For dry installation
• Gypsum board with built-in pipe
• For shaping the active surface of the Renovis system
• Thermal conductivity: 0.3 W/mK
