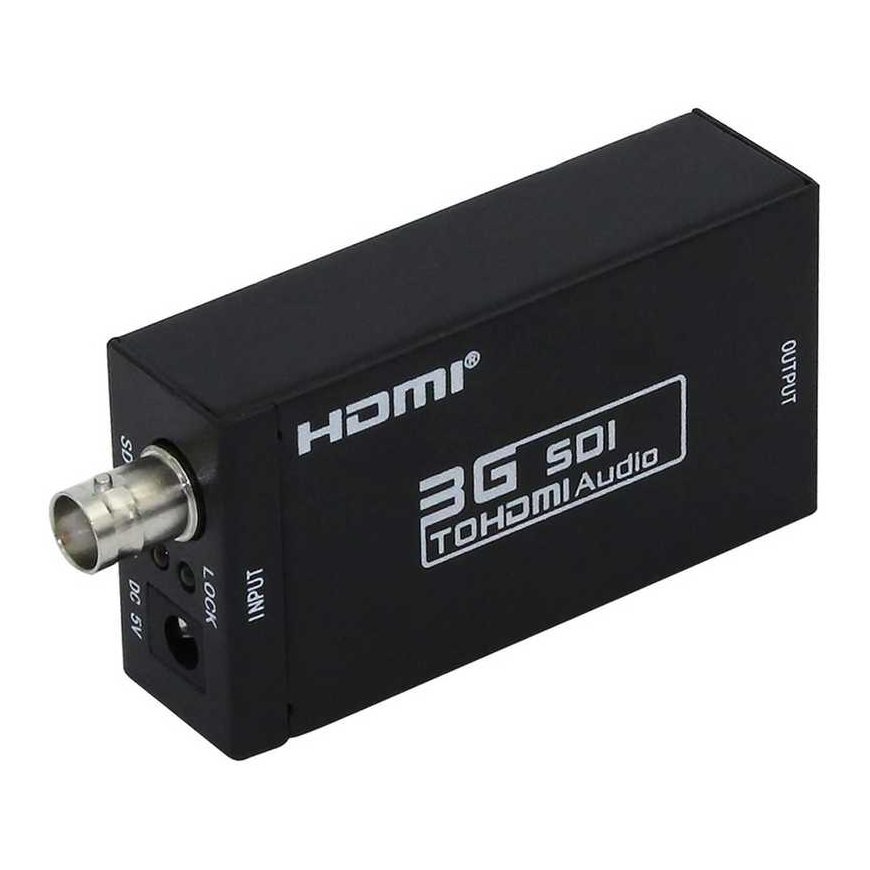

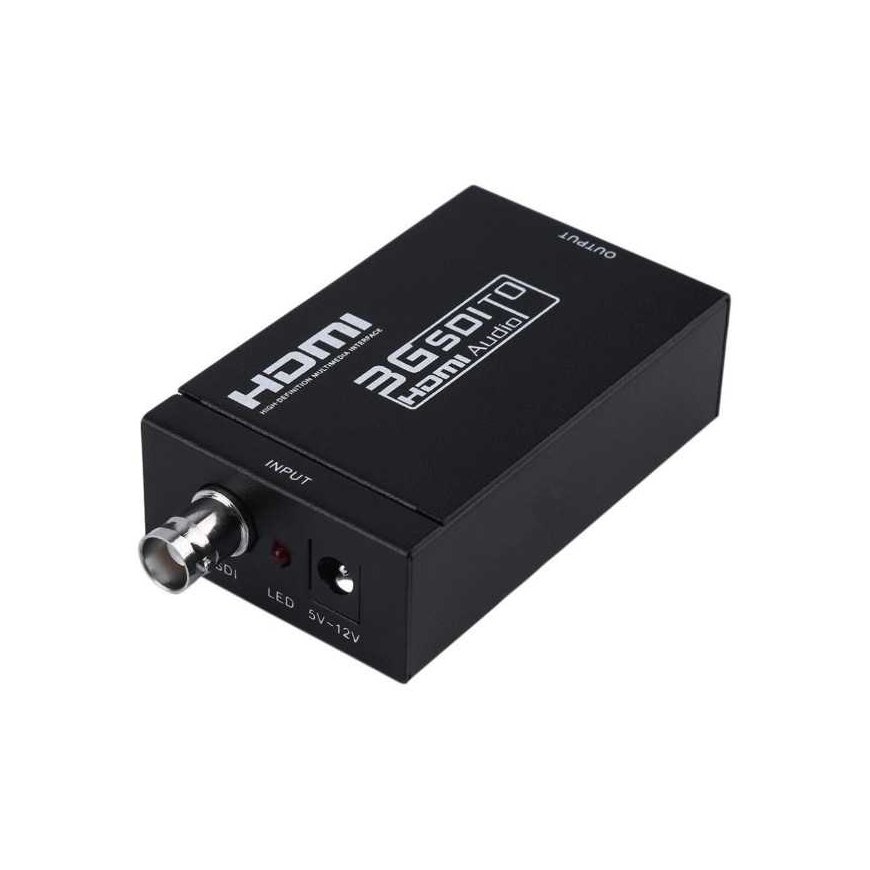

Spacetronik SPH-SDI3GI 3G HD SDI to HDMI converter
39.02 €
Мес. плата от 1,90 €
2739271 5903031017489
Доставка 8-11 р.д.
Вас заинтересовал этот товар?
Все о продукте
The converter is designed to process the 3G SDI video signal. It converts the input SDI signal to HDMI, so computer users can display the image not only on the computer monitor, but also on the TV, which allows the image to be displayed in a higher definition. The conversion of the SDI input signal to the HDMI output is lossless.
The converter offers ideal solutions for security systems, HDTV, STB, DVD and projectors. It is used in installations in public places, data management centers, information management systems, conference halls, multimedia presentations, schools, training centers.
Items on the device
1. SDI input
2. SDI source connection indicator
3. Power outlet
4. Power connection indicator
5. HDMI output
Key Features:
- ease of use: installation takes seconds and requires no additional adjustments.
- converts 3G SDI signal to HDMI
- Compatible with HDCP
Technical data
Items on the device
1. SDI input
2. SDI source connection indicator
3. Power outlet
4. Power connection indicator
5. HDMI output
Key Features:
- ease of use: installation takes seconds and requires no additional adjustments.
- converts 3G SDI signal to HDMI
- Compatible with HDCP
Technical data
- Input interface: 1 x BNC (SDI / HD-SDI / 3G-SDI), 1 x DC 5V-12V
- Output interface: 1 x HDMI
- Miniature design is easy to carry for engineering
- Supports wide input voltage range from 5V to 12V.
- Industry standard design, 365 x 24 hours continuous operation
- Operates at 2.970 Gbps, 1.485 Gbps and 270 Mbps
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Equalized and delayed loop output Integrated audio extractor up to 8 channels, 48 kHz audio
– Convert SMPTE 425M Level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect to other devices to extend the signal over long distances
- Input/output resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60
- Power supply: DC 5V/1A (supports wide input voltage range 5V-12V)
- Dimensions: 80mm x 41mm x 25mm
- Weight: 108g
- Output interface: 1 x HDMI
- Miniature design is easy to carry for engineering
- Supports wide input voltage range from 5V to 12V.
- Industry standard design, 365 x 24 hours continuous operation
- Operates at 2.970 Gbps, 1.485 Gbps and 270 Mbps
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Equalized and delayed loop output Integrated audio extractor up to 8 channels, 48 kHz audio
– Convert SMPTE 425M Level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect to other devices to extend the signal over long distances
- Input/output resolution: 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60, [email protected]/24/25/29.97/30/50/59.94/60
- Power supply: DC 5V/1A (supports wide input voltage range 5V-12V)
- Dimensions: 80mm x 41mm x 25mm
- Weight: 108g
