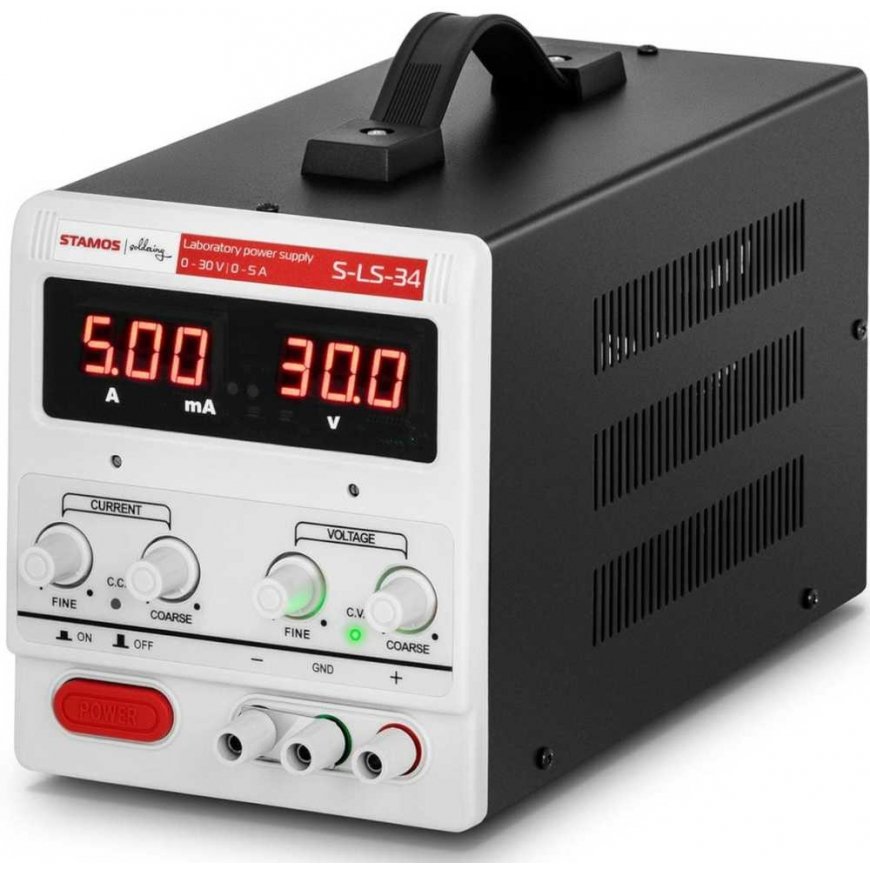

Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W

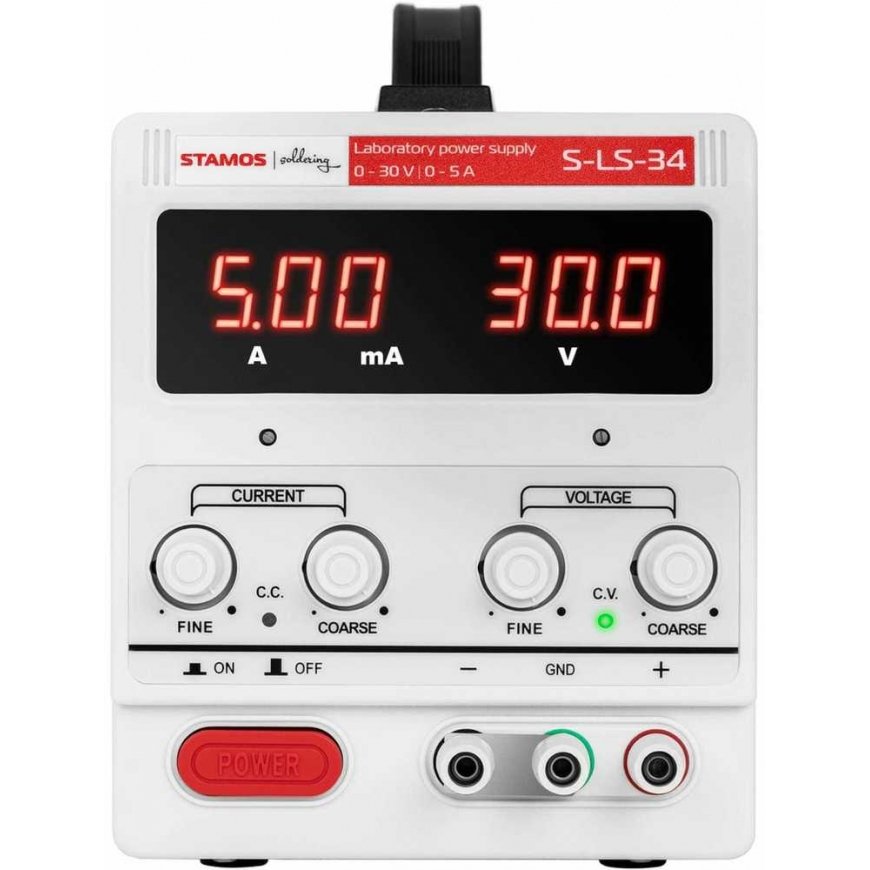

Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W – 2

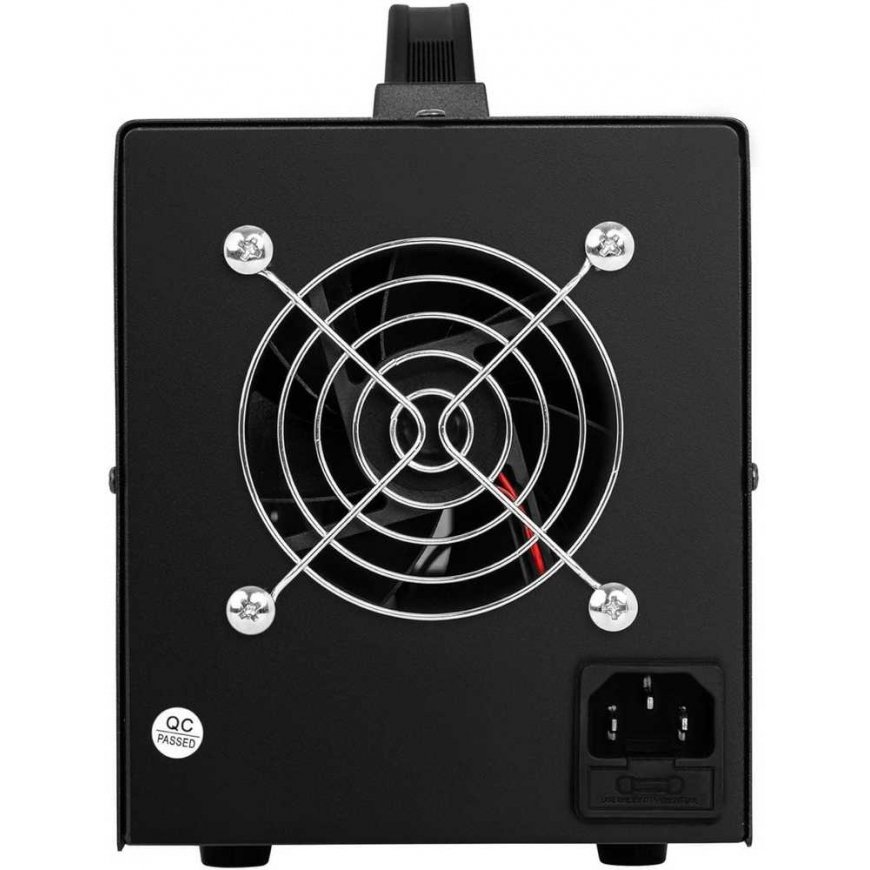

Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W – 3

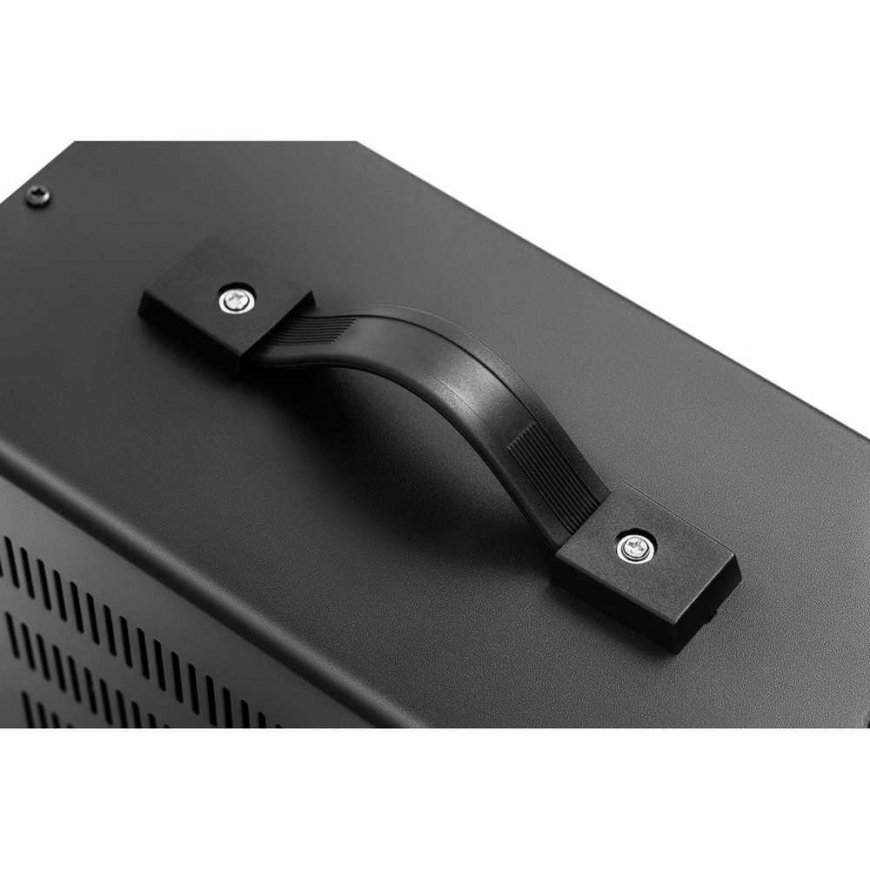

Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W – 4
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W
Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W

Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

Stamos Soldering Laboratory service power supply 0-30 V 0-5 A DC 205 W

88.99 €
Мес. плата от 3,19 €
2468322

10021064

4250928680150

Доставка 6-10 р.д.

Вас заинтересовал этот товар?
(Прочитать условия обслуживания)

Все о продукте

Manufacturer code: 10021064

The Stamos Soldering laboratory power supply will work well in manufacturing plants, offices, laboratories, workshops and the telecommunications industry. A device is used to convert alternating current of a certain voltage into direct current electricity and supply it to electronic peripherals. The power supply has a channel with a positive and a negative output. The equipment accurately generates current with low ripple ≤10% RMS and low noise, which prevents circuit damage. Its voltage is up to 30 V and the output current is up to 5 A. A clear LED display allows you to check the current and voltage values. Parameters are adjusted with knobs. The equipment allows you to work in two modes: CV (constant output voltage) and CC (constant load current). It has an overheat protection function for safety. The fan turns on automatically when the supply temperature exceeds 40°C and turns off automatically when it drops to 35°C. Over-voltage and over-current protection systems reduce the risk of failure. Low weight and compact size make the device easy to transport. The rubber feet prevent slipping and do not scratch the work surface.

Product features:
  • - Voltage up to 30 V and current up to 5 A,
  • - Settings adjustment knobs,
  • - Transparent LED screen,
  • - Protection against over voltage, current and overheating.

Technical parameters:
  • - Catalog number - 10021064
  • - Product condition - New
  • - Model - S-LS-34
  • - Connector [mm] - Output sockets, mains socket, grounding output terminal
  • - Cooling - Fan, temperature regulator
  • - Current adjustment range [A] - N/A
  • - Current indication [mA] - 000-999
  • - Black color
  • - Current - N/A
  • - Constant voltage adjustment range [V] - N/A
  • - Fuse [A] - 5
  • - Load Stabilization Factor - N/A
  • - Voltage stabilization factor - Cv≤0.05%+1Mv Cc≤0.05%+10Ma
  • - Current stabilization factor - Cv≤0.1%+5Mv Cc≤0.1%+10Ma
  • - Labor stabilization factor - N/A
  • - Operating humidity [%] - < 80% relative humidity
  • - Type - Pulse
  • - Output current [A] - 0 - 5
  • - Security - OVP, OCP, OTP
  • - Power cord [m] - 1.2
  • - Output voltage [V] - 0 - 30
  • - Resolution - 100 mV / 10 mA
  • - Protection against exceeding the maximum current - Yes
  • - Display - LED
  • - Voltage [V] - 230
  • - Power [W] - 205
  • - Surge protection - Yes
  • - Computer connection method - N/A
  • – Ripple – Cv≤10 mV (RMS) / Cc≤20 mA (RMS)
  • - Storage temperature [°C] - -10 - 70
  • - Operating temperature range [°C] - 0-40
  • - Storage humidity - <70% relative humidity
  • - Dimensions (LxWxH) - 27.5 x 13 x 16.5 cm
  • - Weight - 1.8 kg
  • - Shipping dimensions (LxWxH) - 35.5 x 17.5 x 21 cm
  • - Shipping weight - 2.2 kg

Including:
  • - Laboratory power supply
  • - Power cord
  • - User Guide
