Manufacturer number: Stamos Soldering 10021058

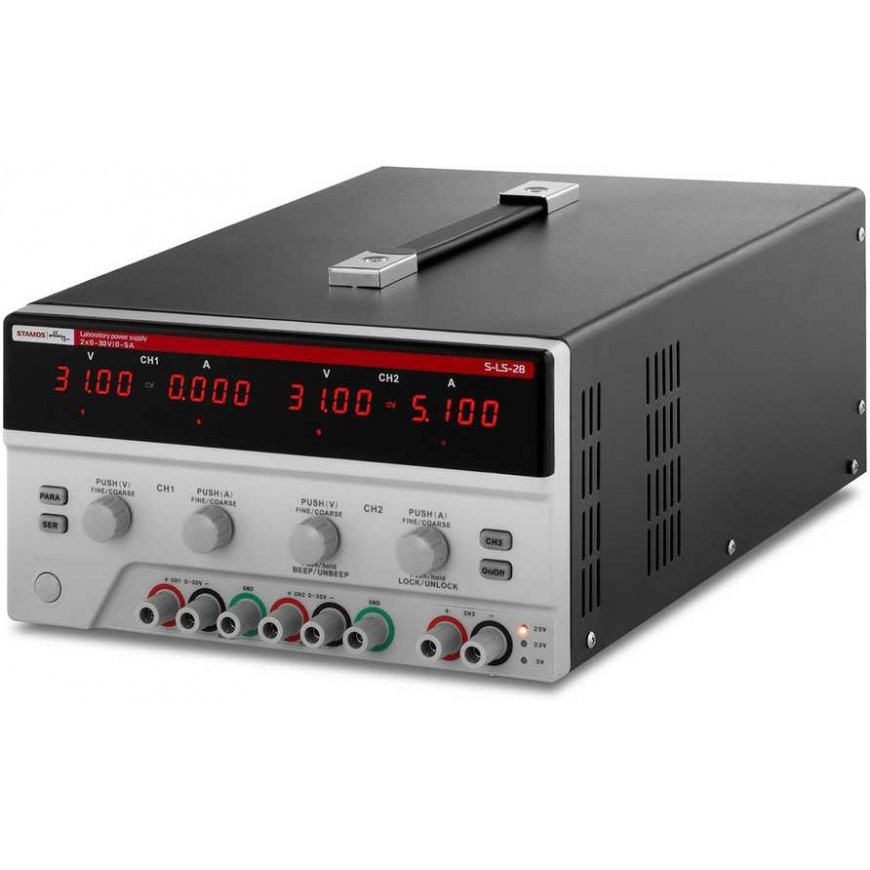

Stamos Soldering's professional laboratory power supply has been designed to convert alternating current to direct current at a selected voltage. This enables the supply of electrical energy to various scientific, industrial or telecommunication devices. The versatility of the device is demonstrated by three channels , each of which has a plus and minus output. If necessary, they can all work simultaneously .

The first two channels have three operating modes:
  • - independent - the channels work independently of each other at a voltage of 30 V and a current of 5 A,
  • - in parallel - the current value increases to 10 A,
  • - series - current voltage reaches 60 V at 5 A,

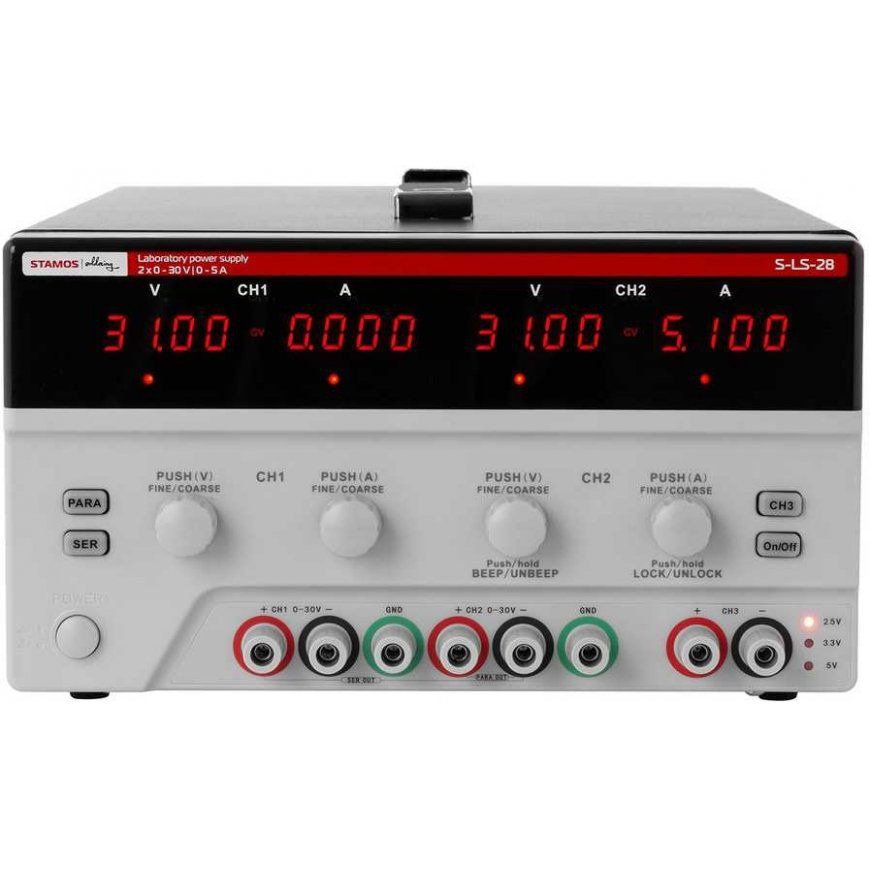

The operation of the power supply can be controlled through 4 transparent LED displays . They display four-digit values related to voltage and current and their units. In addition, the diodes inform about the currently selected function. It uses convenient knobs and buttons to control it. Thanks to them, you can accurately set the corresponding values, set the operating mode and channel.

The safety of the user is taken care of by a special system that will turn off the power when it reaches too high a temperature. In addition, the equipment is quiet , which greatly affects the comfort of work. The attached handle makes it easy to transport the device, and the rubber feet prevent it from slipping on the work surface.

Product features:
  • - Universality - three channels and three working modes,
  • - Precise adjustment - knobs and buttons for smooth setting of parameters,
  • - Readability - four large LCD screens,
  • - Protection - overheating protection system,
  • - Mobility - small size and handle for transportation.

Technical parameters:
  • - Model - S-LS-28
  • - Catalog number - 10021058
  • - Product condition - New
  • - Display - LED
  • - Power - 550 W
  • - Voltage - 230 V
  • - Output current - 0-5 A
  • - Output voltage - 0-30 V
  • - Working temperature - 0-40°C
  • - Storage temperature - 10-70°C
  • - Relative working humidity - 80%
  • - Relative storage humidity - 70%
  • - Constant voltage adjustment range - Channel I/II 0-30 V / Channel III 5 / 3.3 / 2.5 V
  • - Current adjustment range - I/II channel 0-5 A / III channel 3 A
  • - Performance stabilization factor - CV ≤ 0.01% + 3 mV / CC ≤ 0.1% + 3 mA
  • – Current Stabilization Factor – V: ≤ 0.01% + 5 mV / A: ≤ 0.1% + 10 mA
  • - Resolution - 10 mV / 1 mA
  • – Ripple – CV ≤ 2 mVrms / CC ≤ 3 mArms
  • - Accuracy of parameter settings (25°C ± 5°C) - Channel I/II/III - ≤ 0.5% + 20 mV / ≤ 0.5% + 10 mA / ± 50 mV
  • - Temperature coefficient - ≤ 150 ppm
  • - Response time to voltage/current increase/decrease (at 10% load) - 0-100 ms
  • - Screen resolution - 3
  • - Security - OTP
  • - Fuse - T5 A / 250 V
  • - Ammeter - Yes
  • - Voltmeter - Yes
  • - Connector - 4 mm
  • - Cooler
  • - Power cable length - 1.2 m
  • - Dimensions (LxWxH) - 38 x 25 x 15 cm
  • - Weight - 10.6 kg
  • - Shipping dimensions (LxWxH) - 49.5 x 39 x 28 cm
  • - Shipping weight - 11.6 kg

Including:
  • - S-LS-28 laboratory power supply
  • - Power cord
  • - PL manager
