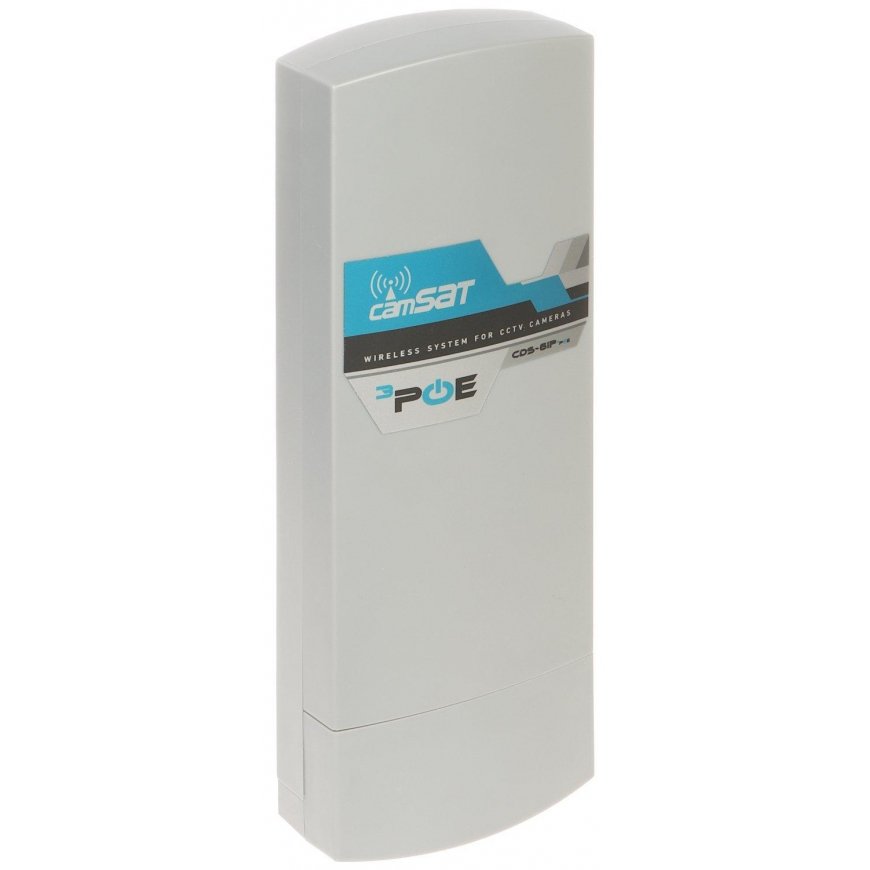

ACCESS POINT 5.8 GHz CDS-6IP-3POE CAMSAT
2404709 CDS-6IP3PoE
5902610350344
2026-07-22
Wireless miniature module CDS-6IP-3POE for video transmission to megapixel cameras and recorders IP Full HD / IP 4K.
The device is a transmitter and receiver in one module (transceiver).
Encryption with a 64/128/152-bit identification code guarantees protection against third-party viewing.
The device has a built-in dual antenna (MIMO 5GHz 2 x 13 dBi) and allows you to precisely match the antennas and achieve high-quality transmission at different distances.
Built-in PoE switch allows you to power up to 3 devices in accordance with the IEEE 802.3 af/at or Passive PoE 48V standard.
It is also possible to power the CDS-6IP-3POE device itself via Passive PoE or via a switch supplying power in accordance with the IEEE 802.3 at standard.
| Frequency range : | 5150 MHz ... 5350 MHz, 5470 MHz ... 5725 MHz |
| Number of channels : | max. 16 |
| Resolution : | max. 16 Mpx |
| Protective measures : | 64 / 128 / 152-bit WEP code WPA WPA-PSK/WPA2-PSK |
| Transmitter power : | ≤ 500 mW ( 27 dBm ) |
| Wireless transmission distance : | max. 2 km |
| Antenna Type : | Integrated, 2 pcs. 14 dBi MIMO - H/V interpolarization |
| Modulation Type : | OFDM |
| Transmission speed : | max. 60 Mbps |
| Working mode : | Video Bridge - mode dedicated to work with IP cameras Master - Access Point Slave - AP Client |
| Feed : | Passive PoE: 48 V DC (power supply included) PoE (802.3at) , 48 V DC , 12 ... 24 V DC / 1 A |

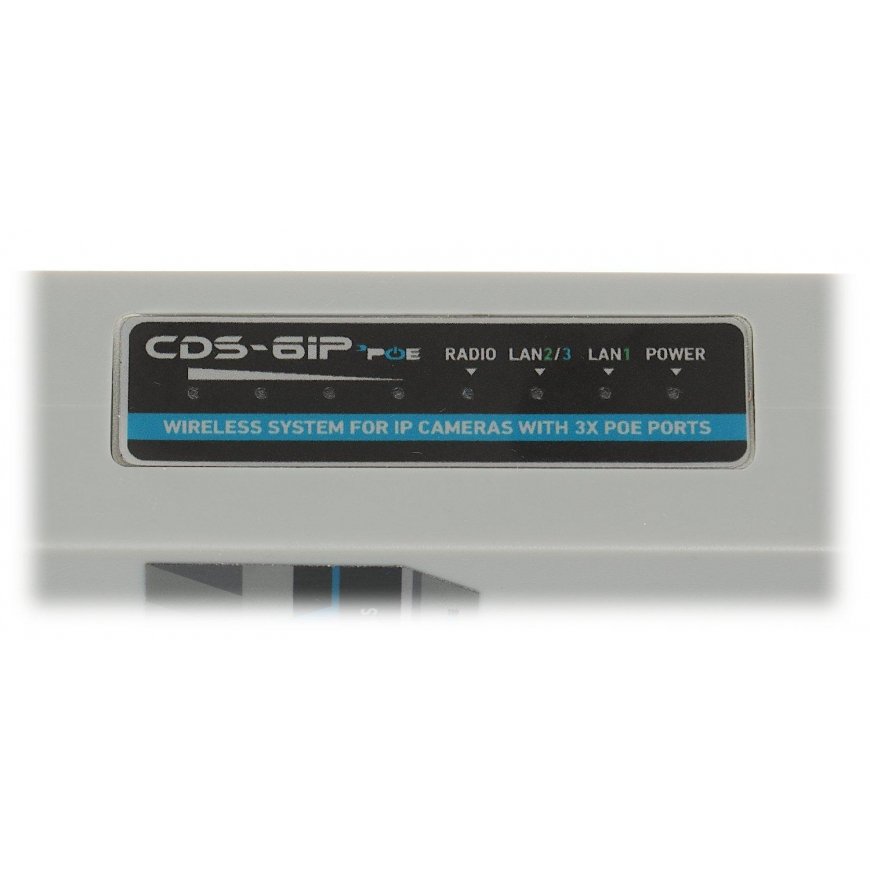

| Main features : | Work in Point-Point and Point-Multipoint configuration One receiving module can receive a signal from 8 transmitters Technology MIMO - increases bandwidth (multi-antenna transmission) Two-way communication IP PTZ control Radio power adjustment transmission without any interference (industrial, 802.11 Internet network, Bluetooth, radiotelephony, etc.) Up to 3 receivers PoE 802.3at/af or PASSIVE power supply option LED radio signal level indicator LED signaling of the device operation status |
| Sealing class : | IP55 |
| Working temperature : | -20 °C ... 70 °C |
| Weight : | 0.37 kg |
| Dimensions : | 249 x 88 x 52 mm |
| Manufacturer / Brand : | CAMSAT |
| Warranty : | 2 years |
