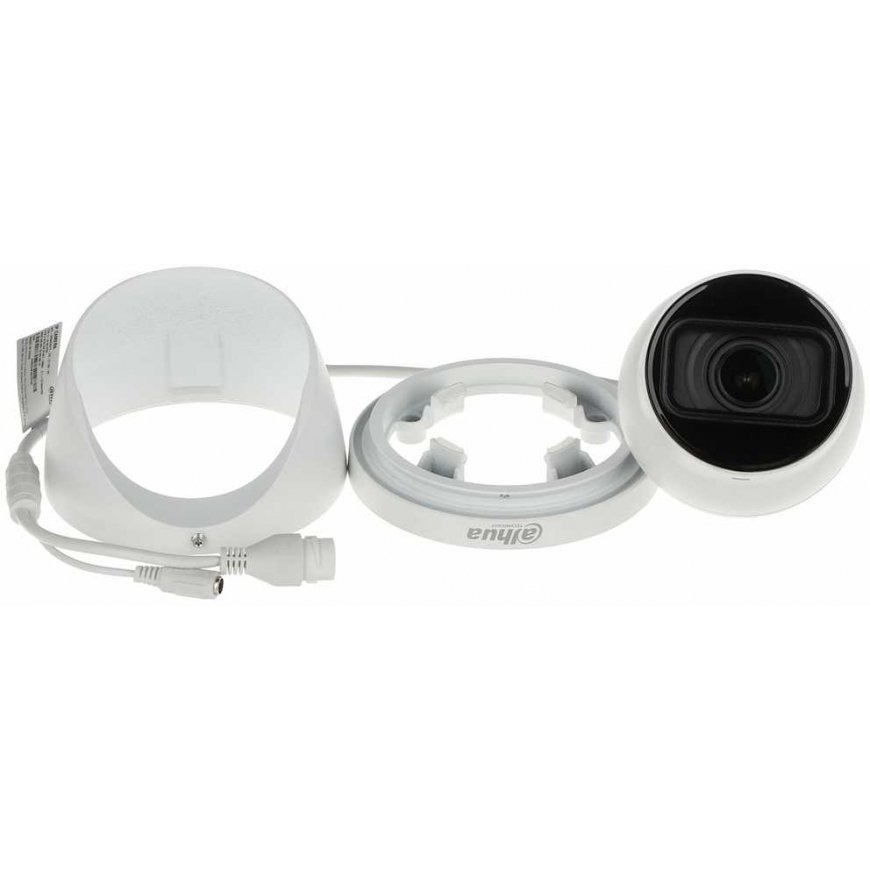

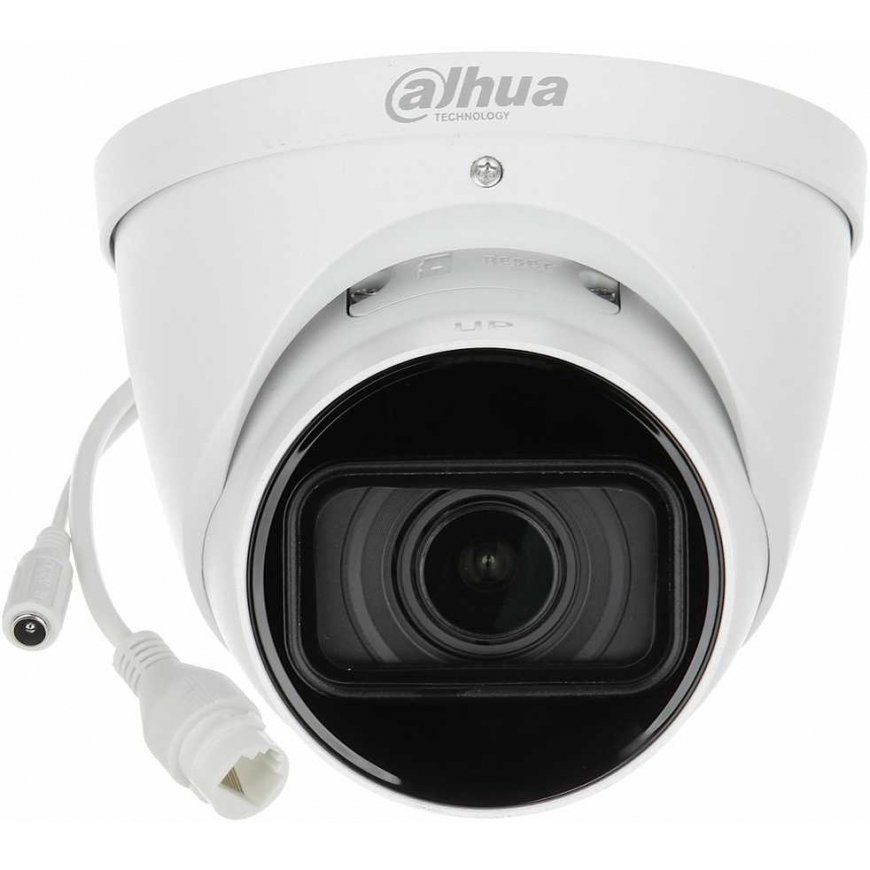

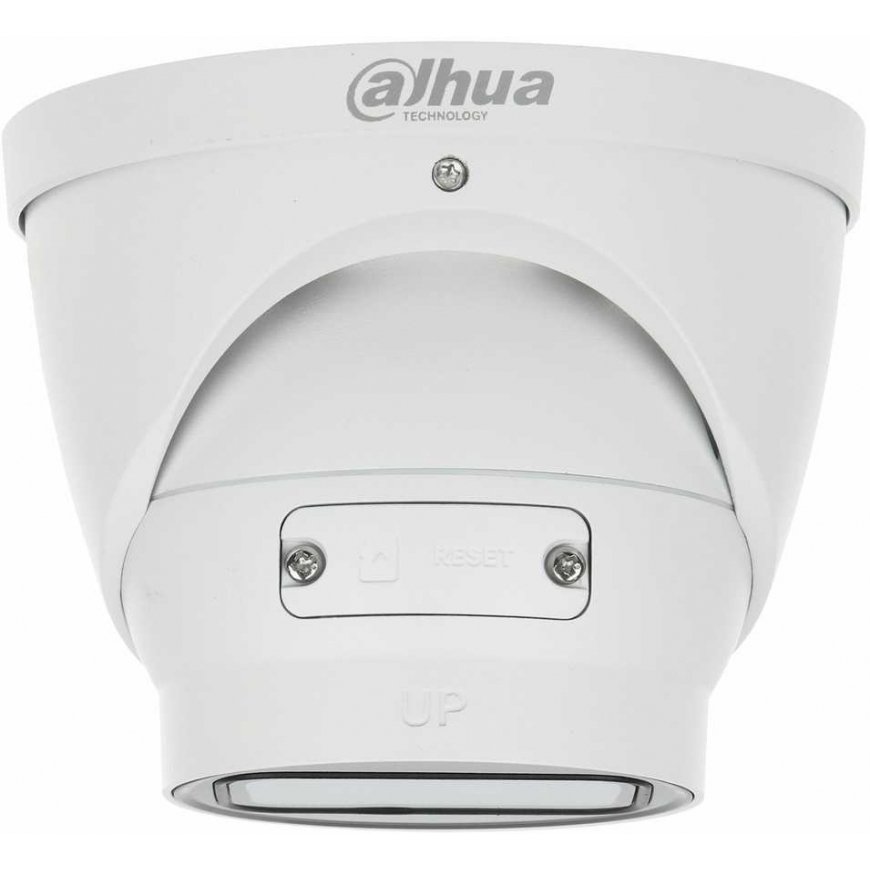

ANTI-VANDAL IP CAMERA IPC-HDW5541T-ZE-27135-S3 WizMind S - 5 Mpx 2.7 ... 13.5 mm - MOTOZOOM DAHUA
2393604 IPC-HDW5541T-ZE-27135-S3
6923172587497
Доставка 2-3 р.д.
IP camera with an effective H.264 / H.265 video compression algorithm, which ensures clean and smoother video transmission with a maximum resolution of 5 MPx.
This makes it ideal for surveillance systems where identification of persons or vehicles is required.
The used motozoom lens with a focal length of 2.7 ... 13.5 mm allows you to adjust the angle visibility by remote control.
The coverage of the illuminator specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, ie, the so-called scene reflection coefficient).
Thanks to the possibility of PoE power supply according to the 802.3af standard, the device is even more universal and easier to install.
The device has ePoE technology, which provides the possibility of transmission to 800 m at a speed of 10 Mb/s or 300 m at a speed of 100 Mb/s via UTP.
The camera has many intelligent image analysis functions.
| Standard : | TCP/IP |
| Sensor : | 1/2.7 " Progressive Scan CMOS |
| Matrix size : | 5 Mpx |
| Resolution : | 2960 x 1668 - 5 Mpx , 2880 x 1620 - 4.6 Mpx , 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p |
| Lens : | 2.7 ... 13.5 mm - Motozoom |
| Viewing angle : | 114 ° ... 32 ° (manufacturer's data) 105 ° ... 32 ° (our tests) |
| IR illuminator coverage : | 40 years old |

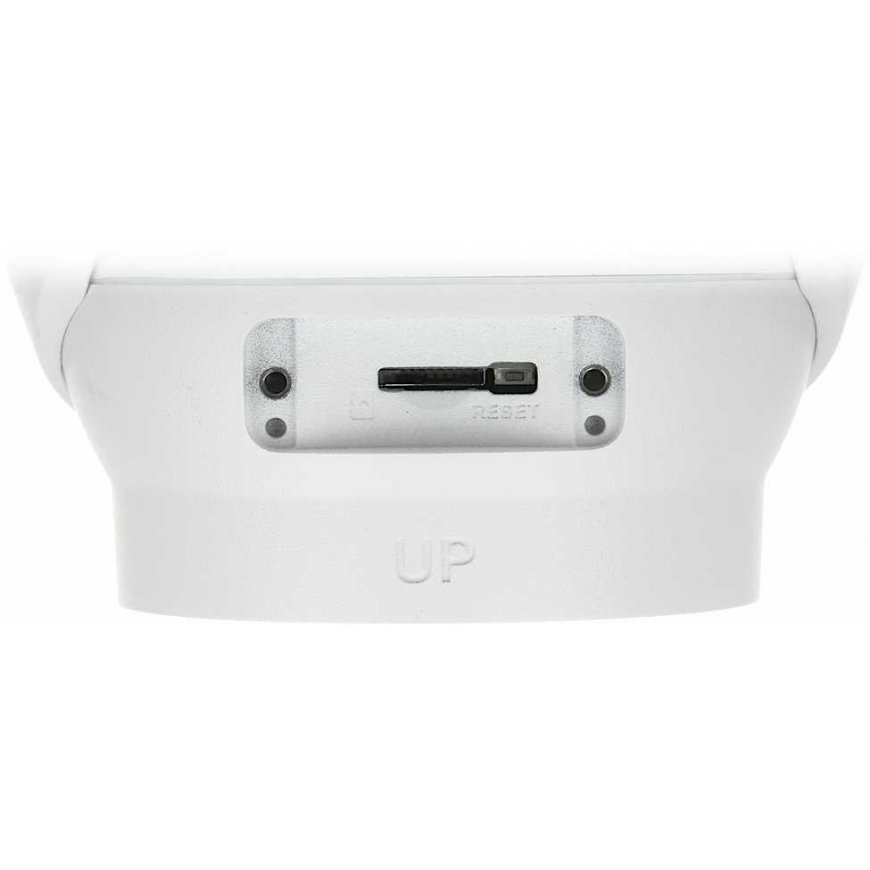

| Memory card slot : | Micro SD card support up to 512GB (local recording possible) |
| Image compression method : | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs : | - |
| Audio : | Built-in microphone Audio transmission over the network Sound detection Complies with the AAC standard |
| Network interface : | 10/100 Base-T (RJ-45) |
| Network protocols : | IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE SNMP , P2P |
| WEB Server : | Integrated |
| Max. number of online users : | 20 |
| ONVIF : | 22.06 |
| Main stream transfer rate : | 25 fps @ 5 Mpx |
| Access from a mobile phone : | Port: 37777 or cloud access Android: Free app iOS (iPhone): Free app |
| Default IP Address : | 192.168.1.108 |
| Estimated User Fig. / admin password : | admin / - The administrator password must be entered at first power-up |
| Access port via www : | 80, 37777 |
| Access port through the program to PC : | 37777 |
| Access port via mobile app : | 37777 |
| ONVIF Port : | 80 |
| RTSP URL : | rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary Stream |
| Selected features : | WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction in the image EIS - Electronic Image Stabilization ROI - improving the quality of selected fragments of the image F-DNR (Defog) - Reduction of noise associated with atmospheric precipitation SMD 3.0 - looking for an object classified as: person, motor vehicle AI SSA - Eng. AI Smart Scene Adaptive - automatic scene adaptation that uses deep learning algorithms to detect environmental conditions such as rain, fog, lighting, low light and flicker to determine the optimal settings for the image BLC/HLC - background light/high light compensation Ability to change resolution, quality and bandwidth Sound detection Motion detection Configurable privacy zones Image flip and mirroring Heat map - marking of areas of varying intensity of movement in the image with corresponding colors IVS analysis : intrusion , line crossing , fast movement - people and vehicle classification, fast movement , vagrancy detection, parking detection, face detection - serves 6 features of facial features, people counting - Area control and queue service and the possibility of configuring up to 4 rules - Statistics reports |
| Feed : | ePoE , PoE (802.3af) , 12 V DC / 580 mA |
| Power consumption : | ≤ 8.5 W @ PoE, ≤ 7W @ 12V DC |
| Body : | Dome - Metal |
| Color : | White |
| Sealing class : | IP67 |
| Anti-vandal : | IC10 |
| Working temperature : | -30 °C ... 60 °C |
| Weight : | 0.7 kg |

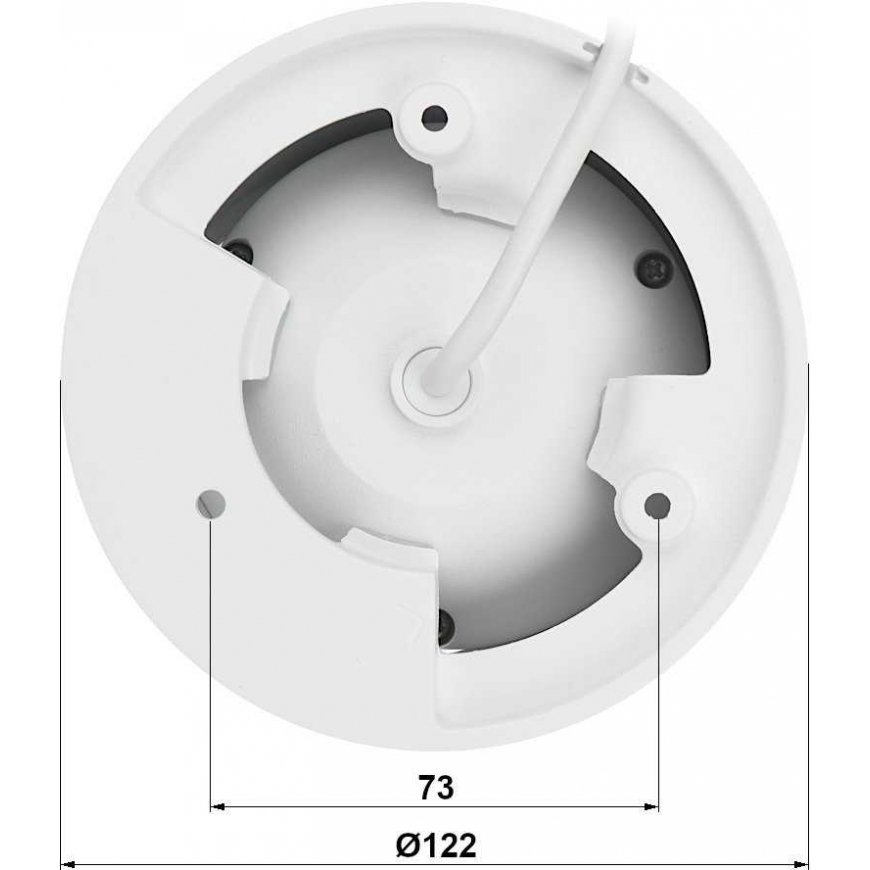

| Dimensions : | Ø 122 x 108 mm |
| Languages served : | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
