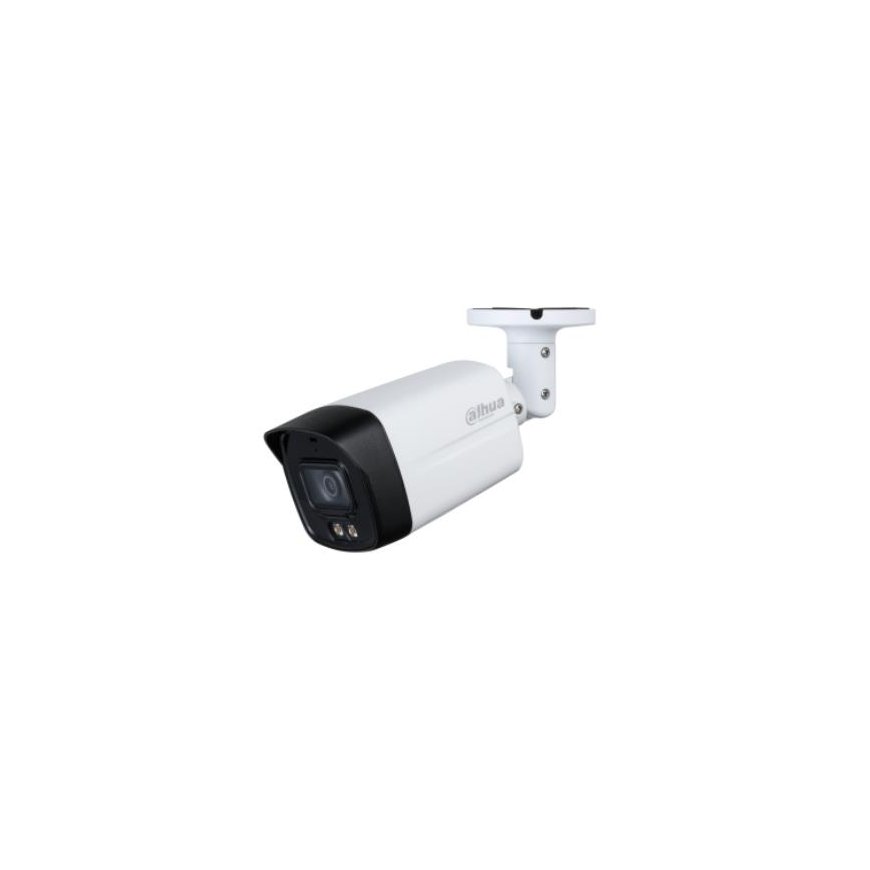

CAMERA HDCVI 1080P BULLET/HFW1200TLM-IL-A-0360B-S6 DAHUA
2384213 HFW1200TLM-IL-A-0360B-S6
6923172592026
Доставка 2-3 р.д.
2 Megapixel camera with Progressive scan CMOS transmitter and AHD / HD-CVI / HD-TVI / PAL interface.
There are no delays during transmission and the original, high image quality is maintained.
If the video is transmitted using a twisted pair cable and the corresponding transformers (balun), pay attention to the possibility of signal interference.
The coverage of the illuminator specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, ie, the so-called scene reflection coefficient).
The camera complies with the IP67 sealing class.
The device has Smart Dual Illumination technology, which allows you to choose between white light mode and IR (infrared) mode.
| Standard : | AHD , HD-CVI , HD-TVI , CVBS |
| Sensor : | Progressive Scan CMOS |
| Matrix size : | 2.1 Mpx |
| Resolution : | 1920 x 1080 - 1080p @ HD-CVI / HD-TVI / AHD @ 25 fps , 960 x 576 - 960H @ PAL @ 25 fps |
| Lens : | 3.6 mm |
| Viewing angle : | 83 ° (manufacturer's data) 84 ° (our tests) |
| IR illuminator coverage : | 40 years old |
| Scope of the white LED illuminator : | 40 years old |
| IR illuminator power adjustment : | Automatic |
| Video output : | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Audio : | Built-in microphone, Audio service via coaxial cable - only HD-CVI |
| OSD menu : | ✔ |
| Selected features : | Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality D-WDR - Wide dynamic range 3D-DNR - Digital noise reduction in the image BLC/HLC - background light/high light compensation ICR - mechanical IR filter AGC - Automatic gain control Privacy zones - max. 8 Mirror - mirror reflection of the image Automatic white balance Sharpness - sharpening of image contours |
| Meals : | 12 V DC / 340 mA |
| Power consumption : | ≤ 4.1 W |
| Body : | Compact Plastic + Metal |
| Color : | White |
| Sealing class : | IP67 |
| Anti-vandal : | - |
| Working temperature : | -40 °C ... 60 °C |
| Weight : | 0.3 kg |
| Dimensions : | 198 x 80 x 76 mm |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
HD-CVI
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
The image from the camera at night with the built-in LED lighting
View from the camera with strong light shining directly on it
