Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

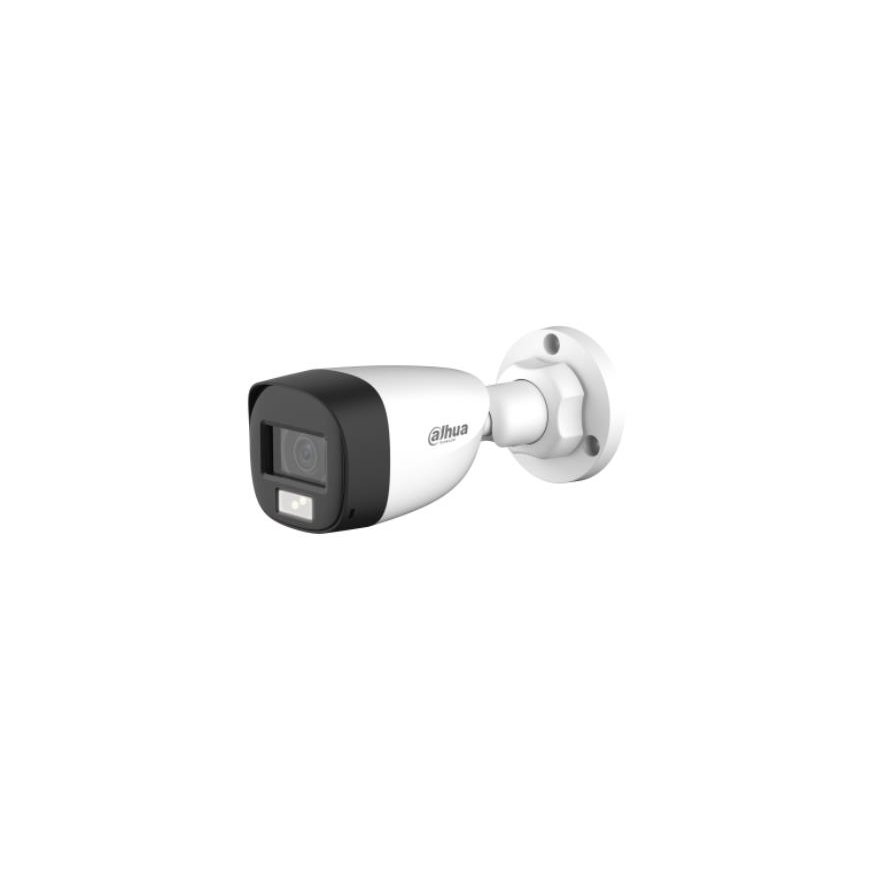

CAMERA HDCVI 5MP BULLET/HFW1500CL-IL-A-0360B-S2 DAHUA
2383943 HFW1500CL-IL-A-0360B-S2
6923172590442
Доставка 2-3 р.д.
5 Megapixel camera with Progressive scan CMOS transmitter and AHD / HD-CVI / HD-TVI / PAL interface.
The AHD / HD-CVI / HD-TVI interface provides analog video signal transmission with the help of a coaxial cable max. 8 Mpx (4K UHD).
There are no delays during transmission and the original, high image quality is maintained.
If the video is transmitted using twisted pair (UTP) cable and the corresponding transformers (balun), pay attention to the possibility of signal interference.
The coverage of the illuminator specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, ie, the so-called scene reflection coefficient).
The camera complies with the IP67 sealing class.
The device has Smart Dual Illumination technology, which allows you to choose between white light mode and IR (infrared) mode.
When the Smart Dual Illumination function is enabled, the white light automatically turns on only when an object is detected in the monitored area, which effectively improves the image quality.
| Standard : | AHD , HD-CVI , HD-TVI , CVBS |
| Sensor : | Progressive Scan CMOS |
| Matrix size : | 5 Mpx |
| Resolution : | 2880 x 1620 - 5 Mpx @ HD-CVI @ 20 kps - Aspect Ratio 16 : 9, 2560 x 1440 - 4 Mpx @ AHD / HD-CVI / HD-TVI @ 25 fps , 1920 x 1080 - 1080p @ HD-CVI @ 25 fps , 960 x 576 - 960H @ PAL |
| Lens : | 3.6 mm |
| Viewing angle : | 92 ° (manufacturer's data) 86 ° (our tests) |
| IR illuminator coverage : | 20 years |
| Scope of the white LED illuminator : | 20 years |
| Video output : | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Audio : | Built-in microphone, Audio service via coaxial cable - only HD-CVI |
| OSD menu : | The OSD menu is available on the DAHUA recorder |
| Selected features : | Smart Dual Illumination technology - IR or LED illuminator works in night mode. White light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality D-WDR - Wide dynamic range 2D-DNR - Digital image noise reduction BLC/HLC - background light/high light compensation ICR - mechanical IR filter AGC - Automatic gain control Privacy zones - max. 8 Mirror - mirror reflection of the image Automatic white balance Sharpness - sharpening of image contours |
| Sealing class : | IP67 |
| Meals : | 12 V DC / 380 mA |
| Power consumption : | ≤ 4.5 W |
| Body : | Compact, Plastic |
| Anti-vandal : | - |
| Color : | White + Black |
| Working temperature : | -40 °C ... 60 °C |
| Weight : | 0.18 kg |
| Dimensions : | 163 x 70 x 70 mm |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
HD-CVI
Image from the camera under artificial lighting (about 30 Lux)
The image from the camera at night with the built-in LED lighting
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
