ANTI-VANDAL IP CAMERA IPC-HDBW2241R-ZAS-27135 - 1080p, 2.7 ... 13.5 mm - MOTOZOOM DAHUA
2279342 IPC-HDBW2241R-ZAS-27135
6923172545664
Товар отсутствует на складе
IP camera with an efficient H.265 / H.264 video compression algorithm, which ensures clean and smoother video transmission with maximum 1080p resolution.
The used motozoom lens with a focal length of 2.7 ... 13.5 mm allows you to adjust the angle visibility by remote control.
Thanks to the "Starlight" technology used, very low lighting is enough for the video camera to achieve a bright, colorful image.
The coverage of the illuminator specified by the manufacturer depends on the environmental conditions (air transparency, environment, wall color, ie, the so-called scene reflection coefficient).
Thanks to the possibility of PoE power supply according to the 802.3af standard, the device is even more universal and easier to install.
| Standard : | TCP/IP |
| Sensor : | 1/2.8 " Progressive Scan CMOS |
| Matrix size : | 2.1 Mpx |
| Resolution : | 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx 1280 x 720 - 720p |
| Lens : | 2.7 ... 13.5 mm - Motozoom |
| Viewing angle : | 108 ° ... 30 ° (manufacturer's data) 102 ° ... 31 ° (our tests) |
| IR illuminator coverage : | 40 years old |
| RS-485 interface : | - |
| Image compression method : | H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Memory card slot : | Micro SD card support up to 256GB (local recording possible) |
| Alarm inputs/outputs : | 1 / 1 |
| Audio : | Input for external microphone Audio output Support for two-way audio streaming Sound detection |
| Network interface : | 10/100 Base-T (RJ-45) |
| Network protocols : | IPv4/IPv6 , HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMP |
| WEB Server : | Integrated, Web Viewer |
| Max. number of online users : | 20 |
| ONVIF : | 21.06 |
| Main stream transfer rate : | 25 fps @ 1080p |
| Access from a mobile phone : | Port: 37777 or cloud access Android: Free app iOS (iPhone): Free app |
| Default IP Address : | 192.168.1.108 |
| Estimated User Fig. / admin password : | admin / - The administrator password must be entered at first power-up |
| Access port via www : | 80, 37777 |
| Access port through the program to PC : | 37777 |
| Access port via mobile app : | 37777 |
| ONVIF Port : | 80 |
| RTSP URL : | rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:hasł[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream |
| Selected features : | Motozoom lens WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction in the image ROI - improving the quality of selected fragments of the image BLC/HLC - background light/high light compensation Ability to change resolution, quality and bandwidth Motion detection Configurable privacy zones ICR - mechanical IR filter Mirror - mirror reflection of the image SMD PLUS - classified object search: human, motor vehicle IVS analysis : crossing lines , intrusion - classification of people and vehicles |
| Meals : | PoE (802.3af) , 12 V DC / 520 mA |
| Power consumption : | ≤ 6.3 W @ 12 V DC , ≤ 7.2 W @ PoE |
| Body : | Dome - Metal |
| Color : | White |
| Sealing class : | IP67 |
| Anti-vandal : | IC10 |
| Working temperature : | -30 °C ... 60 °C |
| Weight : | 0.51 kg |

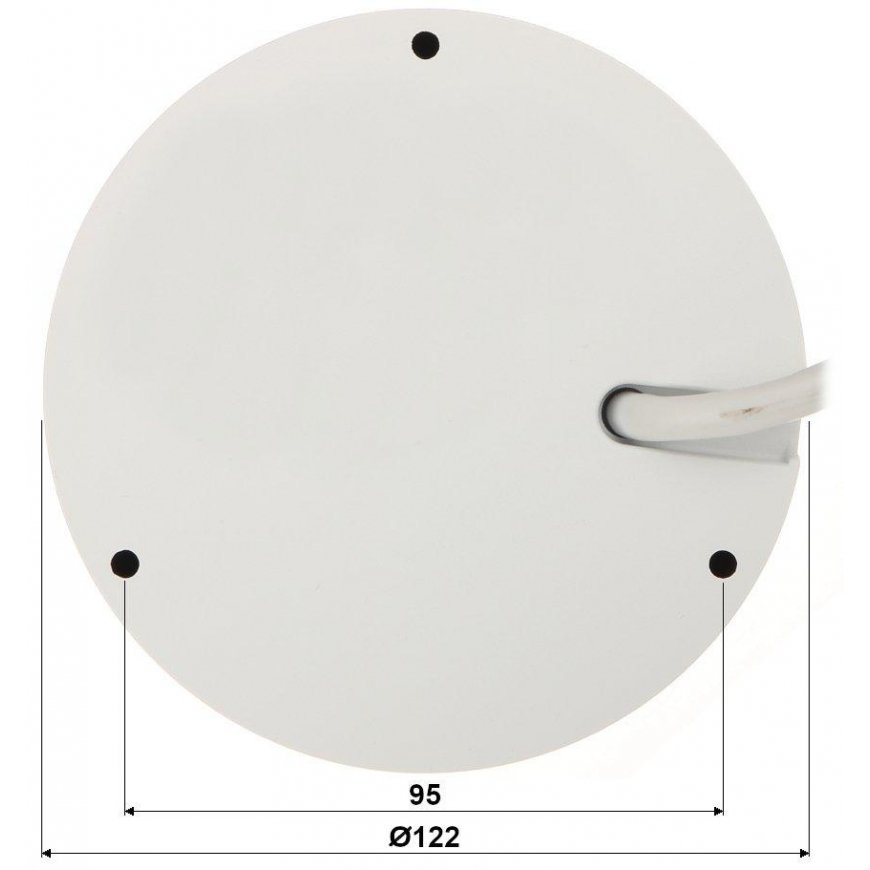

| Dimensions : | Ø 122 x 89 mm |
| Languages served : | Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Romanian, Russian, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the built-in IR illuminator
View from the camera with strong light shining directly on it
