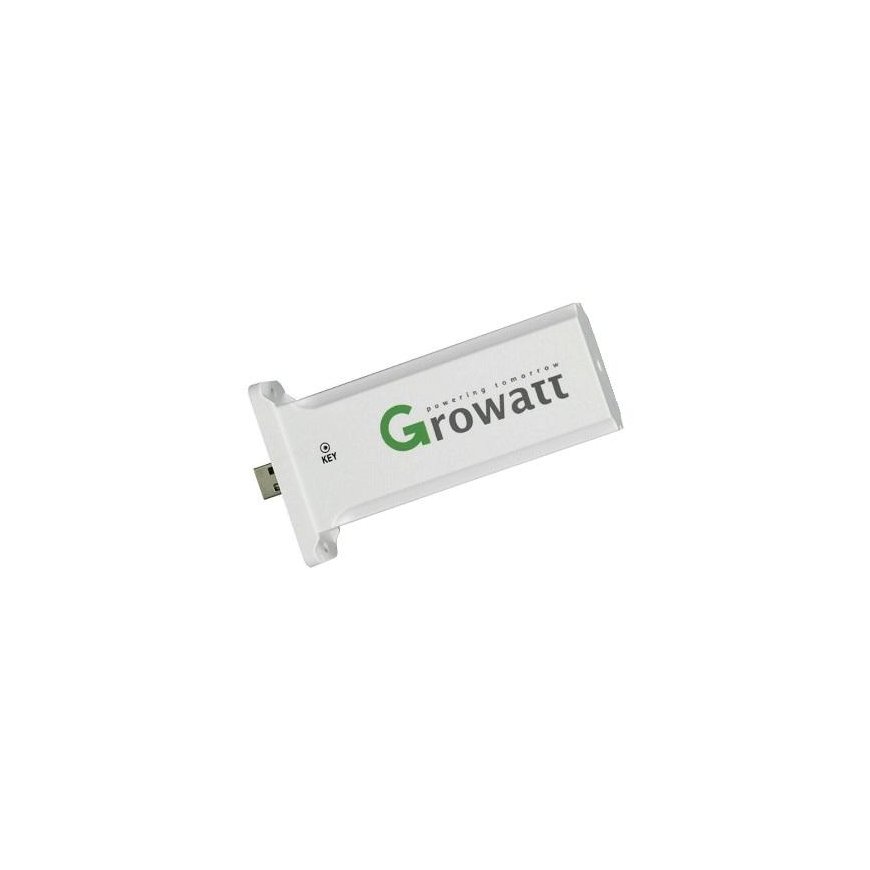

GROWATT internet interface Shine WiFi-F
59,52 €
Мес. плата от 2.43 €
2249280 NV820337
9990000820337
Доставка 1-2 р.д.
Вас заинтересовал этот товар?
Features:
The interface is designed to link the parameters of the Growatt inverter with the Cloud server via Wi-Fi and monitor the operation of the solar power plant and the energy produced.
The device is connected to the solar inverter for remote detection and possible troubleshooting of the PV system.
A USB dongle with a range of 50 meters (max. 100m without obstacles) and integrated memory connects your PV system to Wi-Fi.
The data of the connected inverter is saved for 30 days, even if the Internet connection is interrupted.
Suitable for all Growatt inverters (Off-grid - without external power supply).
Technical data:
Supported network: Wi-Fi 2.4GHz.
Max. communication range: 100 m.
Wi-Fi wireless standard: IEE802.11 b/g/n.
Transmission power: 802.11b: +20dBm(max); 802.11g: +18dBm(max.); 802.11n: +15dBm(max.).
Receiver sensitivity: 802.11b: -89dBm(max); 802.11g: -81dBm(max); 802.11n: -71dBm(max).
Voltage: 5V.
Current: 1A.
Interface: USB Type-A.
Data interface: UART 9600bps; Ethernet 100Mbps.
Network type: access point (Access Point); station mode (Station Mode with Soft AP).
Security: WEP / WPA-PSK / WPA2-PSK / WAPI.
Encryption: WEP64 / WEP128 / TKIP / AES.
Supported server: ShineServer (server-cn.growatt.com).
Data transmission interval: 5 min.
Operating temperature: -20°C ~ +65°C.
Dimensions: 135x79x29 mm.
Weight: 63g.
Warranty: 12 months
