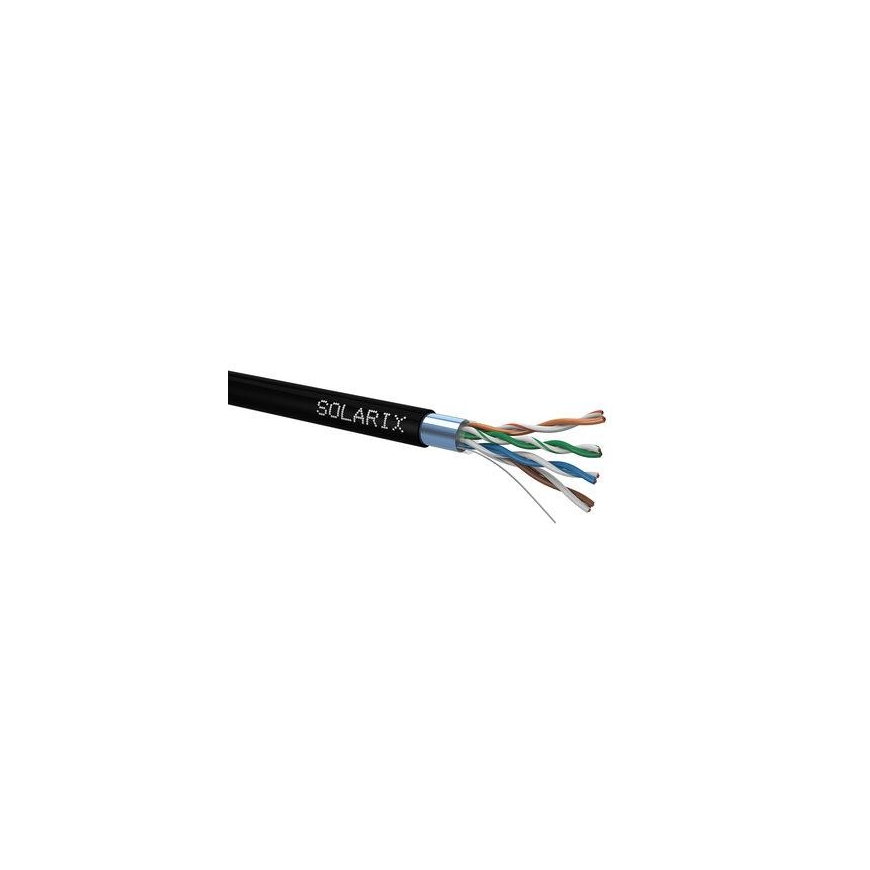

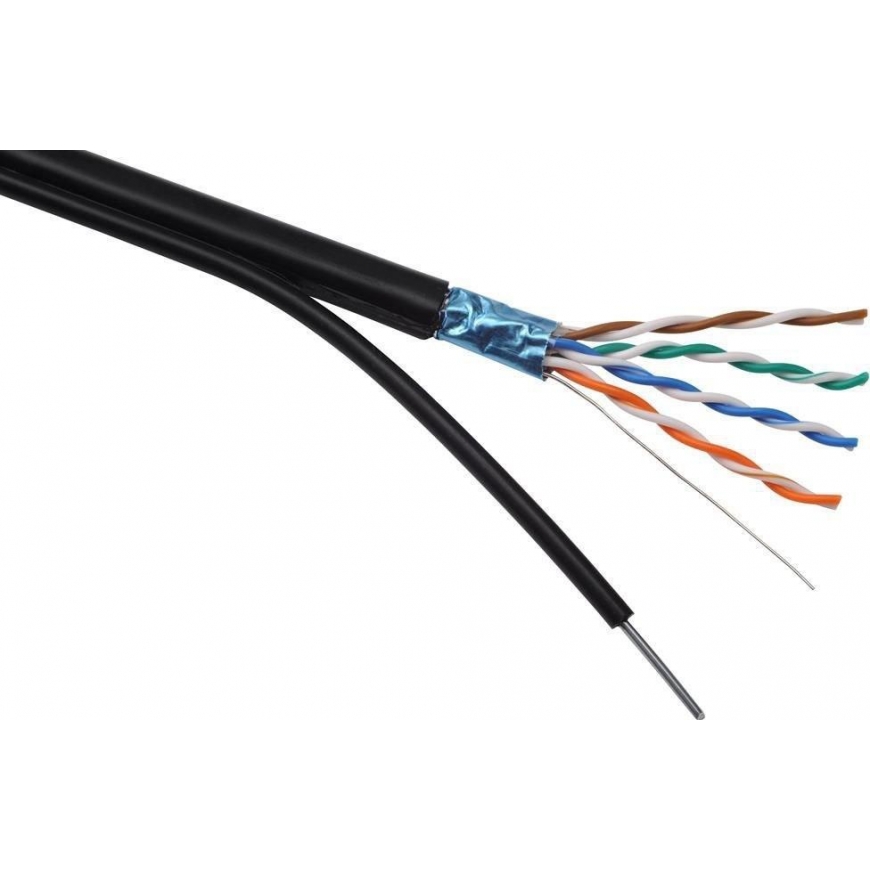

Solarix installation cable Solarix outdoor FTP, Cat5E, cable, PE, 305m box SXKD-5E-FTP-PE
228.92 €
Мес. плата от 6,79 €
2200407 SXKD-5E-FTP-PE-305m
8595684701272
Доставка 7-12 р.д.
Вас заинтересовал этот товар?
Все о продукте
Installační telekomunikační kabel (so-called kabel drát) with the designation SXKD-5E-FTP-PE is an outdoor shielded cable CAT5E with polyethylenovým pláště. The cable is designed for more demanding installations, where ordinary data cable with PVC or LSOH coating does not provide sufficient protection against the effects of the surrounding environment - i.e. The PE shell provides increased resistance to adverse weather conditions and longer life in demanding conditions. Outdoor cable Solarix bez problematje splťe a also prevyšuje requirements defined in international standards TIA/EIA 568, EN 50173 a ISO 11801 pro CAT5E. It is therefore suitable for the use of the most common protocols determined by structured cabling (e.g. Gigabit Ethernet). Solarix outdoor cable plastic has a black color, its temperature resistance ranges from -20 to 70°C. Included in the package is a 305 mv cardboard box.Cables are marked in meters after 1 m.
Category: CAT5E
Nejvyšší podorovaný protokol [?] : 1000BaseT
The highest theoretical speed that can be reached by cable
Stínění: foil around all 4 pairs
Bandwidth [?] : 100 MHz
Available bandwidth
Conductor [?] : copper wire 0.51 mm AWG 24
Type a diameter conductor
Insulation [?]: polyethylene 0.06 mm
Typ a prævær izolace
Plášť [?] : PE
Typ pláště
Color: black
Cable diameter: 5.9 mm
Weight: 36 kg/km
NVP [?] : 68%
Nominal Velocity of Propagation - the ratio of the speed of the signal v in the cable to the speed of light v %
Propagation delay [?] : 535 ns/100m
Zpoždění signalu na jednom paru
Delay skew [?] : 20 ns/100m
The signal delay difference between the fastest and the slowest pair
Storage temperature: -20°C to 70°C
Operating temperature: -20°C to 70°C
Installation temperature: 0°C to 50°C
