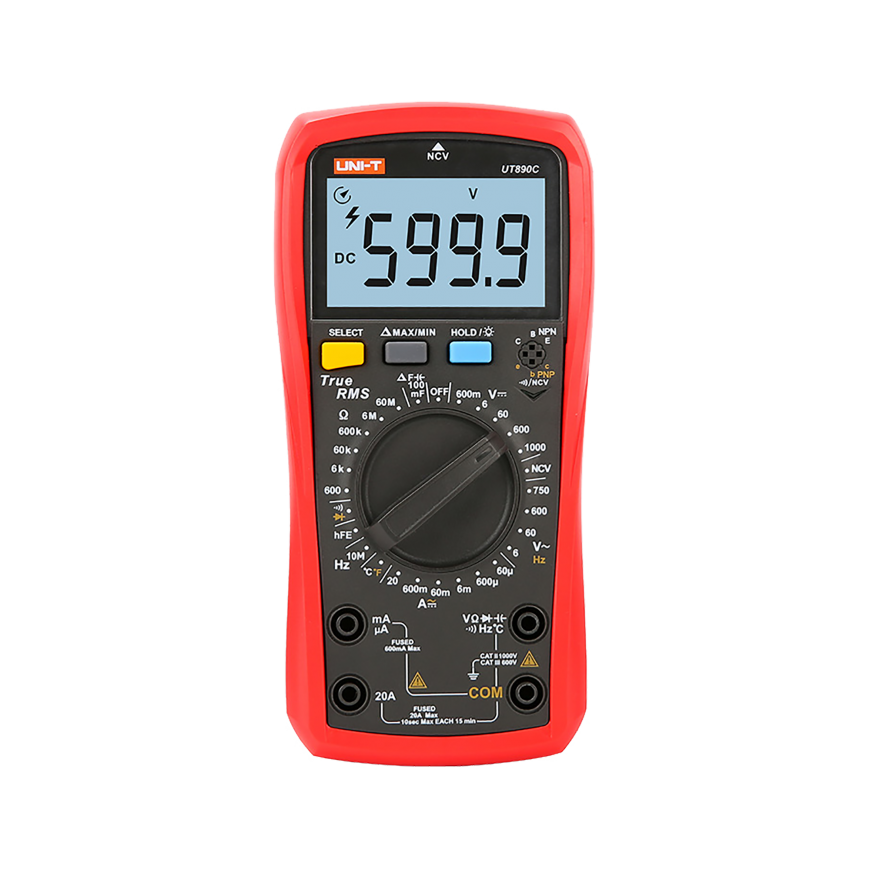

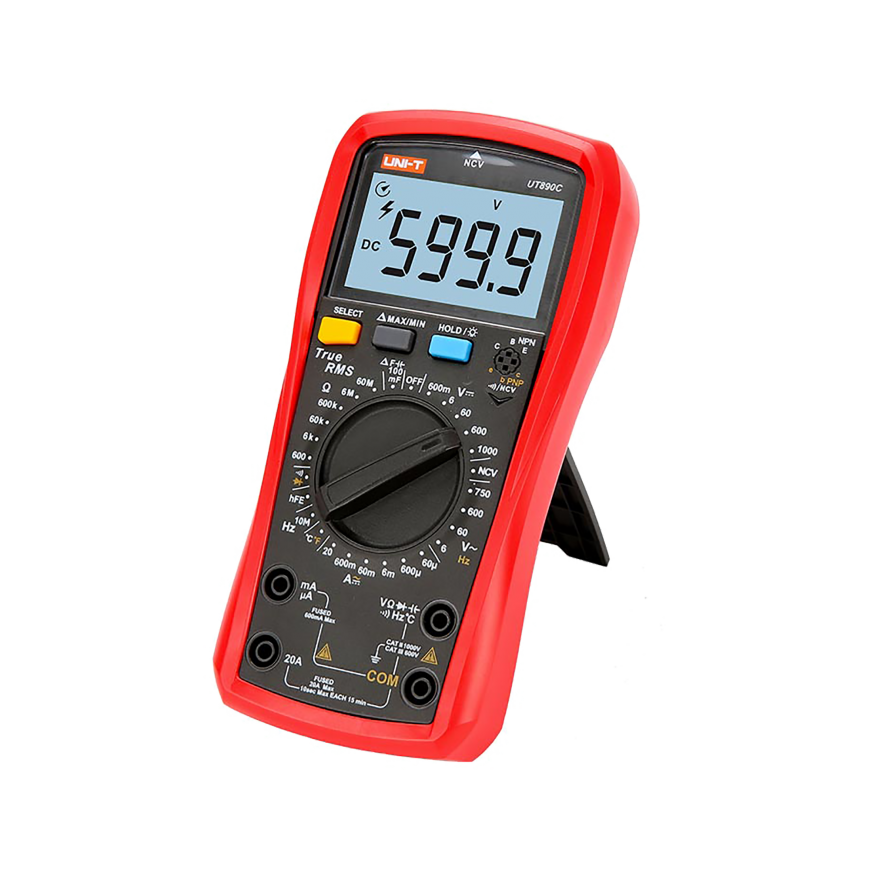

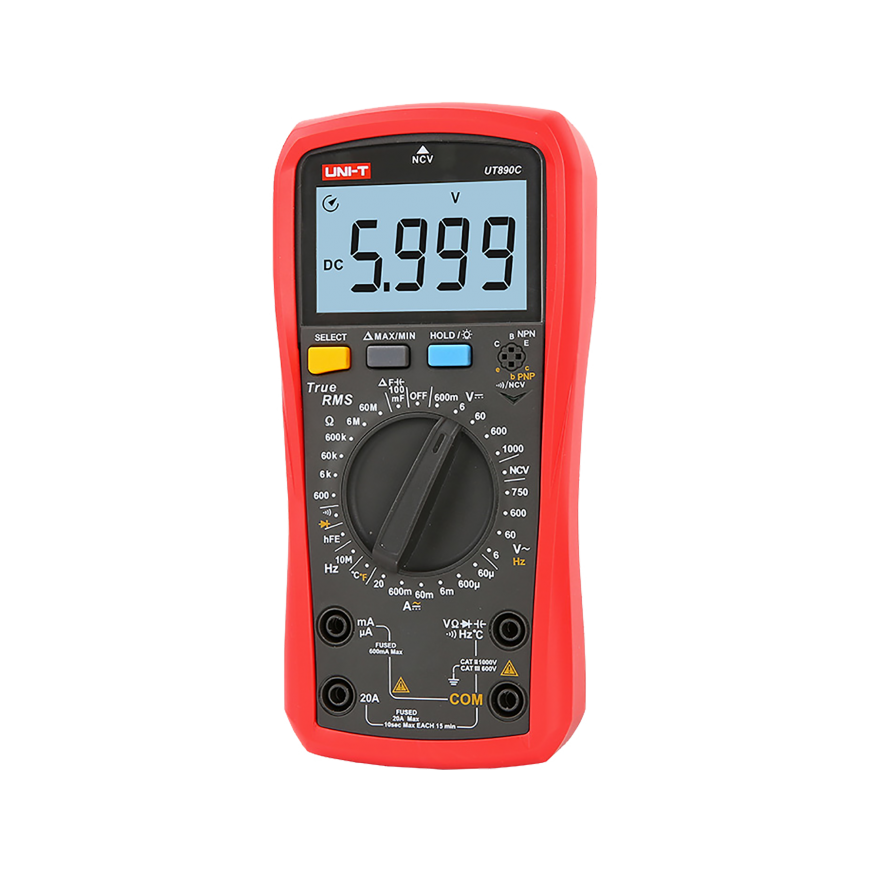

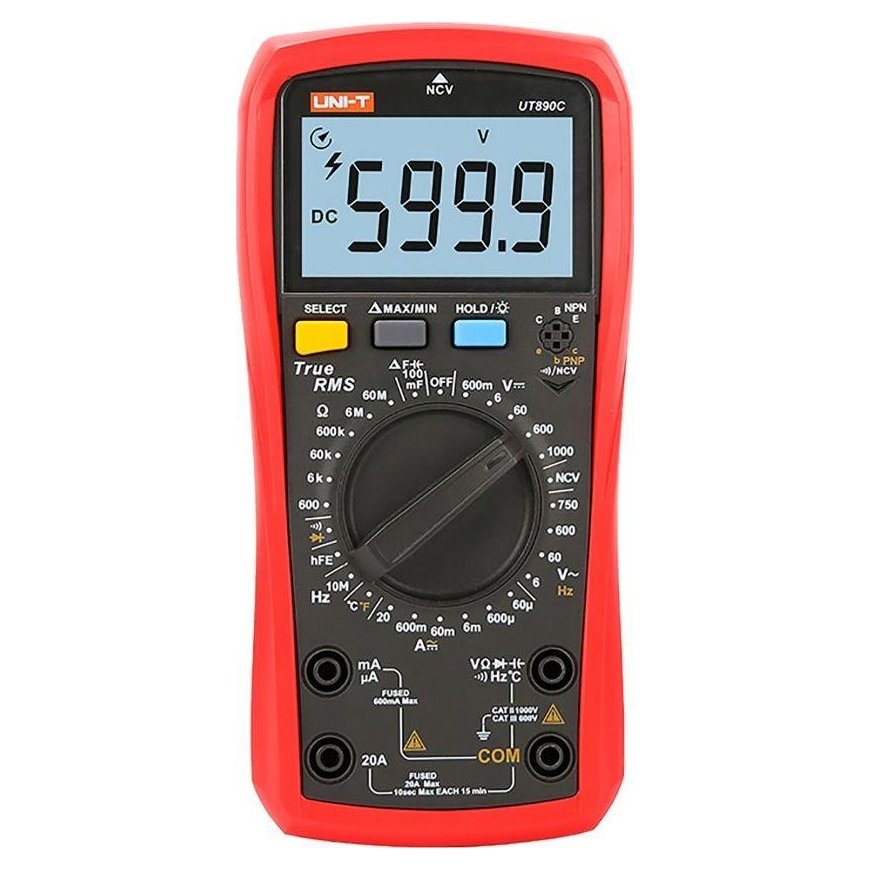

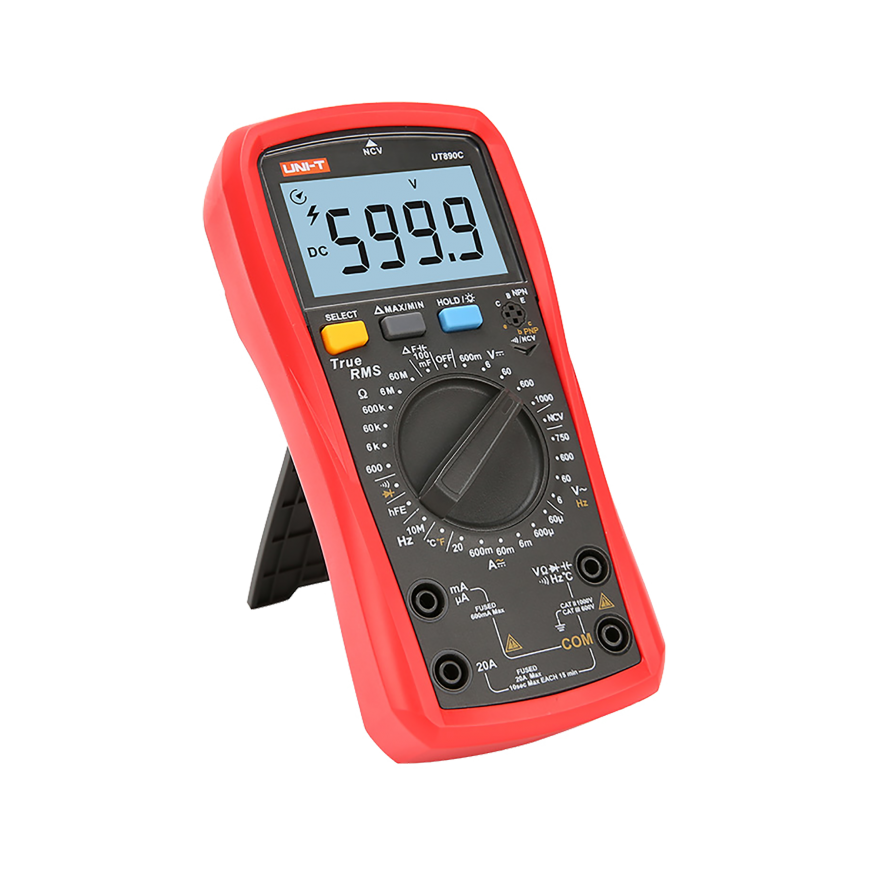

UNIVERSAL MEASURING DEVICE UT-890C UNI-T
30.39 €
2108334 MIE0398
5901890056236
Доставка 6-10 р.д.
Вас заинтересовал этот товар?
Все о продукте
The UT-890C is a universal digital multimeter for measuring voltage, current, resistance, inductance, frequency, frequency, temperature, and diode function testing.
In addition, the UT-890C has an Electric Field Detection (NCV) function.
The meter has a True RMS converter, thanks to which it is possible to accurately measure the efficiency value of electric current and voltage, sinusoidal as well as shapeless flows.
| DC voltage measurement : | 600 mV ± (0.5% + 5) @ 0.1 mV , 6 V ± (0.5% + 5) @ 0.01 V , 60 V ± (0.5% + 5) @ 0.01 V , 600 V ± (0.5% + 5) @ 0.1 V , 1000V ± (0.7% + 5) @ 1V |
| AC voltage measurement : | 6 V ± (1% + 3) @ 1 mV , 60 V ± (0.8% + 3) @ 10 mV , 600 V ± (0.8% + 3) @ 0.1 V , 750V ± (1% + 10) @ 1V |
| DC current measurement : | 60 µA ± (0.8% + 8) @ 0.01 µA , 600 µA ± (0.8% + 8) @ 0.1 µA , 6 mA ± (0.8% + 8) @ 0.001 mA , 60 mA ± (0.8% + 8) @ 0.01 mA , 600 mA ± (1.2% + 5) @ 0.1 mA , 20 A ± (2% + 5) @ 0.01 A |
| AC current measurement : | 60 µA ± (1% + 12) @ 0.01 µA , 600 µA ± (1% + 12) @ 0.1 µA , 6 mA ± (1% + 12) @ 0.001 mA , 60 mA ± (1% + 12) @ 0.01 mA , 600 mA ± (2% + 3) @ 0.1 mA , 20 A ± (2% + 3) @ 0.01 A |
| Resistance measurement : | 600 Ω ± (0.8% + 5) @ 0.1 Ω , 6 kΩ ± (0.8% + 3) @ 1 Ω , 60 kΩ ± (0.8% + 3) @ 10 Ω , 600 kΩ ± (0.8% + 3) @ 100 Ω , 6 MΩ ± (0.8% + 3) @ 1 kΩ , 60 MΩ ± (3% + 10) @ 10 kΩ |
| Capacity measurement : | 6 nF ± (4% + 10) @ 0.001 nF , 60 nF ± (4% + 10) @ 0.01 nF , 600 nF ± (4% + 10) @ 0.1 nF , 6 µF ± (3% + 10) @ 0.001 µF , 60 µF ± (3% + 10) @ 0.01 µF , 600 µF ± (3% + 10) @ 0.1 µF , 6 mF ± (5% + 10) @ 0.001 mF , 60mF ± 10% @ 0.01mF, 100mF ± 10% @ 0.1mF |
| Inductance measurement : | - |
| Frequency measurement : | 9.999 Hz ... 9.999 MHz ± (0.1% + 5) @ 0.001 Hz ... 0.001 MHz |
| Temperature measurement : | °C -40 ... 40 °C ± 3 °C @ 1 °C >40 ... 500 °C ± (1% + 3) @ 1 °C >500 ... 1000 °C ± (2% + 3) @ 1 °C, °F -40 ... 104 °F ± 5 °F @ 1 °F >104 ... 932 °F ± (1.5% + 5) @ 1 °F >932 ... 1832 °F ± (2.5% + 5) @ 1 °F |
| Automatic change of measuring scale : | - |
| hFE : | ✔ |
| Diode test : | ✔ |
| Audible circuit integrity alarm : | ✔ |
| Checking for logical TTL states : | - |
| RS-232 : | - |
| USB : | - |
| Main features : | True RMS - accurate measurement of the real value of electric current and voltage in any form of flow, NCV - electric field detection function, Saving the last instruction, Freezing the highest or lowest indicator, Automatic shutdown after 15 minutes of inactivity, Large, legible LCD display with lighting, Small battery remaining signal, Aesthetic and solid manufacturing |
| Meals : | 2 x 1.5V battery, AAA/LR03 type |
| Weight : | 0.34 kg |
| Dimensions : | 183 x 88 x 56 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
