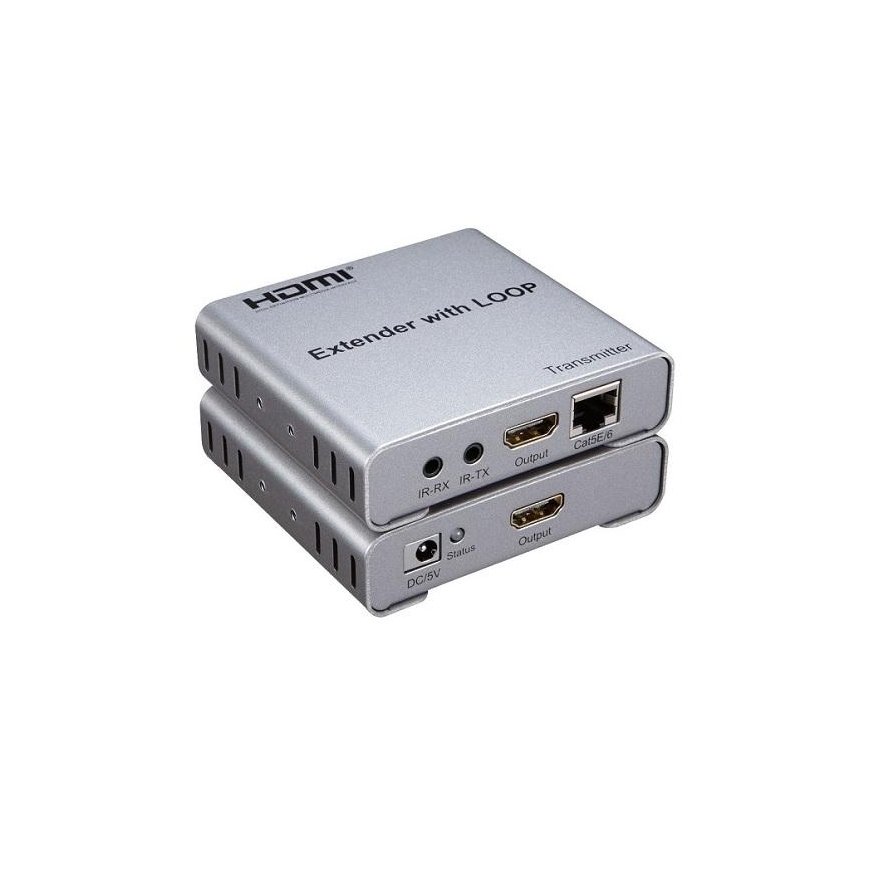

Extra Digital HDMI extender (extender) up to 100m, 4K
88.99 €
Мес. плата от 3,19 €
1935417 CA912964
9990000912964
Доставка 1-2 р.д.
Вас заинтересовал этот товар?
Все о продукте
HDMI extender (extender) up to 100m, 4K, KVM (USB connection for keyboard) HDMI cable connection up to 15m, IR.The extender uses a single Cat5e or Cat6 (recommended) cable instead of an HDMI cable to transmit a high-definition signal up to 100 meters.
Features:
Resolution 4K (3840x2160).
HDMI version 1.4b.
Supports a maximum frequency of 3.4Gbps, bandwidth 340MHz.
Supports standard AWG26 HDMI cable, I/O up to 15 meters.
Supports 100m distance broadcast.
Low electricity consumption, low temperature, high safety.
The transmitter/receiver has a 3.5mm audio port.
IR control is supported.
Technical data:
Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 100m.
HDMI version: HDMI 1.4b.
HDMI resolution: 4K /1080p / 720p / 576p / 576i / 480p / 480i.
HDMI AWG26 cable length to transmitter (TX) / receiver (RX): up to 15m.
Max. transmitter (TX) operating current: 350mA.
Max. receiver (RX) operating current: 200mA.
Max. bandwidth: 340MHz.
Max. data transfer speed: 3x3.4Gbps.
Power adapter: AC (50Hz, 60Hz) 100V-240V; DC 5V / 1A.
Operating temperature: -15°C ~ +55°C.
Operating humidity: 5-90%RH.
Size: 81x87.5x23.5 mm.
Weight: TX 210g; RX 200g.
Transmitter slots:
DC/5V - power socket.
STATUS - power indicator and signal lamp.
OUTPUT - HDMI output.
IR-TX - IR transmitter socket.
R/L - audio output.
INPUT - HDMI input.
CAT5E/6 - CAT5e/ CAT6 cable socket.
Receiver sockets:
DC/5V - power socket.
STATUS - power indicator and signal lamp.
OUTPUT - HDMI output.
IR-TX - IR receiver socket.
R/L - audio output.
CAT5E/6 - CAT5e/ CAT6 cable socket.
Complete set:
Transmitter (TX).
Receiver (RX).
Power adapter x2 (5V/1A DC).
IR controller x2.
Users manual.
Warranty: 24 months
