Digital Clamp Meter Habotest HT206D True RMS , NCV, LPF

 Prekės atspalvis ir tikroji spalva gali skirtis nuo to, kas parodyta nuotraukoje, nes nuotraukos yra iliustracinės. Prekės aprašymas yra bendro pobūdžio ir gali nepateikti visų prekės savybių.

Digital Clamp Meter Habotest HT206D True RMS , NCV, LPF

55,86 €
34,10 €
2193626

HT206D

5907489606653

Pristatymas 3-5 d.d.

Kiekis
Ar jus domina šis produktas?
(Perskaitykite paslaugų teikimo sąlygas)

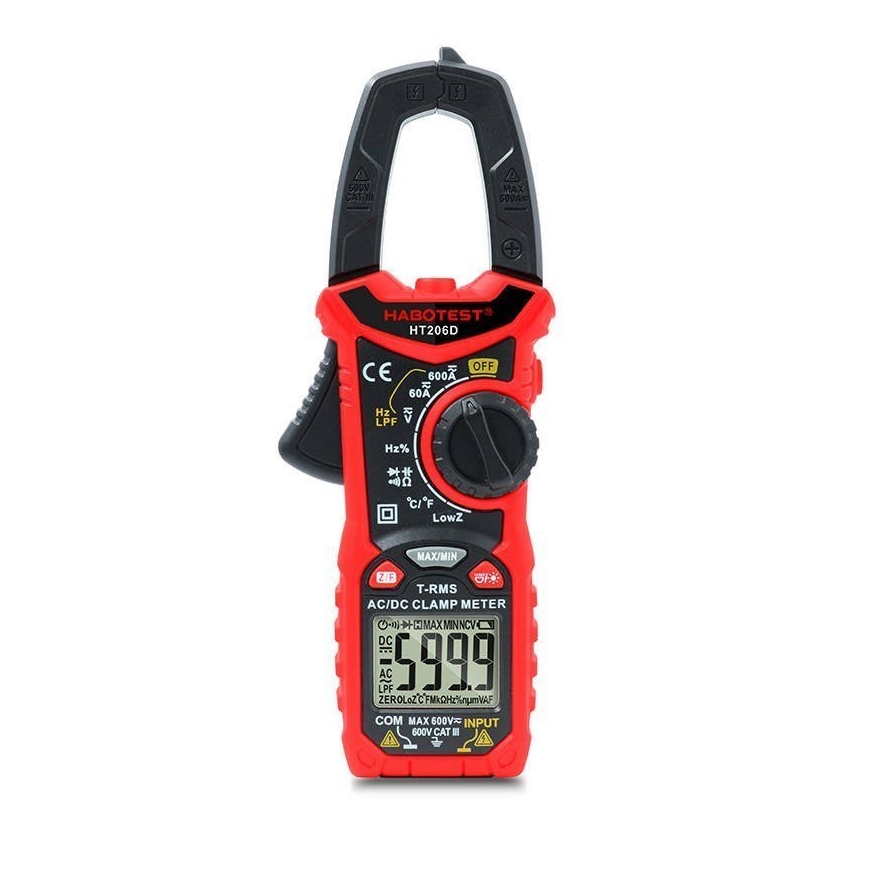

Habotest HT206D digital clamp meter

The functional clamp meter by Habotest guarantees precise measurement, the results of which are displayed on an easy-to-read, backlit LCD screen. The size of the jaws is up to 26 mm, which allows comfortable operation of the device. The HT206D is also equipped with a flashlight, which facilitates work in dark rooms.

Measures various parameters

With this universal meter you can check the value of many different parameters. Using the HT206D, you will measure capacitance, AC voltage, resistance, AC current and even temperature. However, that's not all! Built-in NCV sensors enable non-contact voltage measurement.

Clear, practical display

The meter is equipped with an LCD display with backlighting in 2 colors. You will find on it not only measurement results, but also, for example, a low battery indicator. This allows you to use the HT206D comfortably. What's more, the backlight will turn orange when the value of the measured voltage exceeds 80 V and the current exceeds 3 A.

Easy operation in all conditions

The built-in flashlight provides bright illumination, so you can also work in dark places without difficulty. Operation of the device is also facilitated by intuitive buttons, with which, among other things, you can quickly and conveniently select a function, use the MAX/MIN measurement option, and turn the light on or off. An additional advantage of the meter is the data storage option.

ManufacturerHabotest
ModelHT206AHT206D
DC voltage measurement range400mV/4V/40V/400V/600V±(0,5%+5)600mV/6V/60V/600V±(0,5%+5)
AC voltage measurement range4 V/40 V/400 V/600 V±(1,0%+5)6V/60V/600V±(0,8%+5)
DC current measurement rangeNot applicable60 A/600 A±(2,5%+5)
AC current measurement range4 A/40 A/600 A±(2,5%+8)60 A/600 A±(2,5%+5)
Resistance measurement range400Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1.0%+5)600 Ω/6 kΩ/60 kΩ/600 kΩ/6 MΩ/60 MΩ±(1,0%+5)
Capacitance measurement range4nF/40nF/400nF/4µF/40 µF/400 µF/4 mF ±(4.0%+5)10 nF/100 nF/1 µF/10 µF/100 µF/1 mF/10 mF/100 mF±(4,0%+3)
Frequency measurement rangeNot applicable10 Hz/100 Hz/1 kHz/10 kHz/100 kHz/1 MHz/10 MHz±(1,0%+3)
Fill factor measurement rangeNot applicable1%-99%±(3,0%+3)
Temperature measurement rangeN/A-40°C-1000°C±(1,0%+2);
-40°F-1832°C±(1,0%+2)
Number of counts40006000
Range selectionAutomaticAutomatic
Continuity testYes, audible and light alarmYes, audible and light alarm
Diode testingYesYes
Data storageYesYes
NCVNoYes, audible and light alarm
IlluminationYesYes
FlashlightYesYes
DCA ZeroNoYes
Low battery indicatorYesYes
Automatic shutdownYesYes
True RMS valueYesYes
LPFNoYes
MAX/MINYesYes
LowZNoYes
Power supply2x AAA 1.5V battery(included)2x AAA 1.5V battery(included)
WeightApprox. 260 gApprox. 260 g
Dimensions193x73x34 mm193x73x34 mm
Jaw size26x44 mm26x44 mm
SafetyEN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600VEN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V
