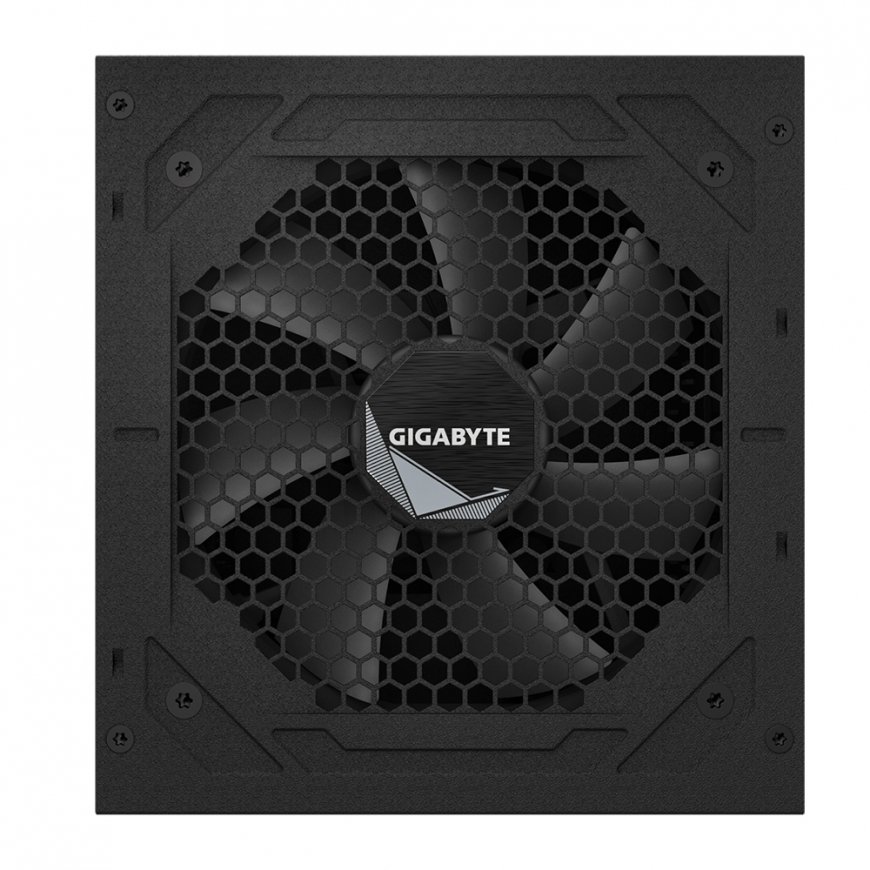

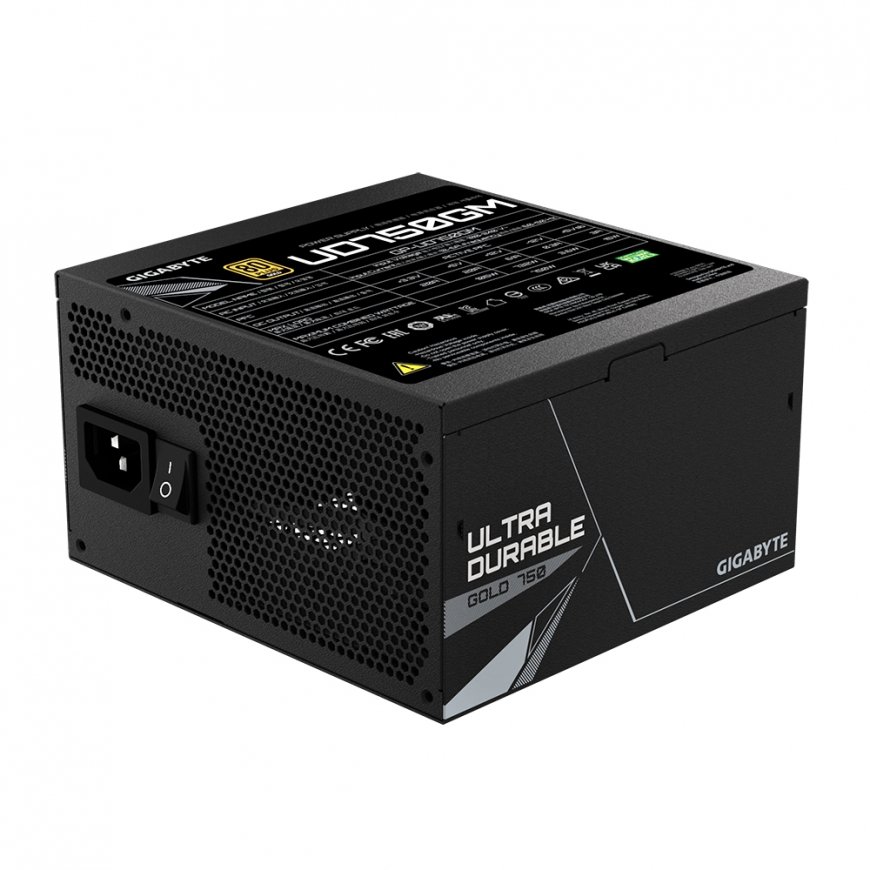

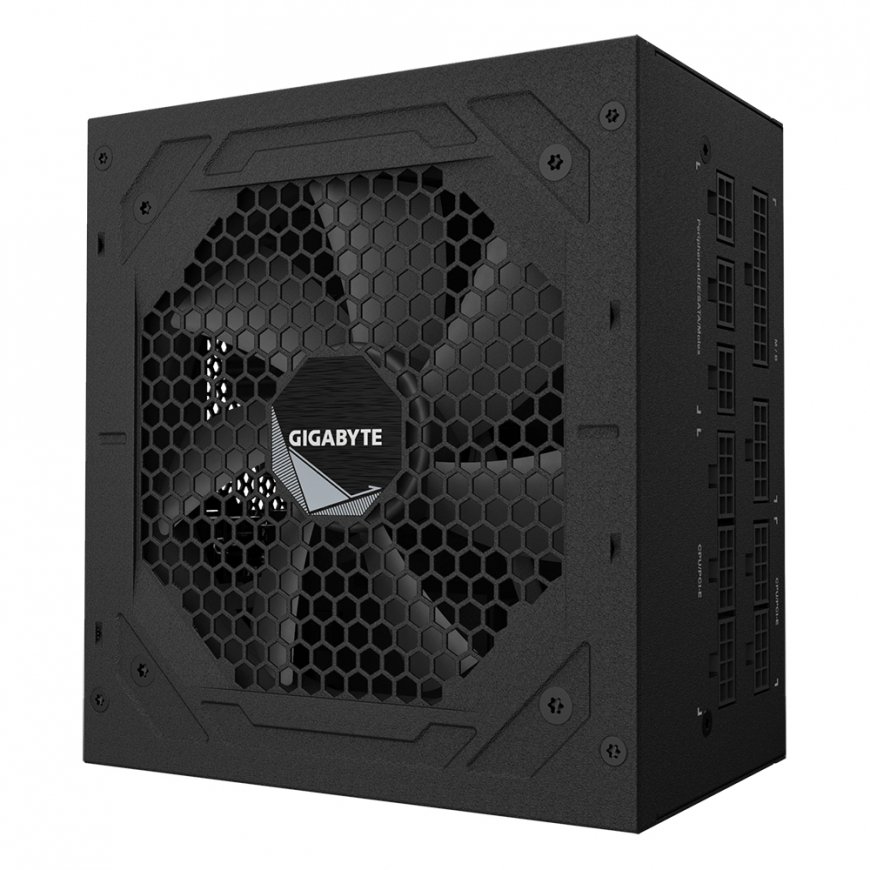

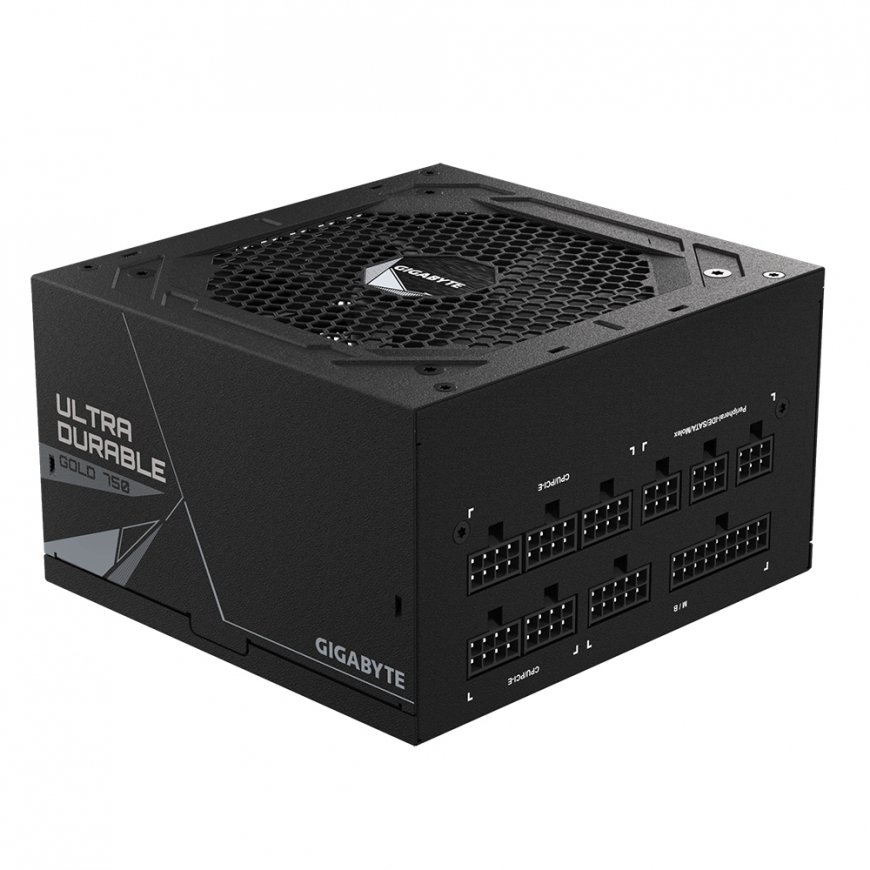

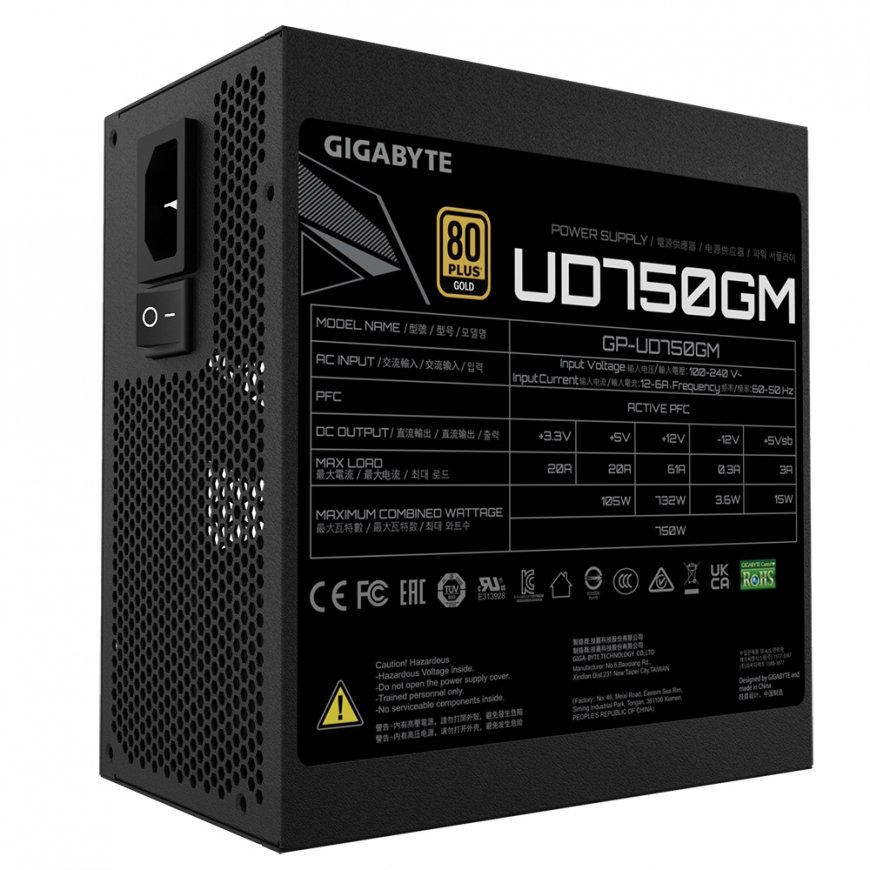

GIGABYTE GP-UD750GM power supply unit 750 W 20+4 pin ATX ATX Black
102.00 €
Monthly payment from 3,53 €
1116239 GP-UD750GM
4719331552671, 0810075651966, 4719331552688
Shipping 4-6 b.d.
You are interested in this product?
All about the product
ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.
ENHANCED THERMAL
SOLUTION
Compared with the standard thermal solution, we have enlarged the heatsink by about 200% or more, and optimized the airflow. The heat dissipation performance is increased by more than 10%, thus prolonging the service life of the components.
120MM SMART HYDRAULIC
BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and stops when the system is idle or under low load (less than 20% load). The hydraulic bearing fan provides longer and more stable life time.
PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.
80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise.
SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.
COMPACT DESIGN
With the help of engineers' excellent design capabilities and heat dissipation technology on various hardware products, and the use of higher quality materials, GIGABYTE has reduced the length of the power supply to an amazing 140 mm, so it can be easily installed in any chassis without space constraints.
Power | |
| Hold time | 16 ms |
| Efficiency | 90% |
| Input current | 12 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 732 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 61 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 2.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 750 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HYB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 450, 150, 600, 300 |
| Peripheral (Molex) power cable length | 500, 120 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 60 cm |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | Yes |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
