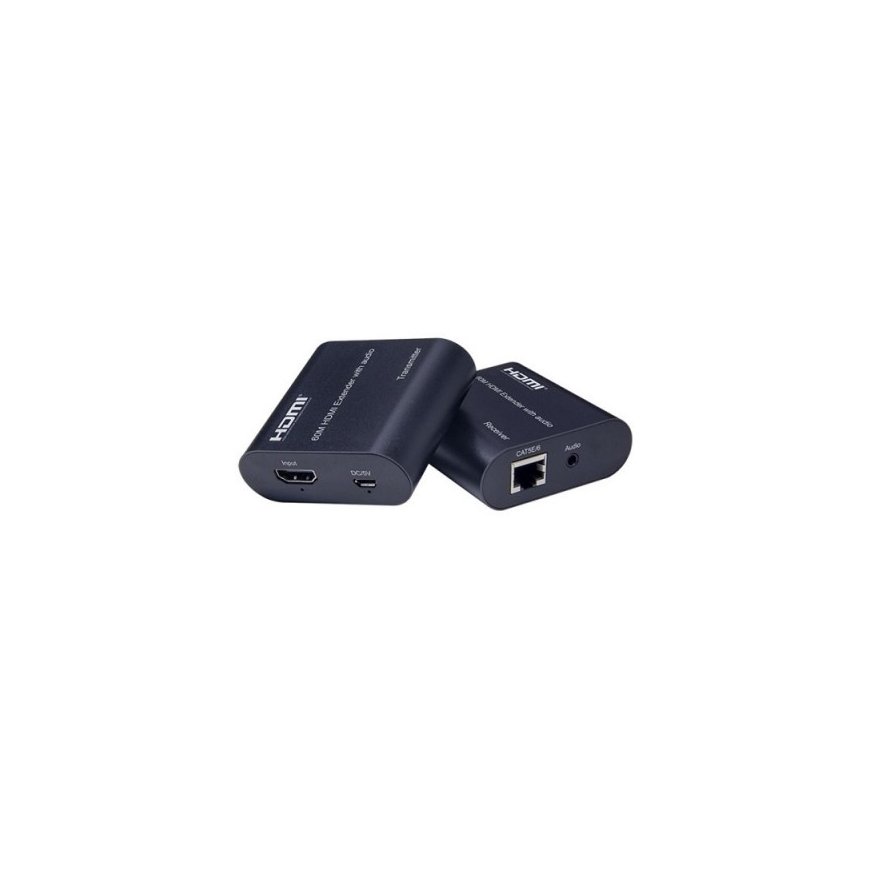

Extra Digital HDMI-pitkäjänteinen laajennin (extender) POC jopa 120 m, 4K.
109,00 €
102.72 €
Kuukausimaksu alkaen 3,54 €
4047922 CA916184
9990000916184
Shipping 2-4 w.d
Oletko kiinnostunut tästä tuotteesta ?
All about the product
HDMI extender POC up to 120m, 4K, IR, loop-out and 3.5mm audio ports.The HDMI extender uses a single Ethernet (Cat5e or Cat6) cable instead of an HDMI cable to transmit high-definition video and audio signals up to 120 meters.Features: Supports HDMI signal transmission up to 120m.Supports HDMI 1.4 version and HDCP 1.4 digital content protection standard.Supports local loop-out output (a monitor/TV can be connected next to the source).Supports IR control.POC (Power Over Cable) – power is transmitted through the same cable, supporting both transmitter (TX) and receiver (RX) from a single power source.Both the TX and RX support 3.5mm stereo audio output.Easy connection (plug and play), no additional software required.Low power consumption, low temperature, and high safety.Can be used with TVs, PCs, projectors, and video cameras.
Technical specifications:Max. (CAT5e/CAT6 cable) length between transmitter and receiver: 120m.HDMI resolution: 4K/1080p/720p/576p/576i/480p/480i.Max. bandwidth: 340MHz.Max. data rate: 3x3.4Gbps.Input video signal: 0.5~1.5V p-p.Output DDC signal: 5V p-p (TTL).Input cable distance: up to 10m AWG26 HDMI.Output cable distance: up to 10m AWG26 HDMI.Max. transmitter (TX) operating current: 350mA.Max. receiver (RX) operating current: 200mA.Operating temperature: 0°C ~ +45°C.Operating humidity: 5-90%RH (non-condensing).Size: 107x105x27.3 mm.Weight: TX 250g; RX 248g.
Transmitter Ports:DC/12V – Power port.CAT5E/6 – CAT5e/CAT6 cable port.Output – HDMI output.Input – HDMI input.R/L – Audio output.IR-TX – IR transmitter port.Receiver Ports:DC/12V – Power port.CAT5E/6 – CAT5e/CAT6 cable port.Output – HDMI output.R/L – Audio output.IR-RX – IR receiver port.
Warranty: 24 months.
