DALI Night driving thermal imaging camera 384x288, 37°, IP67

2 348,99 €
Kuukausimaksu alkaen 61.39 €
2919700

TV991983

9990000991983

Shipping 2-4 w.d

Määrä

Oletko kiinnostunut tästä tuotteesta ?
(Lue käyttöehdot)

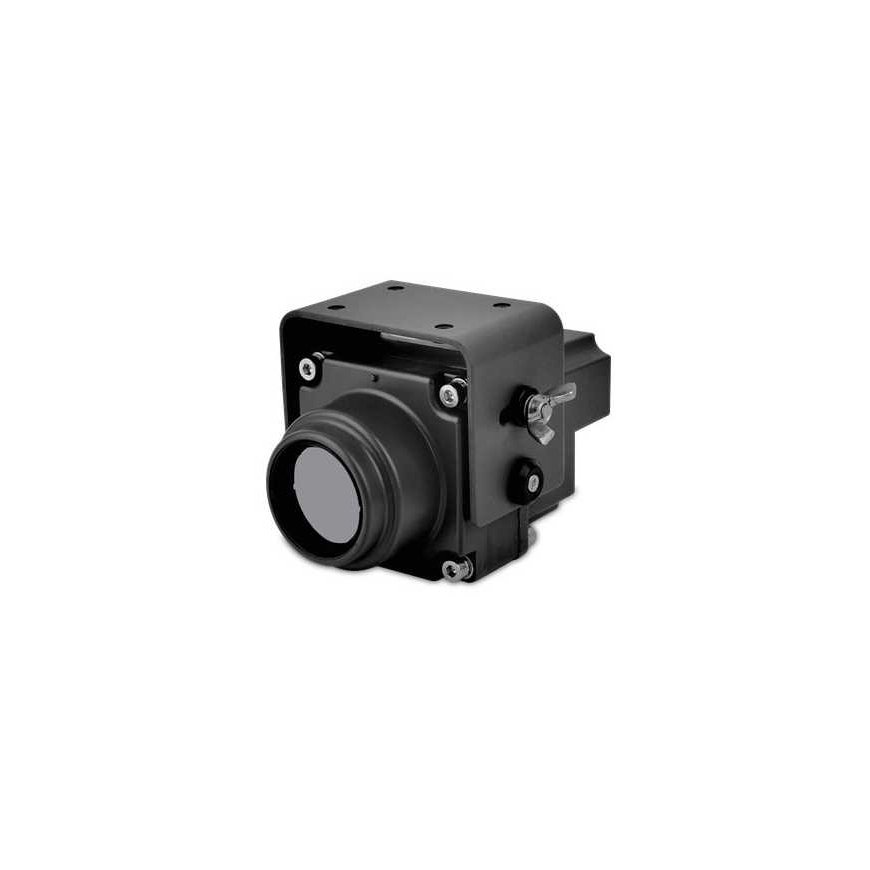

Night vision thermal car camera 384x288, 37°, IP67
Vehicle-mounted thermal imaging camera for safety driving. An uncooled infrared military-grade microbolometer sensor provides visibility at night or harsh environment conditions. Can provide traffic information at a distance of 350m, without any light source, not affected by blinding glare of oncoming headlights, smoke, fog, dust or rain. Non-focusing fixed lenses provide a clear panoramic view. Advanced anti-shock and vibration resistant technology is specially adapted to the vehicle.


Features:
384x288 pixel resolution sensor with fixed lens. Field of view 37.9°×28.5°. Safety class IP67.
This thermal imaging camera is connected to the screen e.g. waterproof TV991976.
Low energy consumption, up to 6W.
An uncooled IR microbolometric sensor helps detect subtle temperature changes and provides effective visibility at a distance of 350m.
Protection against reverse polarity and over-voltage.
IP67 encapsulation provides resistance to dust and water.
Application: can be installed in any type of vehicle, SUV, off-road, boat, buggy, truck or quad.
The manufacturing process is controlled according to the ISO TS 16949 international vehicle industry standard.


Technical data:
Sensor resolution: 384x288.
Sensor Type: Uncooled FPA.
Field of view: 37.9°×28.5°.
Focal length: fixed, >/= 6m.
Wavelength: 8-14 microns (micrometers).
Power supply: DC 12-32V.
Consumption: <6W.
Video output: PAL.
Frame rate: 50Hz.
Focus type: fixed athermatized lens.
Shock resistance: GJB150A-2009.
Vibration resistance: GJB150A-2009.
Electromagnetic compatibility: GJB151A.
Operating temperature: -41°C~ +65°C.
Storage temperature: -55°C~ +85°C.
Protection class: IP67.
Weight: 750g.

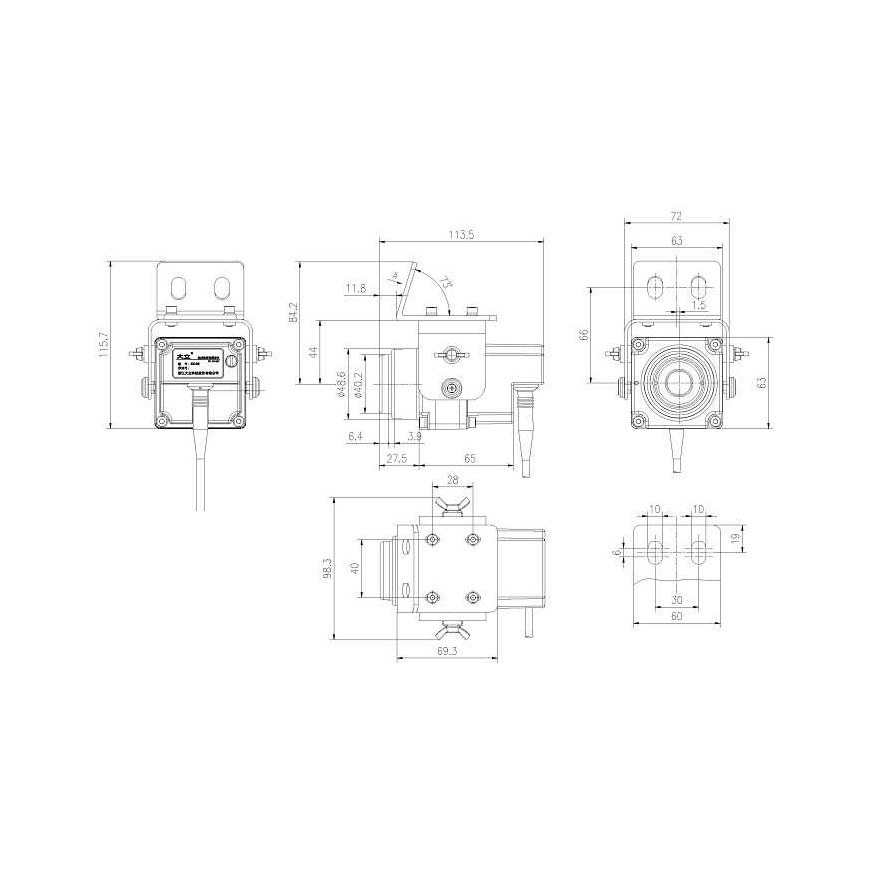

Size: 64x64x115mm.


Warranty: 24 months.
