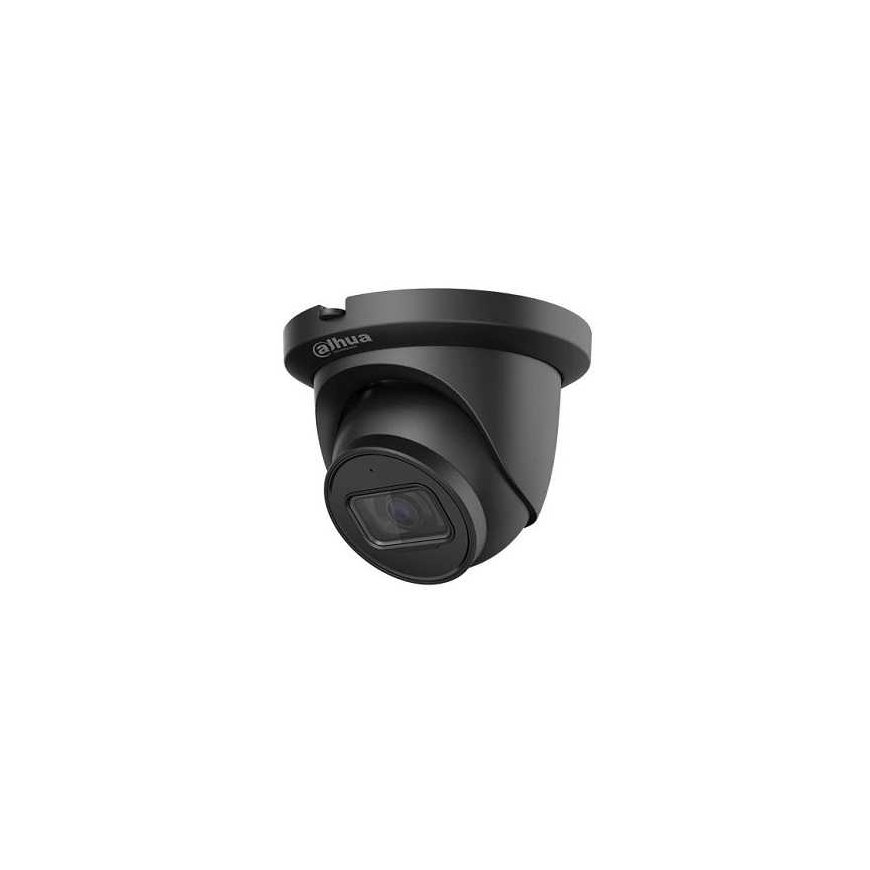

Dahua Technology Co IP camera 5M 2K dome. STARLIGHT with LXIR up to 50m, 5MP(2592x1944) 20fps, 2.8mm, 102, H.265+, ePoE, black

All about the product

Camera

• Image Sensor: 1/2.7" CMOS


• Max. Resolution: 2592 (H) × 1944 (V)


• ROM: 128 MB


• RAM: 512 MB


• Scanning System: Progressive


• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s


• Min. Illumination: 0.005 [email protected] (Color, 30 IRE)


• S/N Ratio: >56 dB


• Illumination Distance: 50 m (164.04 ft) (IR)


• Illuminator On/Off Control: Auto; manual


• Pan/Tilt/Rotation Range: Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°

Lens

• Lens Type: Fixed-focal


• Lens Mount: M12


• Focal Length: 2.8 mm


• Max. Aperture: F1.6


• Field of View: 2.8 mm: Horizontal: 102°; Vertical: 71°; Diagonal: 131°

DORI Distance

• Lens:



  • Detect: 56 m (183.73 ft)


  • Observe: 22.4 m (73.49 ft)


  • Recognize: 11.2 m (36.75 ft)


  • Identify: 5.6 m (18.37 ft)





Smart Event

• IVS: Abandoned object; missing object


• Heat Map: Yes


• IVS (Perimeter Protection): Intrusion, tripwire, fast moving, loitering detection, people gathering, and parking detection


• SMD 3.0: Less false alarm, longer detection distance


• Face Detection: Face detection; track; snapshot; snapshot optimization


• People Counting: Counting of enter number, leave number, and pass number

Video

• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub-stream)


• Video Frame Rate: Main stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps)


• Bit Rate Control: CBR/VBR


• Video Bit Rate: H.264: 3 kbps–20480 kbps


• Day/Night: Auto (ICR)/Color/B/W


• BLC, HLC, WDR: Yes


• White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Alarm

• Alarm Event: No SD card; SD card full; SD card error; network disconnection

Network

• Network Port: RJ-45 (10/100 Base-T)


• Cyber Security: Video encryption; firmware encryption; configuration encryption


• Network Protocol: IPv4; IPv6; HTTP; HTTPS

Power

• Power Supply: 12 VDC/PoE (802.3af)/ePoE


• Power Consumption: Basic: 2.1 W (12 VDC); 2.6 W (PoE)

Environment

• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)


• Protection: IP67
