E-ATX 650/12 19"/4U server case

The RACK 19" 4U server case is a solution designed for efficient servers, professional workstations, and advanced data storage systems. The thoughtful design provides ample mounting space, wide compatibility with modern components, and effective cooling for components operating under heavy loads.

The 4U format allows for the use of larger CPU coolers, long expansion cards, and even 15 storage devices. Therefore, the case is ideal for server rooms and data centers, as well as corporate IT systems, industrial environments, or extensive installations intended for data archiving.

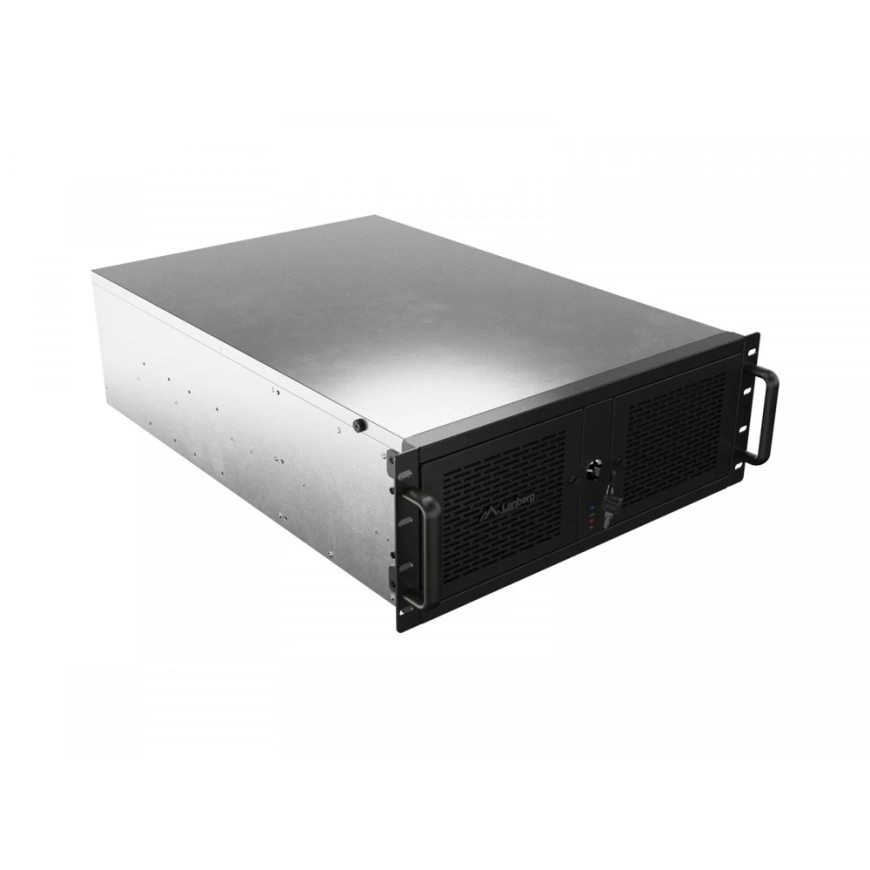

Thoughtful RACK 19" design in 4U format
The case has been adapted for installation in standard RACK 19" server cabinets. The 4U height provides significantly more space than lower server designs, making it easier to install components, route cables, and later expand the configuration.

The ample interior space allows for comfortable planning of component placement and maintaining proper airflow. Thus, the case can serve as the foundation for both a classic server and a powerful workstation intended for professional applications.

Support for E-ATX and SSI EEB motherboards
The wide mounting space allows the installation of motherboards up to E-ATX and SSI EEB formats. This enables the use of advanced server and workstation platforms equipped with extensive power sections, a large number of RAM slots, and numerous connections for expansion cards.

Compatibility with large motherboards makes the case ideal for building high-performance computing systems, file servers, virtualization machines, monitoring systems, and workstations requiring substantial computational power.

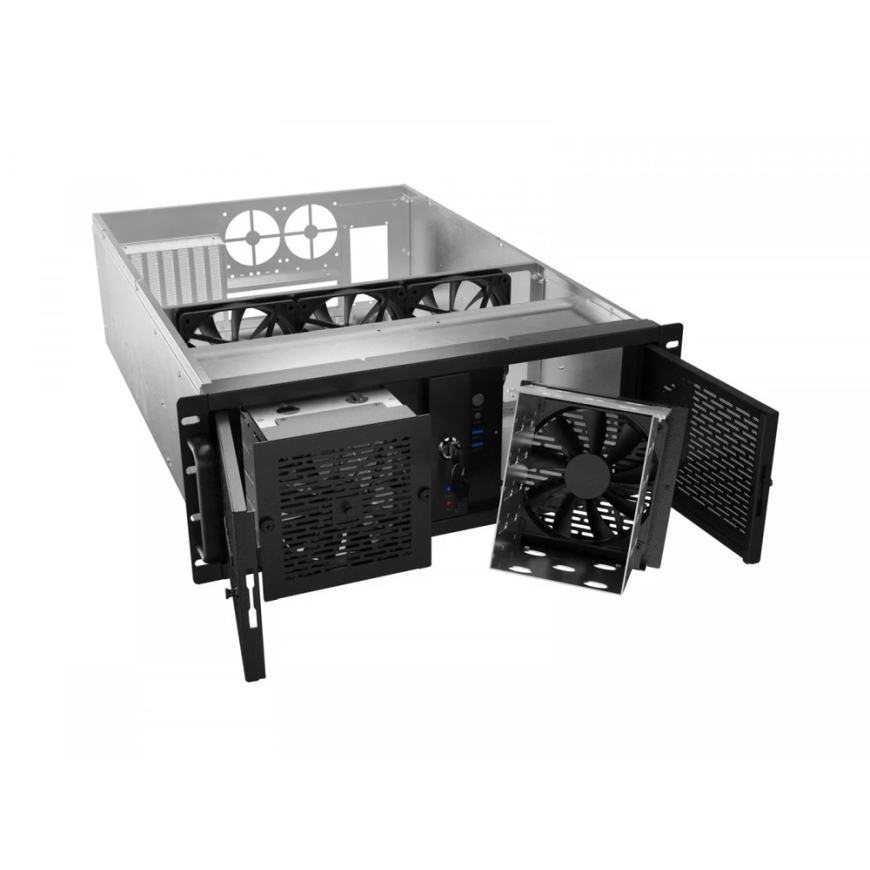

Space for up to 15 HDDs and SSDs
The case provides extensive storage installation options. With the right configuration, it can accommodate up to 10 3.5" drives and 5 2.5" drives, totaling space for 15 storage devices.

Such a large mounting capacity allows for the creation of multi-disk arrays, NAS servers, archiving systems, backups, and environments that store large amounts of data. The ability to combine large hard drives with fast SSDs facilitates tailoring the configuration to the specific application requirements.

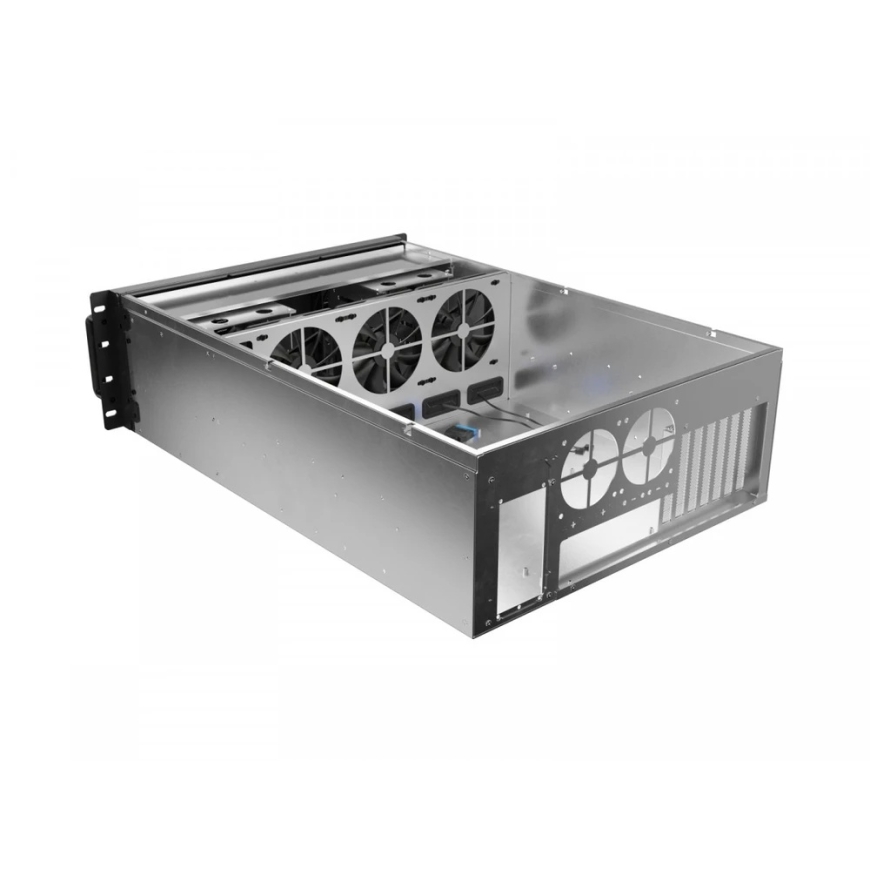

Efficient cooling with 5 120 mm PWM fans
Proper airflow is crucial for the stable operation of an efficient server. Therefore, the case is factory-equipped with 5 120 mm PWM fans, whose rotational speed can be adjusted according to the current temperature of the components.

The use of large fans helps efficiently dissipate heat from the interior of the case, and PWM control allows for maintaining an appropriate balance between cooling performance and noise levels.

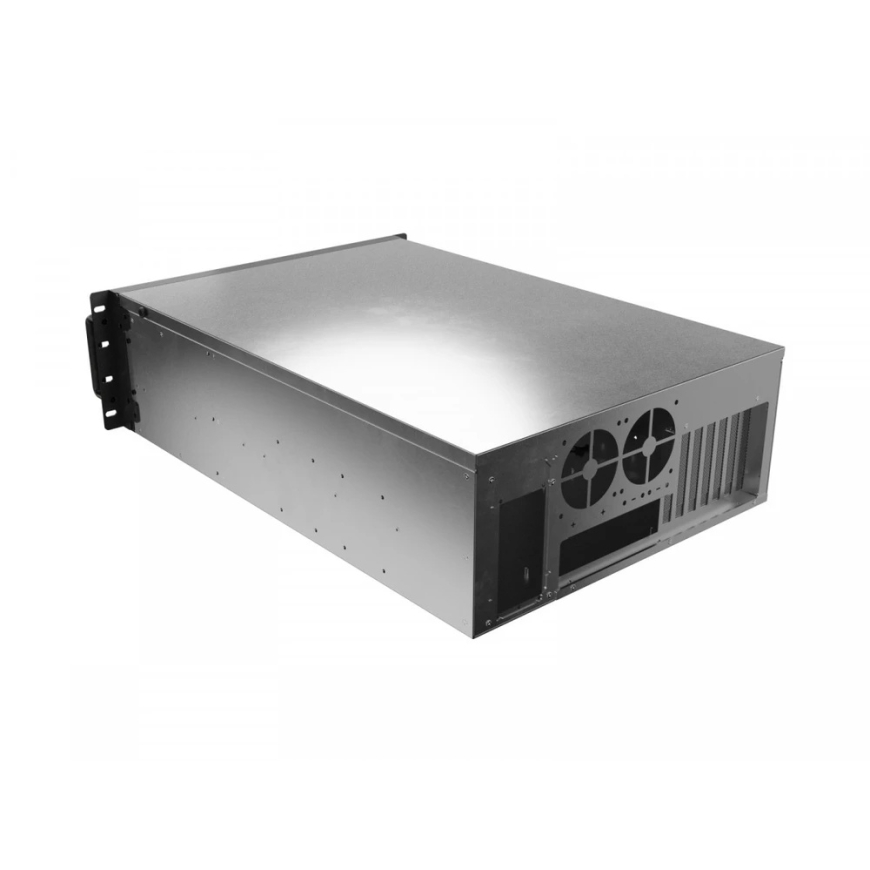

The rear wall also provides space for mounting 2 additional 80 mm fans. Optional fans can further assist in removing heated air and improving airflow throughout the entire structure.

Compatibility with AIO liquid cooling systems
The case also supports AIO liquid cooling systems. This allows for the implementation of efficient cooling solutions designed for modern server and desktop processors, which can generate significant amounts of heat during intense workloads.

The possibility of using AIO cooling increases configuration flexibility and facilitates building a powerful workstation or server where stable processor temperatures are essential even under prolonged load.

Broad compatibility with modern components
The 4U format allows for mounting CPU coolers up to 155 mm in height. This means users are not limited solely to low-profile solutions used in smaller server cases.

Inside, expansion cards up to 330 mm in length can also be installed. This ensures compatibility with many modern graphics cards, disk controllers, network cards, compute accelerators, and other components used in powerful servers and professional workstations.

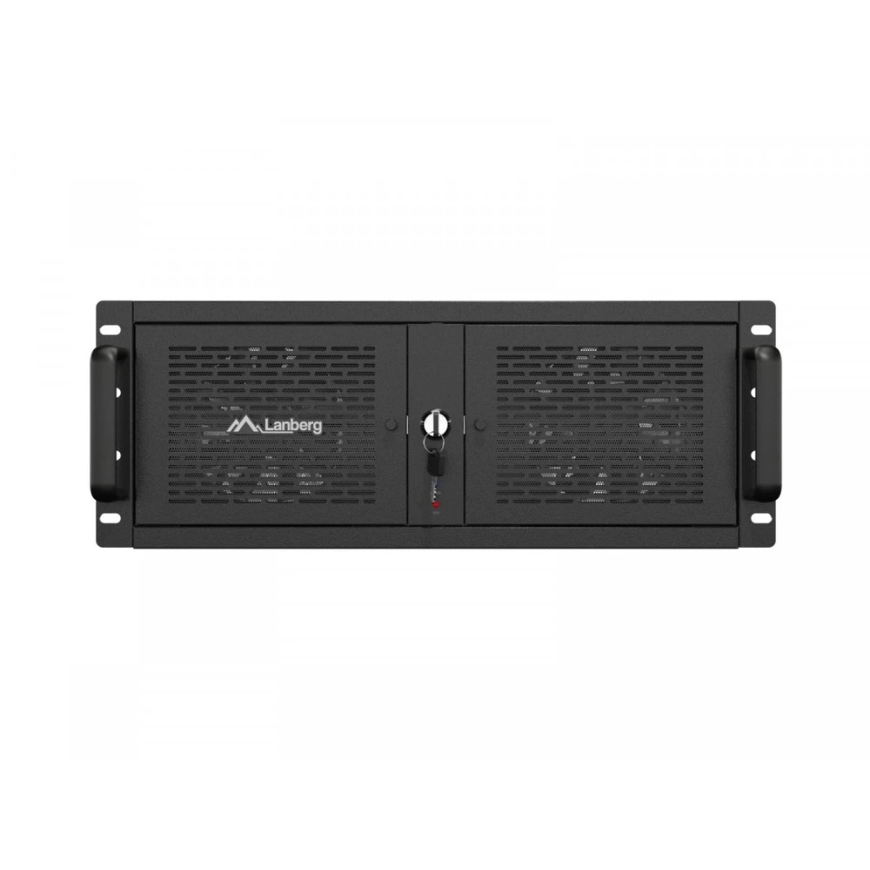

Dust filters facilitate maintenance
The case is equipped with dust filters that help reduce the amount of pollutants entering its interior. The removable filter located at the front can be easily taken out and cleaned, simplifying regular server maintenance.
