Lanberg Serveru korpuss e-atx 650/12 19 collas/4u

Viss par produktu

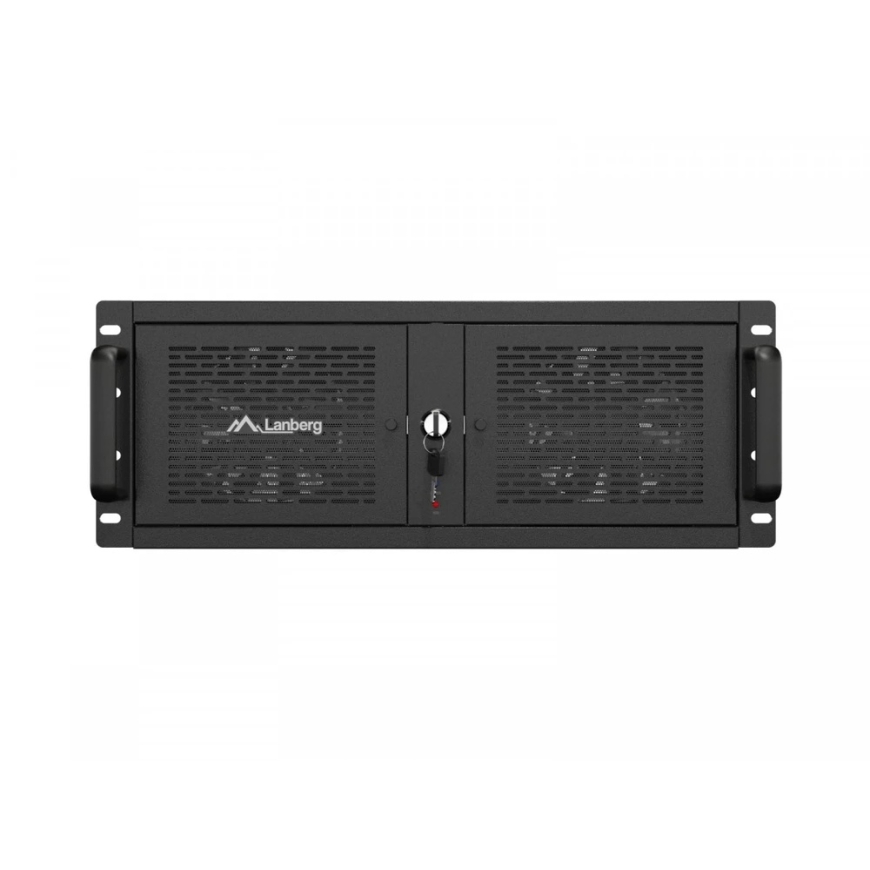

E-ATX 650/12 19"/4U server case

19" 4U RACK server case is a solution designed for efficient servers, professional workstations, and extensive data storage systems. A thoughtful design ensures ample mounting space, broad compatibility with modern components, and effective cooling for components operating under high loads.

The 4U format allows for the use of larger CPU cooling solutions, long expansion cards, and even 15 data drives. This makes the case ideal for both server rooms and data centers, as well as corporate IT systems, industrial environments, or extensive installations designed for data archiving.

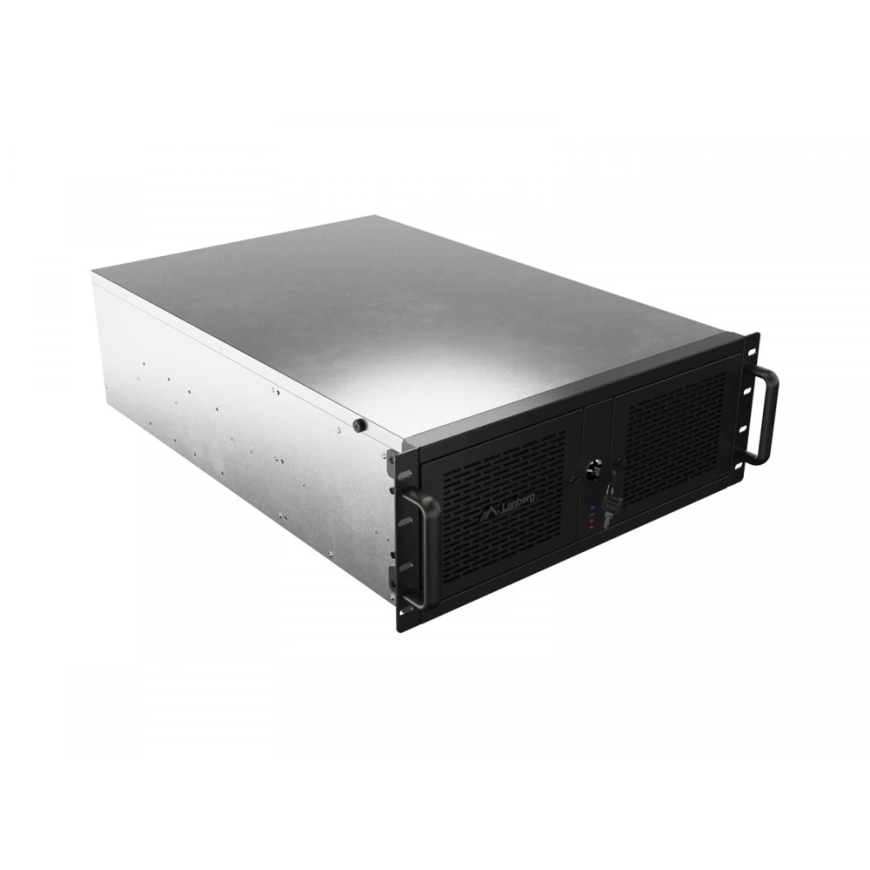

Thoughtful RACK 19" design in 4U format
The case is adapted for mounting in standard 19" RACK server cabinets. The 4U height provides significantly more space than shorter server designs, making it easier to install components, manage cables, and later expand configurations.

The large internal volume allows for convenient planning of component placement and maintaining proper airflow. The case can thus serve as the foundation for both a classic server and a powerful workstation designed for professional applications.

Support for motherboards up to E-ATX and SSI EEB
The spacious mounting area allows for the installation of motherboards in E-ATX and SSI EEB formats. This enables the use of advanced server and workstation platforms equipped with expanded power sections, large numbers of RAM slots, and numerous connectors for expansion cards.

Compatibility with large motherboards means the case is excellent for building high-performance computing systems, file servers, virtualization machines, monitoring systems, and workstations requiring high computational power.

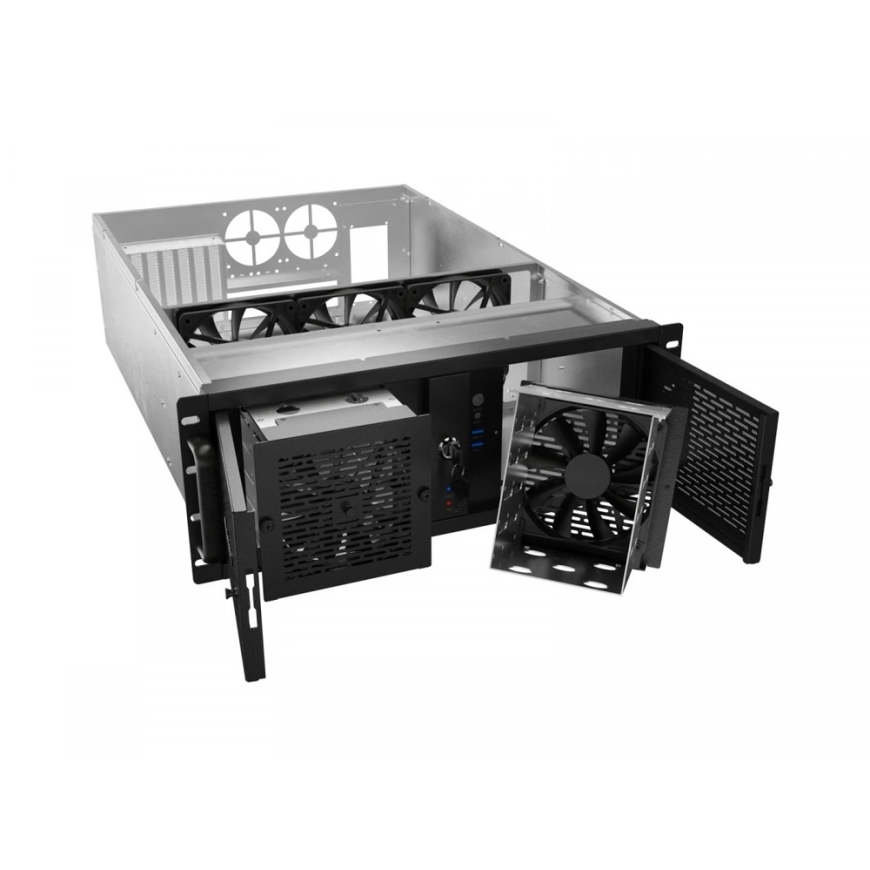

Space for up to 15 HDD and SSD drives
The case provides extensive storage installation options. In the right configuration, it can accommodate even 10 3.5" drives and 5 2.5" drives, totaling space for 15 data storage devices.

Such a high installation capacity allows for the creation of multi-drive arrays, NAS servers, archiving systems, backup solutions, and environments that store large amounts of data. The ability to combine large hard drives with fast SSDs facilitates configuration adaptation to specific application requirements.

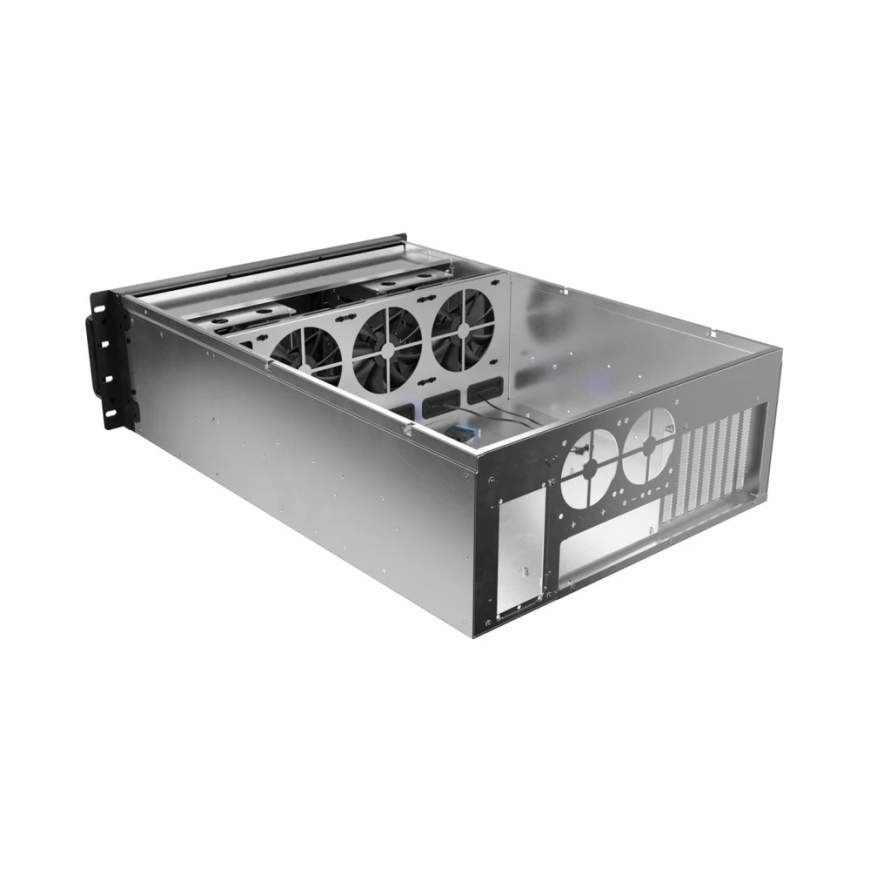

Efficient cooling with 5 PWM 120mm fans
Proper airflow is crucial for the stable operation of an efficient server. That's why the case is factory-equipped with 5 PWM 120mm fans that can adjust their speed according to the current component temperatures.

The use of large fans helps effectively dissipate heat from inside the case, while PWM control allows for maintaining an appropriate balance between cooling performance and generated noise levels.

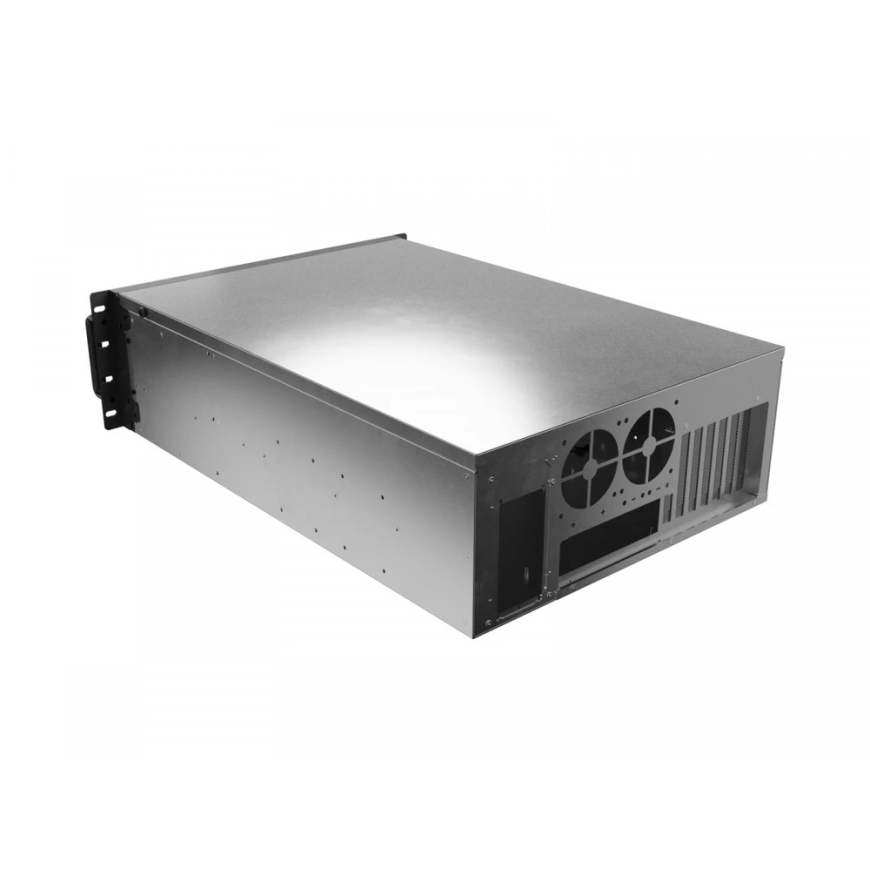

The rear wall also accommodates mounting for 2 additional 80mm fans. Optional fans can further assist in removing heated air and enhancing airflow throughout the entire structure.

Compatibility with AIO liquid cooling systems
The case also supports AIO liquid cooling systems. This allows the use of efficient cooling solutions intended for modern server and desktop processors, which can generate significant amounts of heat during intensive usage.

The capability to utilize AIO cooling increases configuration flexibility and facilitates the construction of a high-performance workstation or server where stable processor temperatures are crucial even under prolonged load.

Wide compatibility with modern components
The 4U format allows for mounting CPU coolers with heights up to 155mm. This ensures that the user is not limited to low-profile solutions used in smaller server cases.

Inside, expansion cards up to 330mm in length can also be installed. This provides compatibility with many modern graphics cards, disk controllers, network cards, computational accelerators, and other components used in high-performance servers and professional workstations.

Dust filters for easier maintenance
The case is equipped with dust filters that help reduce the amount of contaminants entering its interior. The removable front filter can be easily taken out and cleaned, simplifying regular server maintenance.
