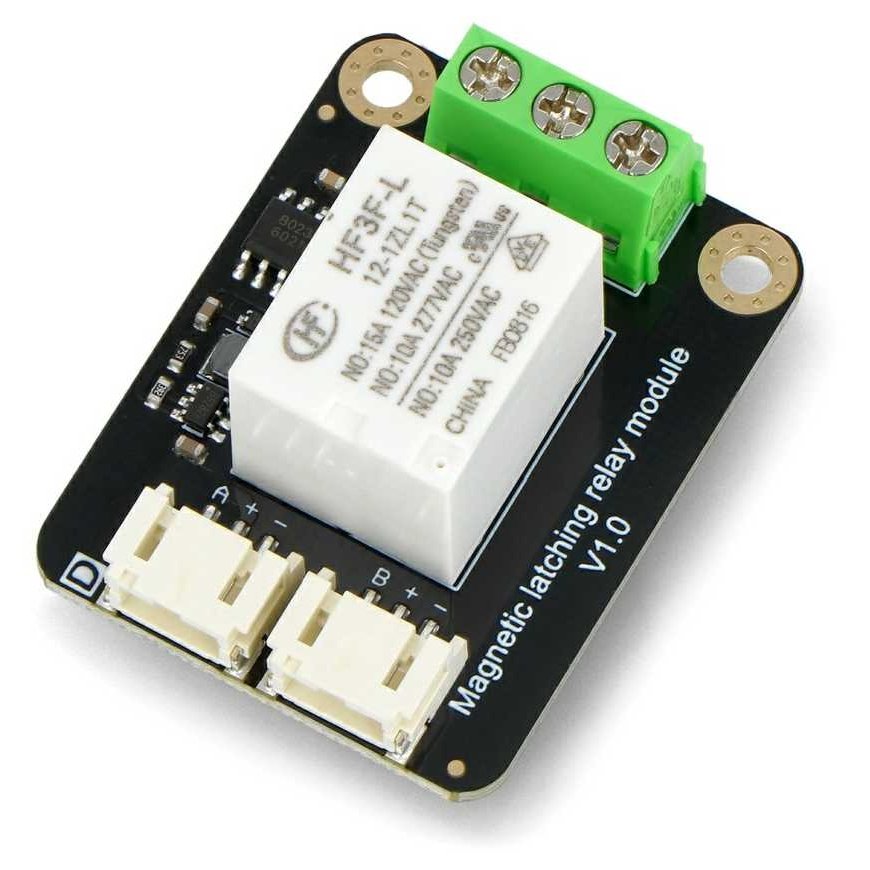

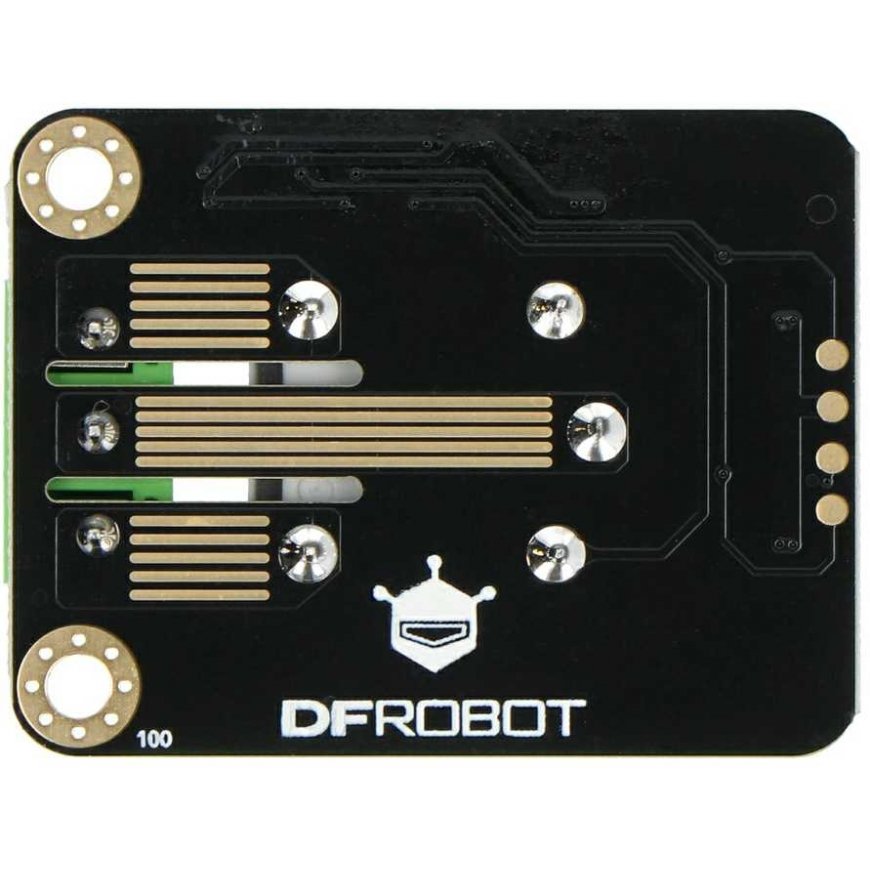

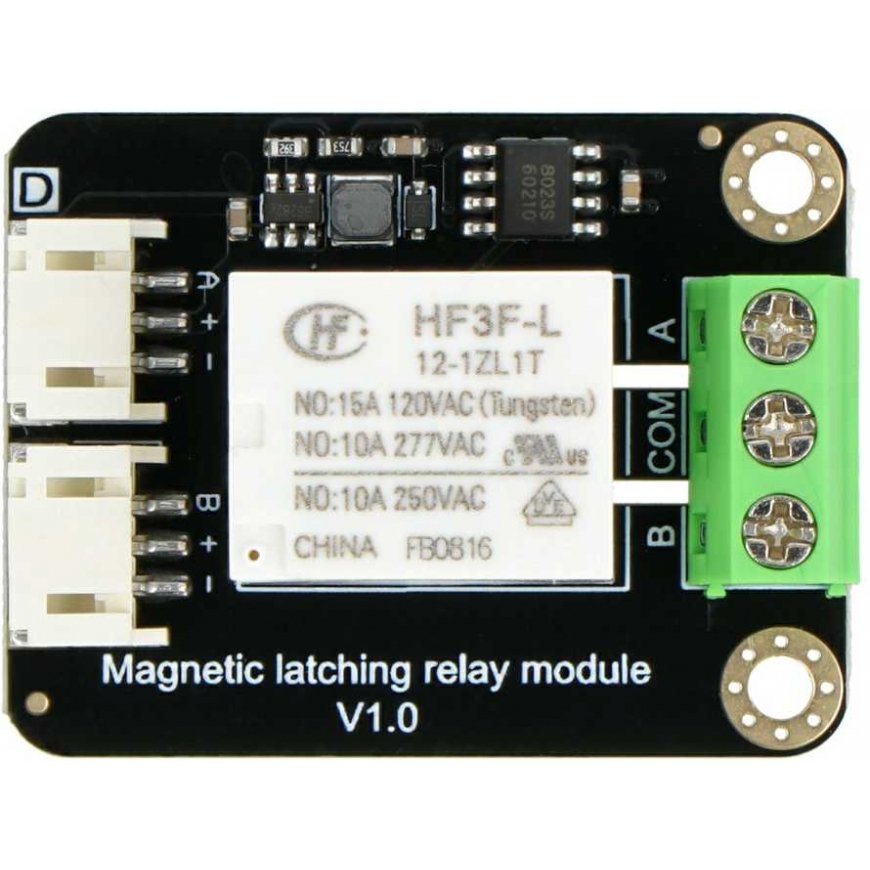

Gravity - 10A/250VAC magnetic relay with latch for Arduino and ESP32 - DFRobot DFR0996
19.06 €
3689767 AN-22838
6959420923243
Tarneaeg 7-9 t.p.
Kauba vastu huvi?
Kõik toote kohta
Magnetic relay with latch 10 A / 250 V AC from DFRobot. Compared to other relays, it stands out in that it requires two digital pulse signals to switch the on / off state. It is compatible with the most popular microcontrollers such as ESP32, Arduino or Raspberry Pi.
Main features:
- Low power consumption - from 2.6 mW to 3.65 mW
- Quiet and interference-free operation
- Operating pulse width - 2 ms
- Supports 3.3V and 5V voltages
- Compatible with Arduino / ESP32 / Raspberry Pi / LattePanda
Specifications:
- Module type: relay
- Relay type: Magnetic relay with latch
- Supply voltage: 3.3 V to 5 V DC
- Trigger pulse width: 2 ms
- Static current: 0.73 mA to 0.8 mA
- Operating current: 137 mA / 3.3 V, 93 mA / 5 V
- Contact resistance: ≤ 100 mΩ (1 A / 6 V DC)
- Contact material: AgSnO2
- Contact load: 10 A / 36 V AC, 15 A / 36 V AC
- Maximum switching voltage: 36 V AC / 30 V DC
- Maximum switching current: 10 A
- Maximum switching power: 36 VA / 300 W
- Nominal coil power: 0.4 W
- Relay operating time (at rated voltage): ≤ 8 ms
- Relay reset time (at rated voltage): ≤ 5 ms
- Module dimensions: 42 x 32 mm

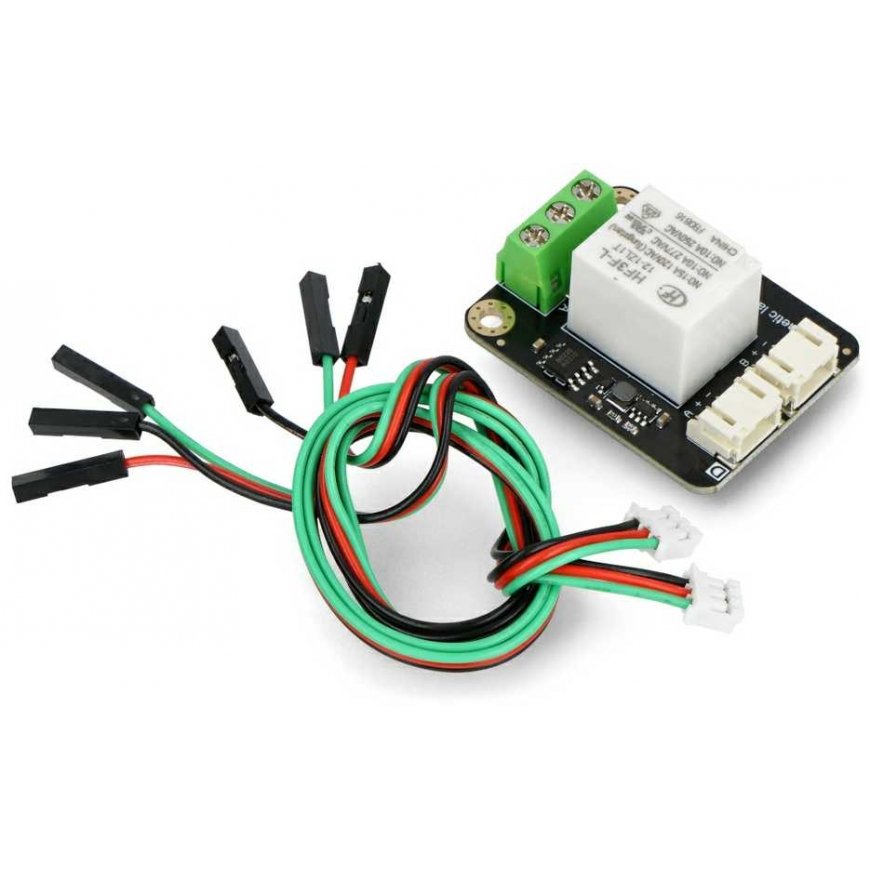

Included:
- Gravity - 10A/250VAC magnetic relay with latch for Arduino and ESP32 - DFRobot DFR0996 - 1 pc
- Connecting cable with Gravity connector - 3 pins - 1 pc.
