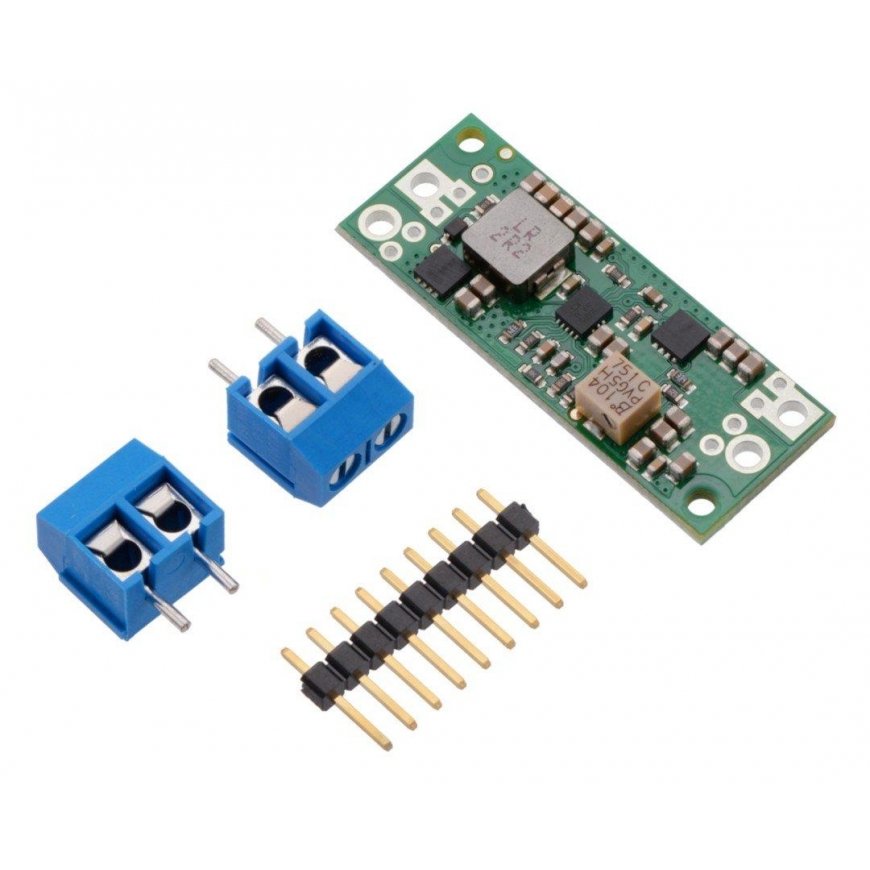

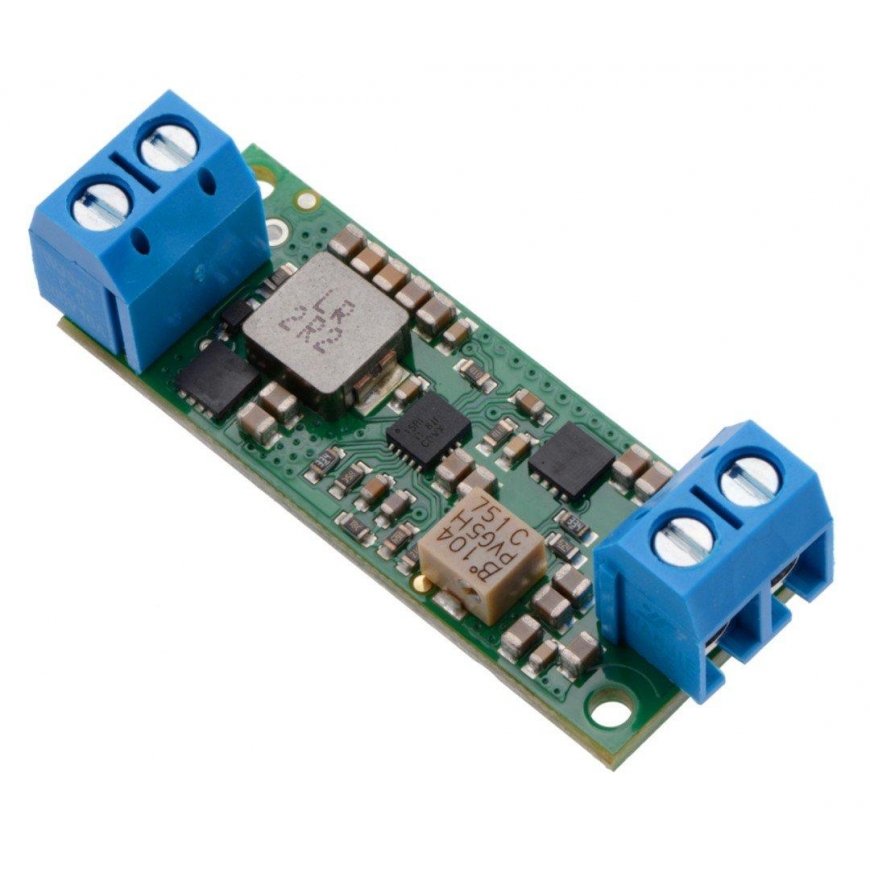

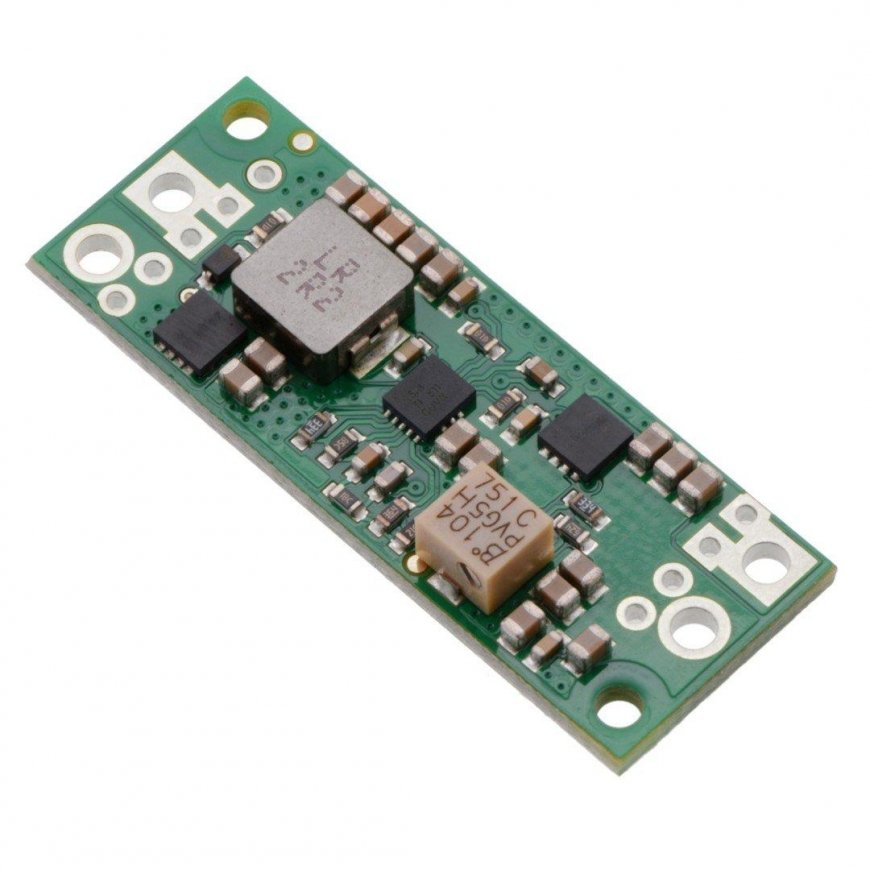

Step-Up voltage regulator U3V7015, adjustable, 4.5-20V, 10A, Pololu 2890
3680382 AN-14009
5904422308278
Tarneaeg 11-18 t.p.
Kõik toote kohta
A controller that increases the input voltage from 2.9 V to 20 V to a potentiometer-selected output value of 4.5 V to 20 V, assuming that the output voltage cannot be lower than the input voltage. The system can handle a maximum input current of 10 A, a typical input current brings 8 A for a few seconds, after which the thermal protection mode is activated. It is recommended to use up to 6 A, the converter can operate for many minutes. The output current is a function of the input voltage, the output voltage and the efficiency of the converter.
Specifications:
- Input voltage: 2.9V to 20V

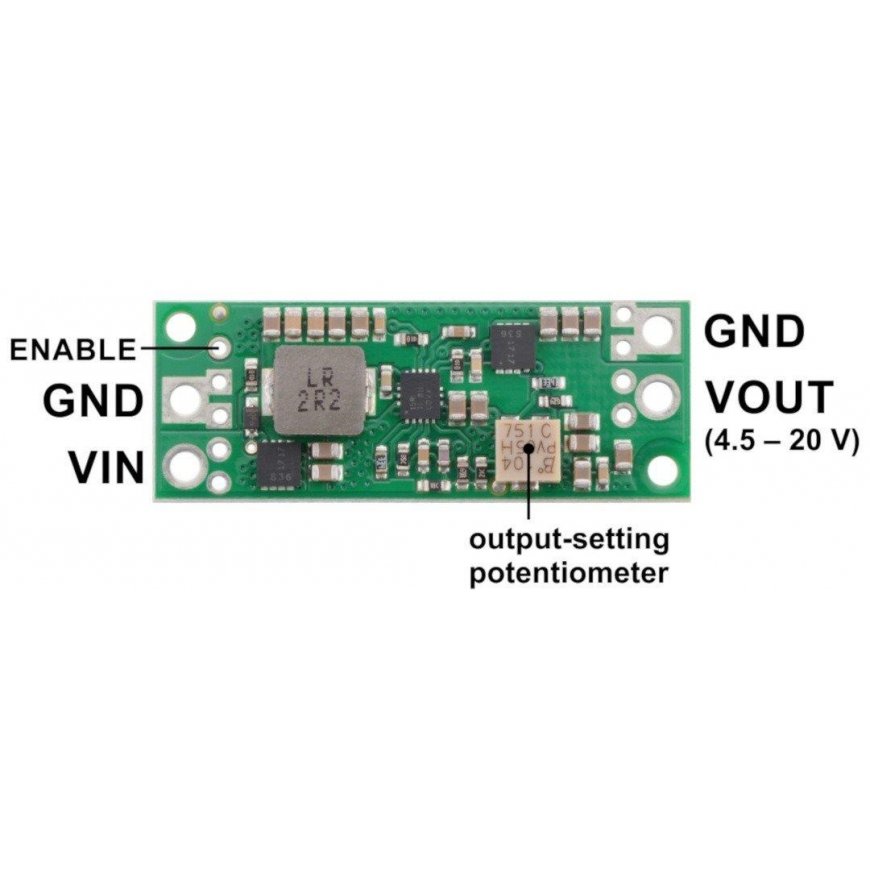

- Output voltage: from 4.5 V to 20 V - adjustable with potentiometer
- Maximum input current:
- up to 10 A - instantaneous
- up to 8 A - for a few seconds
- up to 7 A - for a longer period of time
- Low power consumption in idle mode
- 80-95% efficiency
- Security:
- Before connecting reverse power
- Thermal - shuts down the system at high temperatures
- Enable blocking when the supply voltage is too low - below 2.5 V
- Short connection
- Input current limitation to 10 A
- Two mounting holes for M2 screws

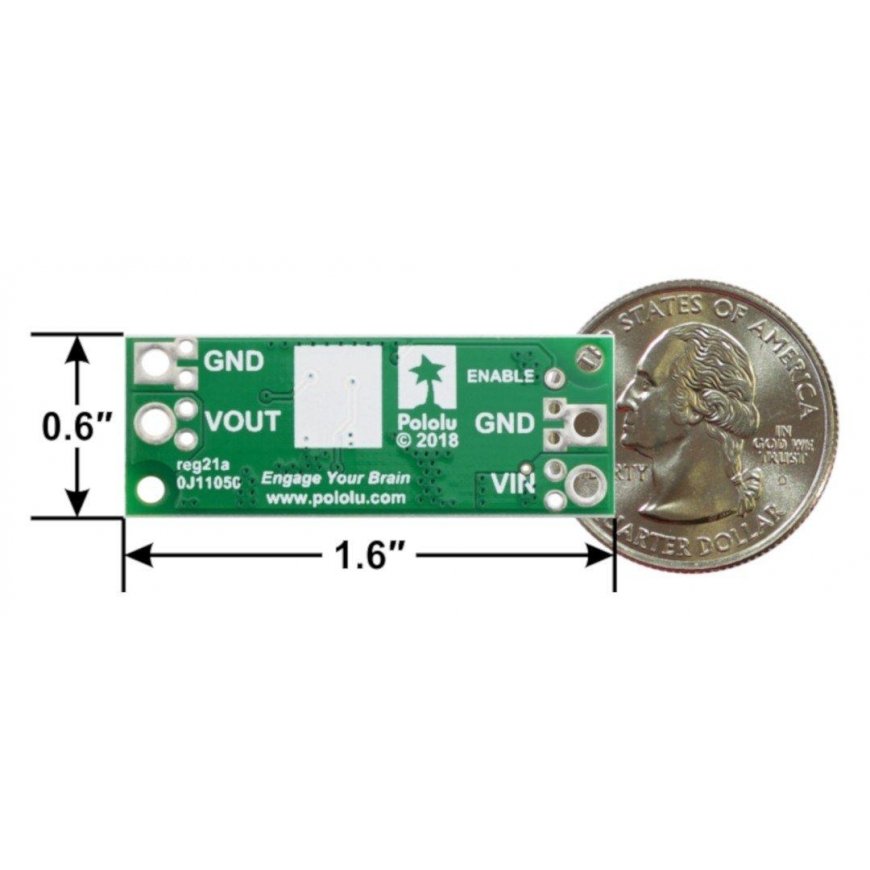

- Dimensions: 40.6 x 15.2 x 4.6 mm
- Weight (without connectors): 3.4 g
