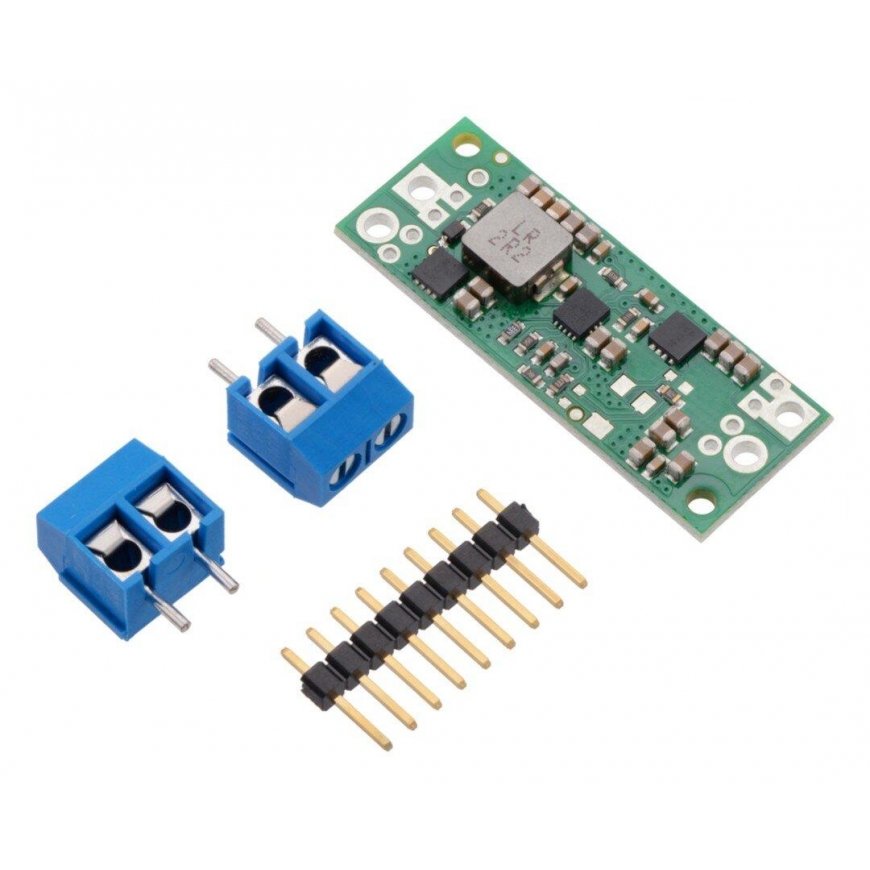

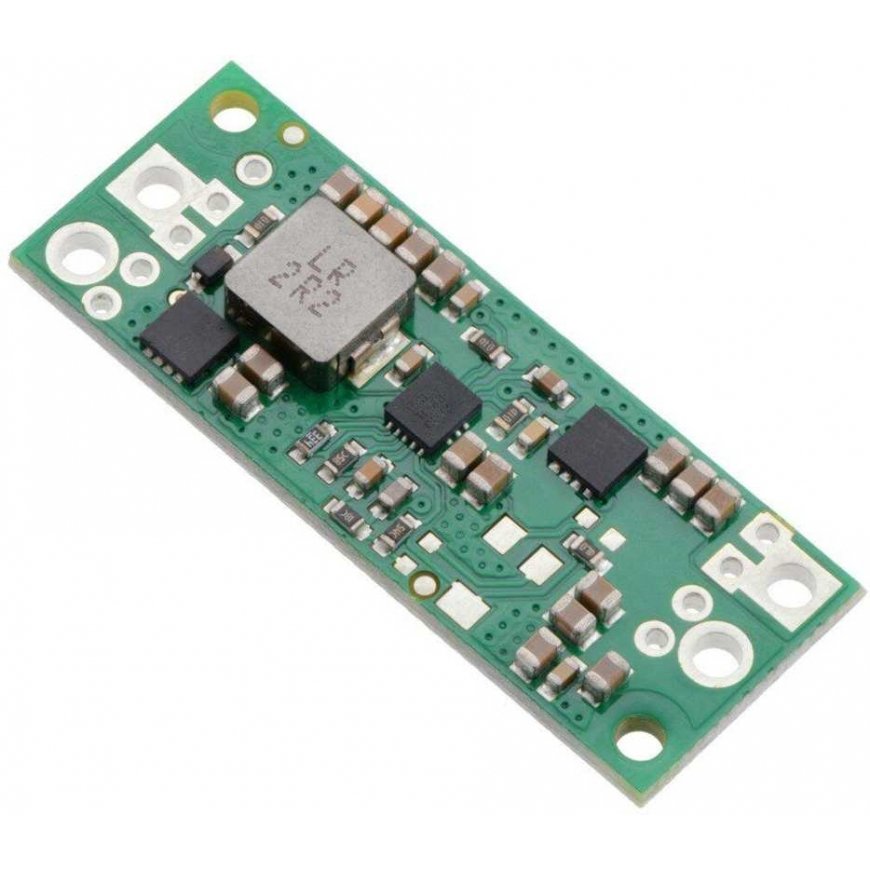

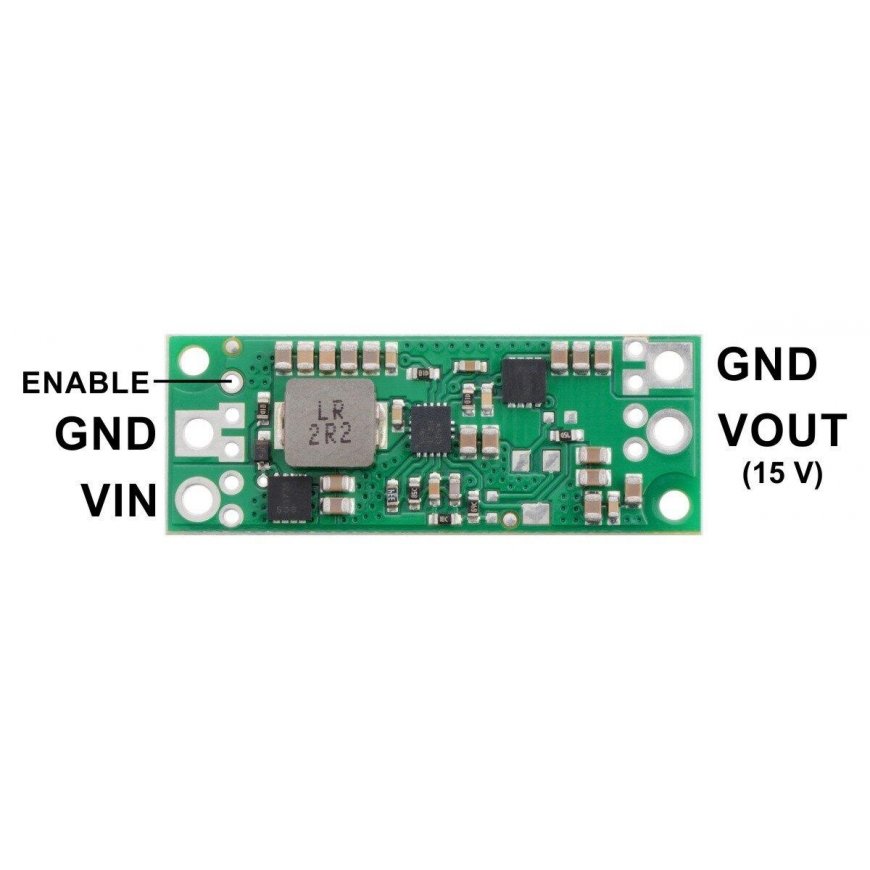

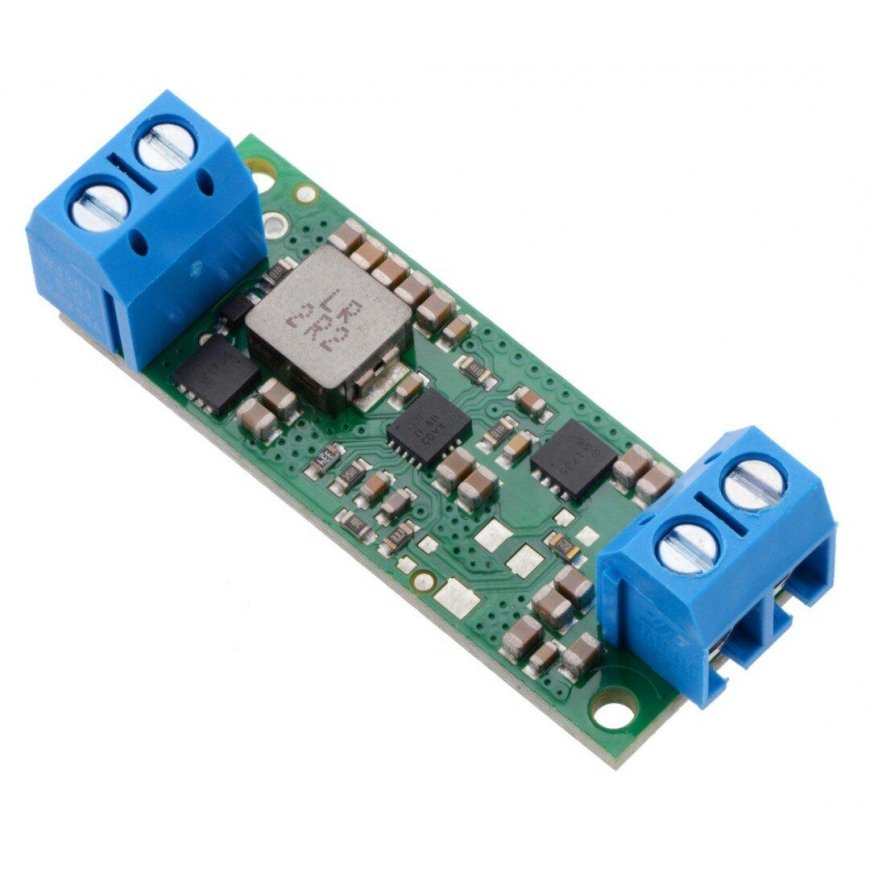

Step-Up voltage regulator U3V70F15, 15V, 10A, Pololu 2896
31.35 €
3665582 AN-14008
5904422308261
Tarneaeg 11-18 t.p.
Kauba vastu huvi?
Kõik toote kohta
A controller that boosts the voltage from 2.9 to 15 V to a constant 15 V. The system is capable of handling a maximum input current of 10 A, a typical input current brings 8 A for a few seconds, after which the thermal protection mode is activated. It is recommended to use up to 6 A, the converter can operate for many minutes. The output current is a function of the input voltage, output voltage and converter efficiency.
Specifications:
- Input voltage: 2.9V to 12V
- Output voltage: 12 V with 4% accuracy
- Maximum input current:
- up to 10 A - instantaneous
- up to 8 A - for a few seconds
- up to 7 A - for a longer period of time
- Low power consumption in idle mode
- 80-95% efficiency
- Security:
- Before connecting reverse power
- Thermal - shuts down the system at high temperatures
- Enable blocking when the supply voltage is too low - below 2.5 V
- Short connection
- Input current limitation to 10 A
- Two mounting holes for M2 screws

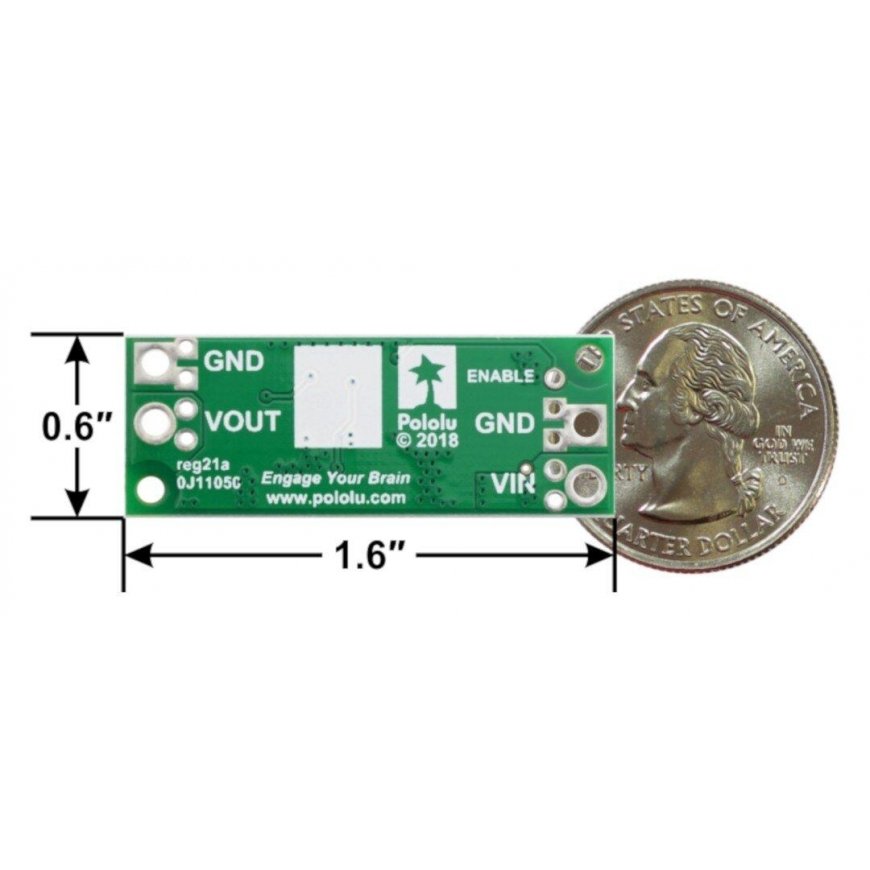

- Dimensions: 40.6 x 15.2 x 4.6 mm
- Weight (without connectors): 3.4 g
