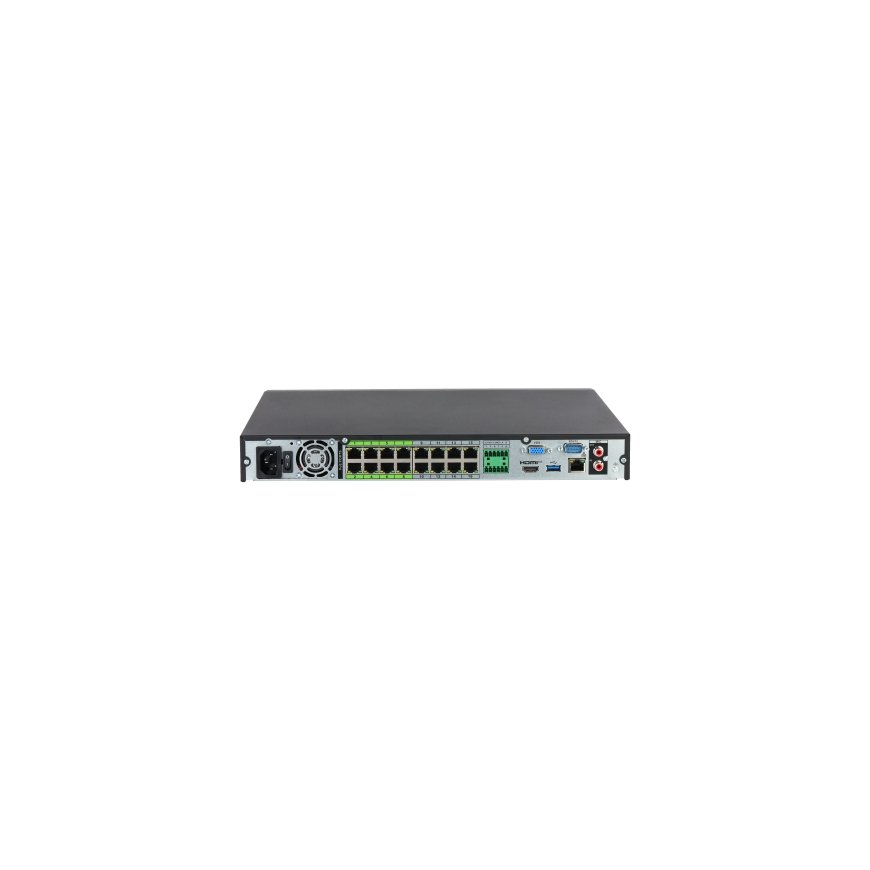

Dahua Technology NVR5216-16HP-XI/PRO network video recorder 1U Black
1 599,00 €
Monthly payment from 42.07 €
4180395 NVR5216-16HP-XI/PRO
6937552418141
Shipping 2-3 b.d.
You are interested in this product?
16CH 1U 16PoE 2HDDs WizMind Network Video Recorder
> Supports Smart H.265+, H.265, Smart H.264+, H.264 and MJPEG decoding formats.
> Max. decoding capability: 40 × 1080p@30 fps or 16 × 5 MP@30 fps.
> Max. 512/512/384 Mbps incoming/recording/outgoing bandwidth.
> Supports IP cameras with a resolution up to 32 MP.
> Supports 8K HDMI output.
> Intelligent analytics based on Xinghan Large-Scale AI Models
> AI by Recorder supports 8-channel face detection and recognition, up to 20 face databases and 200,000 face images; 8-channel metadata; 8-channel AcuPick; 16-channel perimeter protection;
> AI by Camera supports face detection and recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, people counting and AcuPick
> Supports N+M cluster, ISCSI.
> Supports EPTZ, and one-click arming and disarming.
| Operating system installed | Embedded LINUX |
| Product colour | Black |
| HDMI ports quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio formats supported | G.726; G.711 A-law; G.711 μ-law |
| Weight | 2.72 kg |
| Width | 375 mm |
| Depth | 327.4 mm |
| Height | 53 mm |
| Package width | 449 mm |
| Package depth | 421 mm |
| Package height | 170 mm |
| Maximum resolution | 7680 x 4320 pixels |
| Package weight | 4.06 kg |
| Mobile operating systems supported | Android; iOS |
| Certification | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CELVD: EN 62368-1:2014 |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10; 100; 1000 |
| Networking standards | IEEE 802.3af; IEEE 802.3at |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Maximum storage capacity | 40 TB |
| Power consumption (max) | 15 W |
| Video recording modes | 1080p |
| Face detection | Yes |
| Video formats supported | H.264; M-JPEG; H.265; H.264+; H.265+ |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 16 |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); ISCSI |
| Total Power over Ethernet (PoE) budget | 200 W |
| Video motion detection | Yes |
| RS-232 interface | Yes |
| Built-in processor | Yes |
| HDD interface | SATA |
| Rack capacity | 1U |
| HDMI output | Yes |
| Rack mounting | Yes |
| Supported resolutions | 1920x1080, 1280x1024, 1280x720, 7680x4320, 3840x2160, 1920x1080 |
| RS-232 ports | 1 |
| Video input channels | 16 channels |
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Number of HDDs supported | 2 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| Power over Ethernet (PoE) power per port | 25.5 W |
| RS-485 ports | 1 |
| Throughput data rate | 512 Mbit/s |
| Number of simultaneously playbacked channels | 16 channels |
