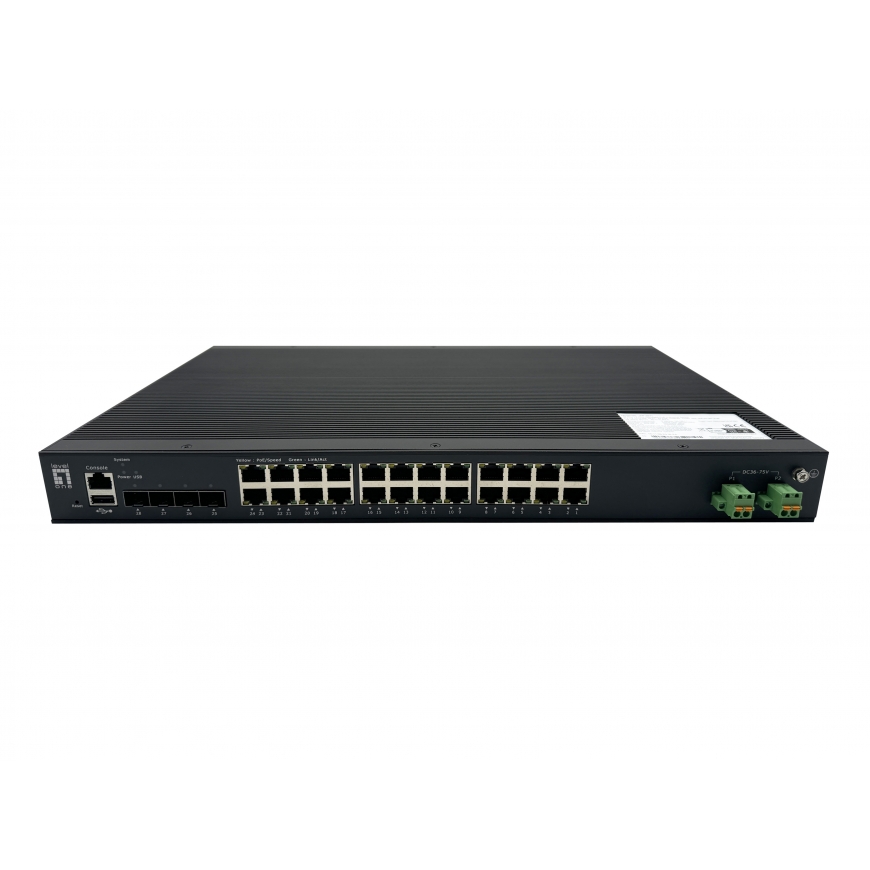

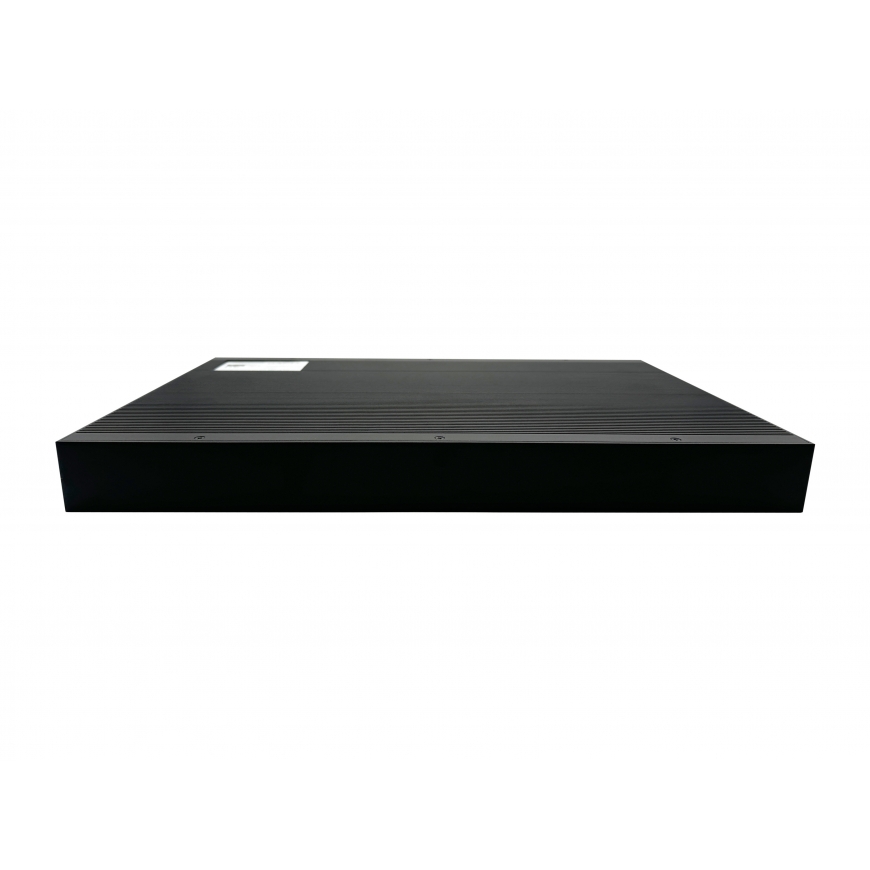

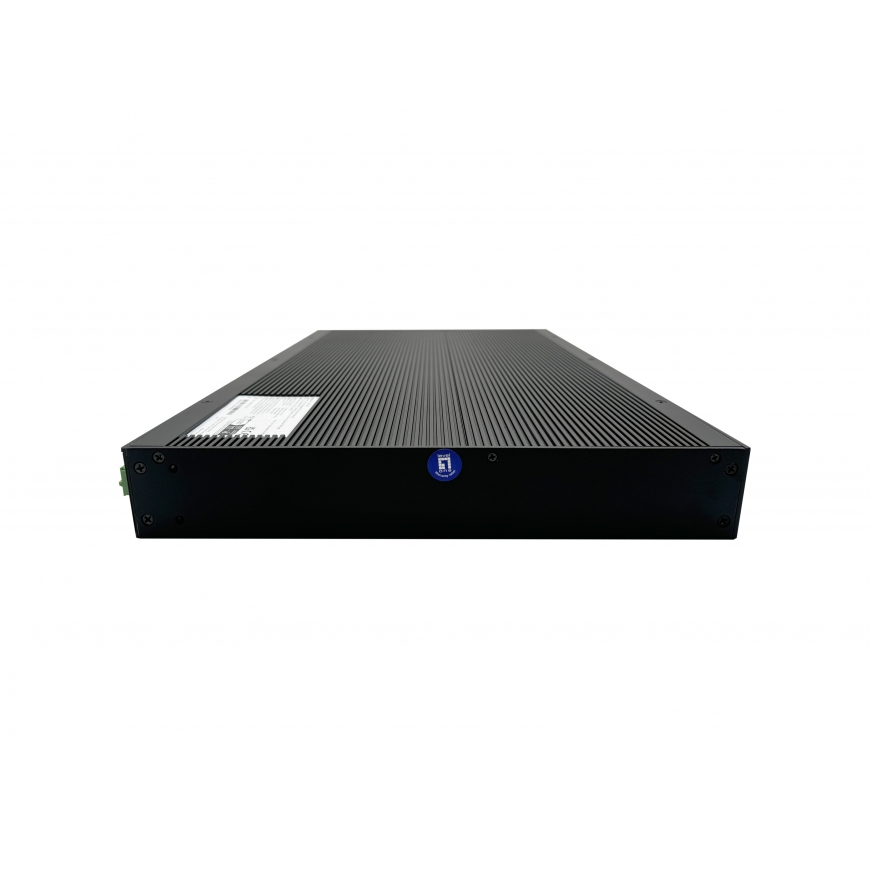

LevelOne IXP-2871 network switch
1 559,00 €
Monthly payment from 41.04 €
4048399 IXP-2871
4015867240694, 0846359061121
2026-07-29
You are interested in this product?
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1s, IEEE 802.3z, IEEE 802.3bt |
| Flow control support | Yes |
| Static route | Yes |
| Multicast support | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Port mirroring | Yes |
Ports & interfaces | |
| Terminal block port | Yes |
Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
Security | |
| Security algorithms | HTTPS |
| MAC address filtering | Yes |
| MAC address table | 16000 entries |
| System event log | Yes |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
Design | |
| LED indicators | Power, USB, Status, PoE, Fault |
| Product colour | Black |
| International Protection (IP) code | IP40 |
Features | |
| Mean time between failures (MTBF) | 200000 h |
Power | |
| Power consumption (typical) | 32 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 440 mm |
| Depth | 280 mm |
| Height | 45 mm |
| Weight | 4.14 kg |
Packaging data | |
| Package width | 525 mm |
| Package depth | 390 mm |
| Package height | 95 mm |
| Package weight | 4.8 kg |
Other features | |
| Rack mounting | Yes |
Technical details | |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC), UKCA |
Logistics data | |
| Country of origin | China |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 408 mm |
| Master (outer) case gross weight | 10.6 kg |
| Products per master (outer) case | 2 pc(s) |
| Pallet gross length | 80 cm |
| Pallet gross width | 120 cm |
| Pallet gross height | 177.6 cm |
| Harmonized System (HS) code | 851762 |
Packaging content | |
| Cables included | LAN (RJ-45) to DB9 |
| Quick start guide | Yes |
