TST HDMI-EX122E-RX-MULTI EXPANSION RECEIVER
TST HDMI-EX122E-RX-MULTI EXPANSION RECEIVER
TST HDMI-EX122E-RX-MULTI EXPANSION RECEIVER
TST HDMI-EX122E-RX-MULTI EXPANSION RECEIVER

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

TST HDMI-EX122E-RX-MULTI EXPANSION RECEIVER

689,01 €
Monthly payment from 18.64
3893001

5902887094224

Shipping 1-14 b.d.

Quantity
You are interested in this product?
(Read terms of service)
Device type : Receiver
Supported HDMI resolutions :
  • 1280 x 720  - 720p @ 50/60 Hz
  • 1920 x 1080  - 1080p @ 50/60 Hz
  • 1920 x 1200  @ 60 Hz
  • 2560 x 1440  @ 60 Hz
  • 3840 x 2160  - 4K UHD @ 24/30/50/60 Hz
  • 4096 x 2160  @ 24/30 Hz
  • Maximum transmission distance :
  • 80 m UTP Cat 5,
  • 100 m UTP Cat 5e,
  • 120 m UTP Cat 6
  • Protocols : ipcolor STREAM™
    Max. Number of simultaneously operating receivers : 256
    Supported HDMI standard : 2.0
    HDCP : 1.4  / 2.2
    Main features :
  • HDMI cable : max. 5 m
  • Fast data transmission : max. 18 Gbps
  • Transmission delay : 70  ... 130 ms - 1080p @ 60 Hz, 130  ... 200 ms - 4K @ 60 Hz
  • LPCM 2.0 support

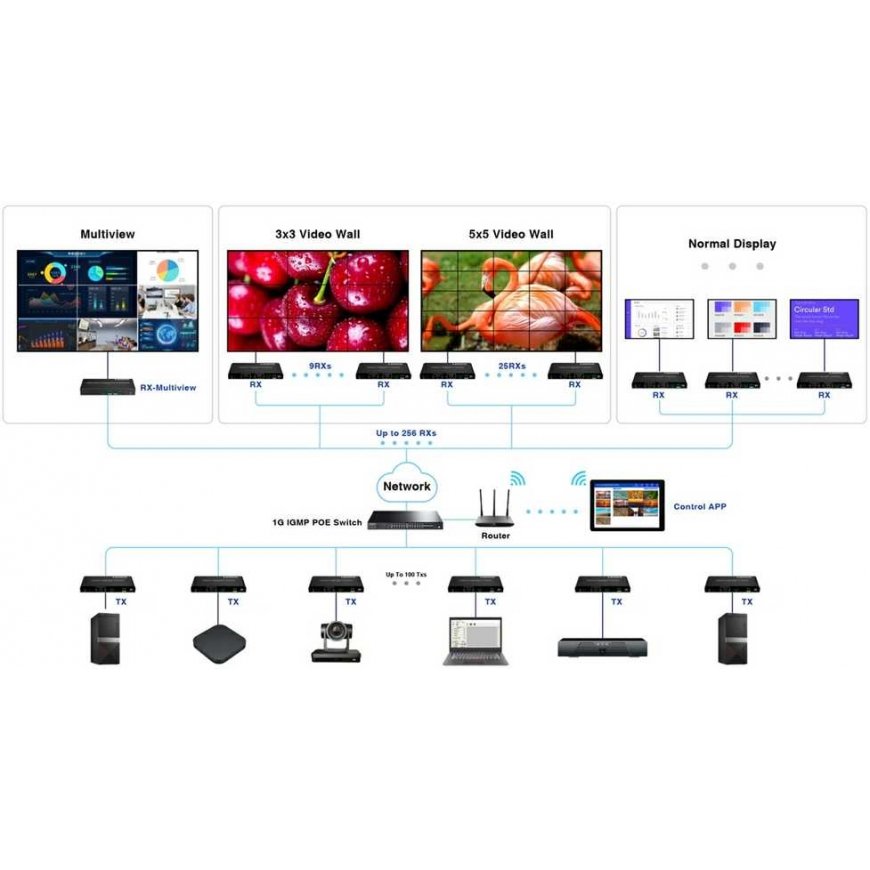

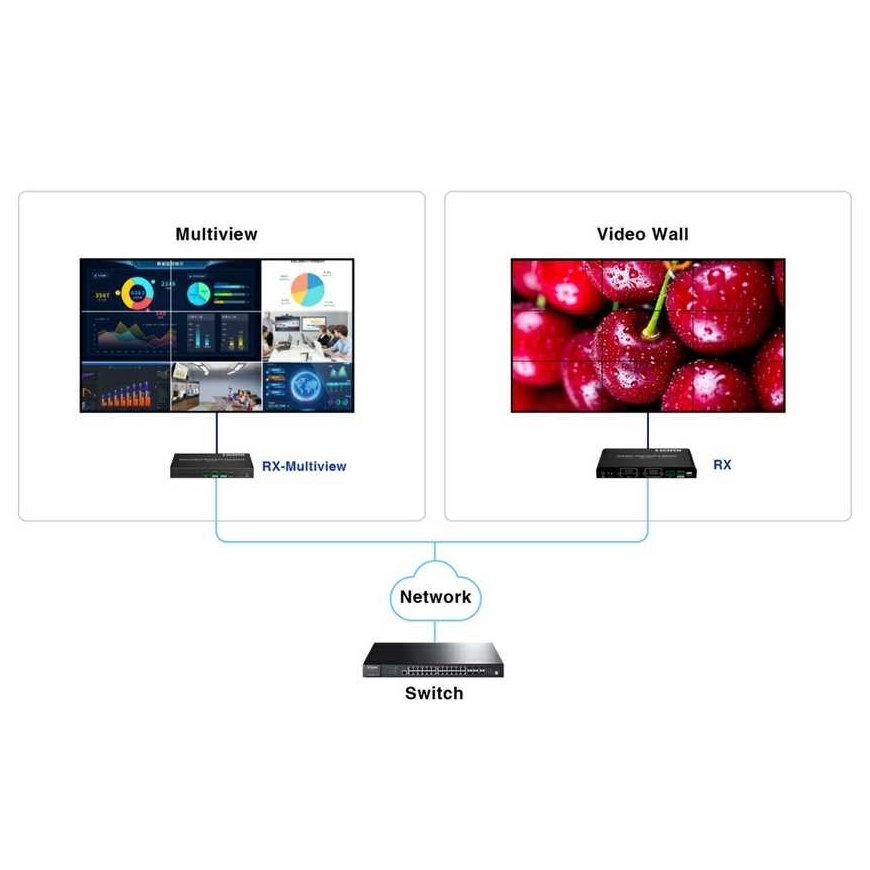

  • Support for Multi-view mode : max. 3 x 3,
  • IR receiver / IR transmitter
  • Audio output - Jack 3.5 mm socket (Stereo)
  • I/O ports, RS-232, RS-485 (control)
  • mini USB port - Ability to update firmware
  • RESET button
  • Remote control - Free app iMMS - ipcolor Multimedia Management System for Android devices
  • Overvoltage protection
  • Electrostatic discharge protection - ESD - IEC 61000-4-2, ±4kV contact, ±8kV air
  • Lightning protection
  • Power supply :

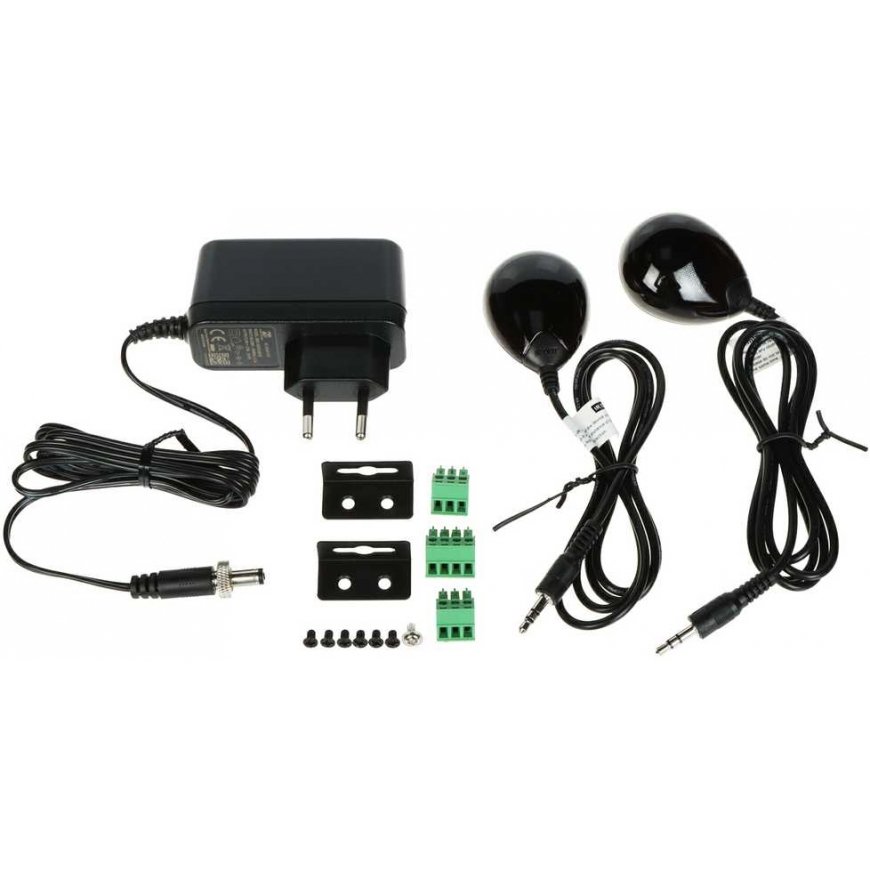

  • 5 V DC / 2 A (included - power supply)
  • PoE
  • Power consumption : ≤ 3.5 W
    Operating temperature : -20 °C ... 60 °C
    Permissible relative humidity : 0 % ... 90 % (without condensation)
    Weight : 0.524 kg
    Dimensions : 191  x 96  x 25 mm
    Warranty : 2 years
