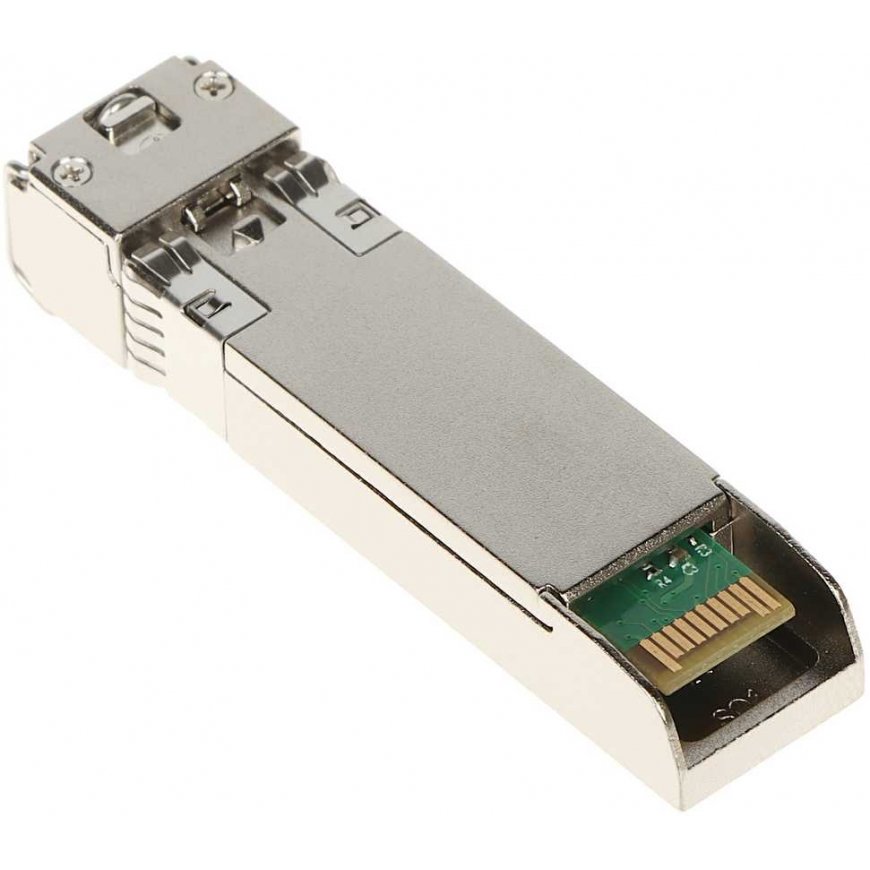

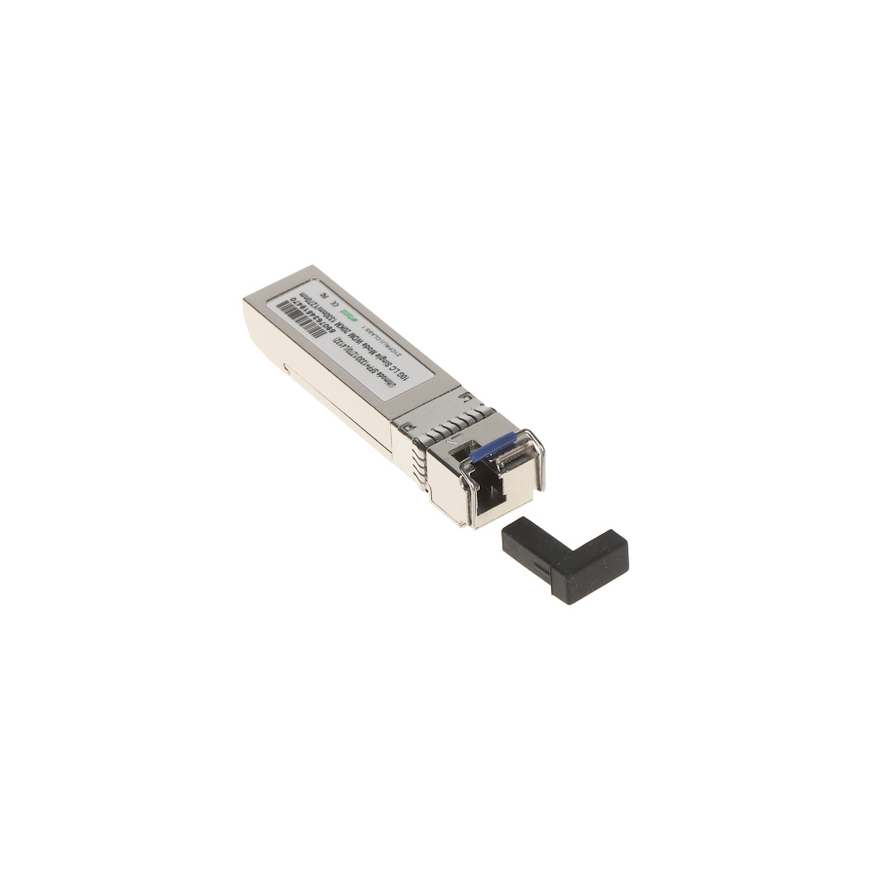

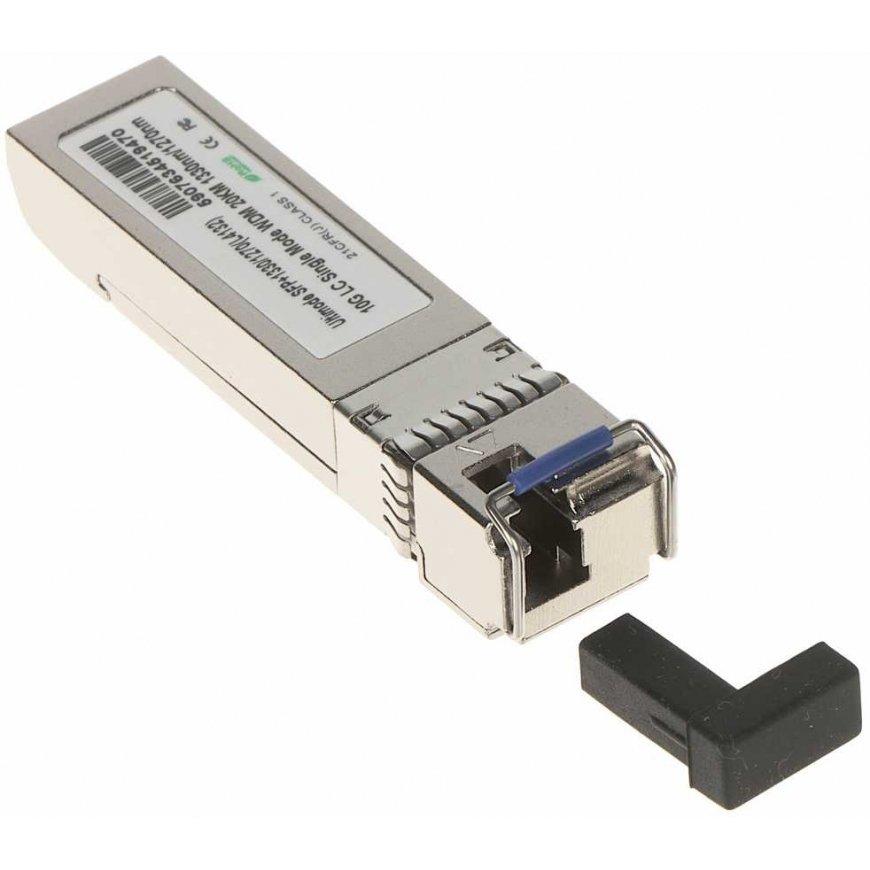

Splitter SINGLE MODE SFP+20-1330/1270 ULTIMODE
3850490 5907634519470
Shipping 1-14 b.d.
Optical modules that meet the SFP (Small Form-factor Pluggable) / SFP+ standards are devices that convert electrical signals to optical and optical to electrical.
The use of media converters with the ability to replace SFP modules is very beneficial due to versatility, for example, during network configuration, instead of replacing the entire device or adding new media converters, you only need to adapt a new SFP module.
The modules collaborate with most switches and routers with SFP ports.
Attention! SFP+20-1330/1270 requires cooperation with SFP+20-1270/1330.
| Transmission protocols : | IEEE802.3ae, SFF-8431 Rev.4.1, SFF-8472 Rev.4.4 |
| Fiber type : | Single-mode fiber |
| Maximum transmission distance : | 20 km |
| Transmission : | max. 10 Gb/s |
| Number of fibers required : | 1 |
| Optical connectors : | LC / PC |
| Light source / optical wavelength : | FP Laser - 1330 / 1270 nm (Tx / Rx) |
| Key features : | BiDi/WDM transmission (via one fiber), Compatible with ULTIMODE, TP-LINK |
| Power supply : | 3.3 V DC |
| Operating temperature : | 0 °C ... 70 °C |
| Weight : | 0.02 kg |
| Manufacturer / Brand : | ULTIMODE |
| Warranty : | 2 years |
