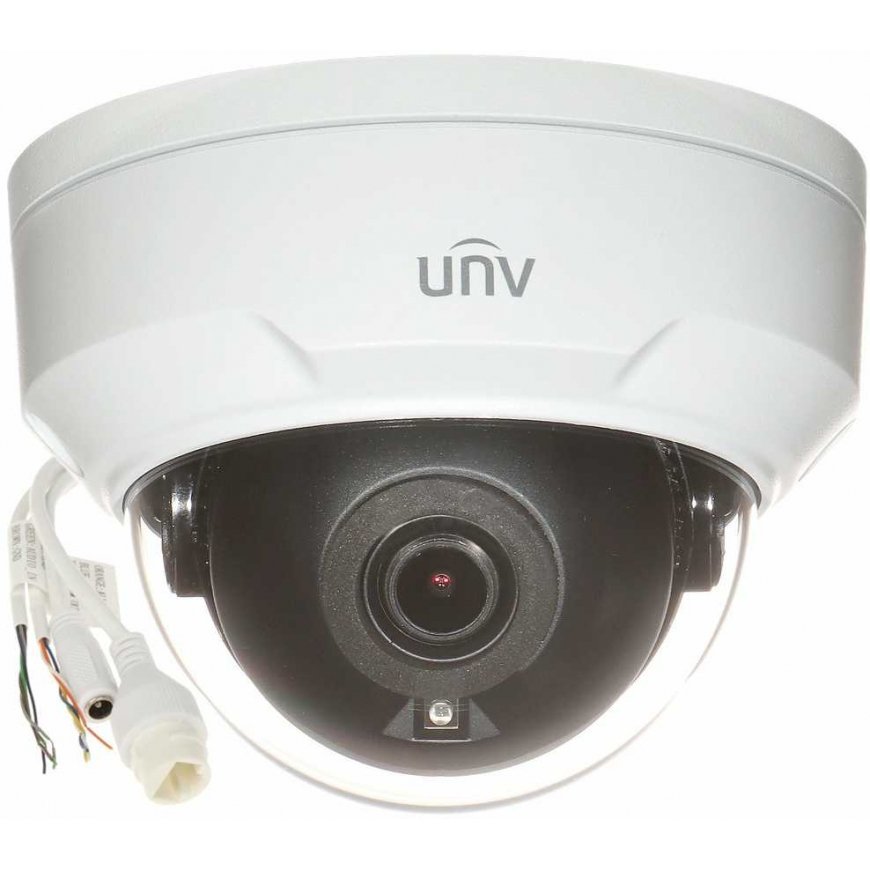

VANDAL-PROOF IP CAMERA IPC324SB-DF40K-I0 - 4 Mpx 4 mm UNIVIEW
3803271 IPC324SB-DF40K-I0
6970333408542
2026-07-23
IP camera with effective Ultra 265 video compression algorithm, ensuring clean and smoother video transmission at a maximum resolution of 4 Mpx.
Thanks to PoE power options according to the 802.3af standard, the device is even more versatile and easier to install.
The manufacturer's specified illumination coverage depends on environmental conditions (air clarity, surroundings, wall colors, i.e., the so-called scene reflection coefficient).
The product from the Uniview series was designed to maximize cost reduction while maintaining high quality and ease of use.
| Standard : | TCP/IP |
| Sensor : | 1/3 " Progressive Scan CMOS |
| Matrix size : | 4 Mpx |
| Resolution : | 2688 x 1520 - 4 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p |
| Lens : | 4 mm |
| Field of view : | 84 ° (manufacturer's data) 80 ° (our tests) |
| IR illuminator coverage : | 30 m |
| Signal-to-noise ratio (S/N) : | > 56 dB |
| RS-485 interface : | - |

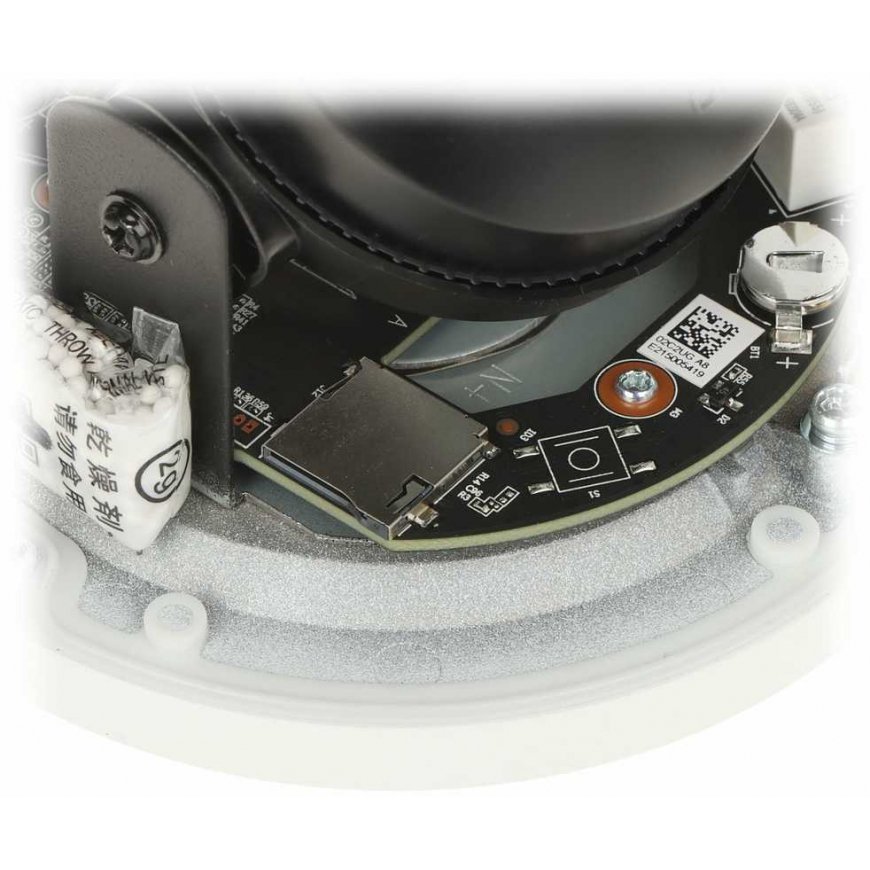

| Memory card slot : | Micro SD card support up to 256GB (local recording available) |
| Video compression method : | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs/outputs : | 1 / 1 |
| Audio : | Input for external microphone Audio output Two-way audio stream support Sound detection |
| Main stream transmission speed : | 25 fps @ 4 Mpx |
| Network interface : | 10/100 Base-T (RJ-45) |
| WEB Server : | Integrated |
| Max. number of online users : | 32 |
| ONVIF : | ✔ |
| Access from mobile phone : | Access via cloud (P2P) Android: Free app EZView iOS (iPhone): Free app |
| Default IP address : | DHCP or 192.168.1.13 |
| Default username / administrator password : | admin / 123456 |
| Access port via www : | 80, 554 |
| Access port via PC application : | Port: 80 or access via cloud - PC: Free app |
| Access port via mobile application : | 80 |
| ONVIF port : | 80 |
| RTSP URL : | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Sub stream |
| Selected features : | WDR - 120 dB - Wide dynamic range 2D-DNR, 3D-DNR - Digital noise reduction in image F-DNR (Defog) - Reduction of noise related to atmospheric precipitation ROI – improvement of quality of selected image fragments ANR - video storage on the card when there is no connection to the player (network failure) and later synchronization NAS support - Network Attached Storage BLC/HLC - backlight/strong light compensation Ability to change resolution, quality, and bandwidth Mirror - mirrored image Privacy zones - max. 4 Motion detection with human silhouette / vehicle recognition Sharpness - sharpening of image contours Corridor mode - useful for monitoring corridors, entrance gates, and narrow spaces Intelligent video analysis: intrusion , line crossing , area entry/exit detection, people counting , crowd size estimation |
| Power : | PoE (802.3af) , 12 V DC / 380 mA |
| Power consumption : | ≤ 4.5 W |
| Housing : | Dome, Metal |
| Color : | White |
| Ingress protection class : | IP67 |
| Vandal-proof : | IK10 |
| Operating temperature : | -30 °C ... 60 °C |
| Weight : | 0.42 kg |

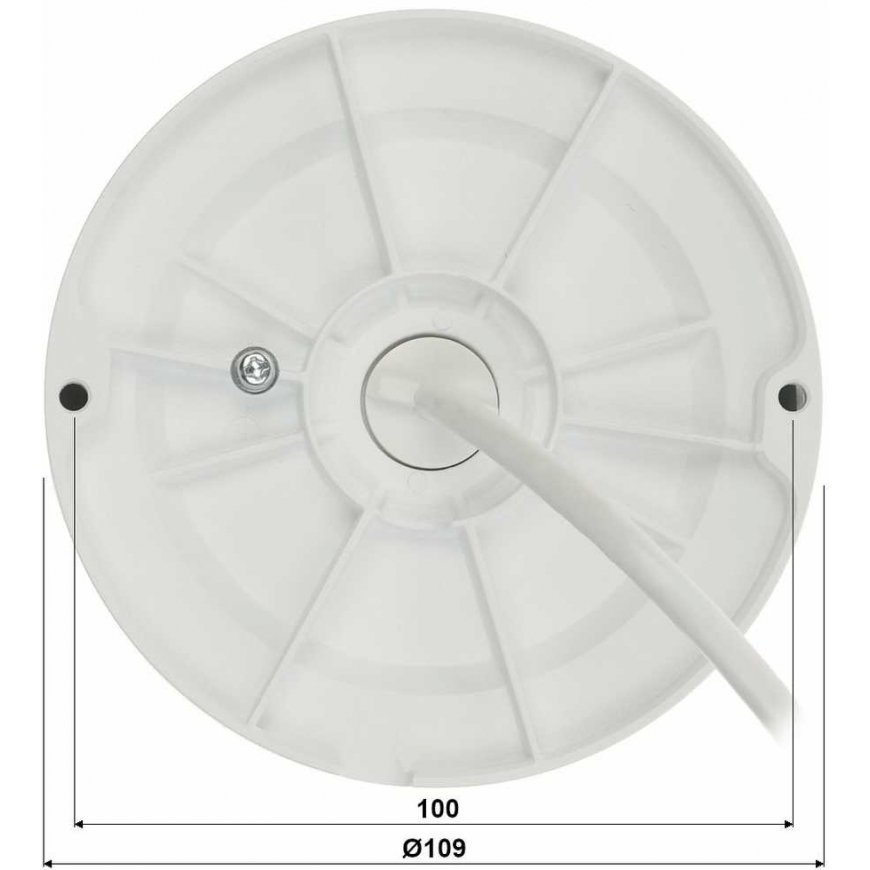

| Dimensions : | Ø 109 x 81 mm |
| Supported languages : | Polish, English, Czech, Spanish, Dutch, French, German, Portuguese, Slovak, Hungarian, Italian |
| Manufacturer / Brand : | UNIVIEW |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night, operating integrated IR illuminator
Image from the camera, illuminated by strong light directed straight at it
