Home page > Electronics>Security Systems>Security cameras>IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens
IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

IP camera BCS Line IP camera BCS-L-DIP14FSR3-W Wi-Fi 4 Mpx 1/3" sensor with 2.8 mm lens

109,00 €
Monthly payment from 3.71 €
3739346

BCS-L-DIP14FSR3-W

5904890707603

2026-07-23

Quantity

You are interested in this product?
(Read terms of service)
Standard : TCP/IP
Sensor : 1/3 " Progressive Scan CMOS
Matrix size : 3.7  Mpx
Resolution : 2560 x 1440  - 3.7  Mpx ,
2304 x 1296  - 3  Mpx ,
1920 x 1080  - 1080p ,
1280 x 960  - 1.3  Mpx ,
1280 x 720  - 720p
Lens : 2.8 mm, F2.0
Field of view :
  • 90 ° (manufacturer's data)
  • 86 ° (our tests)
    • IR illuminator coverage : 30 m

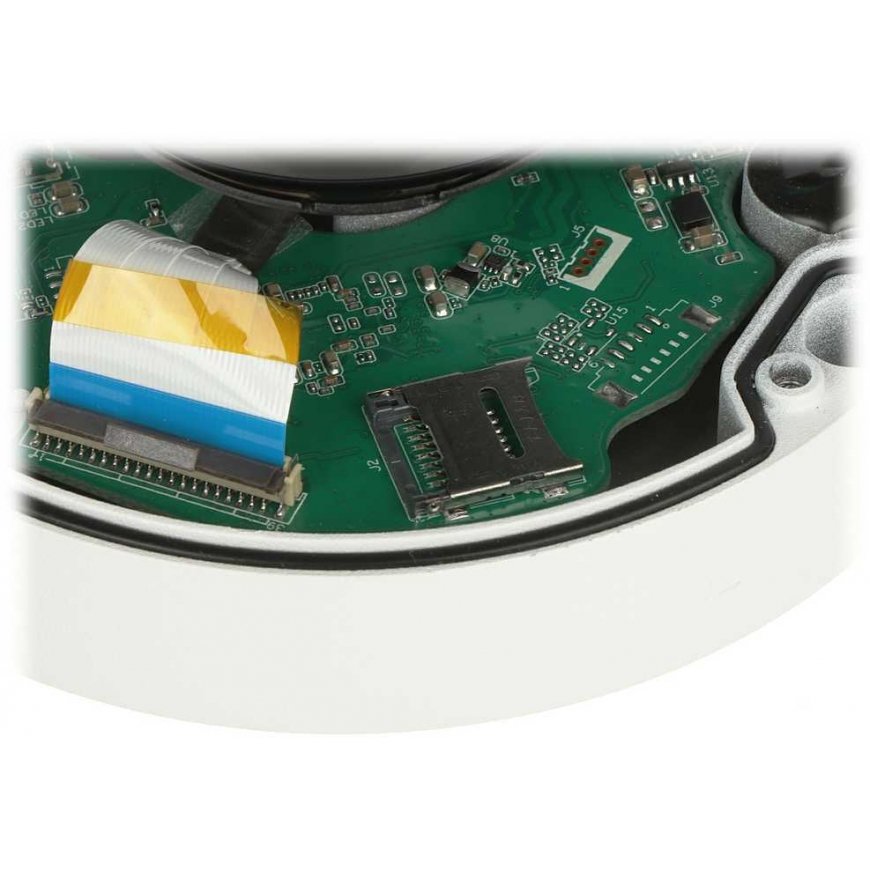

    Memory card slot : Support for Micro SD cards up to 256GB (local recording available)
    Video compression method : H.265+ / H.265 / H.264+ / H.264
    Alarm inputs/outputs :
    Audio :
    Main stream transmission speed :
  • 20  fps @ 3.7  Mpx
  • 25  fps @ 3  Mpx
    • Network interface :
  • Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n,
  • 10/100 Base-T (RJ-45)
    • Network protocols : IPv4 , HTTP, TCP , UDP, ARP, RTP, RTSP, RTCP, DHCP, DNS, NTP, Multicast, RTMP
    WEB Server : Integrated
    ONVIF : 21.06
    Default user name / administrator password : admin / -
    The administrator password must be entered the first time the device is turned on
    Access port via www : 80, 37777
    Access port via PC application : 37777
    Access port via mobile application : 37777
    ONVIF port : 80
    RTSP URL : rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype;=0 - Main stream
    rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype;=1 - Sub stream
    Selected features :

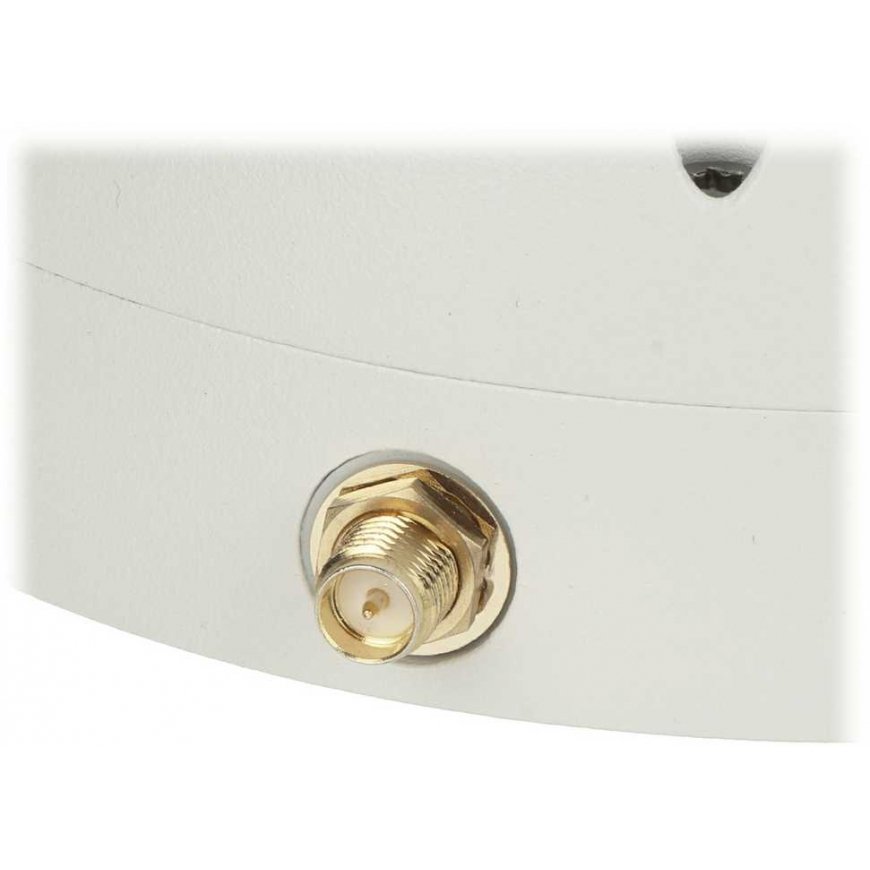

  • Wi-Fi module, Range: 50 m (open space); Antenna - SMA socket
  • D-WDR - Wide dynamic range
  • 3D-DNR - Digital noise reduction
  • ROI – quality enhancement of selected image fragments
  • BLC/HLC - backlight/strong light compensation
  • ICR - mechanical IR filter
  • Day/night mode
  • Automatic white balance
  • AGC - Automatic gain control
  • Privacy zones - max. 4
  • D-ZOOM - digital zoom 16 x
  • Motion detection
  • Human detection
  • Mirror - mirrored image
  • Sharpness - image contour sharpening
    • Housing : Dome - Metal
    Color : White
    Ingress protection class : IP67
    Vandal-proof : IK10
    Power supply : 12 V DC / 410 mA
    Power consumption : < 4.9 W
    Operating temperature : -40 °C ... 60 °C
    Weight : 0.41 kg
    Dimensions : 143  x 111  x 89 mm
    Supported languages : Polish, English
    Manufacturer / Brand : BCS Line
    Warranty : 3 years
