IP CAMERA IPC3615SB-ADF28KM-I0 - 5 MP 2.8 mm UNIVIEW
3733511 IPC3615SB-ADF28KM-I0
6970333408665
2026-07-23
IP camera with efficient Ultra 265 video compression algorithm, ensuring clean and smoother video transmission at a maximum resolution of 5 Mpx.
Thanks to PoE power options according to the 802.3af standard, the device is even more versatile and easier to install.
The manufacturer's specified illumination coverage depends on environmental conditions (air transparency, surroundings, wall colors, i.e., the so-called scene reflection coefficient).
The camera is equipped with LightHunter technology, ensuring a clear image even in the most challenging lighting conditions.
| Standard : | TCP/IP |
| Sensor : | 1/2.7 " Progressive Scan CMOS |
| Matrix size : | 5 Mpx |
| Resolution : | 2880 x 1620 - 5 Mpx , 2560 x 1440 - 3.7 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p |
| Lens : | 2.8 mm @ F1.6 |
| Viewing angle : | 96 ° (manufacturer's data) 103 ° (our tests) |
| IR illuminator coverage : | 30 m |
| Signal-to-noise ratio (S/N) : | > 56 dB |
| RS-485 interface : | - |

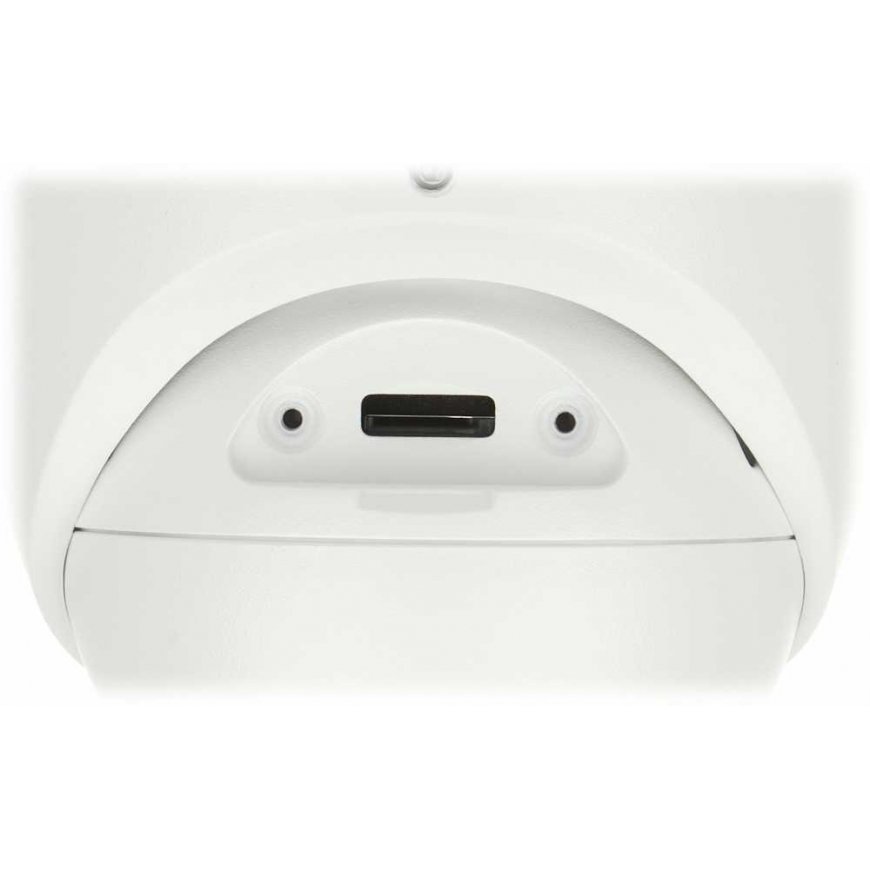

| Memory card slot : | Micro SD card support up to 256GB (local recording possible) |
| Video compression method : | Ultra 265 / H.265 / H.264 / MJPEG |
| Alarm inputs/outputs : | - |
| Audio : | Integrated microphone Audio transmission over the network Sound detection |
| Main stream transmission speed : | 25 fps @ 5 Mpx |
| Network interface : | 10/100 Base-TX (RJ-45) |
| WEB Server : | Integrated |
| Max. number of online users : | 32 |
| ONVIF : | ✔ |
| Access from mobile phone : | Access via cloud (P2P) Android: Free app EZView iOS (iPhone): Free app |
| Default IP address : | DHCP or 192.168.1.13 |
| Default username / administrator password : | admin / 123456 |
| Access port via www : | 80, 554 |
| Access port via PC application : | Port: 80 or access via cloud - PC: Free app |
| Access port via mobile application : | 80 |
| ONVIF port : | 80 |
| RTSP URL : | rtsp://192.168.1.13:554/unicast/c1/s0/live - Main stream rtsp://192.168.1.13:554/unicast/c1/s1/live - Secondary stream |
| Selected features : | WDR - 120 dB - Wide dynamic range 2D-DNR, 3D-DNR - Digital noise reduction in the image F-DNR (Defog) - Reduction of noise related to atmospheric precipitation BLC/HLC - backlight/high light compensation Automatic white balance ROI – improvement of quality of selected image fragments ANR - video storage on the card when there is no connection to the player (network failure) and subsequent synchronization NAS support - Network Attached Storage Ability to change resolution, quality, and bandwidth Corridor mode - useful for corridor monitoring, entrance gates, and narrow spaces Sharpness - sharpening of image contours Privacy zones - max. 4 Surge protection: 4 kV Motion detection with human silhouette/vehicle recognition Intelligent video analysis: line crossing , intrusion , entry into a marked area, leaving a marked area, face detection , people counting , estimation of crowd size |
| Power : | PoE (802.3af) , 12 V DC / 330 mA |
| Power consumption : | ≤ 4 W |
| Housing : | Dome, Metal |
| Color : | White |
| Ingress protection class : | IP67 |
| Vandal-proof : | - |
| Operating temperature : | -30 °C ... 60 °C |
| Weight : | 0.44 kg |

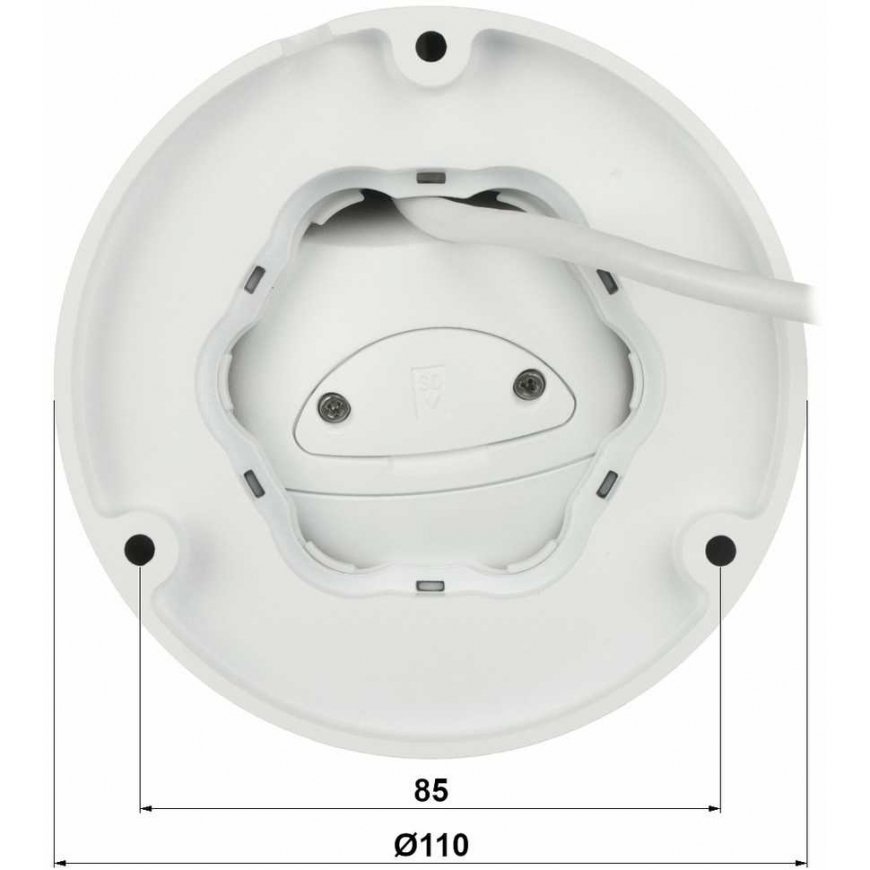

| Dimensions : | Ø 111 x 94 mm |
| Supported languages : | Polish, English, Czech, Spanish, Dutch, French, German, Portuguese, Slovak, Hungarian, Italian |
| Manufacturer / Brand : | UNIVIEW |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night with the external IR illuminator turned on
Image from the camera, shining directly into a strong light
