The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

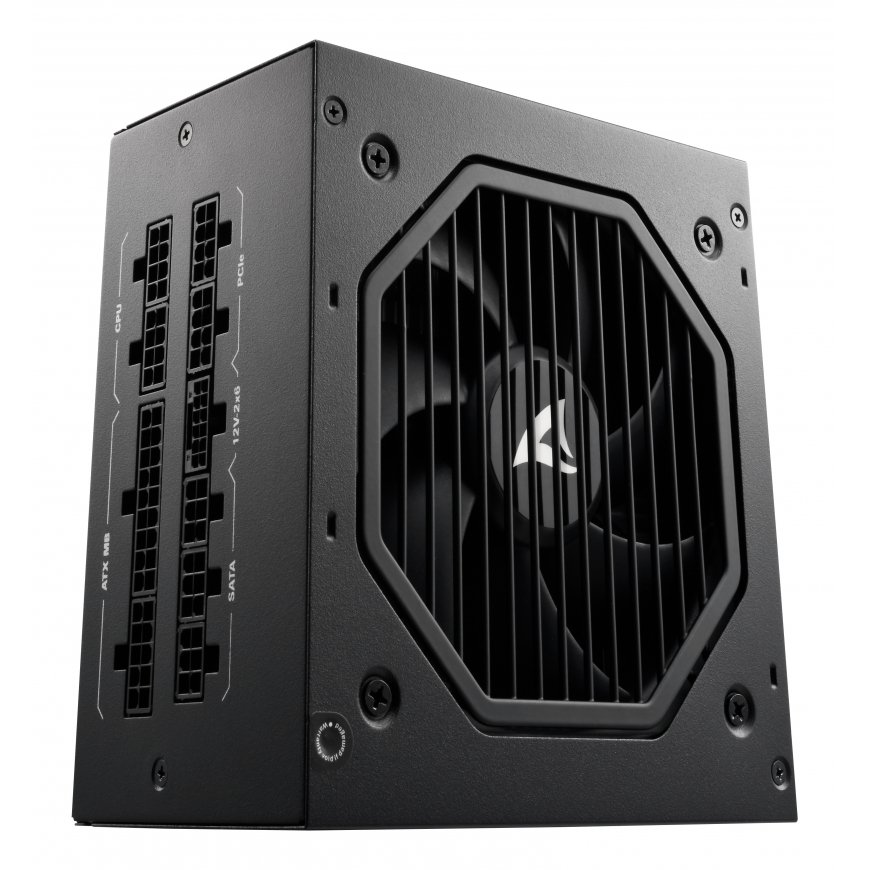

Sharkoon Rebel P20 power supply unit 1000 W 24-pin ATX ATX Black
229,00 €
Monthly payment from 6.80 €
3732491 4044951040636
4044951040636
2026-07-29
You are interested in this product?
Certified Efficiency
The Rebel P20 has been awarded the Gold certificate by the independent Cybenetics laboratory due to an overall efficiency of at least 87 % at 115 V and 89 % at 230 V, as well as a 5 VSB efficiency of 75 %. The Rebel P20 models with 1,000 and 1,200 watts have even achieved a Platinum certification.
Designed for Modern Graphics Cards
With its ATX 3.1 compatibility and a 12V-2x6 connection, the Rebel P20 is perfectly designed for the high-performance operation of modern high-end graphics cards.

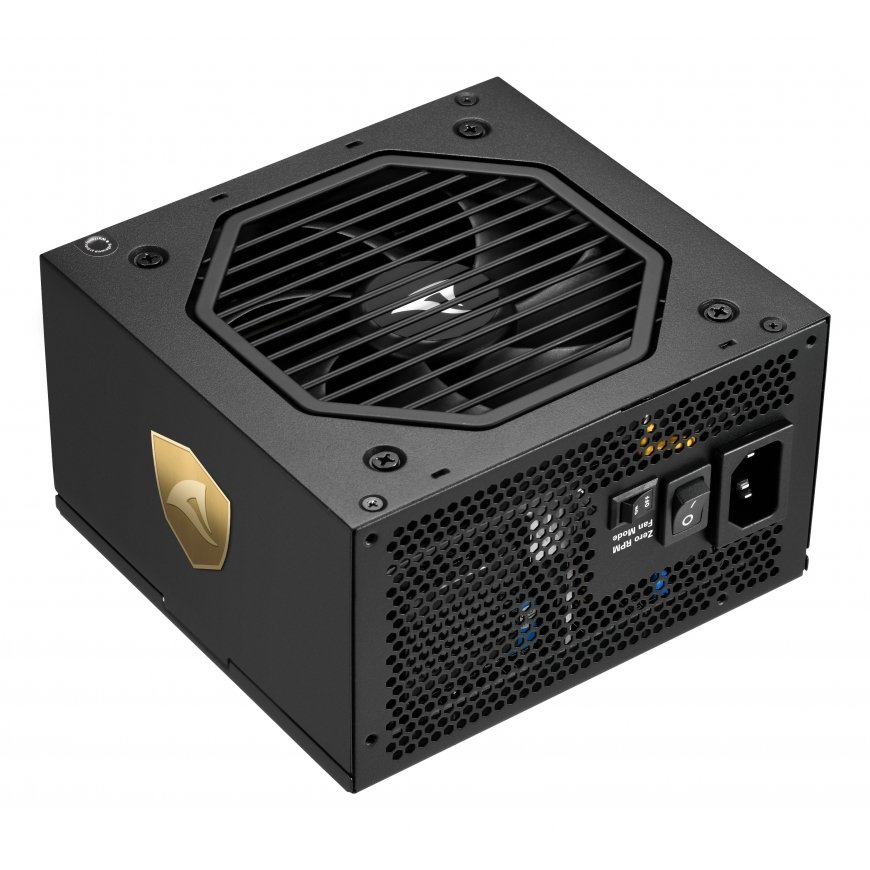

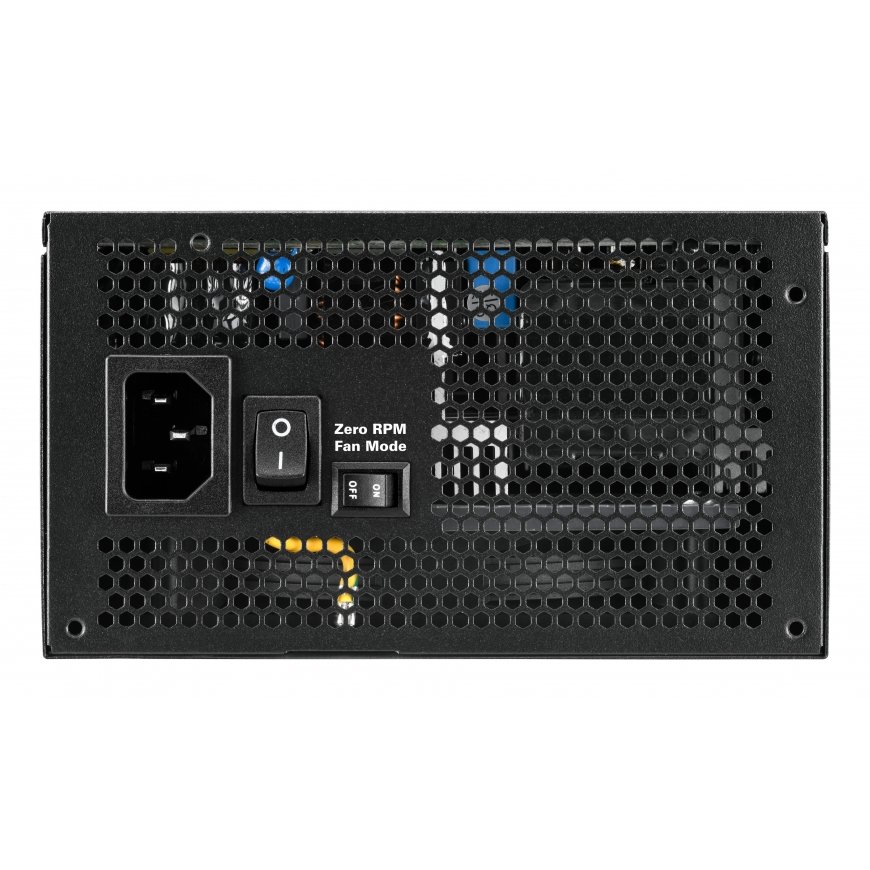

Quiet Fan with Zero RPM Mode
The Rebel P20 comes with 120 mm fan that is low-noise certified and is provided with a Zero PRM mode. At low and moderate loads, this will switch off the fan rotation completely for an almost silent operation.

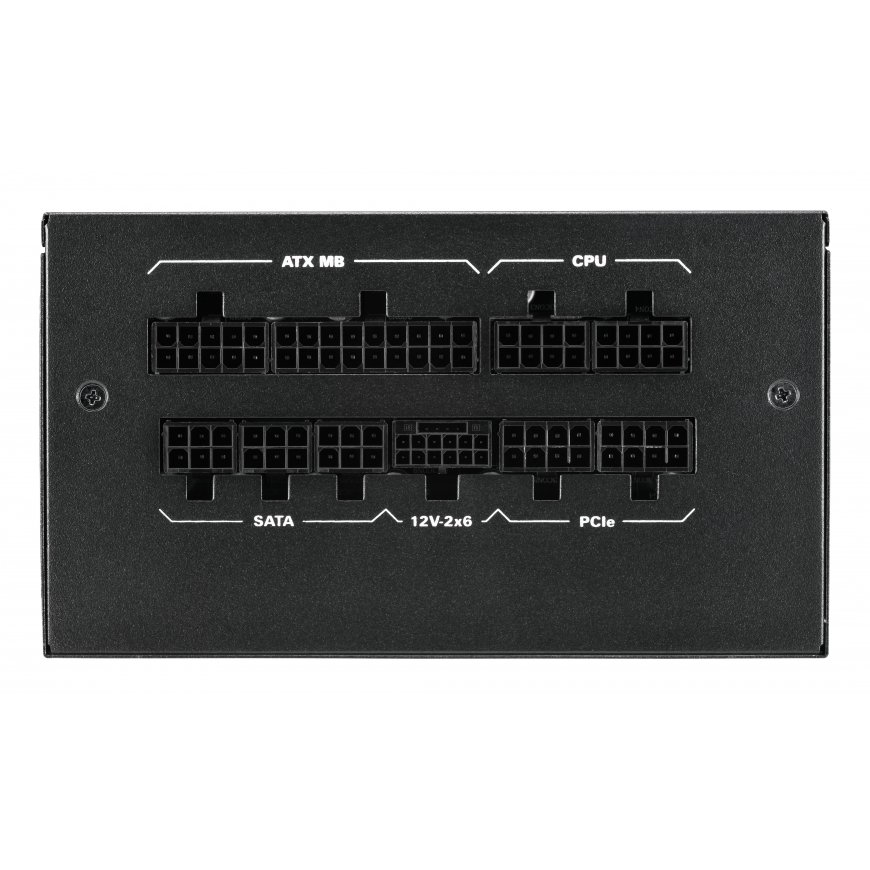

Fully Modular Cables
For more tidiness and better organization inside the PC case, the Rebel P20 is supplied with a fully modular cable set. This ensures that only the cables that are actually needed are connected to the PSU.
High-Quality Components
The Rebel P20 is equipped with all-Japanese capacitors, stable LLC resonant converters, and DC/DC technology to ensure a flawless operation.
Full Protection
Whether its over-current protection or over-power protection: The Rebel P20 is equipped with all protective functions to ensure a continuously safe operation within the hardware system.
Power | |
| Input current | 12 / 6 A |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V1) | 83.3 A |
| Total power | 1000 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |
| Purpose | PC |
| 80 PLUS certification | No |
| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Number of SATA power connectors | 11 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| Motherboard power cable length | 60 cm |
| PCI Express power cable length | 70 cm |
| CPU power cable length | 70 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions | |
| Weight | 1.7 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Technical details | |
| Sustainability certificates | ErP |
Packaging content | |
| Cables included | AC |
Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), CB |
