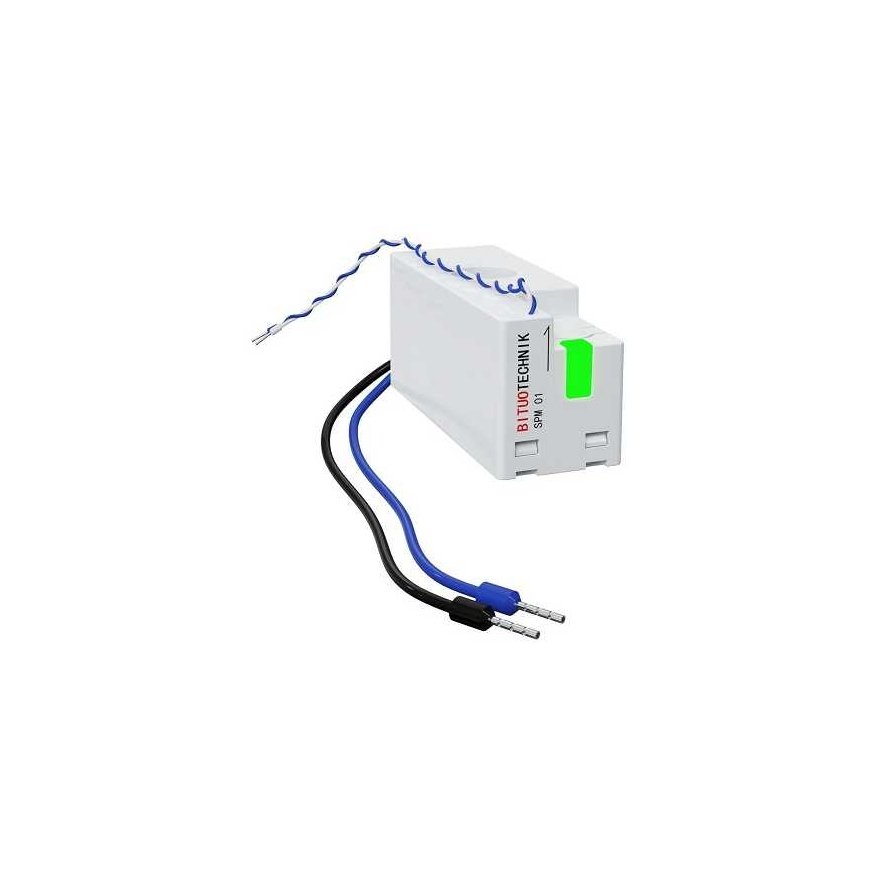

Bituo Smart Energy Meter, 1P+N, 63A, Modbus RS485
3697486 HS083830
9990001083830
Shipping 2-4 days
Compact smart energy meter, 1P+N, 63A, Modbus RS485
Features:
The smart energy meter is an advanced compact device designed to efficiently and accurately monitor energy consumption in single-phase systems with a neutral wire (1P+N).
Measures voltage, current, power, and energy consumption.
Has one measurement channel, so it can monitor only one circuit or phase (e.g., household electrical outlets, lamps, small loads).
Uses Modbus RTU communication model, compatible with industrial control systems. Ensures stable and fast communication in large facilities.
Easily and flexibly installed in smaller distribution panels, does not take up space on the DIN rail. It can be applied in the electrical circuit after the main circuit breaker, fuse, or distribution panel, allowing it to monitor the energy consumption of specific electrical circuits or devices.
Ideal for industrial or commercial premises.
Notes:
Do not install this device before the circuit breaker or fuse, as the device is not intended for protection and may be damaged due to electrical disturbances.
Installation of this device downstream of control devices such as contactors, frequency converters, or motor starters is prohibited. This may cause voltage spikes, harmonic disturbances, or instantaneous current surges that could damage the device. Do not use where current exceeds the device's nominal limit of 63A.
The device must be installed in a dry location or using special protective enclosures if there is a risk of moisture.
Technical specifications:
Max. current (Imax): 63 A (1P+N).
Operating voltage: 110~240V AC.
Frequency: 50/60 Hz.
Nominal insulation voltage: 250 V.
Energy measurement accuracy: 1%; Class 1.
Operating power consumption: 0.5W.
Nominal impulse withstand voltage (Uimp): 4 kV.
Surge category: III.
Communication type: Modbus RS485.
Reset button: yes.
Indicator light: yes.
Installation: downstream.
Safety class: IP20.
Operating temperature: -25°C~+60°C.
Measurement cavity diameter 9.8mm.
Dimensions: 46.8x17.8x21.3mm.
Warranty:24 months.
