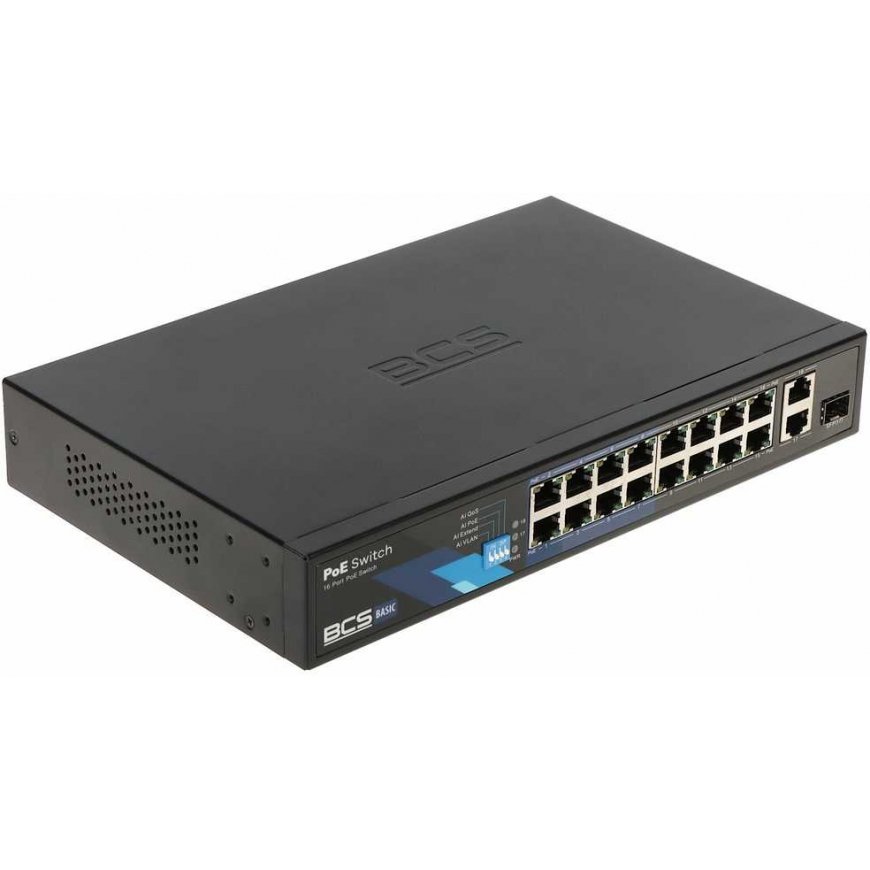

Splitter SWITCH POE BCS-B-SP1602G-1SFP 16 PORTS SFP BCS BASIC
169,00 €
Monthly payment from 5.25 €
3666102 BCS-B-SP1602G-1SFP
5904890708457
2026-07-28
You are interested in this product?
Due to its reliability and high-quality transmission, the 16-port PoE switch BCS-B-SP1602G-1SFP is an ideal solution for CCTV IP installations.
| LAN ports : | 16 x RJ45 ( 16 x PoE (802.3af/at) ), 1 x Combo: SFP / RJ45 port - Uplink, 1 x RJ45 - Uplink |
| Transmission speed : | 10 / 100 Mbps - 16 LAN & PoE ports, 10 / 100 / 1000 Mbps - 2 RJ45 (Uplink) ports, 1000 Mbps - 1 SFP (Uplink) port |
| Maximum output power : | 30W/PoE port |
| Maximum total power : | 150W |
| MAC address table : | 8k |
| Management : | - |
| Working mode : | AI VLAN mode - ports 1 ... 16 are separated from each other and work separately with ports 17, 18 AI EXTEND mode - ports 1 ... 8 support transmission up to 250 m (cat5e, cat6) @ 10 Mbps AI QOS (Quality Of Service) mode - setting video packet priorities AI PoE mode - monitoring of ports that power PoE devices and automatic reactivation after power loss, detecting an unresponsive device - Watchdog PoE |
| Main features : | (RJ45) 10/100/1000 Mb Auto-Negotiation, Auto MDI/MDIX 4 operating modes: AI VLAN, AI EXTEND, AI PoE, AI QoS - selectable by switch Power supply PoE - cores: 1-2(+), 3-6(-) Can be mounted in a rack cabinet |
| LED diodes : | Power, Link/Act, PoE, 17 Uplink, 18 Uplink |
| Certificates : | CE |
| Body : | Metal, Desktop |
| Power supply : | 100 ... 240 V AC |
| Working temperature : | 0°C ... 40°C |
| Weight : | 1.6 kg |
| Dimensions : | 285 x 180 x 44 mm |
| Manufacturer / Brand : | BCS BASIC |
| Warranty : | 2 years |
