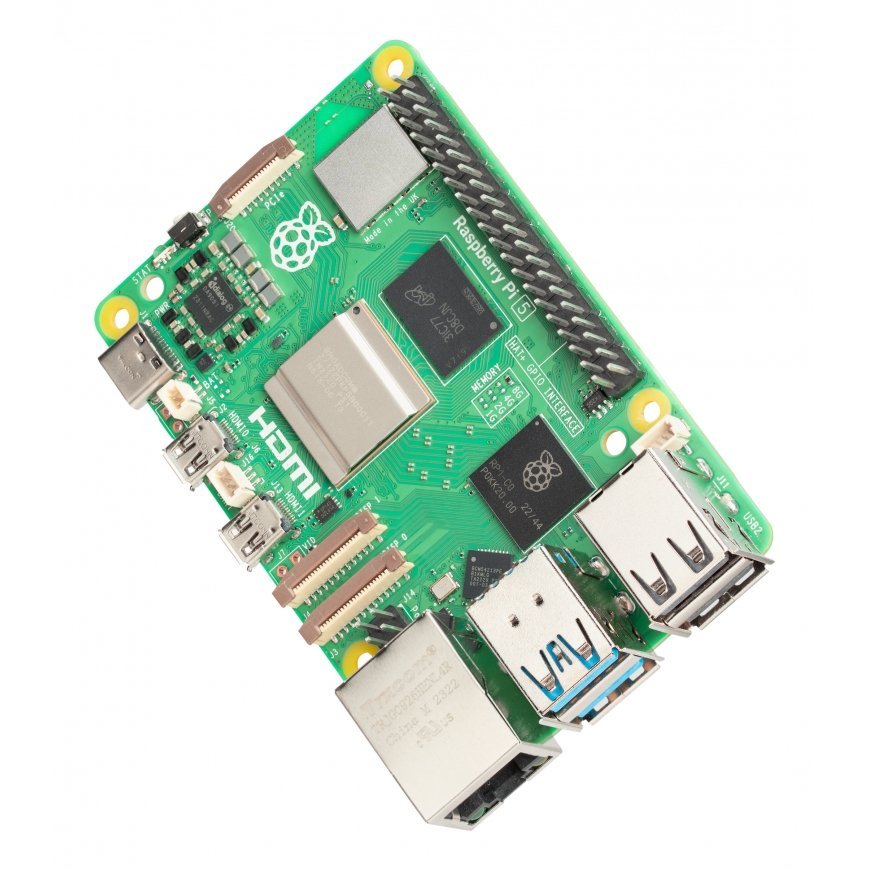

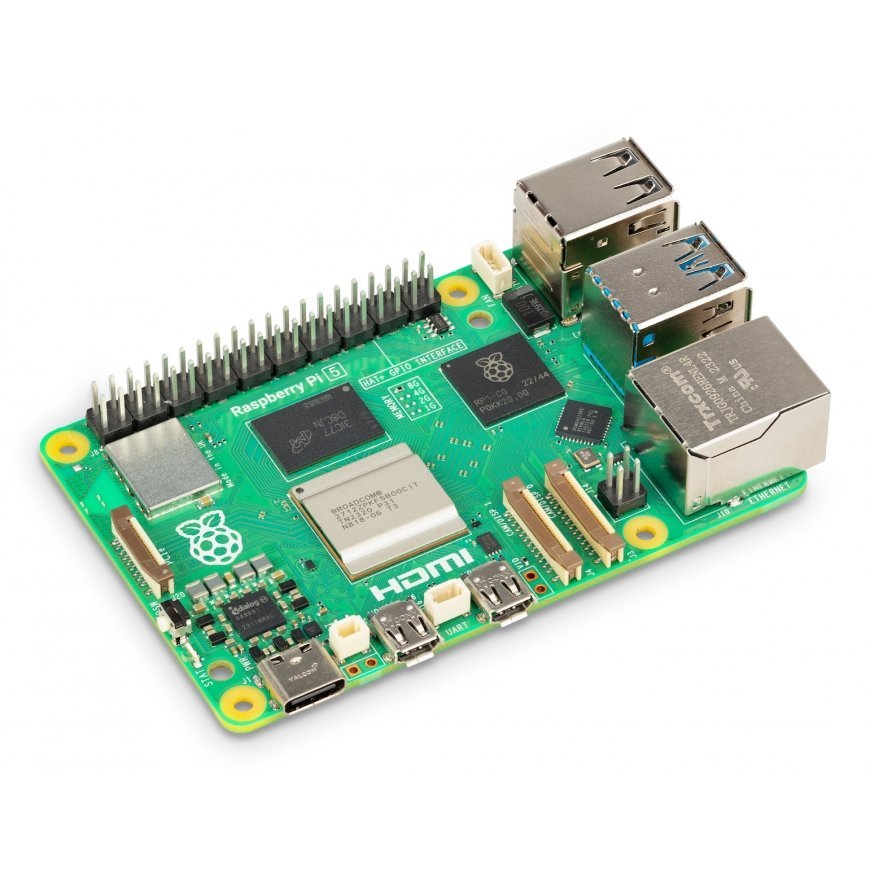

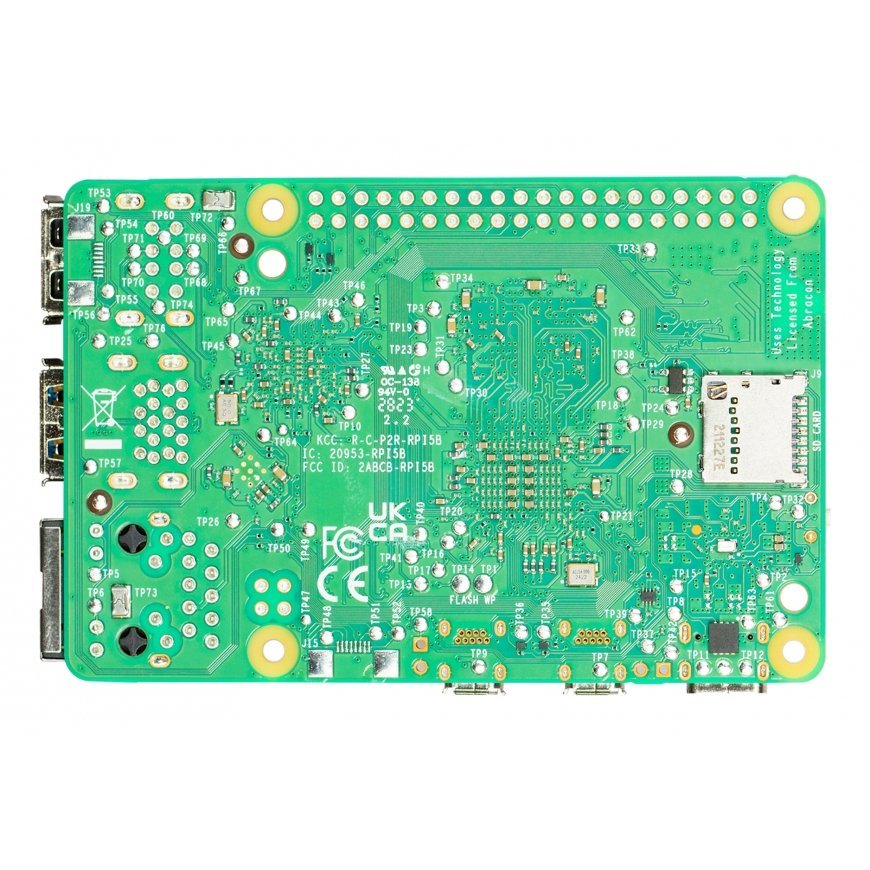

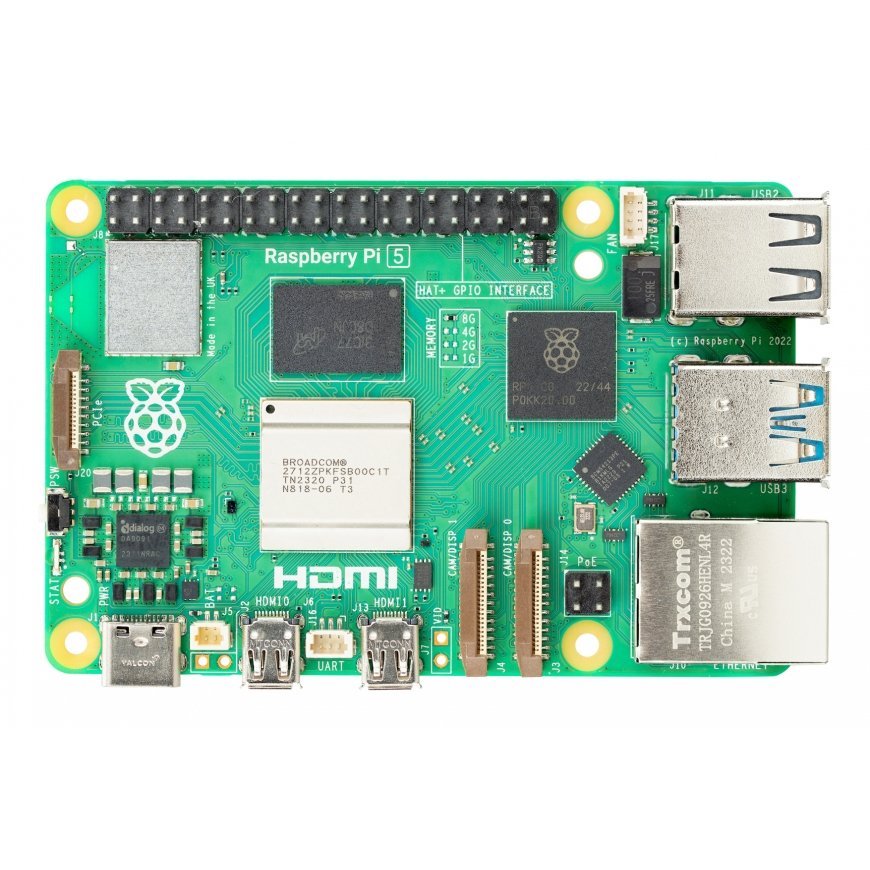

Raspberry Pi 5 development board 2400 MHz Arm Cortex-A76
3661844 SC1113
5056561803333
Goods will arrive at the Tallinn warehouse on 13.07.26
RP1
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi.
USB 3 has more total bandwidth, for much faster transfer speeds.
Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
More than twice as fast and infinitely smoother
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 16GB, this is the fastest, smoothest Raspberry Pi experience yet.
All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Processor model | Arm Cortex-A76 |
| Processor cores | 4 |
| Compatible memory cards | MicroSD (TransFlash) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Width | 85 mm |
| Depth | 49 mm |
| Internal memory type | LPDDR4x-SDRAM |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Input current | 5 A |
| USB ports quantity | 2 |
| USB powered | Yes |
| On/off button | Yes |
| Power over Ethernet (PoE) | Yes |
| PCI Express interface data lanes | x1 |
| Processor manufacturer | ARM |
| Maximum internal memory | 16 GB |
| DC input voltage | 5 V |
| Processor frequency | 2400 MHz |
| 64-bit computing | Yes |
| PCI version | 2.0 |
| Bluetooth Low Energy (BLE) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Integrated LAN | Yes |
| Real-time clock (RTC) | Yes |
| Processor cache | 512 KB |
| Board dimensions | 85 x 49 mm |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
