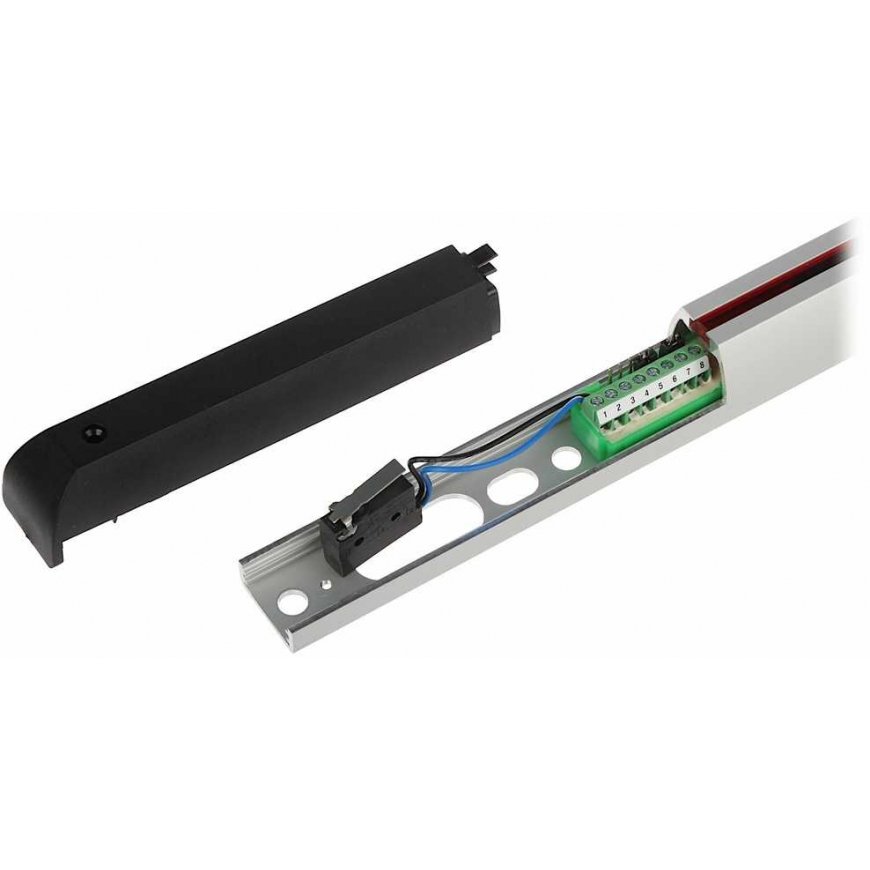

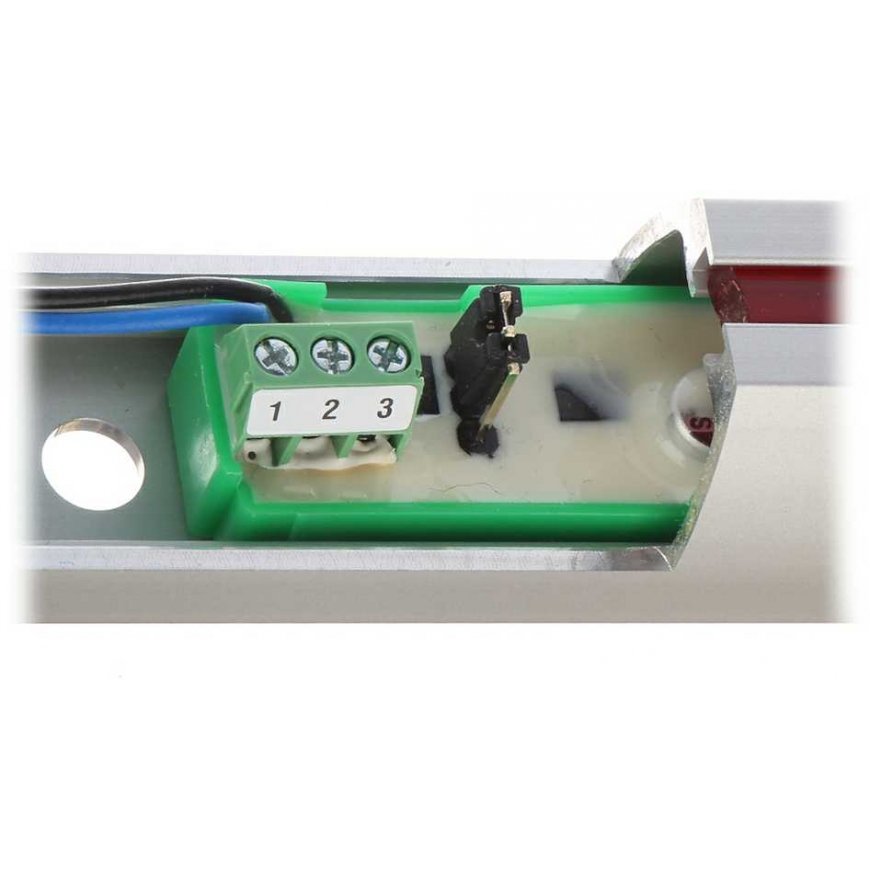

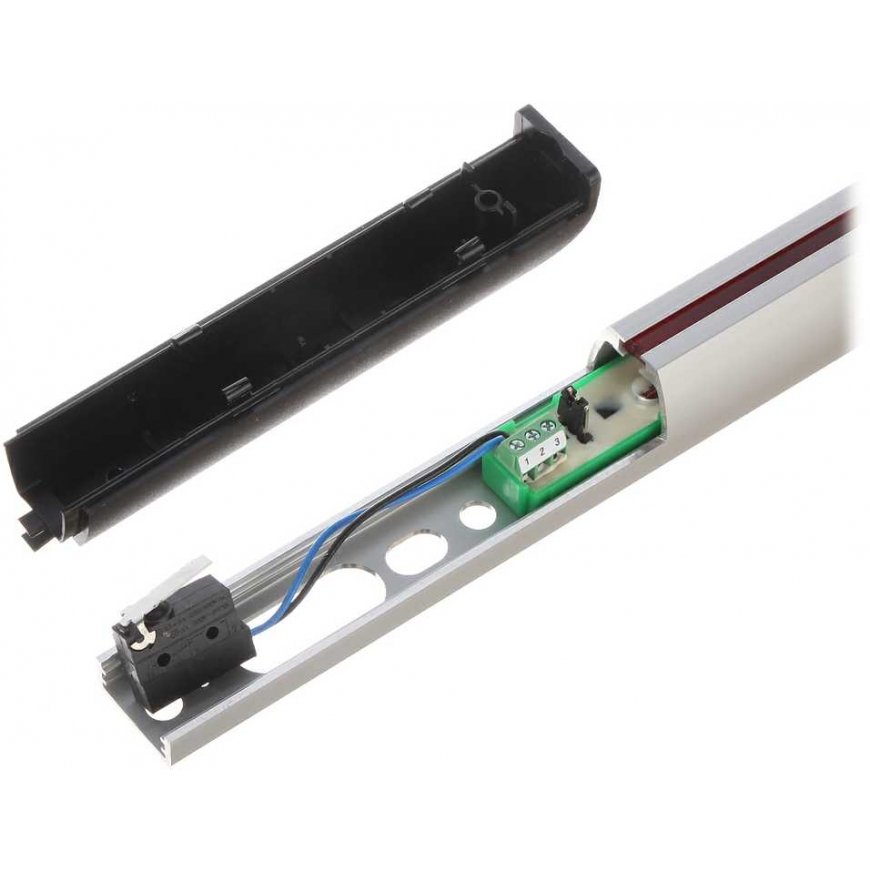

INFRARED BARRIER SATEL ACTIVA-3 3 SINDLES SATEL
3616621 ACTIVA-3
5905033335509
Shipping 1-14 b.d.
Alarm systems based on passive IR sensors detect an intruder who has already entered the room.
The purpose of a system based on IR barriers is to trigger an alarm when an intruder is about to enter the premises, while still outside the object.
The curtain consists of several active IR barriers that create an invisible "lattice" in the window or door niche.
An attempt to breach these "barriers" immediately triggers an alarm.
IR curtains are also used to protect controlled passages, gates, fences, valuable objects in open areas, etc. In museums, IR curtains play the role of a non-conflict, discreet barrier between viewers and valuable exhibits.
| Number of beams : | 3 |
| Detection method : | Number of programmable beams whose violation can trigger an alarm |
| Operating range in outdoor conditions : | 10 years |
| Indoor operating range : | 20 years |
| Beam characteristic : | Transmission coding |
| Interruption (beam damage) duration : | 40 ... 1000 ms |
| Alarm duration : | 2 seconds |
| Anti-tamper contact : | NC |
| Installation : | Possibility of wall mounting |
| Power supply : | 12V DC |
| Current consumption : | max. 45 mA |
| Angle adjustment limits : | - |
| Tightness class : | IP44 |
| Operating temperature/relative humidity : | -25 °C ... 55 °C / max. 95% |
| Selected features : | smooth sensitivity adjustment RS-232 port allowing programming with the help of a computer and the installed ACTIVA program |
| Color : | Black + Silver |
| Transmitter or receiver dimensions : | 830 x 25 x 26 mm |
| Transmitter and receiver weight : | 0.356 kg |
| Manufacturer / Brand : | SATEL |
| Warranty : | 2 years |
