CEILING PIR DETECTOR DG467 PARADOME PARADOX
69,01 €
Monthly payment from 2.68 €
3588437 DG-467/PARADOME
5902887016196
Shipping 1-14 b.d.
You are interested in this product?

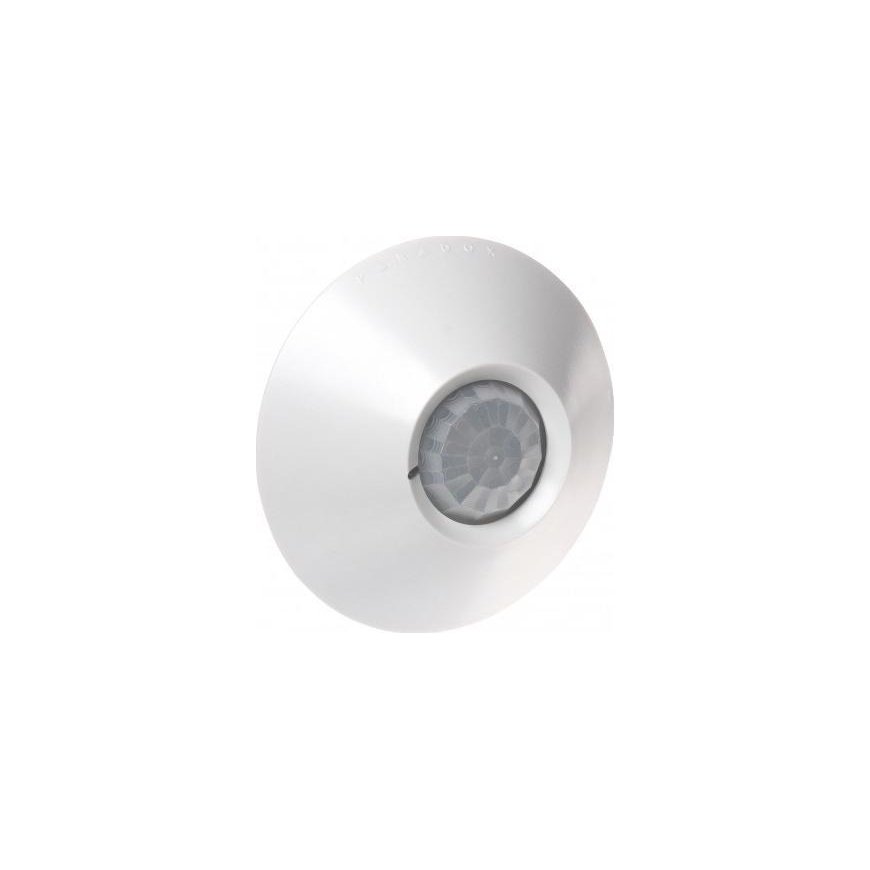

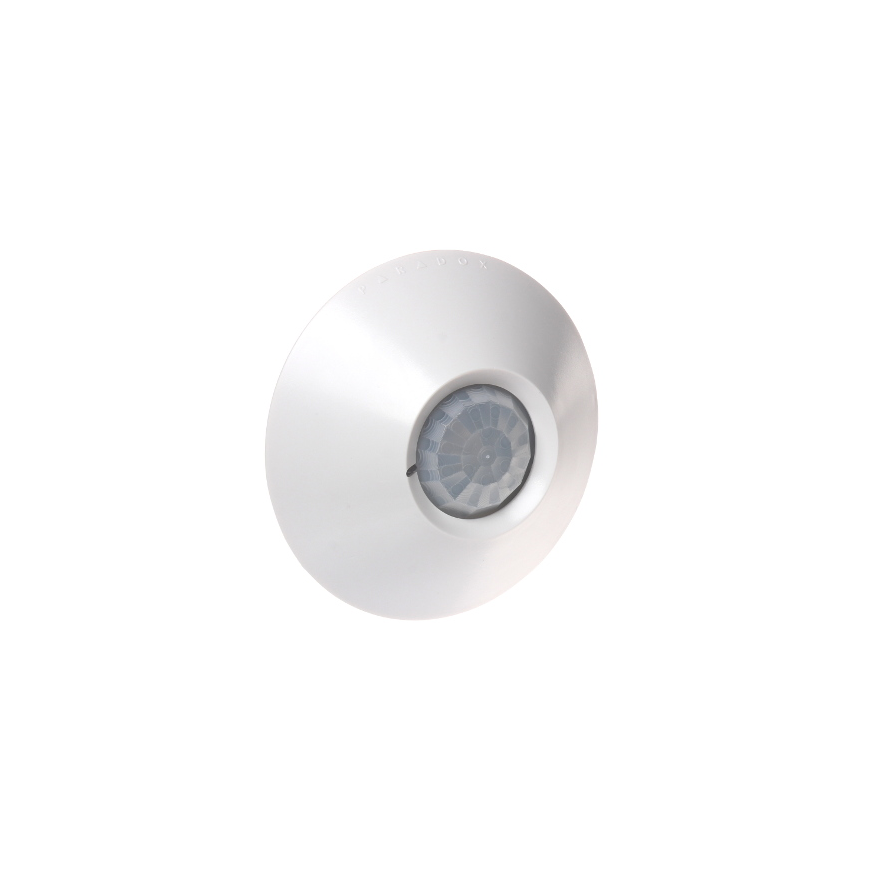

Passive infrared sensor for ceiling mounting.
The heart of the device is a passive IR sensor with a motion detection angle of about 360 degrees.
Motion is detected based on the principle of measuring the temperature change in the environment of the detector's assigned visibility sector, caused by a person present there.
| Usage : | For indoor use |
| Pyroelement : | Double |
| Sensor type : | Passive IR (PIR) |
| Distance : | 7 x 6 from a height of 2.4 m, 11 x 6 m from a height of 3.7 m |
| Detection angle : | 360° |
| Recommended installation height : | 2.2m ... 4m |
| Sensitivity adjustment : | - |
| Self-diagnosis : | Basic |
| Animal resistance : | - |
| Pre-alarm function : | - |
| Maximum output load : | 28V DC / 150mA |
| Alarm outputs : | NC |
| Violation alarm time : | 5 seconds |
| Detected movement speed : | 0.2 ... 3.5 m/s |
| Digital temperature compensation : | ✔ |
| Power supply : | 9V ... 16V DC |
| Maximum current requirement : | 29 mA |
| Main features : | Double opposing detection element Patented motion analysis (without analog signal processing) 2 Working mode: - dedicated independent addressable detector bus Digiplex & Digiplex EVO - conventional transmission sensor Digital Shield algorithm reduces false alarms Anti-sabotage security measures Test mode EN 50130-4 EN 55022 |
| Working temperature : | -20°C ... 50°C |
| Color : | White |
| Weight : | 0.076 kg |
| Dimensions : | Ø 107 x 34 mm |
| Country of origin : | Canada |
| Manufacturer / Brand : | PARADOX |
| Warranty : | 2 years |
