Dedra MOUNTING SHEET BM-130X160/ECO
3581494 BM-130X160/ECO
5902887089206
Shipping 1-14 b.d.
The BM-130X160/ECO mounting plate is designed for mounting spherical and tubular cameras on poles.
The product provides cameras and brackets with a mounting base diameter not exceeding Ø120mm.
The panels are attached to the mast using properly selected clamps (available separately).
Due to the distance between the holes, clamps with a diameter of Ø8mm and a distance corresponding to stems with a diameter of Ø43mm ... Ø200mm can be used.
Using the BT-2 compression strap, the mounting plate can be mounted on poles up to 200mm in diameter.
| Pole diameter range : | Ø 43 mm ... Ø 200 mm |
| Material : | Steel - powder coating |
| Color : | White |
| Weight : | 0.44 kg |

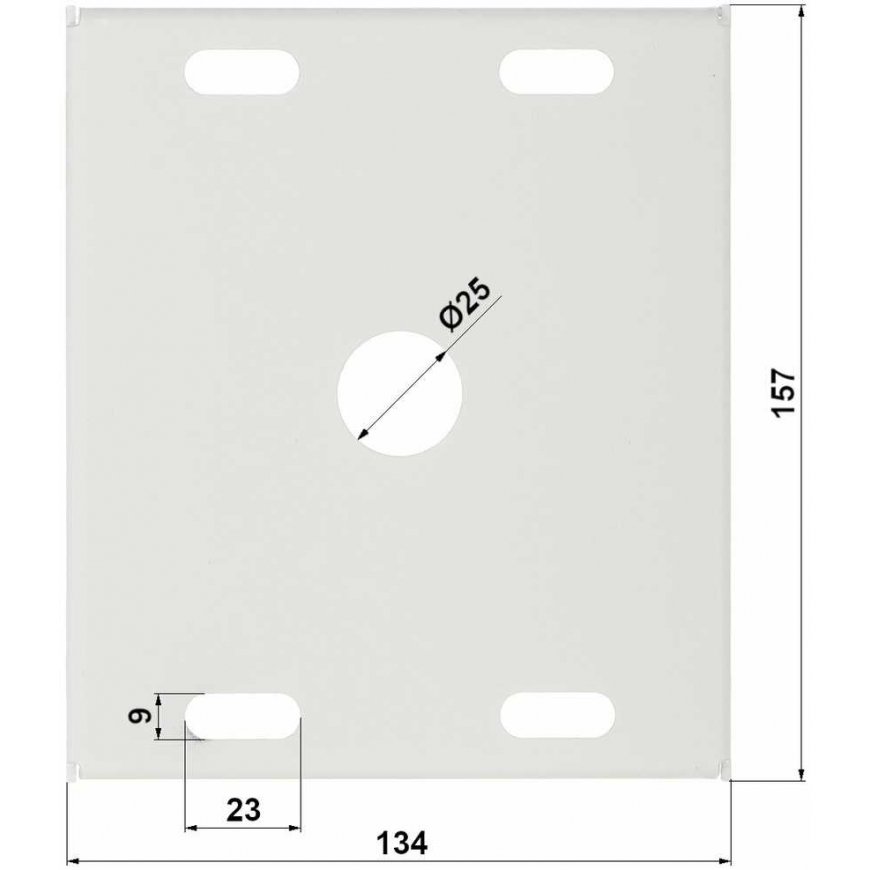

| Dimensions : | 157 x 134 x 34 mm |
| Warranty : | 2 years |
