CODE LOCK ATLO-KRMD-510
3578200 ATLO-KRMD-510
5902887084973
2026-07-27

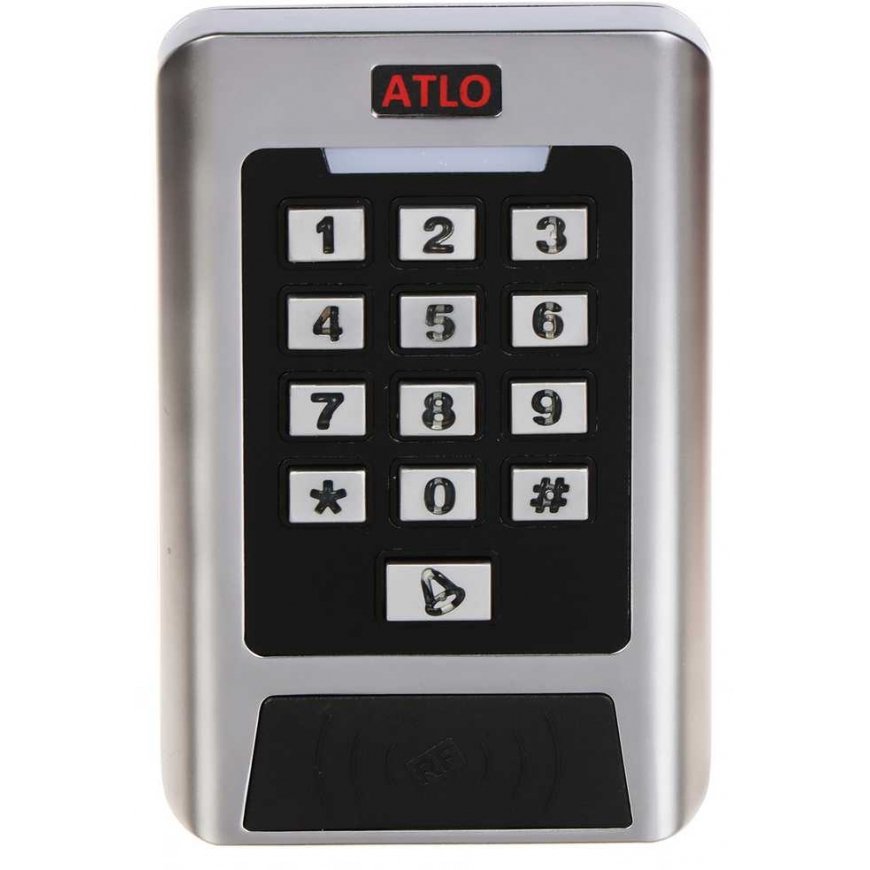

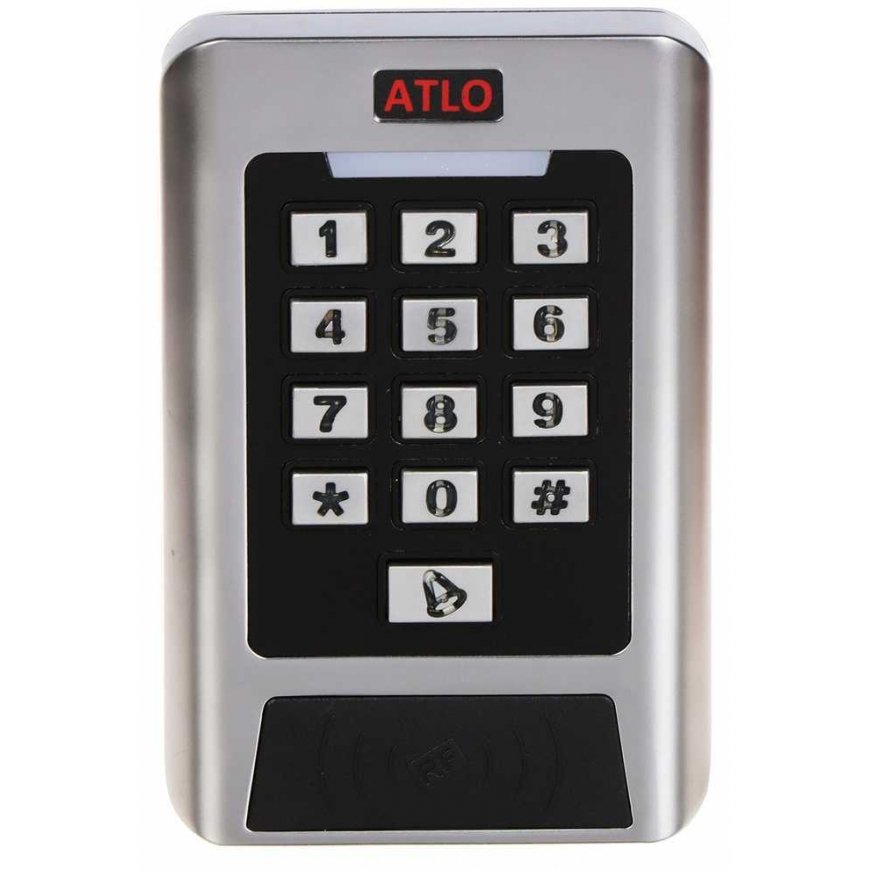

External, independent code lock with RFID reader.
Independent installation work gives the user the opportunity to:.
Opening with a card or PIN code.
Adding saved cards or PIN codes to memory.
Would leave the door open alarm.
Sound and optical alarm.
The administrator has the following options:.
Programming with the keyboard.
Adding a new card with the keyboard.
Adding a new card and entering a PIN code.
Changing the user's PIN code.
Deleting a user PIN code.
Setting the time for removing the blockade.
Resetting to default settings.
| Card support : | Unique EM 125kHz |
| Remote card reading range : | max. 4 cm |
| Automatic work : | ✔ |
| Integrated keyboard : | ✔ |
| Call button : | ✔ |
| Tamper output : | - |
| Number of access zones : | 2 |
| Connection : | Wiegand 26 |
| Power supply : | 12V AC/DC |
| Maximum current requirement : | 25 mA (Standby mode) 60 mA (operation) |
| Number of joints : | 2 pcs. |
| Relay contact load : | 1A / 12V |
| Main features : | Supports up to 2000 users in total for 2 zones Identification: Card and/or PIN code Blue button illumination Cooperation with door contact and exit button 2 x NO/NC output Ability to use codes without associated cards Number of relay outputs: 2, Servicing of electric suspensions and solenoid valves Reversing screw reverse service Blue lighting |
| Working temperature : | -45°C ... 55°C |
| Permissible relative ambient humidity : | 0 ... 95 % (non-condensing) |
| Body : | Metal |
| Color : | Silver + Black |
| Tightness class : | IP68 |
| Anti-vandal : | ✔ |
| Weight : | 0.49 kg |
| Dimensions : | 80 x 120 x 24 mm |
| Manufacturer / Brand : | ATLO |
| Warranty : | 3 years |
