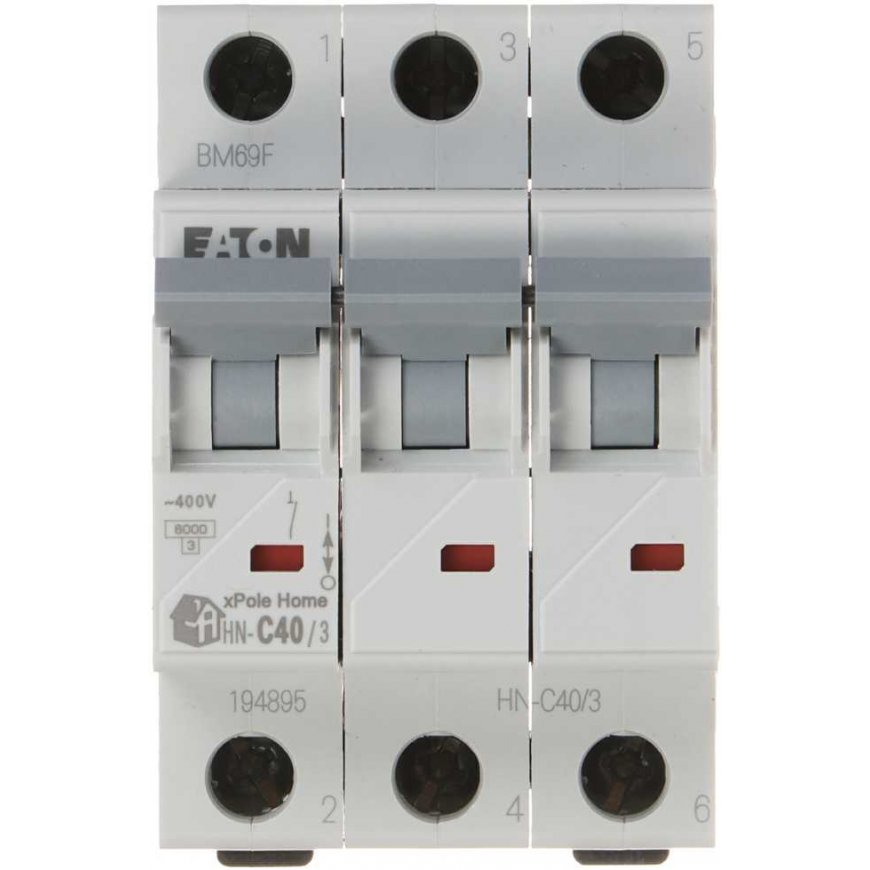

POWER SWITCH HN-C40/3 THREE-PHASE 40 AC TYPE EATON
59,00 €
Monthly payment from 2.42 €
3562696 9010238067967
Shipping 1-14 b.d.
You are interested in this product?
Motorized switch with type C designation and rated current 40A.
The HN-C40/3 switch is designed for mounting on a DIN TS-35 rail.

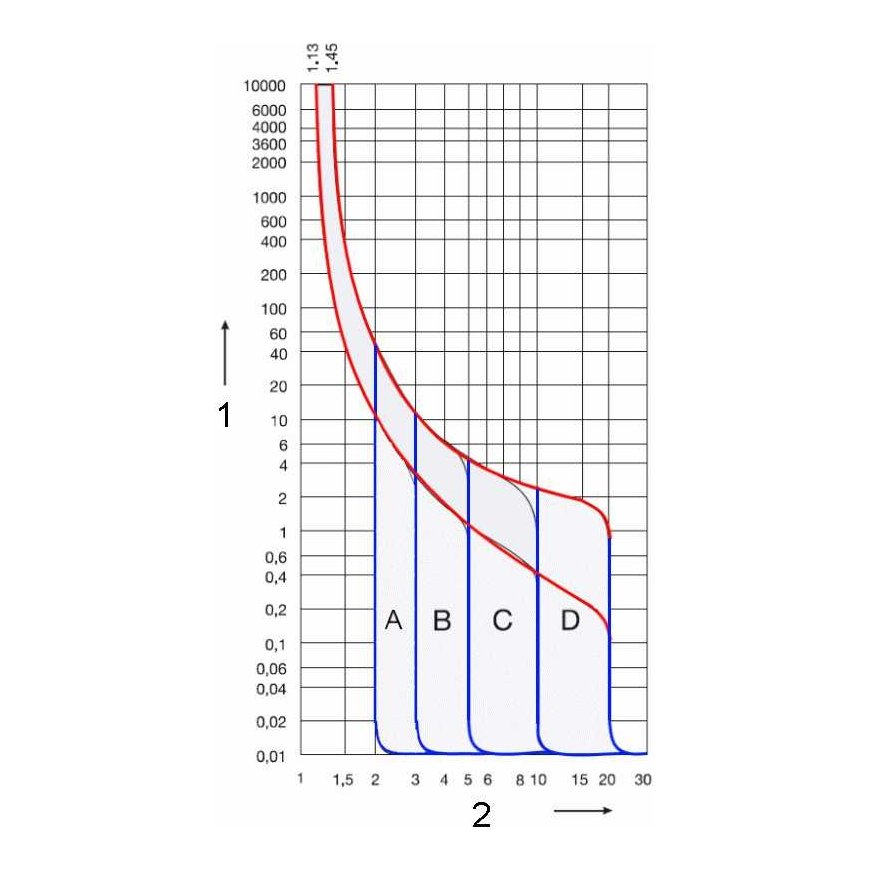

Overcurrent circuit breakers with C designation are designed to protect against short circuits and overloads of equipment using high-current devices (motors, transformers).
| Device type : | Motorized switch, Three-phase |
| Rated current : | 40 A |
| Number of piles : | 3 |
| Description of the launch : | Type C |
| Rated short-circuit duration : | 6000 A |
| Rated voltage : | 230 V AC / 50 Hz 400 V AC / 50 Hz |
| Connector type : | threaded terminals |
| Wire cross-section : | 1mm² - 25mm² |
| Main features : | Contact position indicator Possibility of sealing |
| Body : | Plastic, DIN, TS-35 rail mounting |
| Width in modules 17.5 mm : | 3 |
| Weight : | 0.357 kg |
| Dimensions : | 52.5 x 84.5 x 73 mm |
| Manufacturer / Brand : | EATON |
| Warranty : | 2 years |
