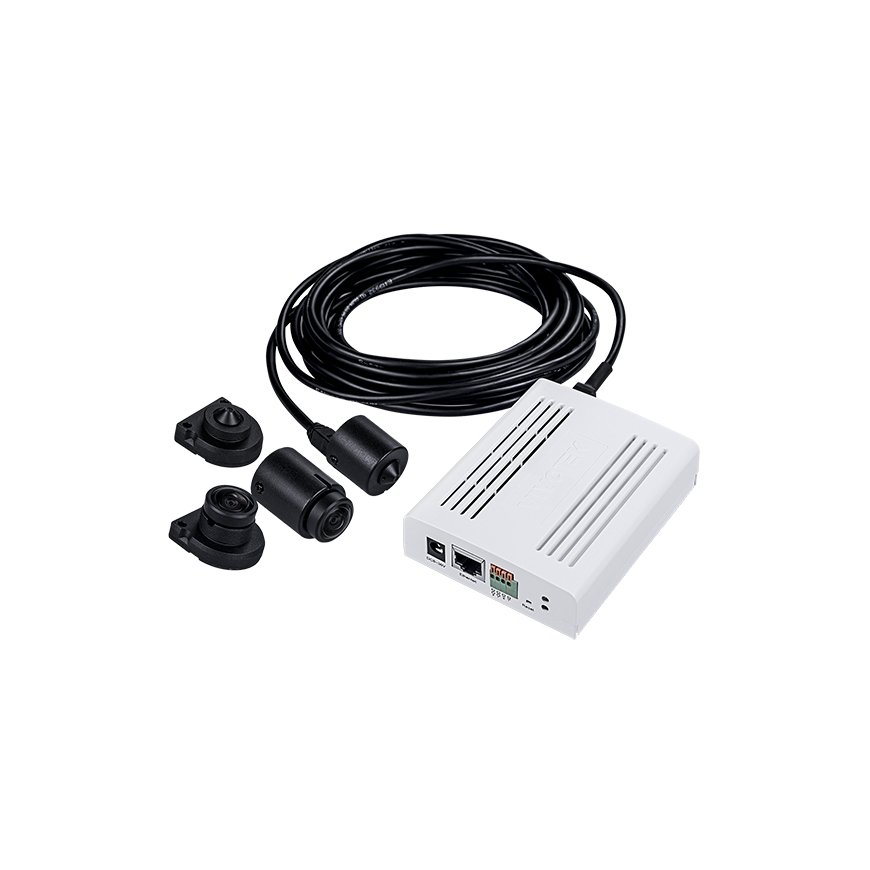

VIVOTEK VC9101 security camera IP security camera Indoor 2688 x 1520 pixels
739,00 €
Monthly payment from 19.93 €
3526675 VC9101
4710469353062
This product is no longer in stock
You are interested in this product?
The VC9101 features a separate camera unit (CU series) and video core design, enabling the tiny camera unit (with 5-meter long cable) to be easily and flexibly installed into any decoration or interior design, thus preserving stylish appearances while dramatically saving on installation time and cost.
VC9101 video core has a powerful processor which can stream a 5MP 360 degree fisheye image or a 4MP 16:9 image. Furthermore, the VC9101 is equipped with CNN (Convolutional Neural Network) hardware accelerator which allows the deep learning VCA be more efficient and powerful. VC9101 also provides deep learning based face detection suitable for most installation scenarios.
The VC9101 camera core can support one camera unit and is designed to work in perfect harmony with a choice of 4 different types of camera units, CU9171-H, CU9171-HF, CU9183-H and CU9183-HF. The whole system incorporates a number of advanced features found in VIVOTEK cameras, including WDR Pro, SNV, Smart Stream III technology, 3DNR, and security features like secure boot, signed firmware, and Trend Micro cybersecurity.
Performance | |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
| Dynamic range | 120 dB |
Design | |
| LED indicators | Power, Status |
| Product colour | Black |
Camera | |
| Minimum illumination | 0.045 lx |
| Camera shutter speed | 1/5 - 1/32000 s |
| Lens viewing angle, horizontal | 93° |
| Lens viewing angle, vertical | 48° |
| Lens viewing angle, diagonal | 117° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system | |
| Digital zoom | 48x |
| Fixed focal length | 3.7 mm |
| Maximum aperture number | 2.5 |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Frame rate | 30 fps |
| Video compression formats | H.264, H.265, M-JPEG |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 5 MP |
Audio | |
| Audio system full duplex | Yes |
| Audio formats supported | G.711, G.726 |
| Signal-to-Noise Ratio (SNR) | 55.9 dB |
| Audio system | 2-way |
Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of users | 10 user(s) |
| Bluetooth | No |
Storage | |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
Ports & interfaces | |
| Microphone in | Yes |
Security | |
| Video motion detection | Yes |
| Password protection | Yes |
Power | |
| Power consumption (max) | 8.5 W |
| Power source type | PoE |
Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
| Weight | 190 g |
| Width | 105 mm |
| Depth | 84 mm |
| Height | 30 mm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Night vision | No |
System requirements | |
| Windows operating systems supported | Windows 7, Windows 8, Windows 10 |
| Mac operating systems supported | Mac OS X 10.12 Sierra |
