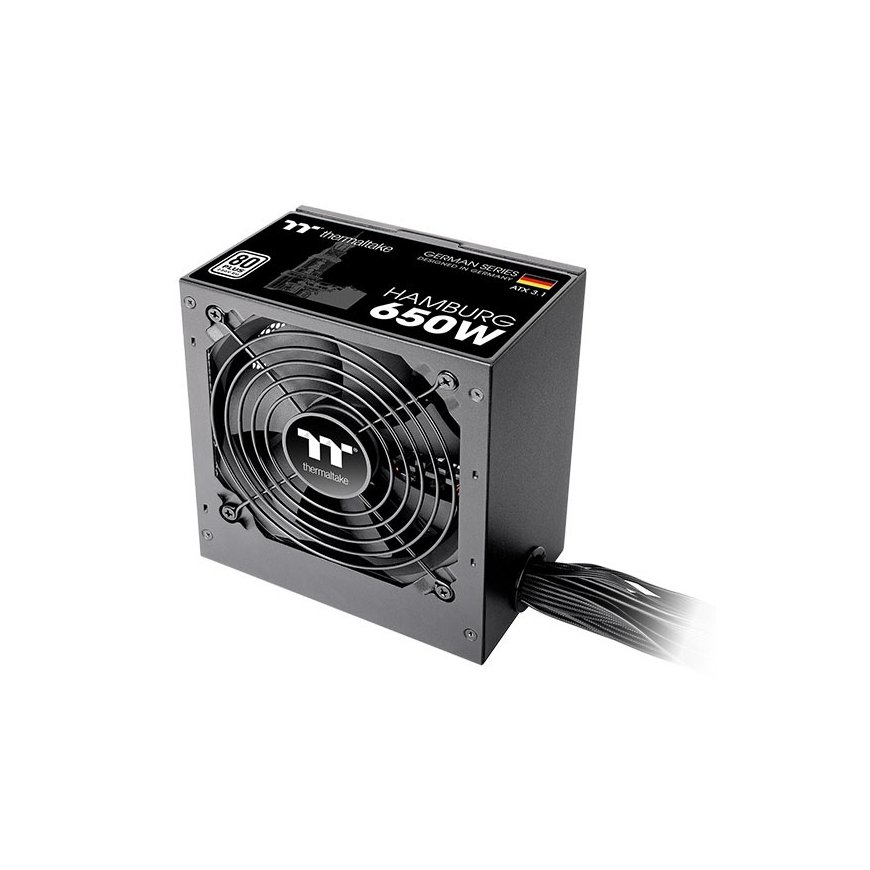

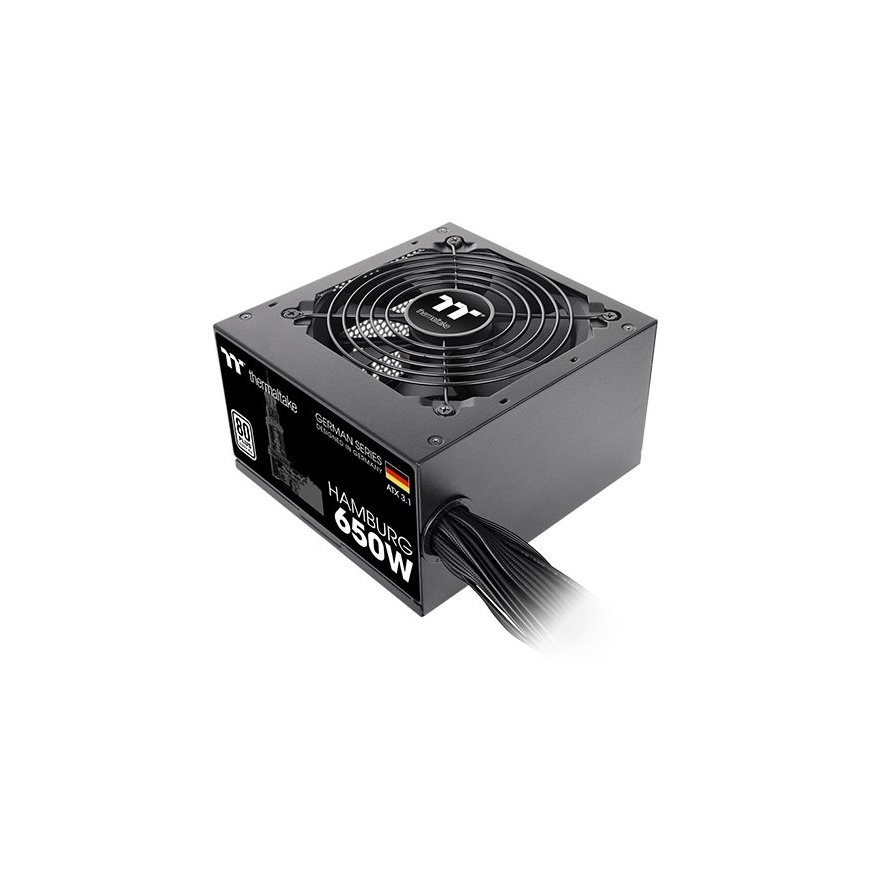

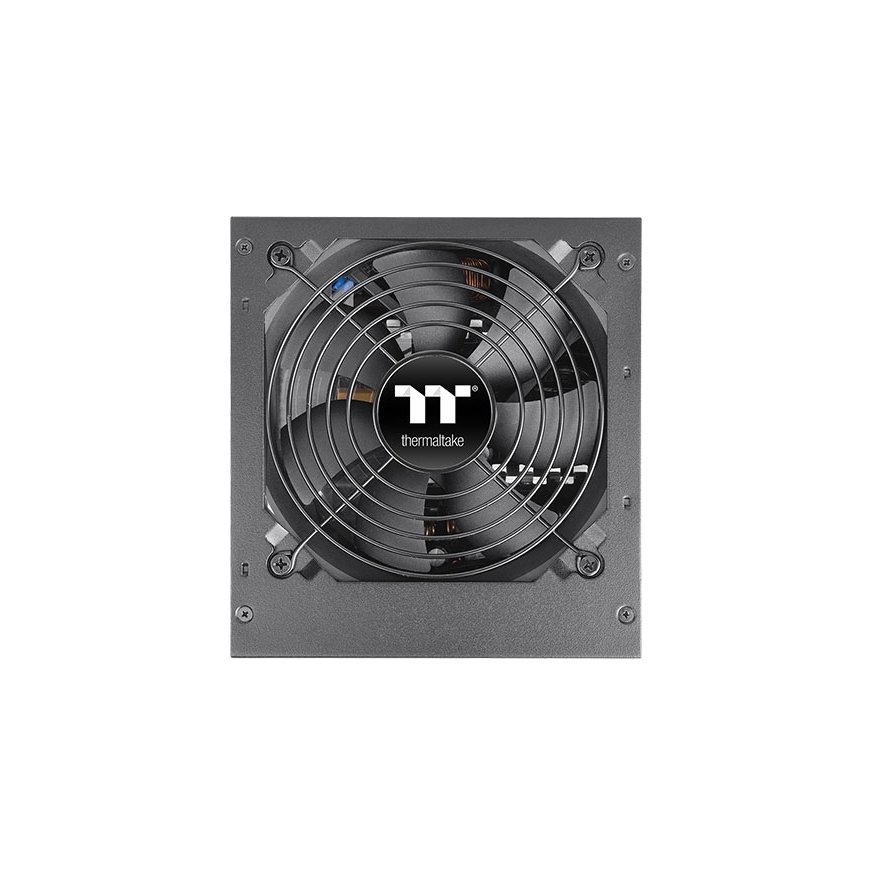

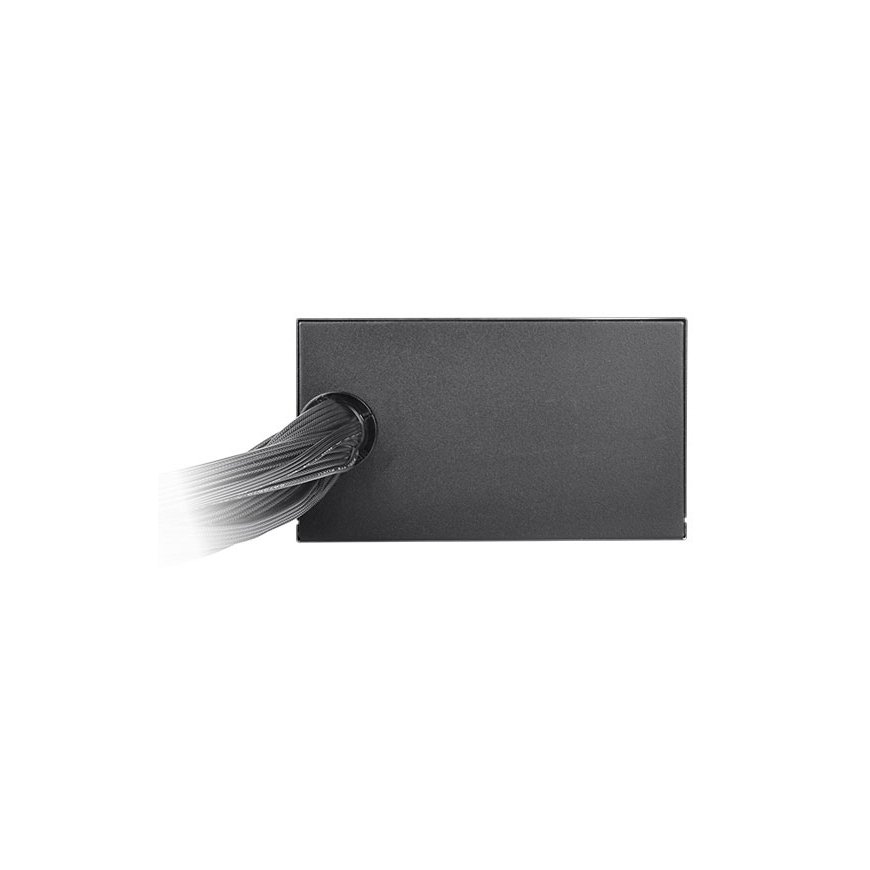

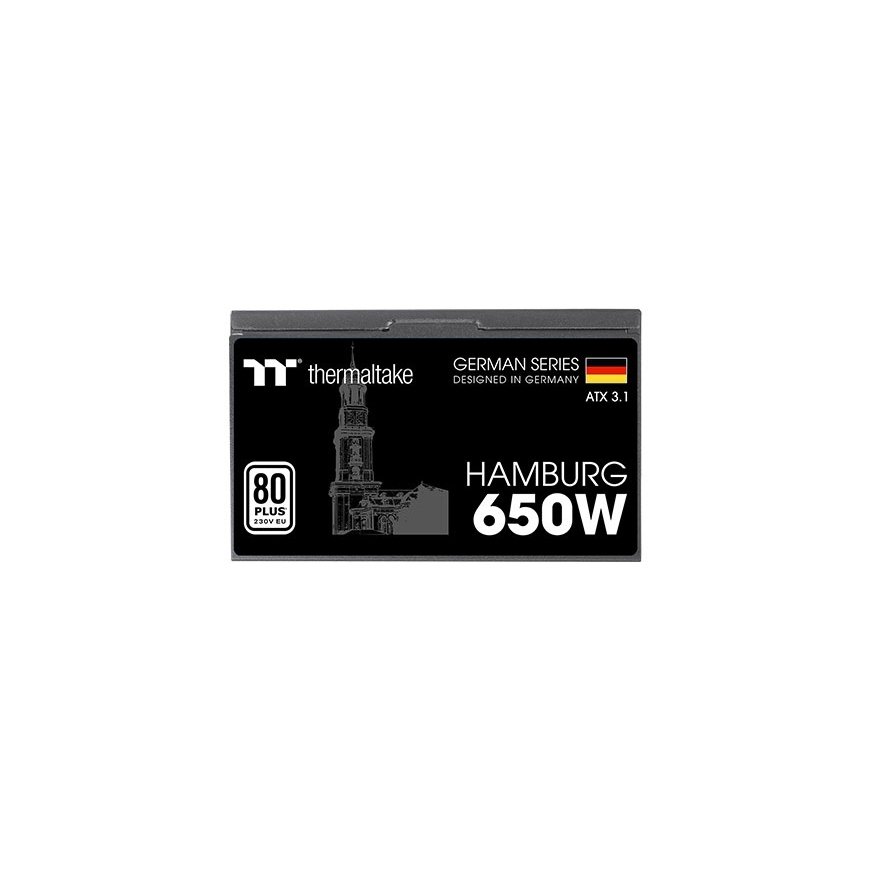

Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black
Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Thermaltake HAMBURG power supply unit 650 W 24-pin ATX ATX Black

69,01 €
Monthly payment from 2.68 €
3483636

W0650RE

4711475648319

Shipping 6-8 b.d.

Quantity

You are interested in this product?
(Read terms of service)
Thermaltake HAMBURG. Total power: 650 W, AC input voltage: 200 - 240 V, Peak power: 650 W. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,800,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, Low Voltage Directive (LVD), RCM, UKCA
Power
Hold time 150 ms
Input current 6 A
Peak power 650 W
Power protection features Over current, Over voltage, Short circuit, Under voltage
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 110 W
Combined power (+12V) 650 W
Combined power (+5V) 110 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 18 A
Max output current (+12V) 54.2 A
Max output current (+5V) 18 A
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
AC input voltage 200 - 240 V
AC input frequency 50/60 Hz
Total power 650 W
Performance
Mean time between failures (MTBF) 100000 h
ATX version 3.1
Purpose PC
80 PLUS certification 80 PLUS
Power supply unit (PSU) form factor ATX
Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
Fan location Top
Cooling type Active
On/off switch Yes
Ports & interfaces
ATX Power connector (24-pin) Yes
Number of SATA power connectors 4
Peripheral (Molex) power connectors (4-pin) 4
CPU P4 connector (4-pin) 2
PCI Express power connectors (6+2 pin) 2
Motherboard power connector 24-pin ATX
Cabling type Non-Modular
PCI Express connector Yes
Motherboard power cable length 60 cm
SATA power cable length 500, 650, 800, 950
Peripheral (Molex) power cable length 500, 650, 800, 950
Operational conditions
Operating relative humidity (H-H) 20 - 85%
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -40 - 55 °C
Storage relative humidity (H-H) 10 - 95%
Weight & dimensions
Width 150 mm
Depth 86 mm
Height 140 mm
Certificates
Compliance certificates CE, Low Voltage Directive (LVD), UKCA, CB, RCM
