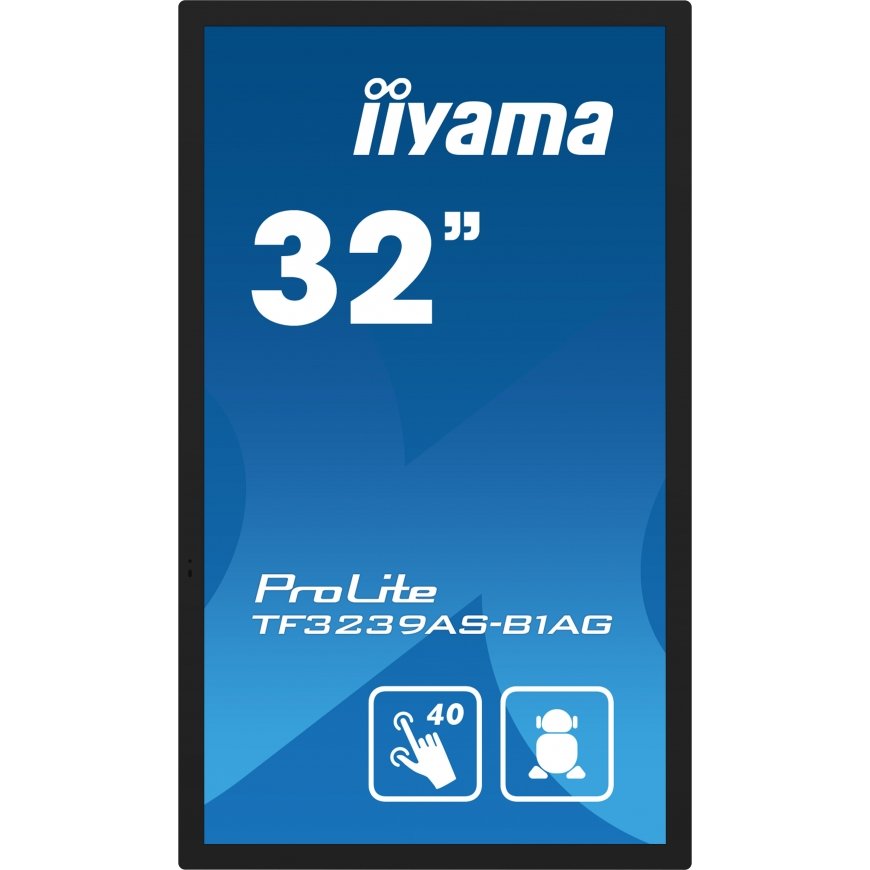

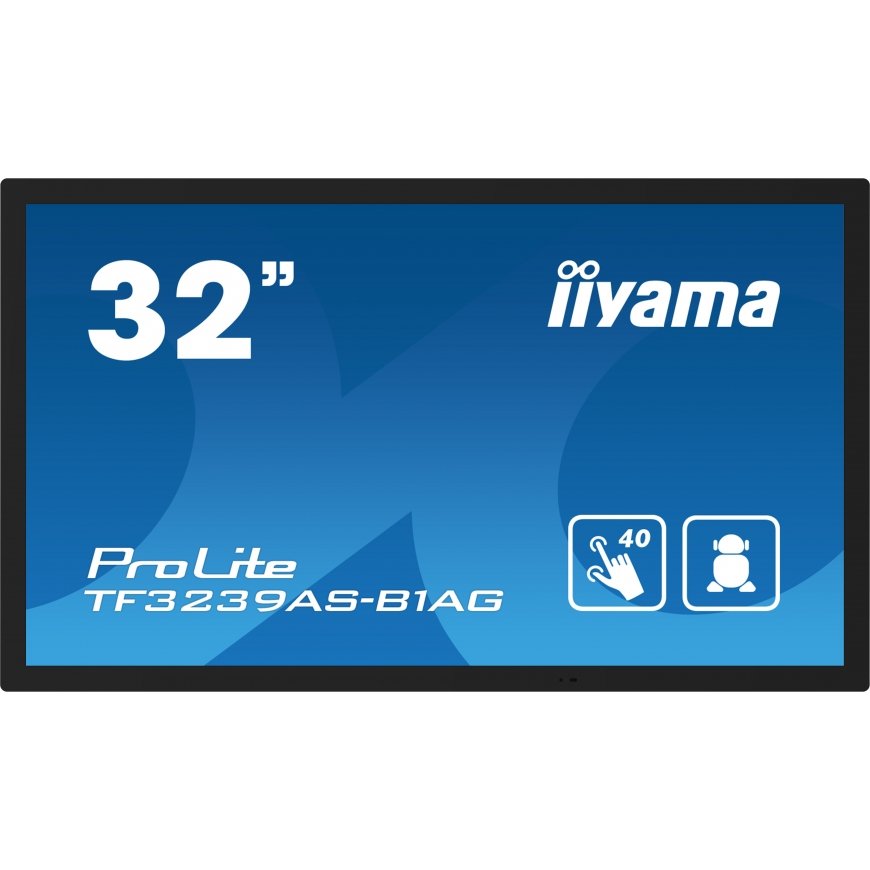

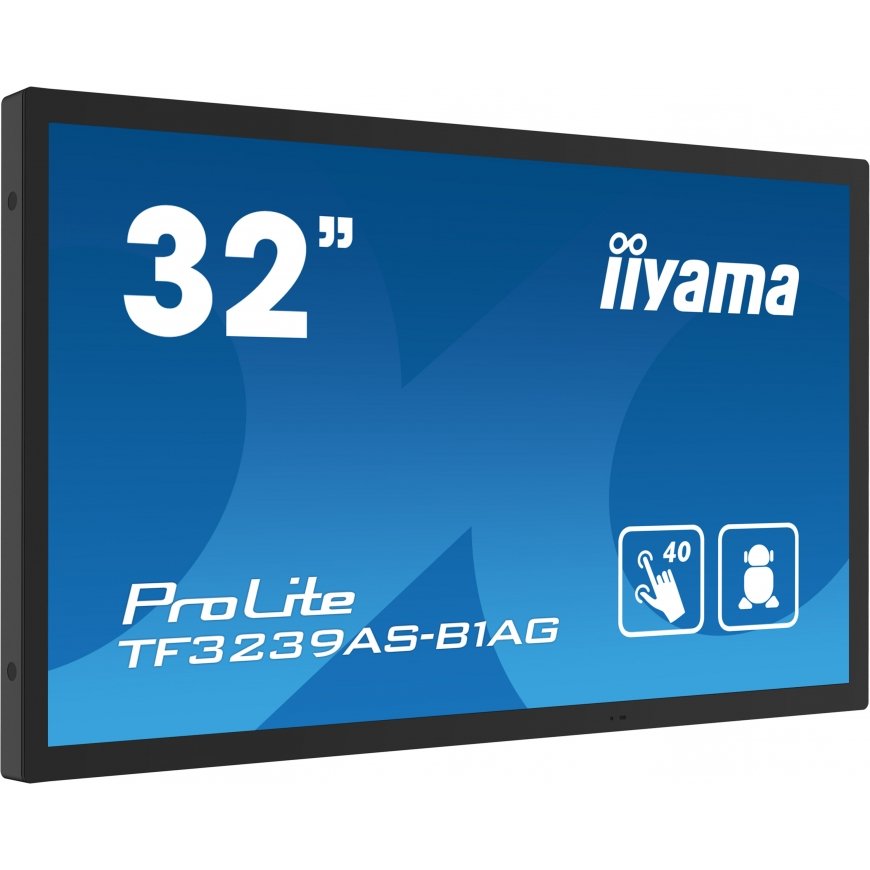

iiyama 32" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
3302356 TF3239AS-B1AG
4948570123865
2026-08-04
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.
Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
| Display diagonal | 80 cm (31.5") |
| HD type | Full HD |
| Display resolution | 1920 x 1080 pixels |
| Screen shape | Flat |
| Native aspect ratio | 16:9 |
| Native refresh rate | 60 Hz |
| Operating system installed | Android |
| RMS rated power | 20 W |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| HDMI ports quantity | 2 |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 31 kWh |
| Width (with stand) | 746.2 mm |
| Depth (with stand) | 62.4 mm |
| Height (with stand) | 440.7 mm |
| Weight (with stand) | 13.2 kg |
| Touchscreen | Yes |
| Display number of colours | 16.7 million colours |
| Maximum refresh rate | 60 Hz |
| Internal storage capacity | 32 GB |
| USB port | Yes |
| USB connector type | USB Type-A; USB Type-B |
| USB version | 2.0 |
| International Protection (IP) code | IP65 |
| Cables included | AC; USB; HDMI; DisplayPort |
| Internal memory | 4 GB |
| Package width | 840 mm |
| Package depth | 840 mm |
| Package height | 560 mm |
| Package weight | 16.6 kg |
| Power consumption (off) | 0.3 W |
| Quick start guide | Yes |
| Purpose | Universal |
| Certification | TCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 50 W |
| Built-in speaker(s) | Yes |
| Energy efficiency scale | A to G |
| AC input frequency | 50/60 Hz |
| Remote control included | Yes |
| USB ports quantity | 3 |
| Mean time between failures (MTBF) | 50000 h |
| Package volume | 16600 cm³ |

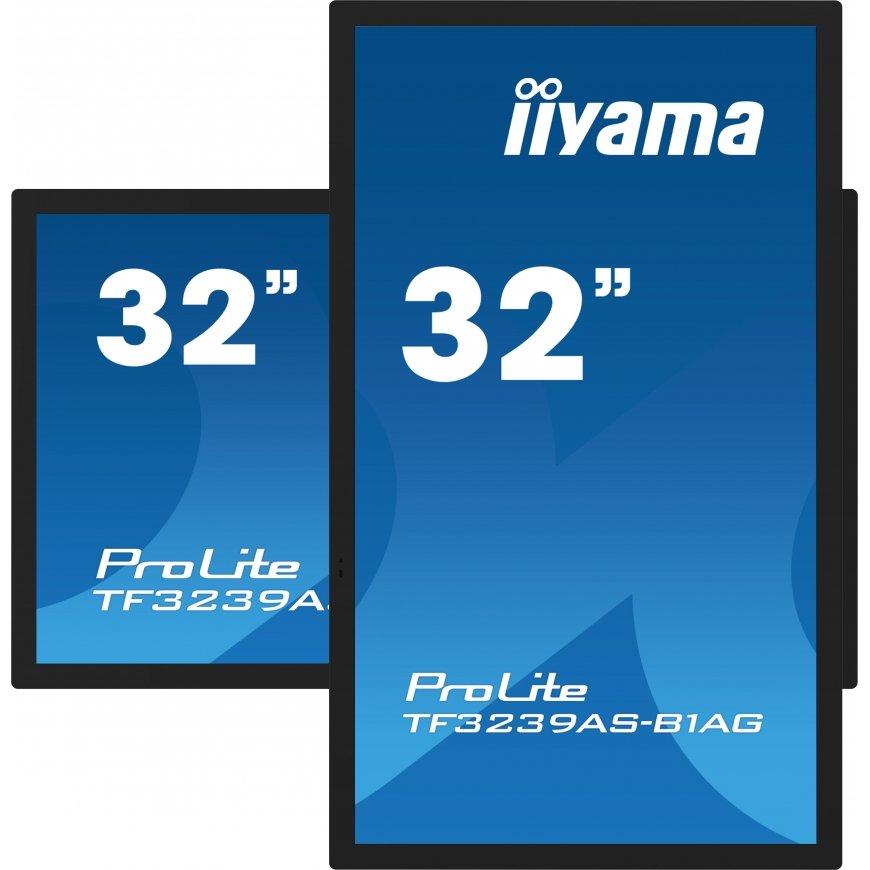

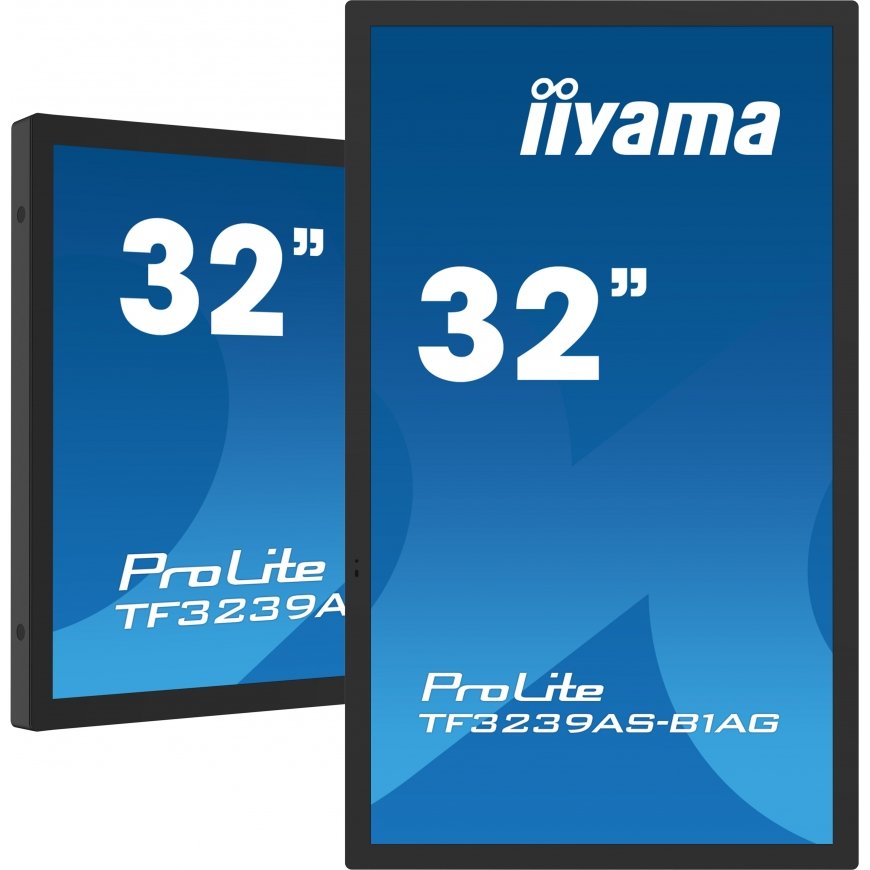

| Orientation | Horizontal/Vertical |
| Batteries included | Yes |
| Placement supported | Indoor |
| Display technology | LED |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 80 cm |
| Operating system version | 11 |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 13 |
| On Screen Display (OSD) languages | Danish; German; Dutch; English; Spanish; Finnish; French; Italian; Polish; Russian; Slovenian; Czech |
| Number of built-in speakers | 2 |
| LED backlight | Yes |
| HDMI version | 2.0 |
| HDCP | Yes |
| Power consumption (standby) | 0.5 W |
| Display brightness | 500 cd/m² |
| Power supply type | Internal |
| Product design | Digital signage flat panel |
| DVI port | No |
| RS-232C | Yes |
| Anti-glare screen | Yes |
| Computer system | Yes |
| Built-in processor | Yes |
| Display width | 746.2 mm |
| Display depth | 62.4 mm |
| Display height | 440.7 mm |
| Display weight | 13.2 kg |
| Processor manufacturer | ARM |
| Panel type | IPS |
| Pixel pitch | 0.363 x 0.363 mm |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Response time | 8 ms |
| Display surface | Matt |
| HDCP version | 2.2 |
| Touchscreen technology | Projected capacitive system |
| Horizontal scan range | 28 - 160 kHz |
| Glass thickness | 3 mm |
| Number of simultaneous touchpoints | 40 |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Bezel width (bottom) | 2.2 cm |
| Bezel width (side) | 2.2 cm |
| Bezel width (top) | 2.2 cm |
| Operating hours (hours/days) | 24/7 |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Surface hardness | 7H |
| Colour depth | 8 bit |
| USB 2.0 Type-B ports quantity | 1 |
| Haze rate | 25% |
| Multi-touch | Yes |
