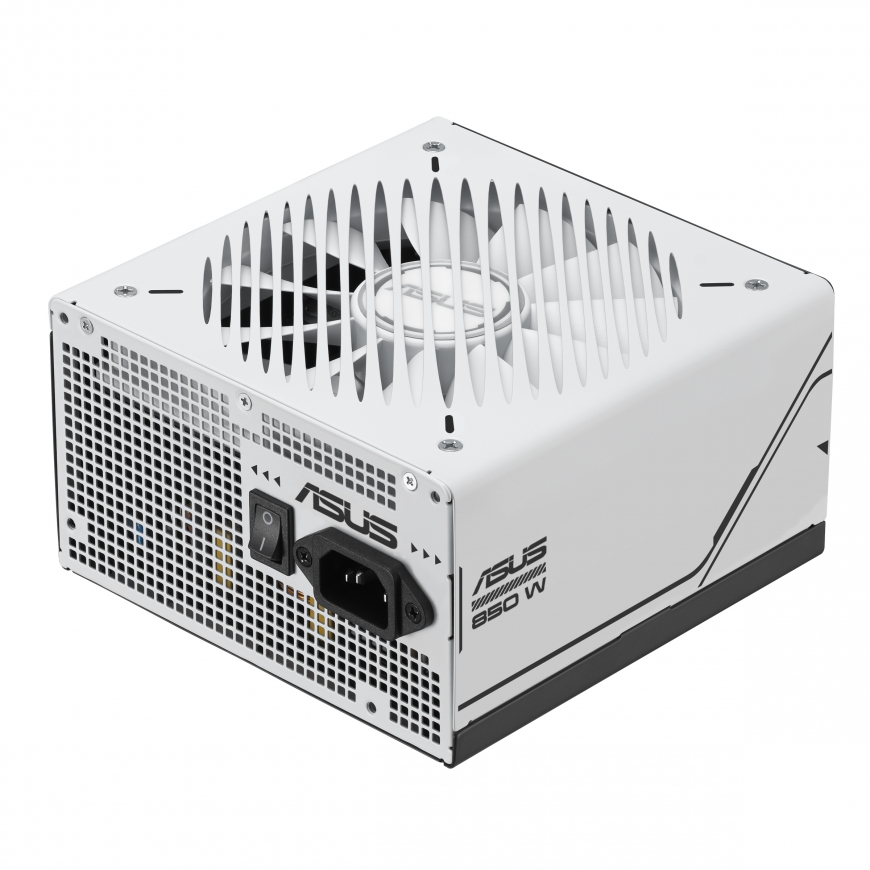

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
109,00 €
Monthly payment from 3.71 €
3197603 90YE00U0-B0NA00
4711387192658, 0197105192652, 4711387192849
2026-07-16
You are interested in this product?
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
Power | |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black, White |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Illumination | Yes |
| Cooling type | Active |

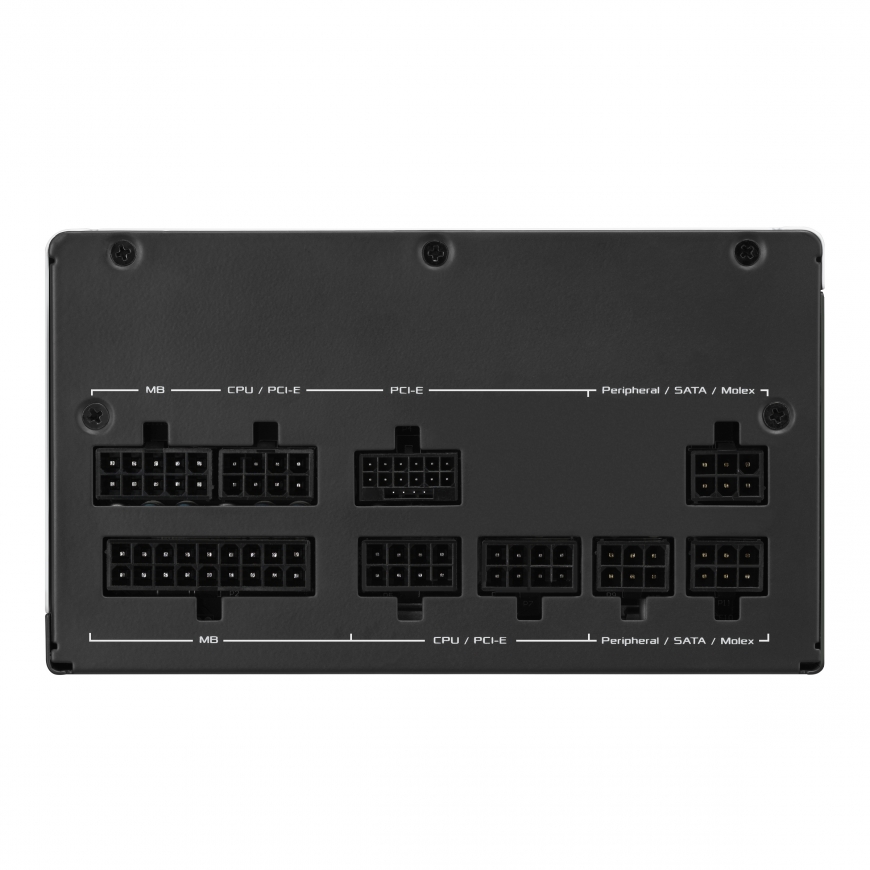

Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 400, 120 |
| Peripheral (Molex) power cable length | 400, 150 |
| PCI Express power cable length | 67.5 cm |
| CPU power cable length | 65 cm |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 2.92 kg |
| Package type | Box |
| Package height | 144 mm |
| Package width | 346 mm |
| Package depth | 208 mm |
Packaging content | |
| Cables included | SATA, CPU, PCIe, Peripheral (Molex) |
Certificates | |
| Compliance certificates | RoHS |
