The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

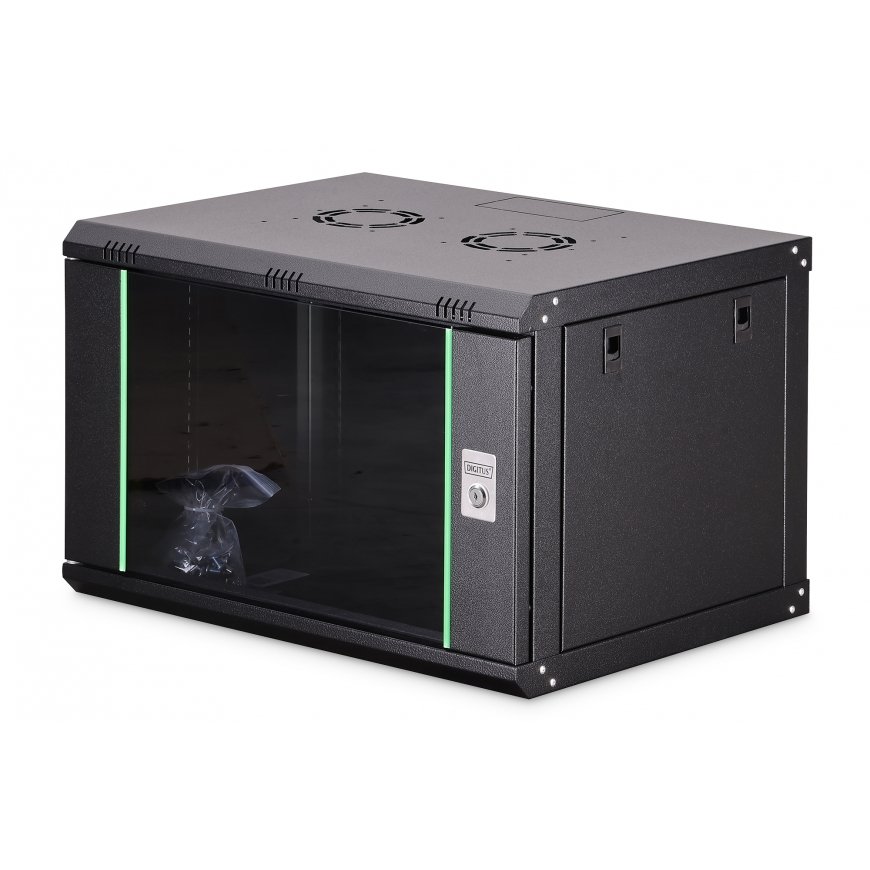

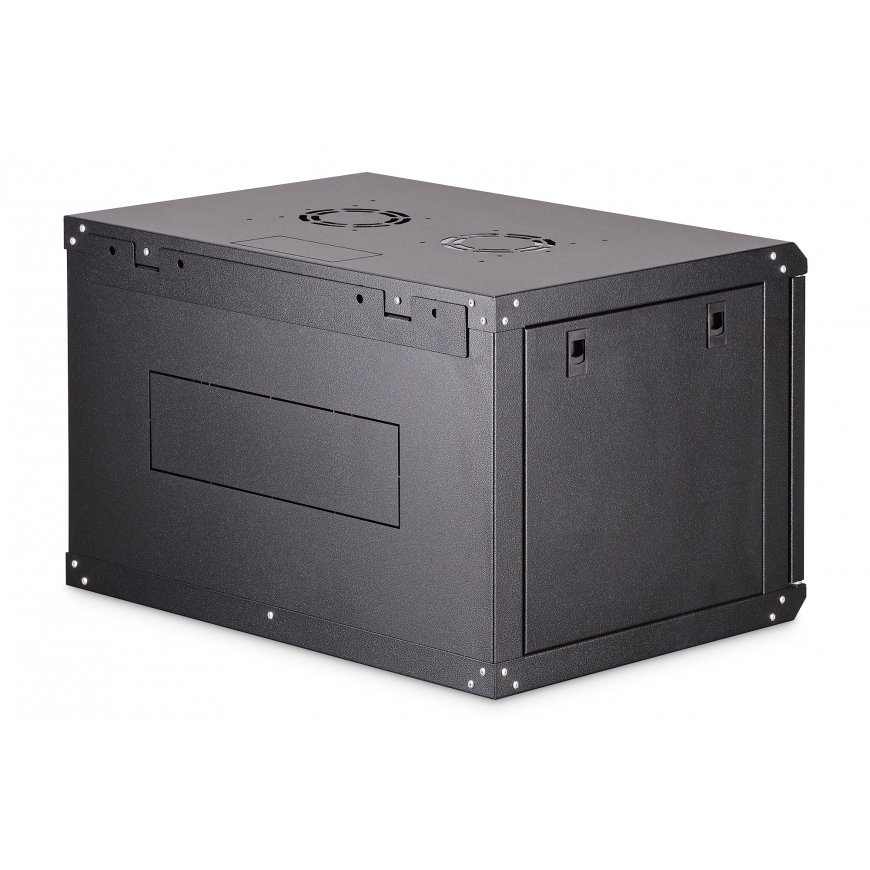

Digitus Wall-mounted enclosure Dynamic Basic series - 600x450 mm (WxD)
131,18 €
Monthly payment from 4.28 €
3185974 DN-19 07-U-EC-SW
4016032257783
Shipping 3-7 b.d.
You are interested in this product?
- Optimum ventilation and air extraction
- Lockable safety glass door with steel frame
The Dynamic series wall-mounted network cabinets have been developed for simple and particularly cost-optimized network expansion. The roof, base and rear panel of each cabinet are equipped with a pre-punched cable inlet. The roof chassis is also provided with a punched-out area to accommodate a fan module. Two pairs of galvanized 483 mm (19") profile rails, labelled with height units that can be read in both directions, are installed inside. These can be adjusted in depth. Each cabinet is a robust steel construction made of up to 1.2 mm thick sheet steel. The coloring takes the form of electrostatic powder coating in the standard colors grey (RAL 7035) and black (RAL 9005). Removable side panels and the lockable and removable front door improve accessibility. The door hinges can be changed. Wall mounting is carried out in two simple steps: The supplied mounting plate is screwed to the wall and then connected to the housing.
Features | |
| Product colour | Black |
| Material | Steel |
| International Protection (IP) code | IP20 |
| Key lock | Yes |
| Maximum weight capacity | 60 kg |
Design | |
| Rack capacity | 7U |
Logistics data | |
| Country of origin | Turkey |
| UK Trade Tariff code | 94032080 |
| Harmonized System (HS) code | 85381000 |
Weight & dimensions | |
| Weight | 15 kg |
| Package weight | 15.4 kg |
| Depth | 450 mm |
| Height | 415 mm |
| Package depth | 430 mm |
| Package height | 480 mm |
| Package width | 480 mm |
| Width | 600 mm |
Technical details | |
| Package volume | 127968 cm³ |
Other features | |
| Type | Wall mounted rack |
