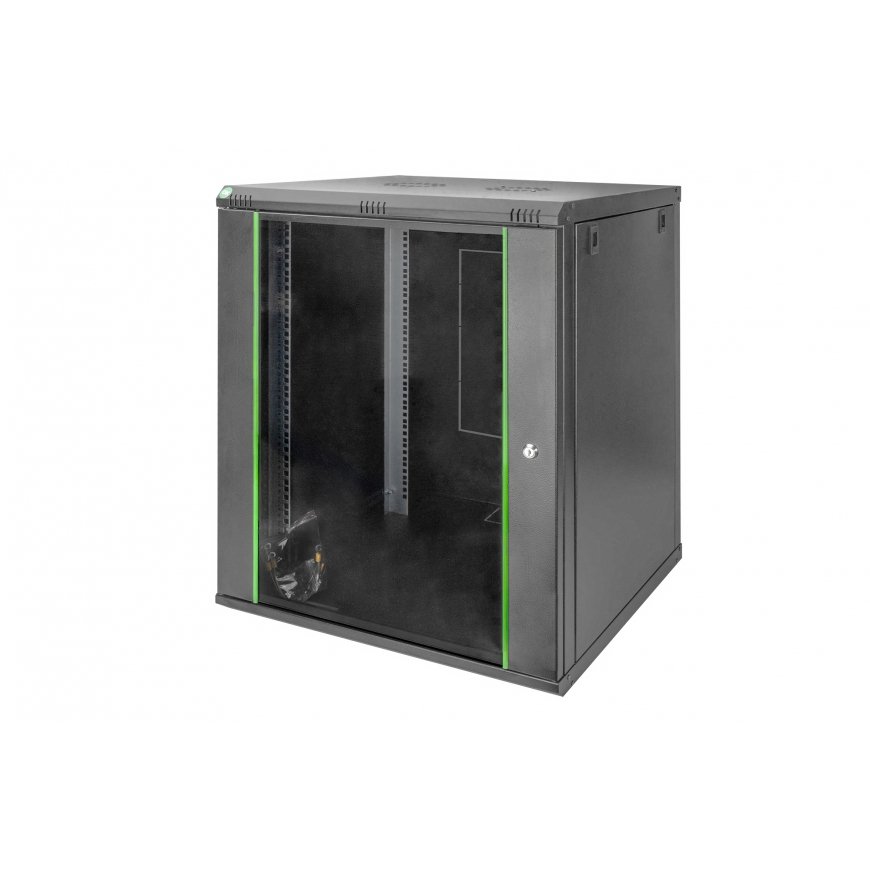

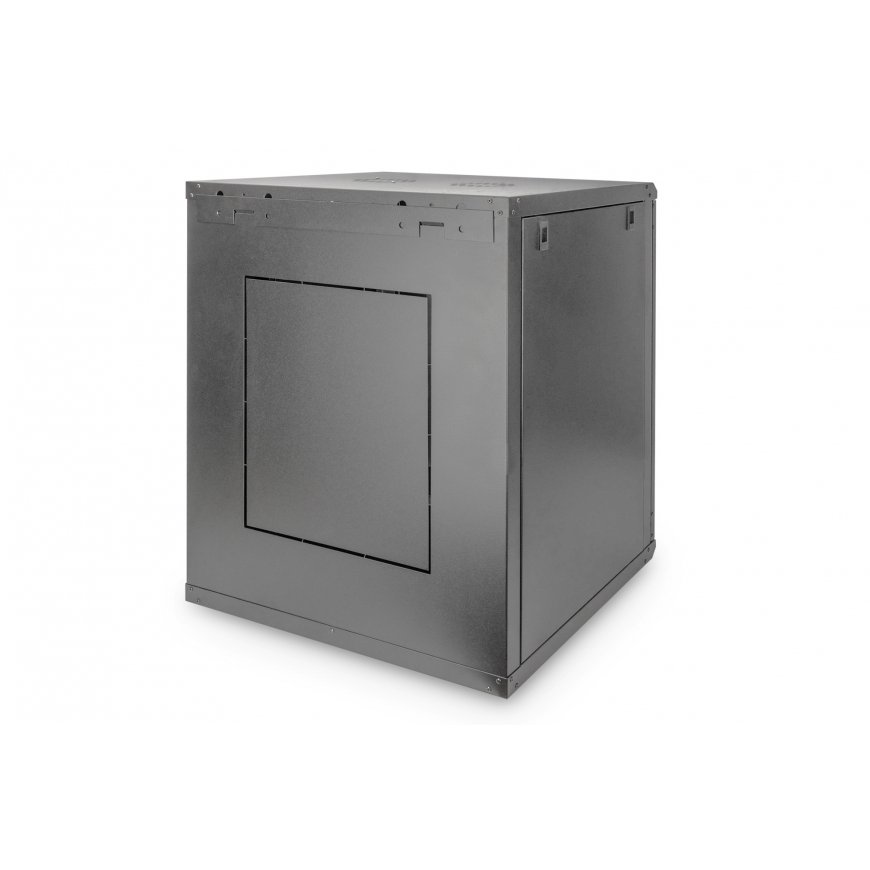

Digitus Wall Mounting Cabinets Dynamic Basic Series - 600x600 mm (WxD)
419,00 €
Monthly payment from 11.69 €
3182835 DN-19 16U-6/6-EC-SW
4016032257875
2026-07-31
You are interested in this product?
- Lockable glass door ensures safety
- 483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
The network cabinets for wall installation from the Dynamic series were developed for easy and especially cost-optimized network expansion. The roof, floor and back wall of each cabinet are equipped with a pre-cut cable inlet. To accommodate a fan module, the roof structure is also equipped with a pre-cut area. Two pairs of galvanized 483 mm (19”) profile rails labeled with rack units readable in both directions are installed on the inside. Their depth can be adjusted. Each cabinet is made of up to 1.5 mm thick sheet steel. Coloring is done with electrostatic powder coating in the standard colors gray (RAL 7035) or jet black (RAL 9005). Removable side walls as well as lockable and removable front door improve accessibility. The door hinges can be switched. Wall installation is accomplished in two easy work steps: The mounting plate provided is bolted on the wall and then connected with the housing.
Features | |
| Product colour | Black |
| Material | Steel |
| International Protection (IP) code | IP20 |
| Key lock | Yes |
| Maximum weight capacity | 60 kg |
Design | |
| Rack capacity | 16U |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 94032080 |
| Harmonized System (HS) code | 85381000 |
Weight & dimensions | |
| Weight | 34 kg |
| Package weight | 27.8 kg |
| Depth | 600 mm |
| Height | 816 mm |
| Package depth | 830 mm |
| Package height | 875 mm |
| Package width | 630 mm |
| Width | 600 mm |
Technical details | |
| Package volume | 324198 cm³ |
Other features | |
| Type | Wall mounted rack |
