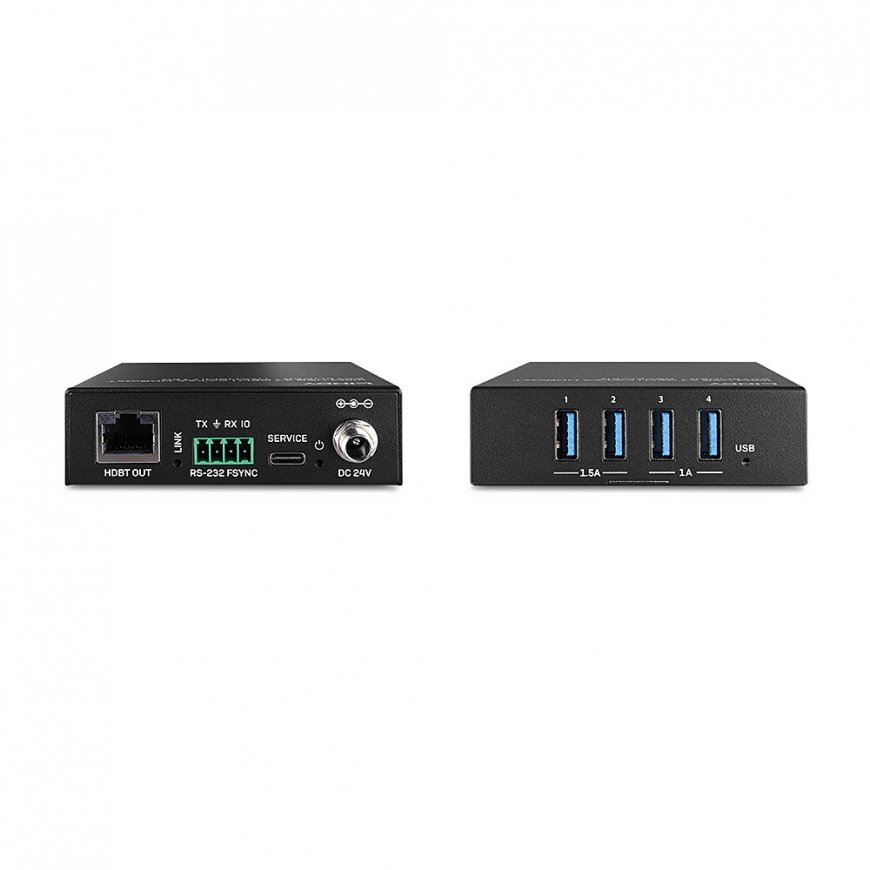

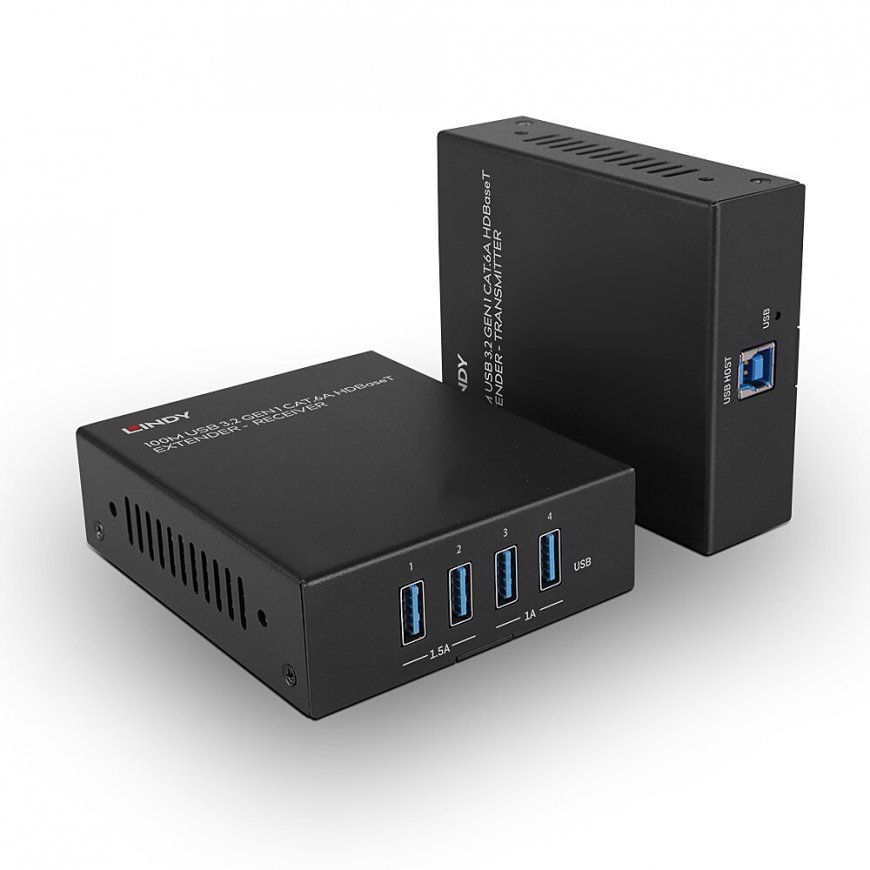

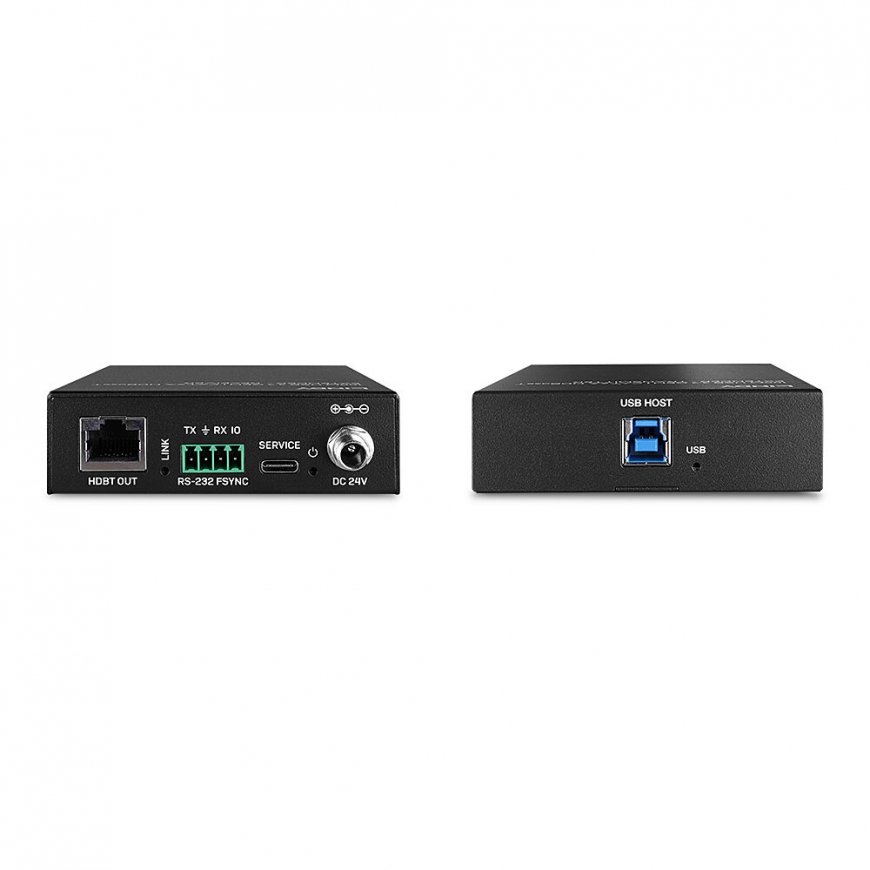

Lindy 100m USB 3.2 Gen 1 Cat.6A HDBaseT Extender
389,00 €
Monthly payment from 10.92 €
3120420 43410
4002888434102
2026-07-28
You are interested in this product?

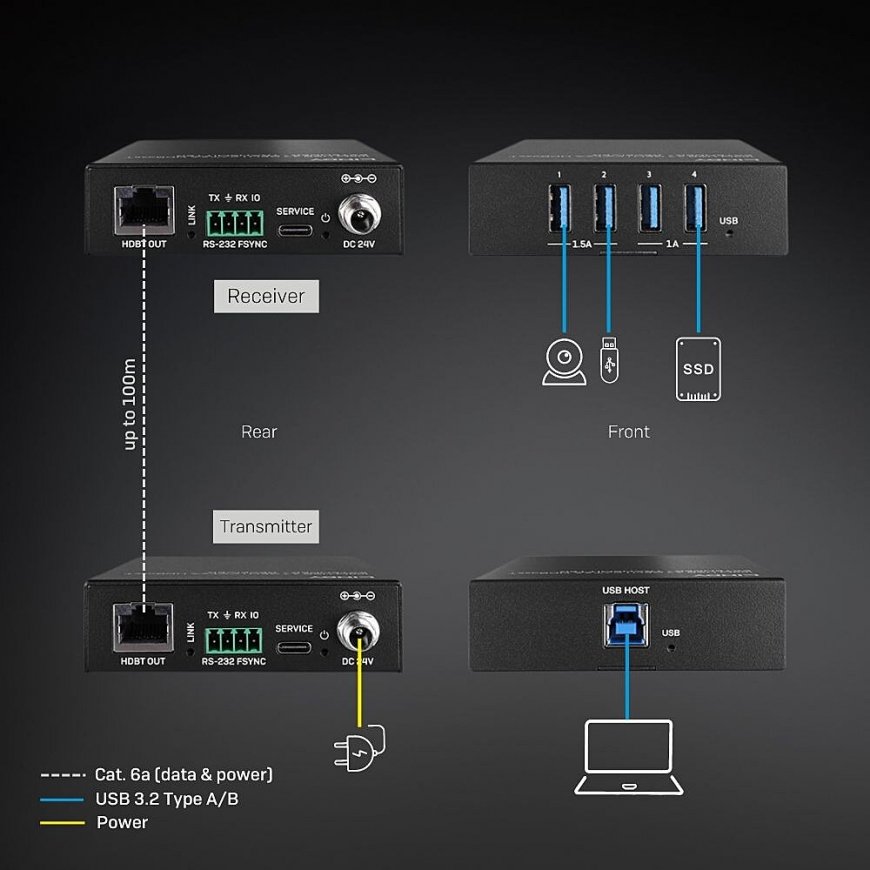

A standard Cat.6A or above network cable* (not included) is used to bridge the connection between the transmitter and the receiver unit at the maximum supported distance of 100m (328.08ft). It's also possible to reach up to 40m using a Cat.6 cable.
The Extender features Power over Cable, which requires a single power supply only to be connected either to the transmitter unit or to the receiver unit. The 4 Type A ports on the Receiver can provide 5V power as well to the connected devices; 2 ports support up to 1.5A each and 2 ports support up to 1A each.

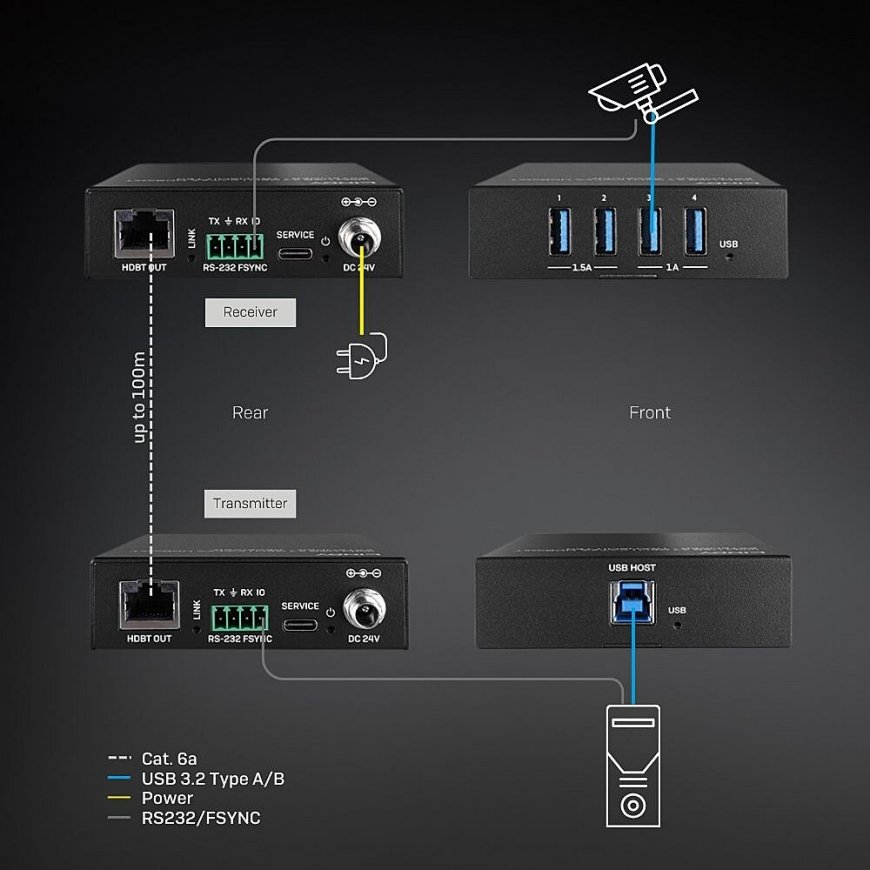

Status LEDs help the user to check power, link between Transmitter and Receiver and if data transfer is running while additional RS232 and FSYNC GPIO pass-though ports allow sending bi-directional commands also for industrial cameras.
With robust metal housing and mounting brackets, this Extender is the ideal solution for professional applications and industrial environments.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
*: To cover long distances close to the 100m limit, we recommend using HDBaseT-certified Cat.6A (or above) cables.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Ports & interfaces | |
| DC-in jack | Yes |
| RS-232 ports | 4 |
Design | |
| LED indicators | Yes |
| Product colour | Black |
Features | |
| Plug and Play | Yes |
Power | |
| AC input voltage | 24 V |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Packaging data | |
| Package width | 235 mm |
| Package depth | 150 mm |
| Package height | 80 mm |
| Package weight | 900 g |
| Screws included | Yes |
Other features | |
| Input current | 2 A |
| Bandwidth | 5 Gbit/s |
Technical details | |
| Compliance certificates | CE, RoHS, REACH, Federal Communications Commission (FCC), UKCA |
Logistics data | |
| Warranty period | 2 year(s) |
Packaging content | |
| AC adapter included | Yes |
| Cables included | USB Type-A |
| Manual | Yes |
