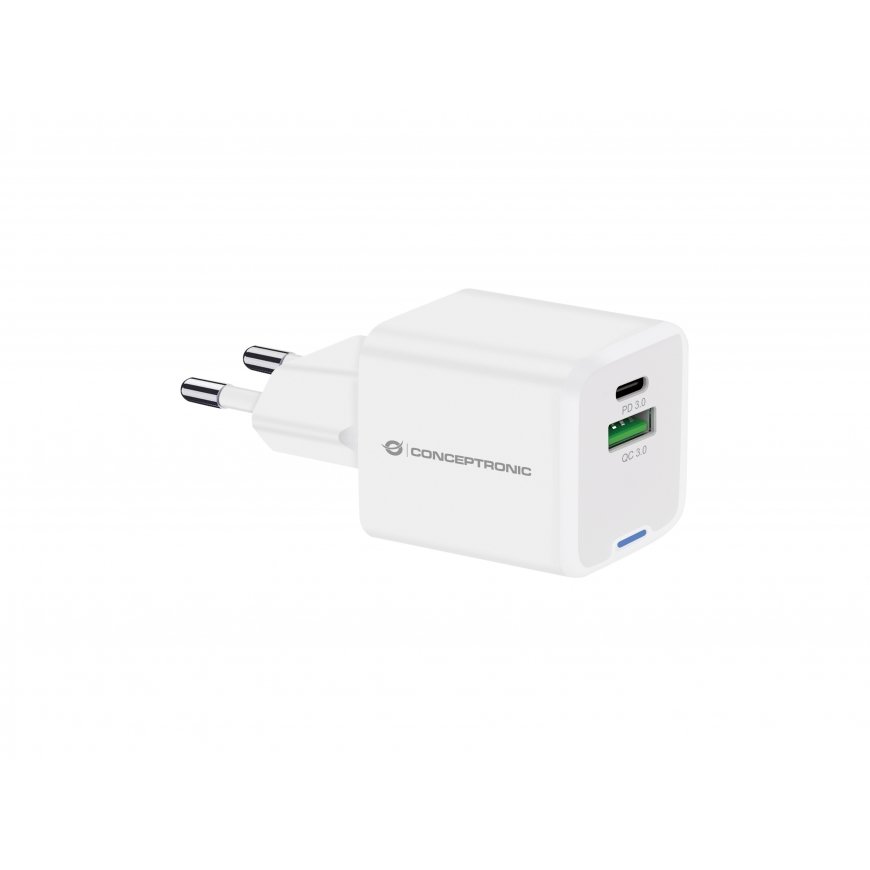

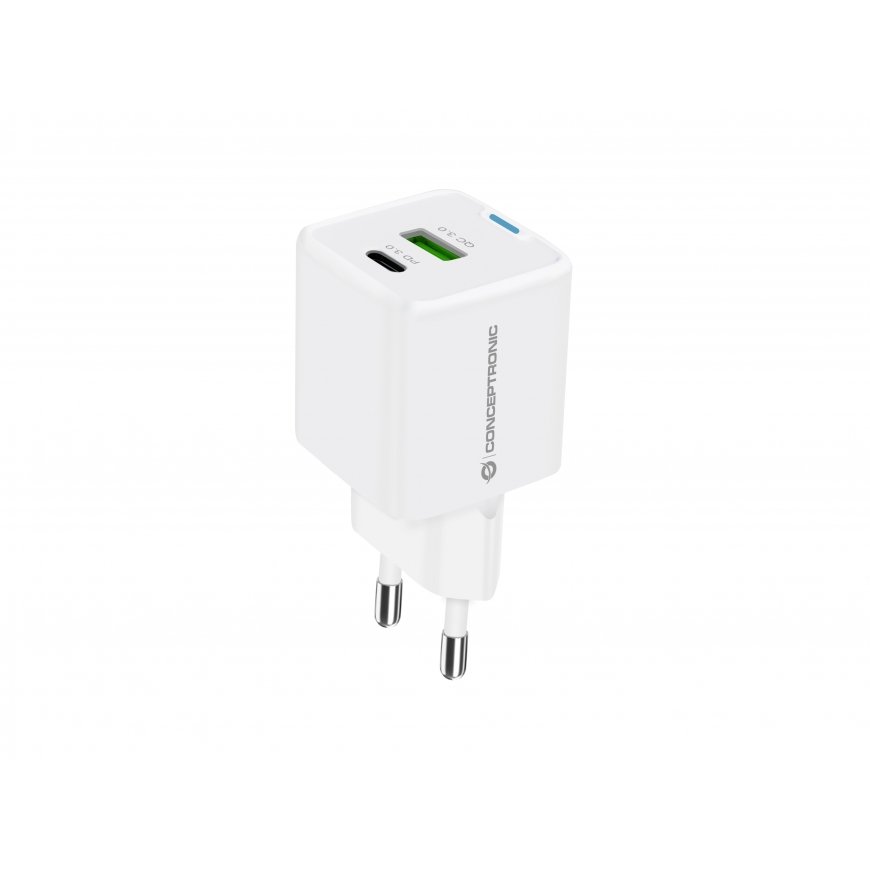

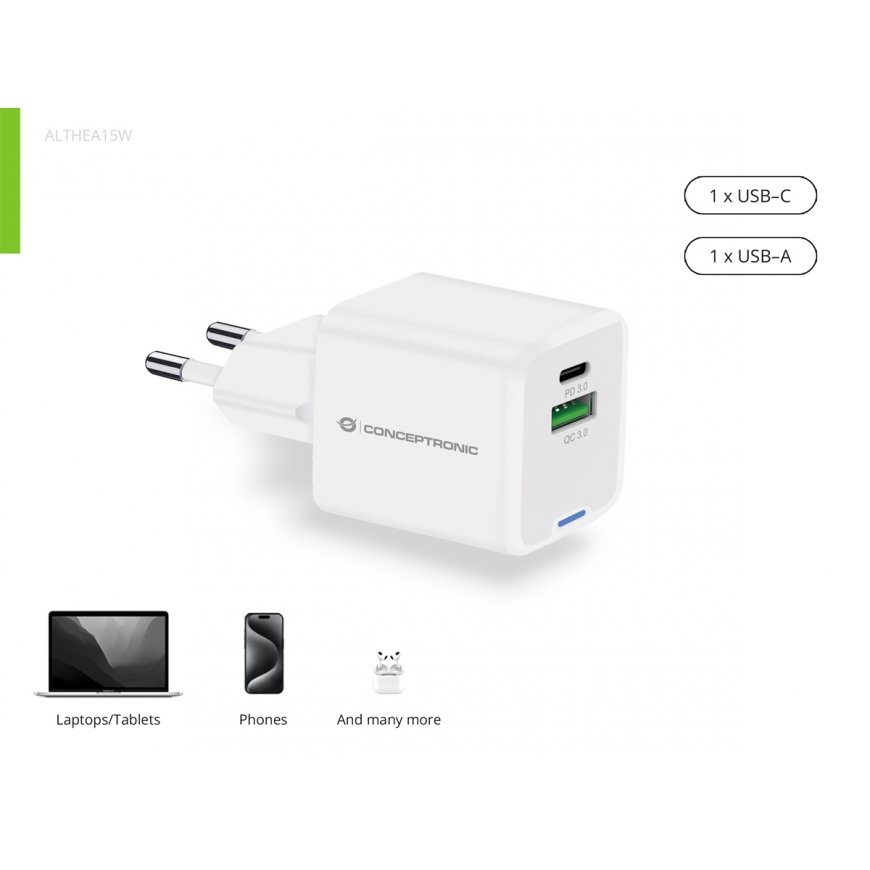

Conceptronic 2-Port 20W GaN USB PD Charger, USB-C x 1, USB-A x 1, QC 3.0, PPS
3057103 ALTHEA15W
4015867236468
Shipping 6-8 b.d.

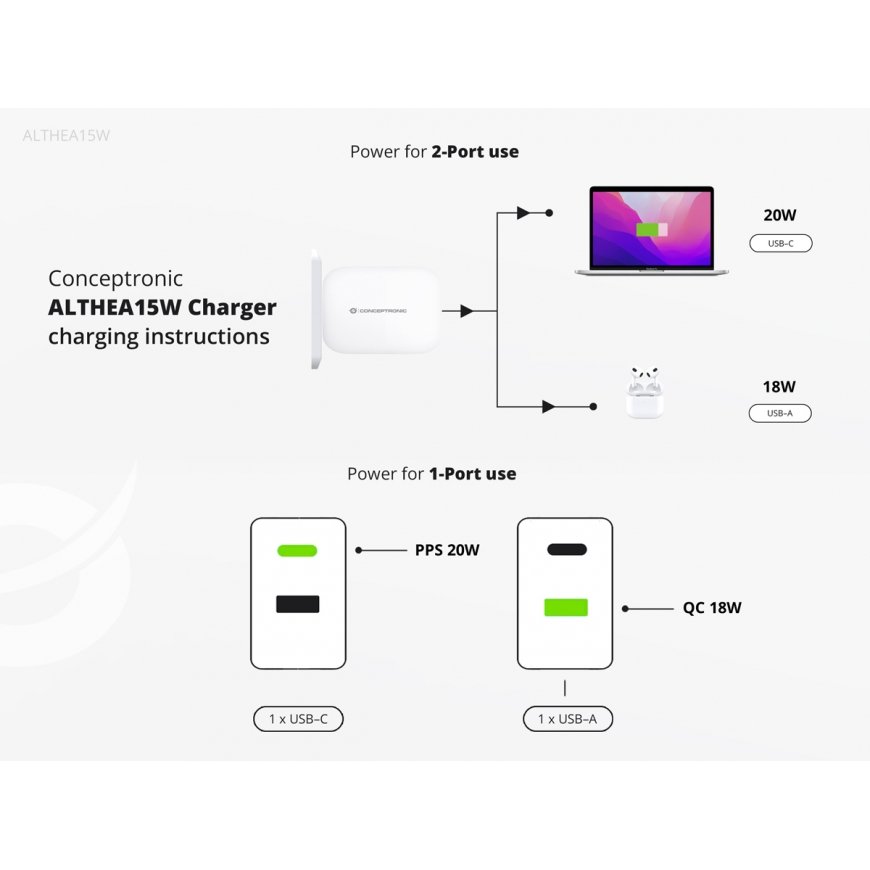

This charger leverages advanced Gallium Nitride (GaN) technology to deliver up to 20W of total power, ensuring faster and more efficient charging. It features a versatile port selection with 1 USB-C port supporting USB Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, allowing simultaneous charging of multiple devices with varying power needs. The charger supports a wide range of output options from 3.3V to 12.0V, making it compatible with everything from smartphones to laptops. Enhanced safety is provided through built-in protections against overload, short circuiting, and overheating. Additionally, it incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies, along with Programmable Power Supply (PPS) compliance, to ensure rapid charging while optimizing efficiency and minimizing heat generation.
Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| Charger type | Indoor |
| Power protection features | Overload, Overheating, Short circuit |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0, Power Delivery |
| USB Type-C ports quantity | 1 |
| Number of simultaneously connected devices (max) | 2 |
Design | |
| Product colour | White |
| Gallium nitride (GaN) transistors | Yes |
Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 20 W |
| Input current | 0.5 A |
| Maximum output voltage | 12 V |
| Minimum output voltage | 3.3 V |
| Output current (5V) | 3 A |
| Output current (9V) | 2.22 A |
| Output current (12V) | 1.67 A |
Packaging data | |
| Package weight | 37 g |
| Package depth | 172 mm |
| Package height | 37 mm |
| Package width | 54 mm |
| Package type | Box |
Weight & dimensions | |
| Weight | 50 g |
| Depth | 72 mm |
| Height | 34 mm |
| Width | 35 mm |
Packaging content | |
| Manual | Yes |
Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 100 pc(s) |
| Master (outer) case width | 450 mm |
| Master (outer) case length | 450 mm |
| Master (outer) case height | 380 mm |
| Master (outer) case gross weight | 6.8 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 180 cm |
| Harmonized System (HS) code | 8504408390 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates | |
| Compliance certificates | CE, RoHS, REACH |
Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
