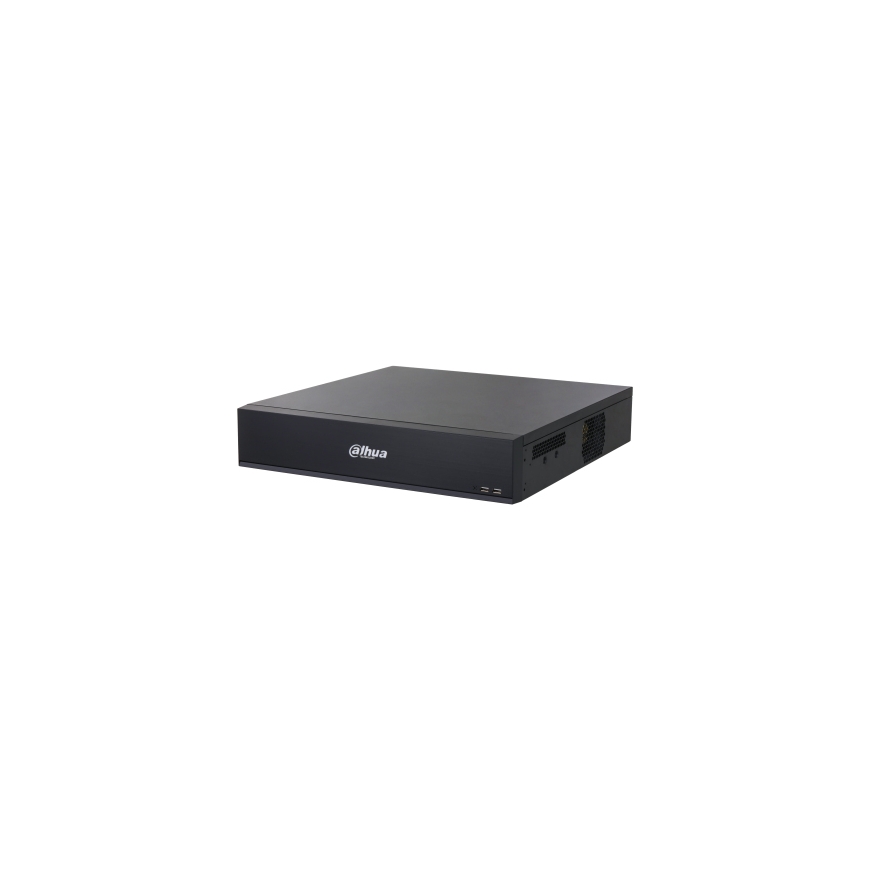

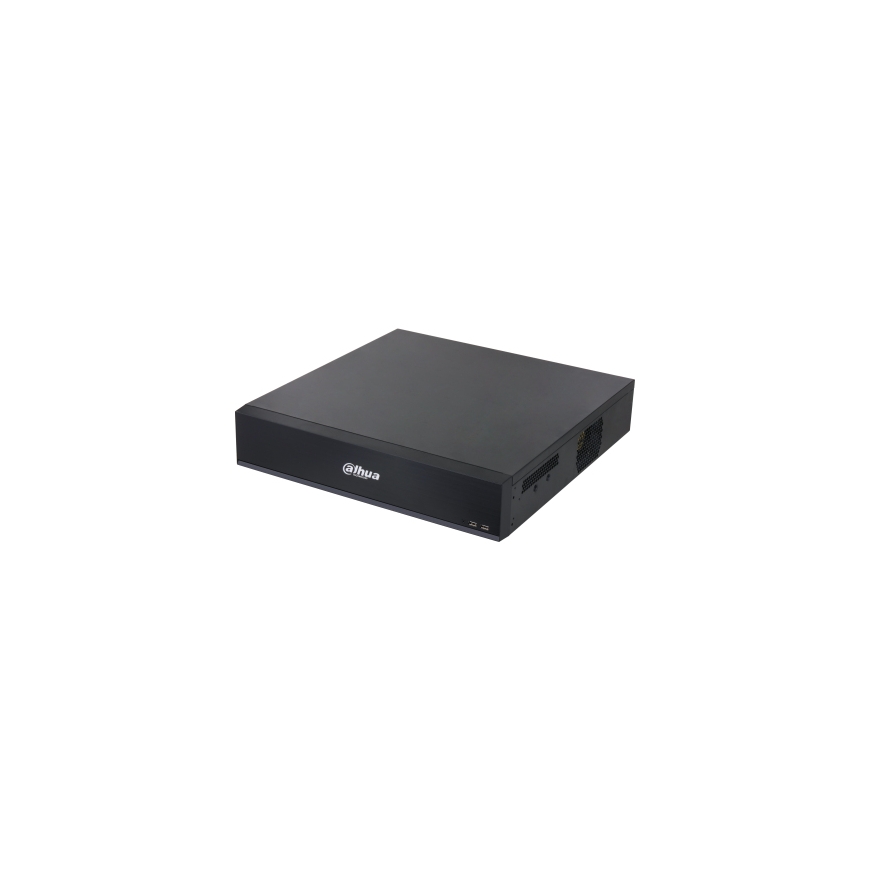

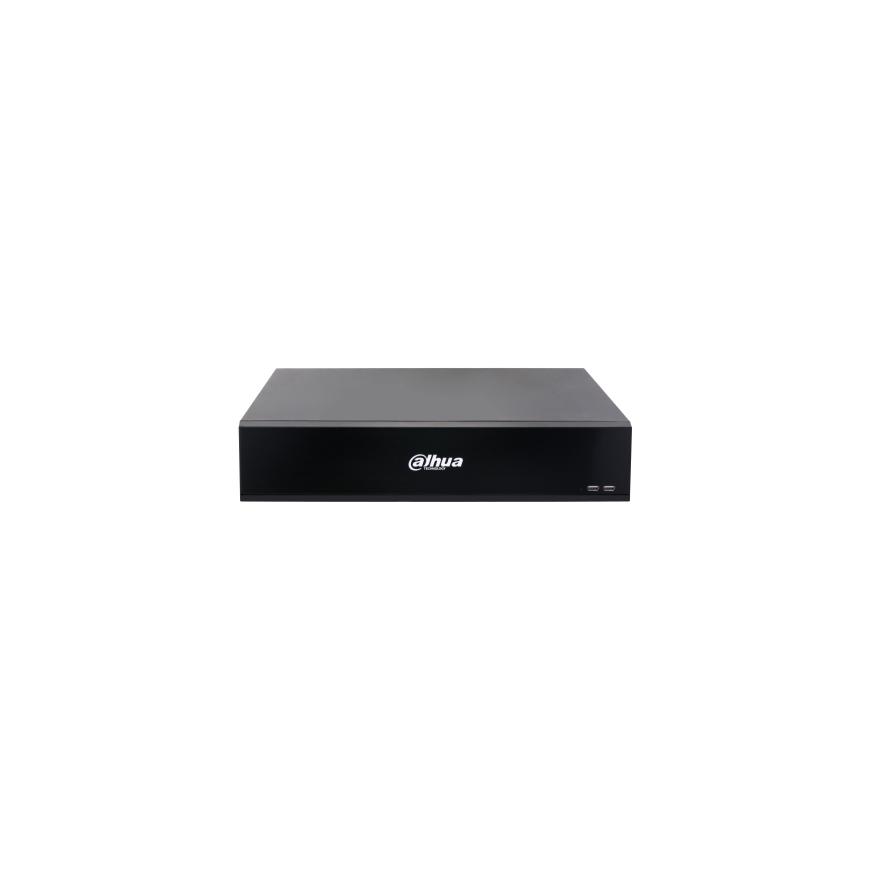

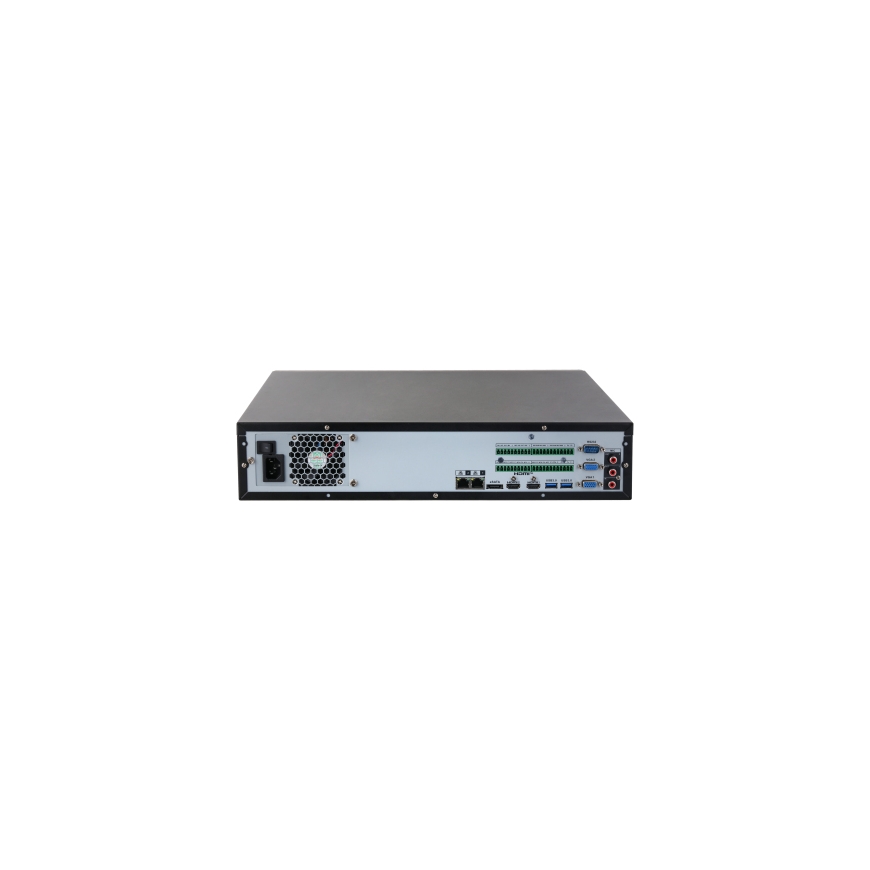

Dahua Technology NVR5864-XI 2U Black
7 699,00 €
7 639,00 €
Monthly payment from 197.60 €
2905923 DHI-NVR5864-XI
6923172511997
Shipping 1-14 b.d.
You are interested in this product?
AI solutions for verticals.
| Wi-Fi | No |
| Product colour | Black |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Audio formats supported | G.711; PCM; G.726; G.711u |
| Weight | 6.46 kg |
| Width | 440 mm |
| Depth | 452.5 mm |
| Height | 94.9 mm |
| Package width | 570 mm |
| Package depth | 570 mm |
| Package height | 226 mm |
| Maximum resolution | 7680 x 4320 pixels |
| Package weight | 8.91 kg |
| Mobile operating systems supported | Android; iOS |
| Certification | Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 93% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10; 100; 1000 |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 13 W |
| AC input frequency | 50/60 Hz |
| Maximum storage capacity | 20 TB |
| Video formats supported | H.264; M-JPEG; H.265; H.264+; H.265+ |
| Supported network protocols | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI |
| Browser supported | Chrome; IE; Safari; Edge; Firefox |
| RS-232 interface | Yes |
| HDD interface | SATA |
| Rack capacity | 2U |
| RS-232 ports | 1 |
| Video input channels | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Number of HDDs supported | 8 |
| VGA (D-Sub) output ports | 2 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 2 |
| RAID levels | 0; 1; 5; 6; 10 |
| Internal SATA ports quantity | 8 |
| RAID support | Yes |
| eSATA ports quantity | 1 |
| RS-485 ports | 2 |
| Number of simultaneously playbacked channels | 16 channels |
| eSATA | Yes |
