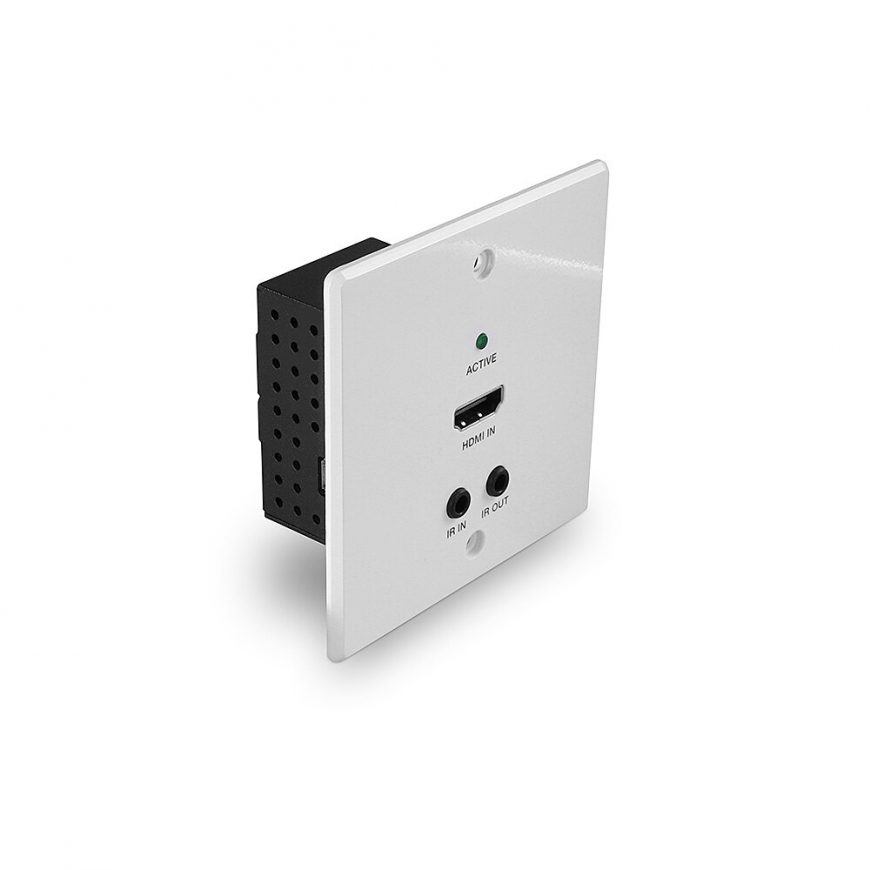

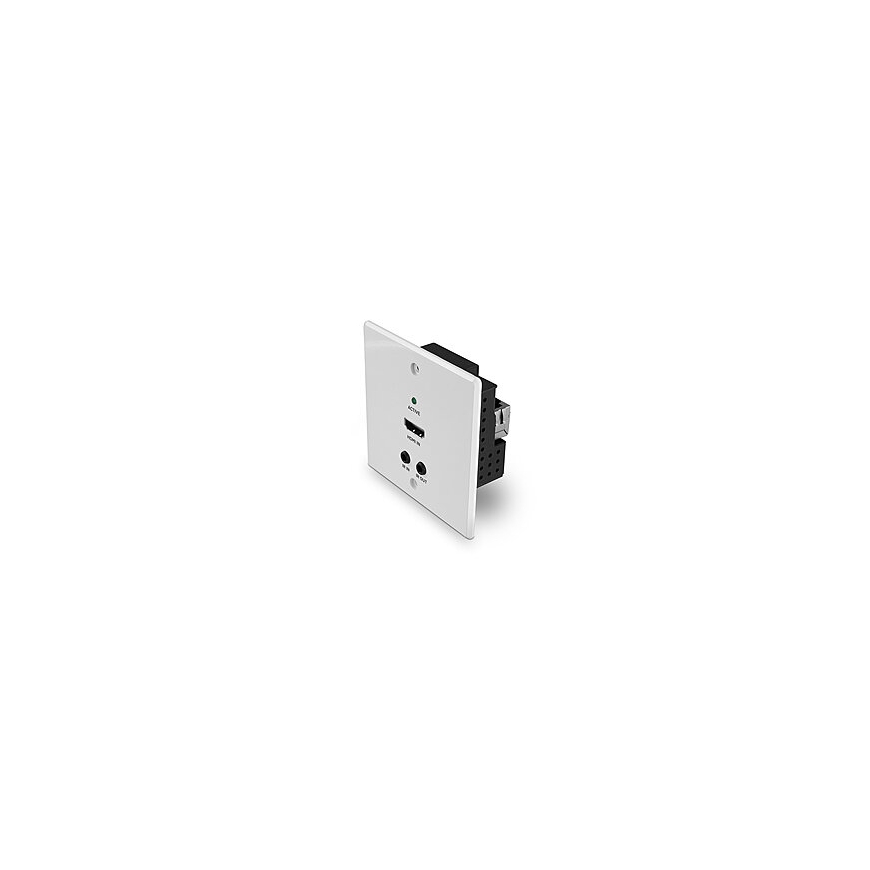

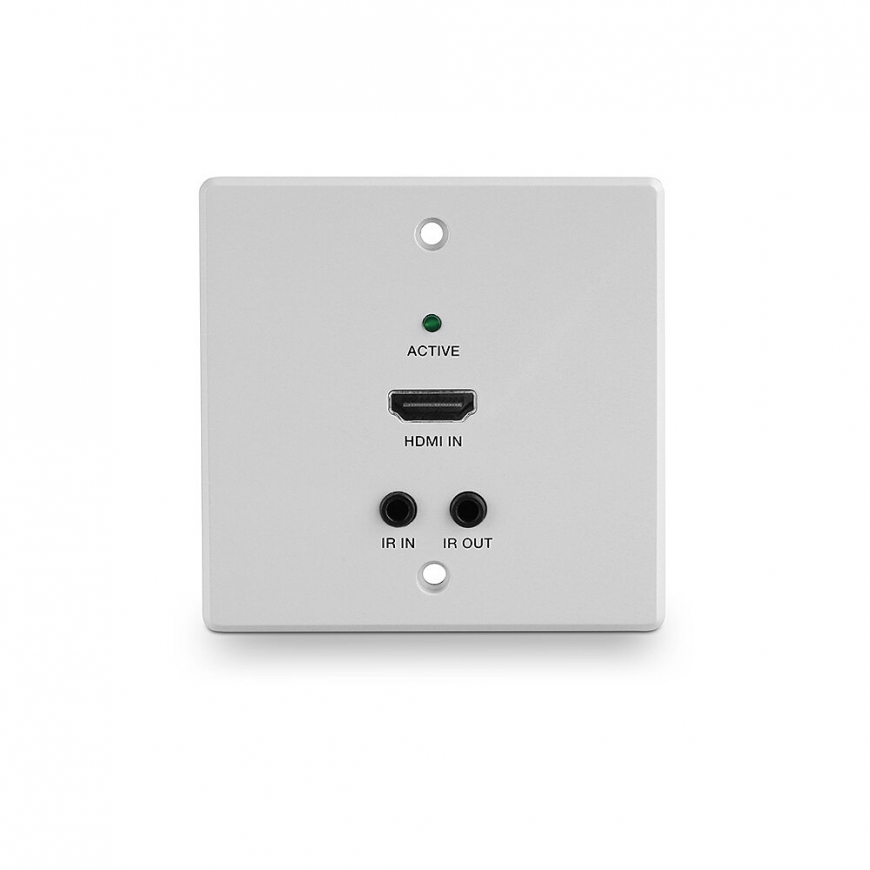

Lindy 38348 AV extender AV transmitter White
209,00 €
Monthly payment from 6.28 €
2870564 38348
4002888383486
2026-07-28
You are interested in this product?
By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.
The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:
70m: 1920x1080@60Hz 4:4:4 8bit
40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

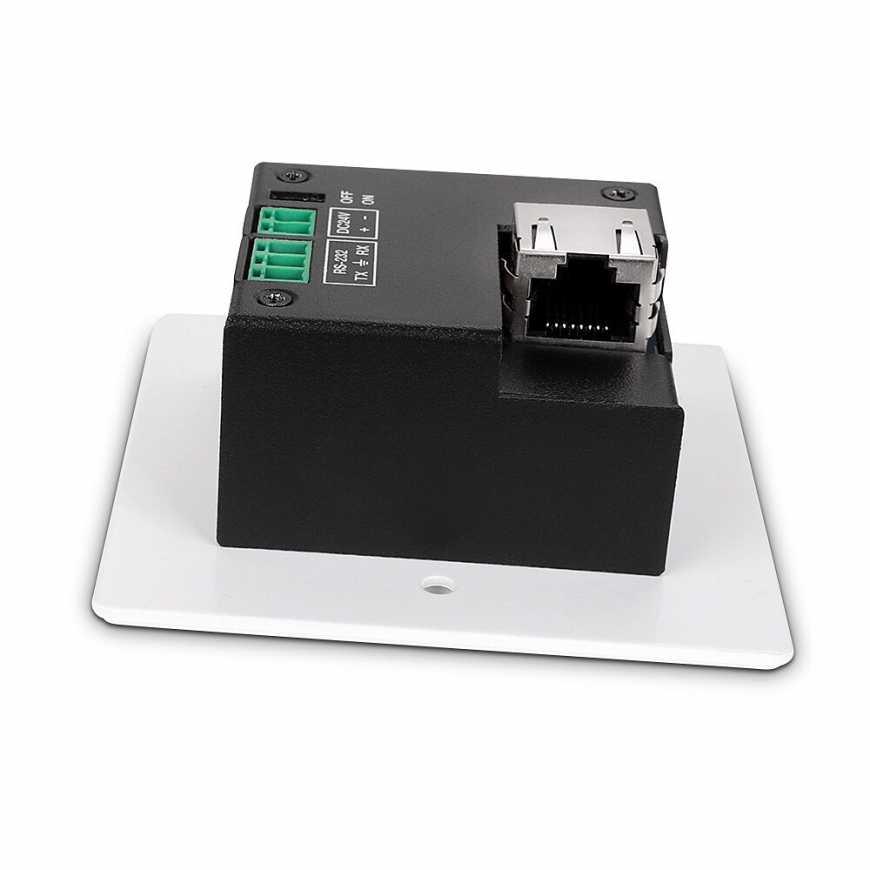

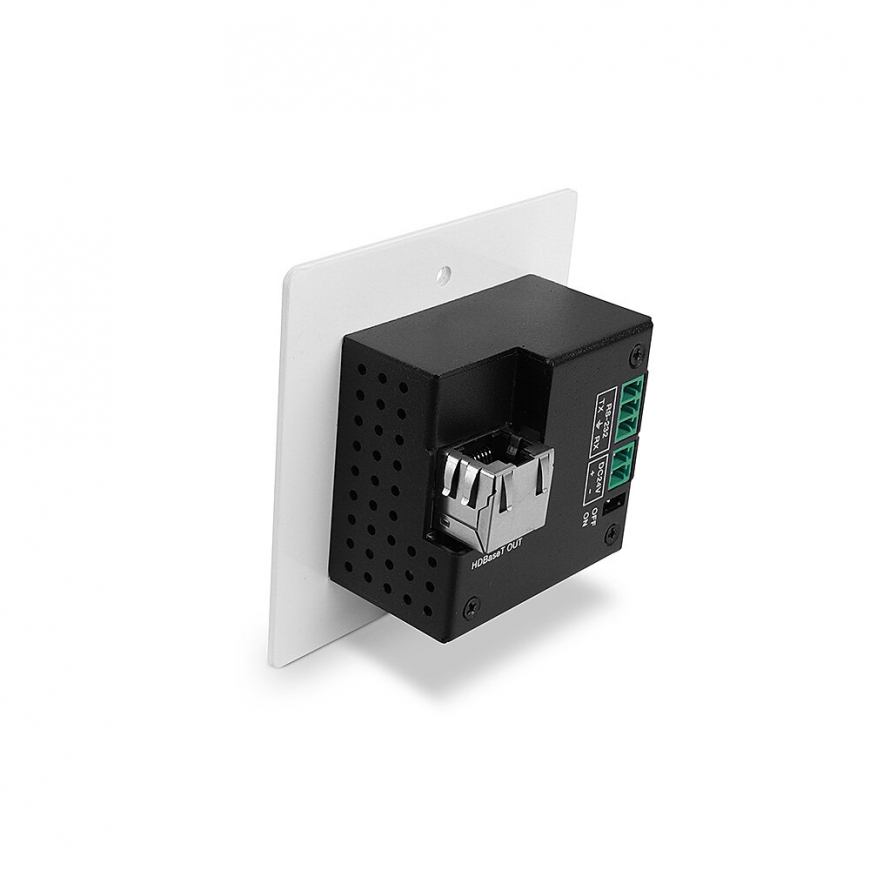

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.
HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
| Product colour | White |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| Weight | 390 g |
| Width | 80 mm |
| Depth | 80 mm |
| Height | 38 mm |
| Type | AV transmitter |
| Package width | 152 mm |
| Package depth | 133 mm |
| Package height | 95 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 540 g |
| Manual | Yes |
| Chipset | VS010 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Output current | 1 A |
| Power source type | DC |
| HDCP | Yes |
| RJ-45 output ports | 1 |
| HDCP version | 2.2 |
| Remote (IR) input | 1 |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| HDMI in | 1 |
| Video in | 1 |
| Sustainability compliance | Yes |
| Remote (IR) output | 1 |
| Operating voltage (transmitter) | 24 V |
| Extended display identification data (EDID) | Yes |
| HDBaseT port | Yes |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Bidirectional | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Transceiver(s) included | Yes |
| Compliance certificates | CE; RoHS; Federal Communications Commission (FCC); UKCA |
