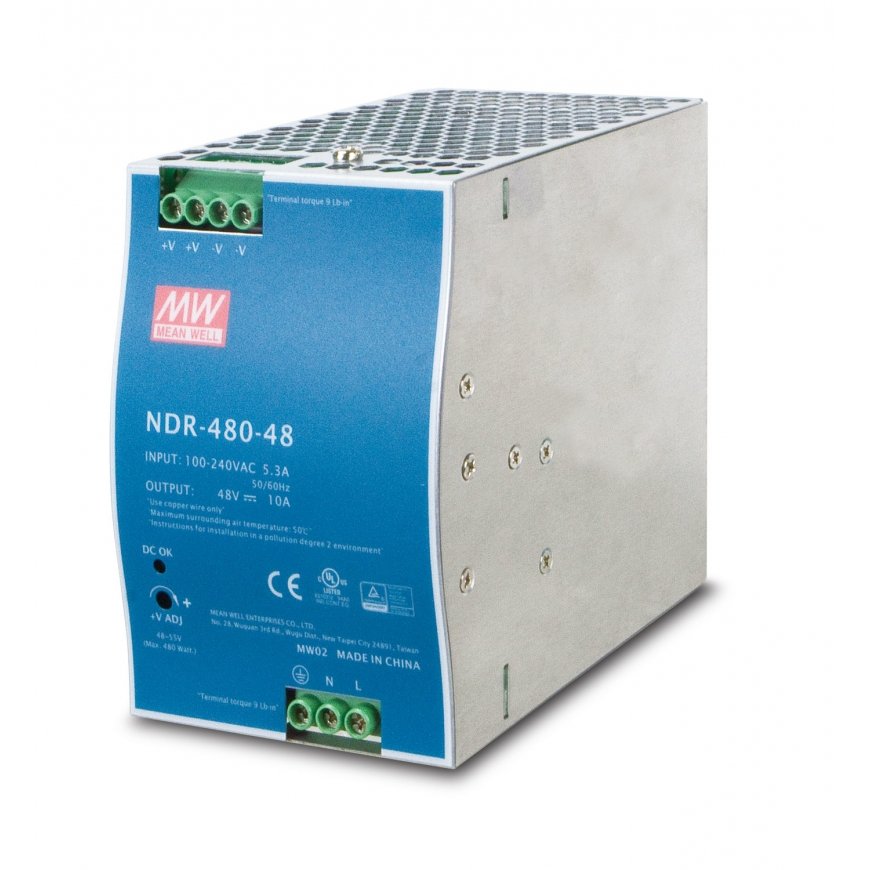

PLANET PWR-480-48 power supply unit 480 W Blue, Grey
189,00 €
Monthly payment from 5.77 €
2774331 PWR-480-48
4711605283359, 0994333552834, 4016032385790, 5420016851109
2026-07-23
You are interested in this product?
PLANET has released a series of DC single output industrial DIN rail power supply units to make sure that industrial Ethernet devices, specially designed for the harsh working environment, get DC voltage power easily.
PLANET DC single output industrial DIN rail power supply units accept universal 100-240V AC input voltage and provide 48V DC power output with various watt values. Its power supply units are designed in compact size and can be installed on DIN rail TS-35 / 7.5 or 15. It is an ideal and convenient DC power feeding solution for Industrial equipment under heavy Industrial environments.
Stable Performance under Difficult Environments
PLANET DC single output industrial DIN rail power supply units come with such protection features as short circuit, overload, over voltage and over temperature for the stable operation of industrial Ethernet equipment. It uses the free air convection cooling system to prevent operating temperature from rising. Being able to operate under the temperature range from -20 to 70 degrees C (maximum), the DC single output industrial DIN rail power supply units can be placed in almost any difficult environments.
Power | |
| Input current | 4.8 A |
| Power protection features | Overload, Over voltage, Overheating, Short circuit |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 480 W |
Design | |
| Product colour | Grey, Blue |
| Cooling type | Passive |
| On/off switch | No |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 95% |
| Operating temperature (T-T) | -20 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Weight | 1.5 kg |
| Width | 85 mm |
| Depth | 125 mm |
| Height | 128 mm |
Other features | |
| Output power description | 480W |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Safety regulation & standards | |
| Safety | Ul508, TUV EN60950-1 |
